Year |
2000 |
|---|---|
Make |
Brown |
Model |
M1801 |
Description |
Single Station/Cut-Sheet Thermoformer |
Reference # |
8077133 |
Price |
Activate Pricing |

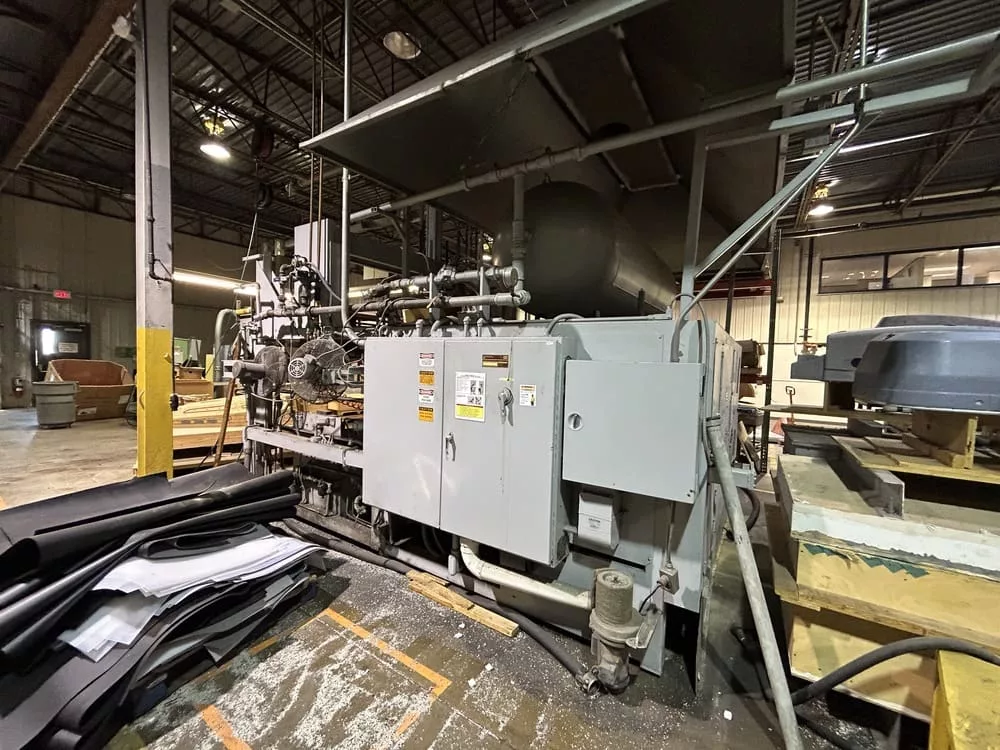

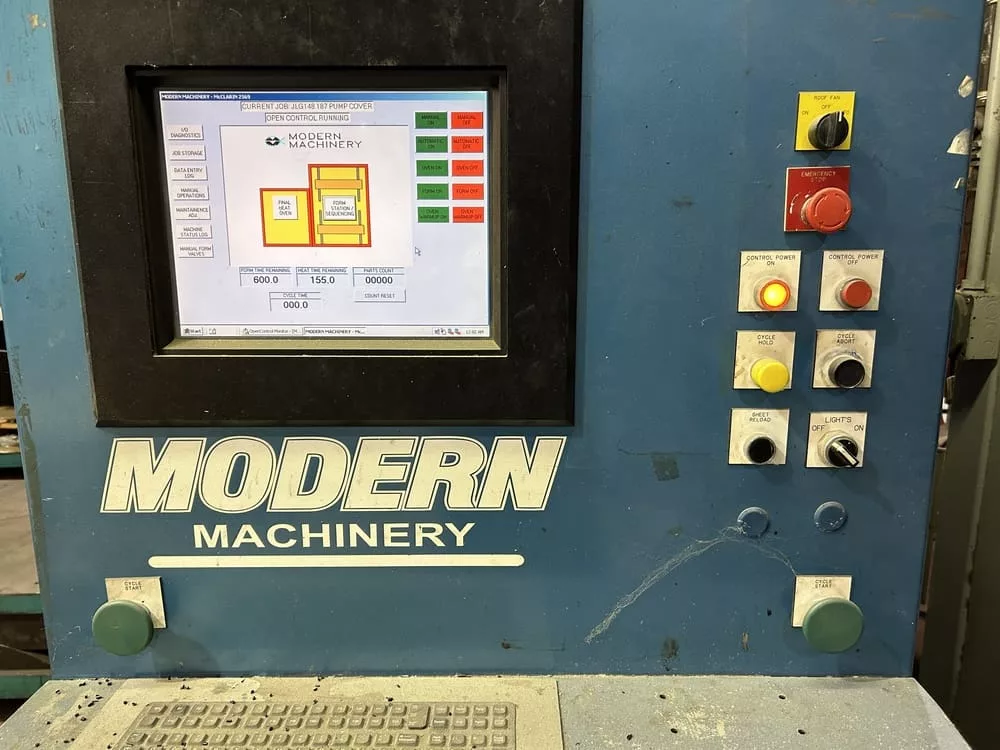

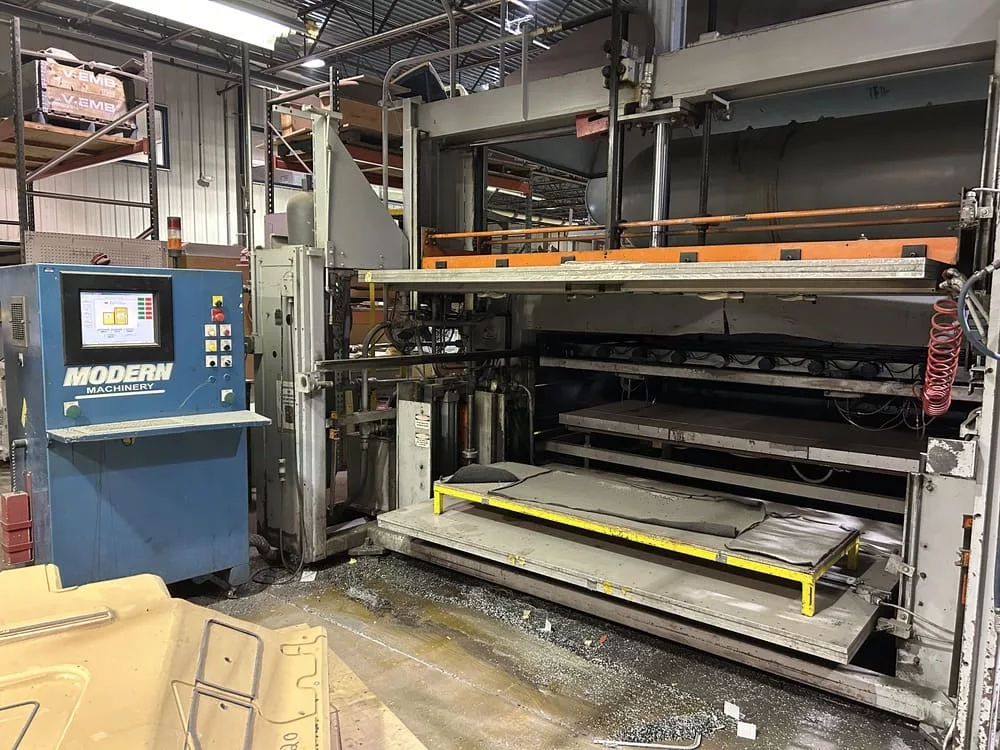

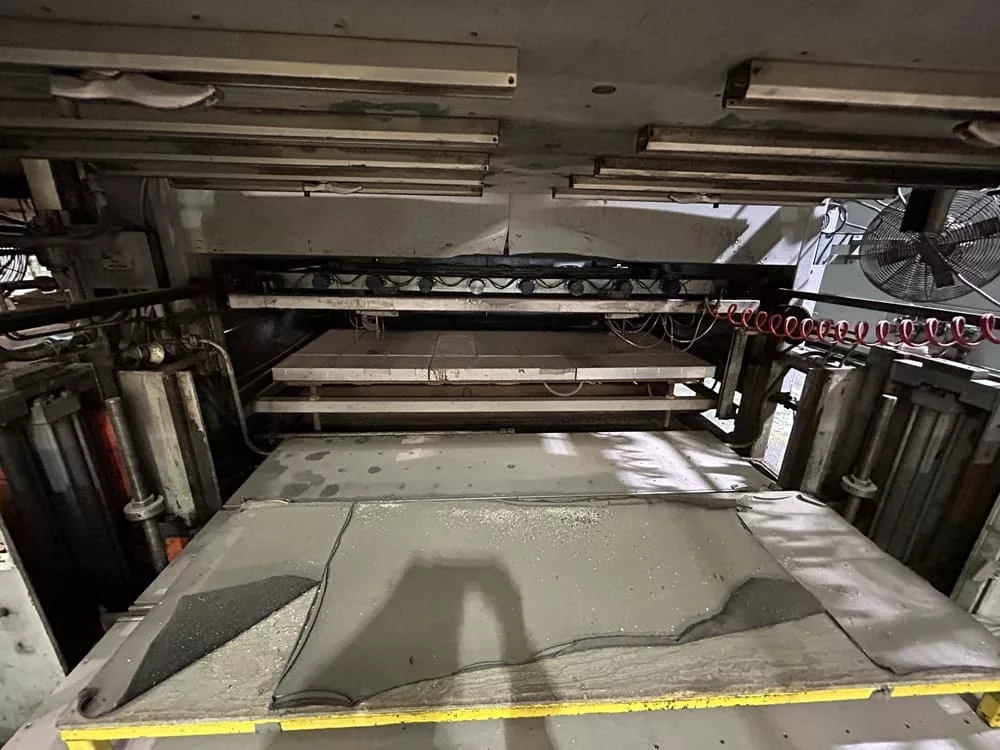

Used Brown M1801 (2000) Thermoformer for Sale. This single-station machine is fitted with solar quartz panel ovens top and bottom, each divided into five zones, and handles a maximum forming area of 58″ x 92″. Top platen stroke is 30.5″ and bottom platen stroke is 41.75″, with hydraulic platen drives. Controls are a Modern Machinery touch screen, and the machine was rebuilt by Modern Machinery. It includes a vacuum tank; no pump is supplied, as the machine was previously connected to a centralized system. Power requirement is 480V, 60 Hz, 228 Amps. The machine can be seen under power for an inspection. See more equipment in our used thermoforming category, then [Activate Pricing](#activate-pricing) and Request a Quote.
Specifications
| Top Oven |
Solar Quartz Panel |
|---|---|
| Top Oven Zones |
5 |
| Bottom Oven |
Solar Quartz Panel |
| Bottom Oven Zones |
5 |
| Max Forming Area |
58" x 92" |
| Top Platen Stroke |
30.5" |
| Bottom Platen Stroke |
41.75" |
| Platen Drives |
Hydraulic |
| Control |
Modern Machinery Touch Screen |
| Power Requirement |
480V - 60 - 228 Amps |
Features
|
Rebuilt by Modern Machinery |
Vacuum Tank (No pump/It was hooked to a Centralized System) |
