Year |
2023 |
|---|---|
Make |
Illig |
Model |
RDKP 72K |
Description |
Thermoformer |
Reference # |
8079008 |
Price |
Activate Pricing |

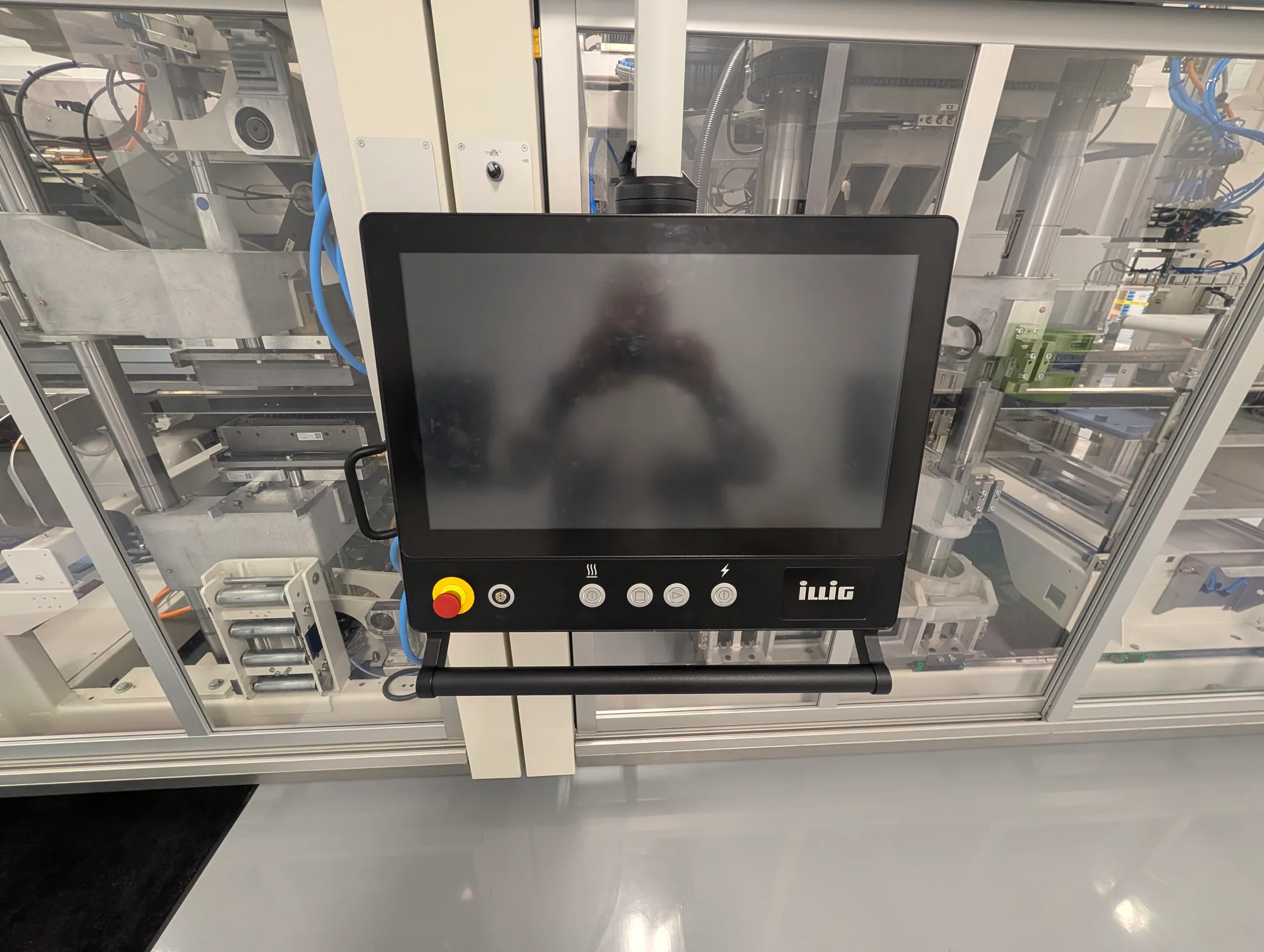

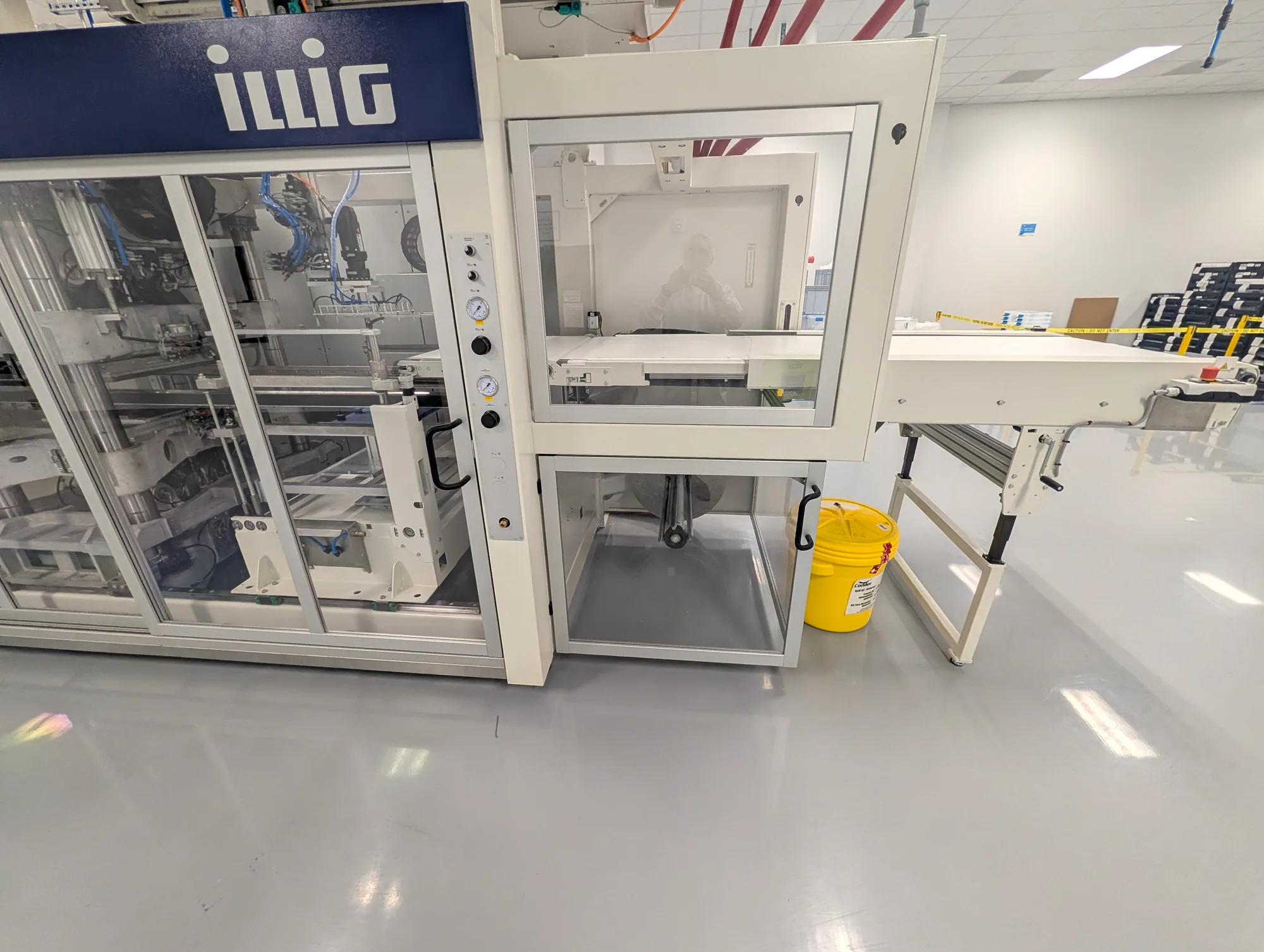

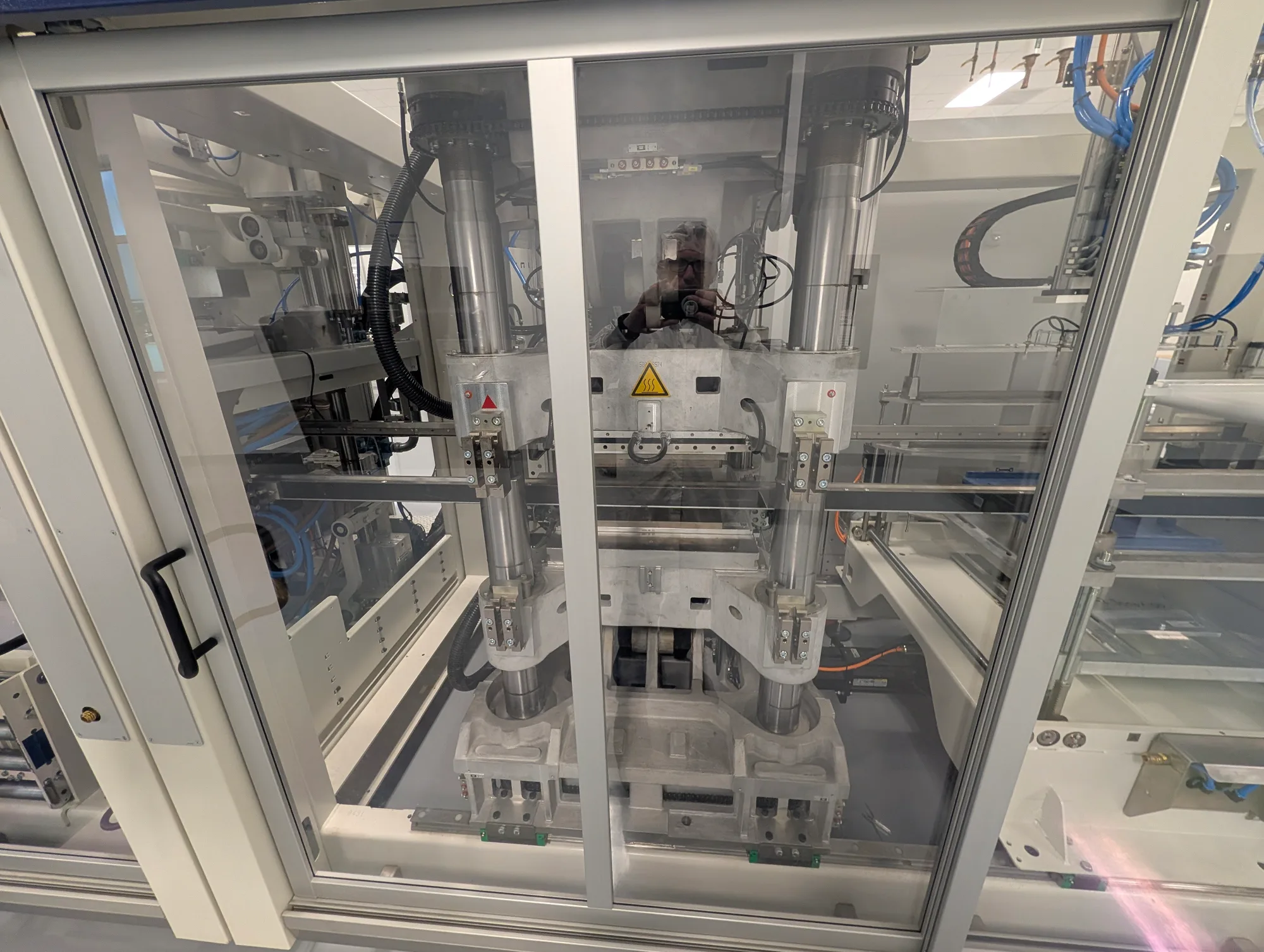

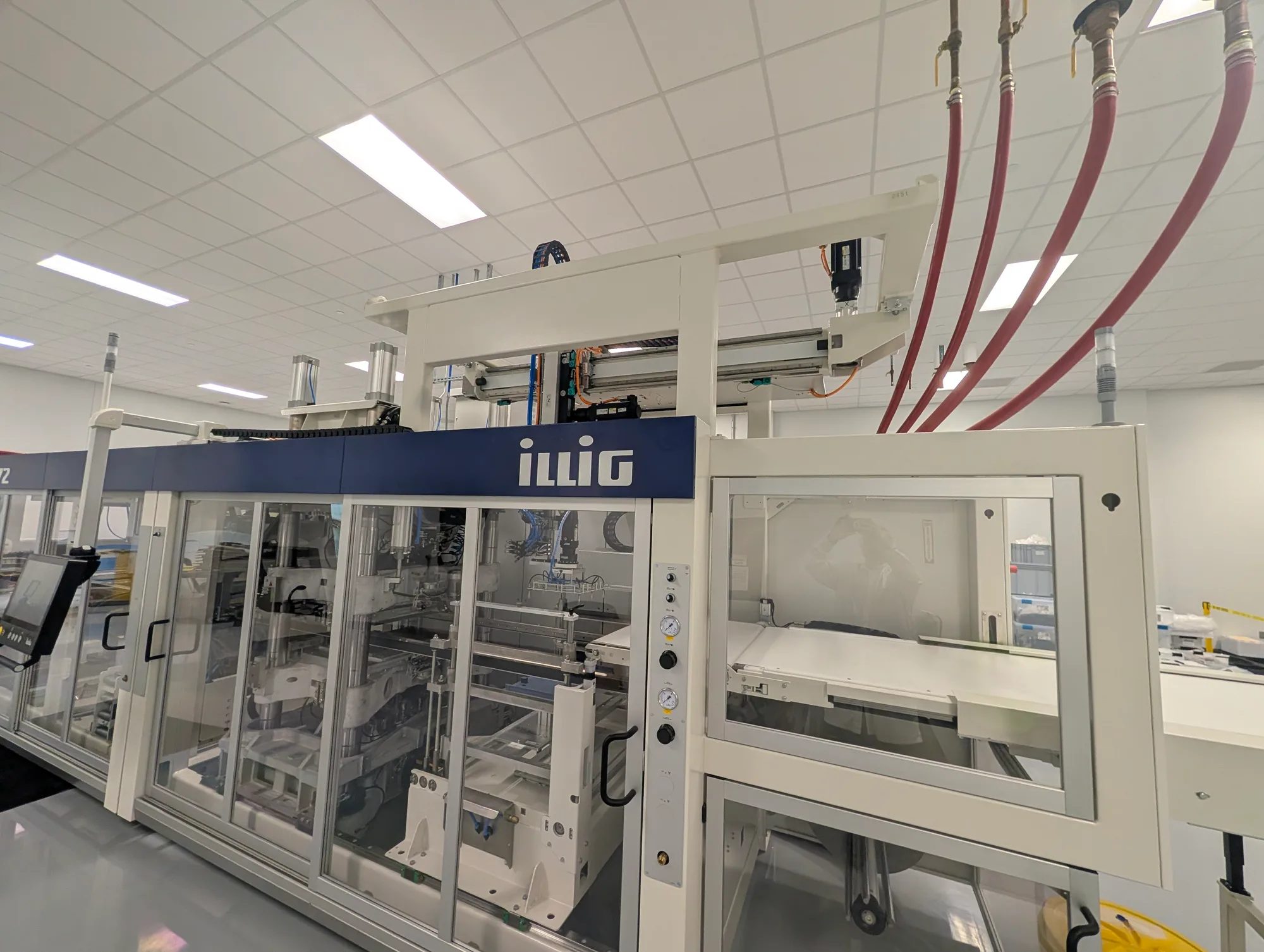

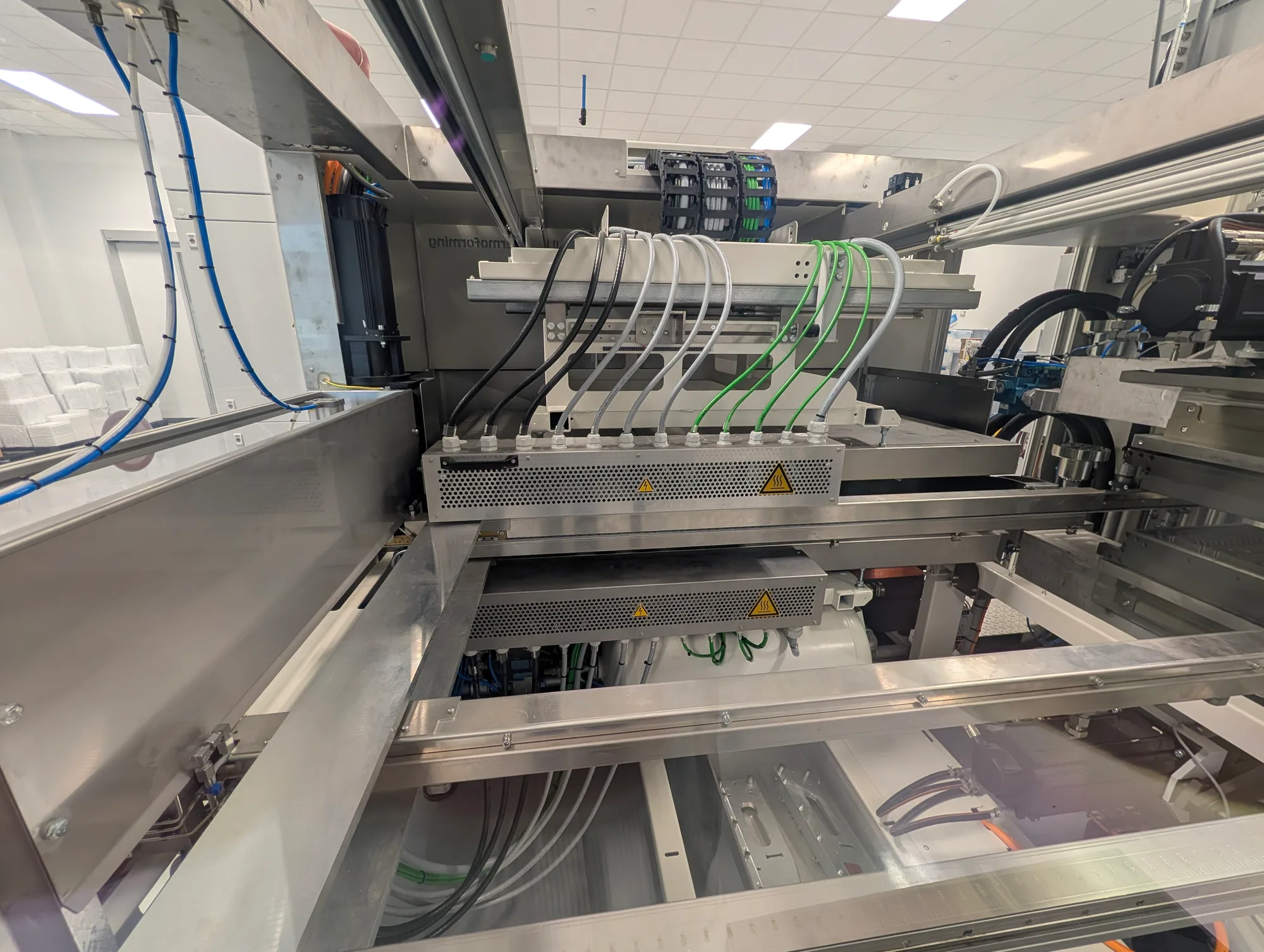

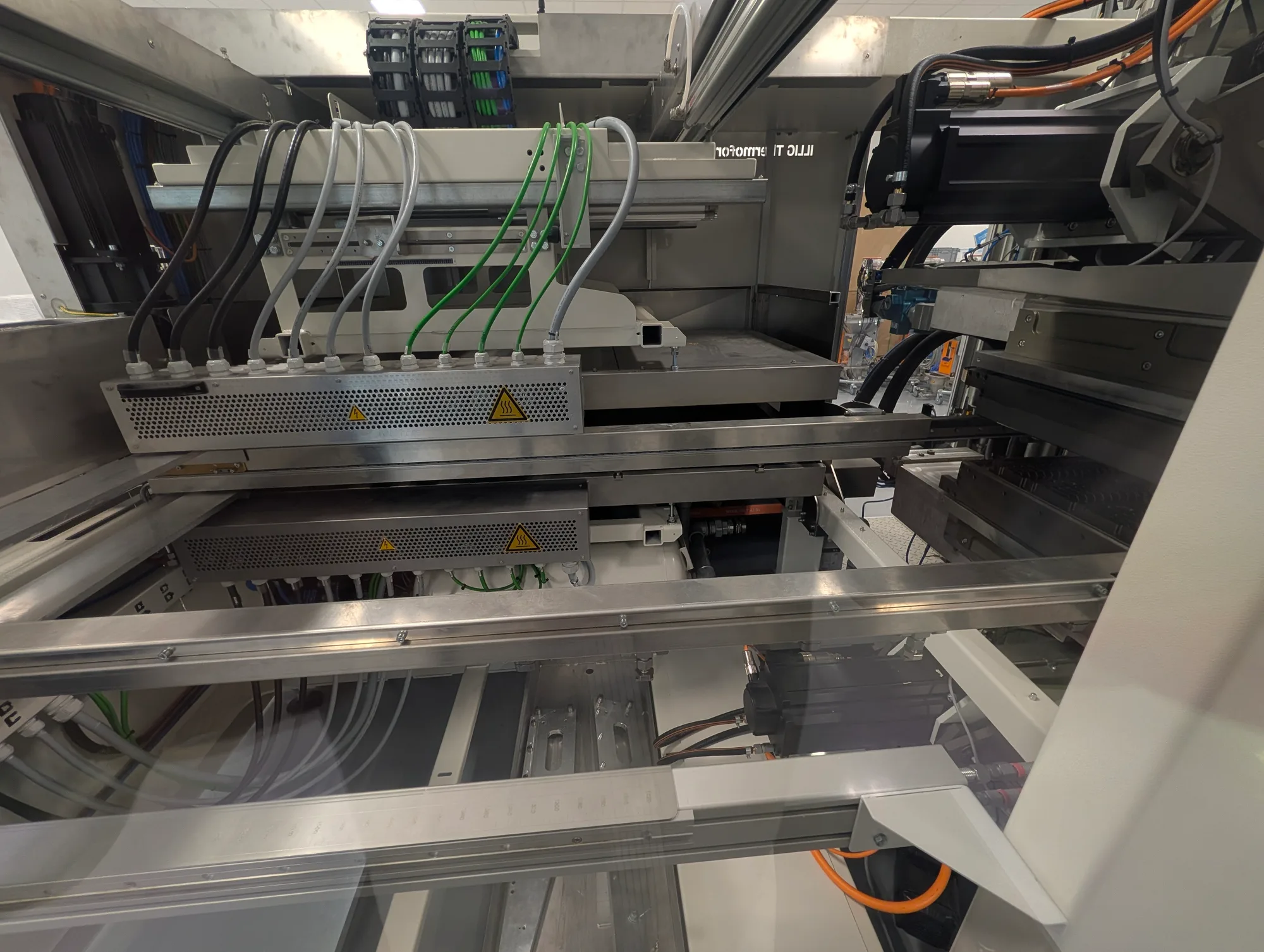

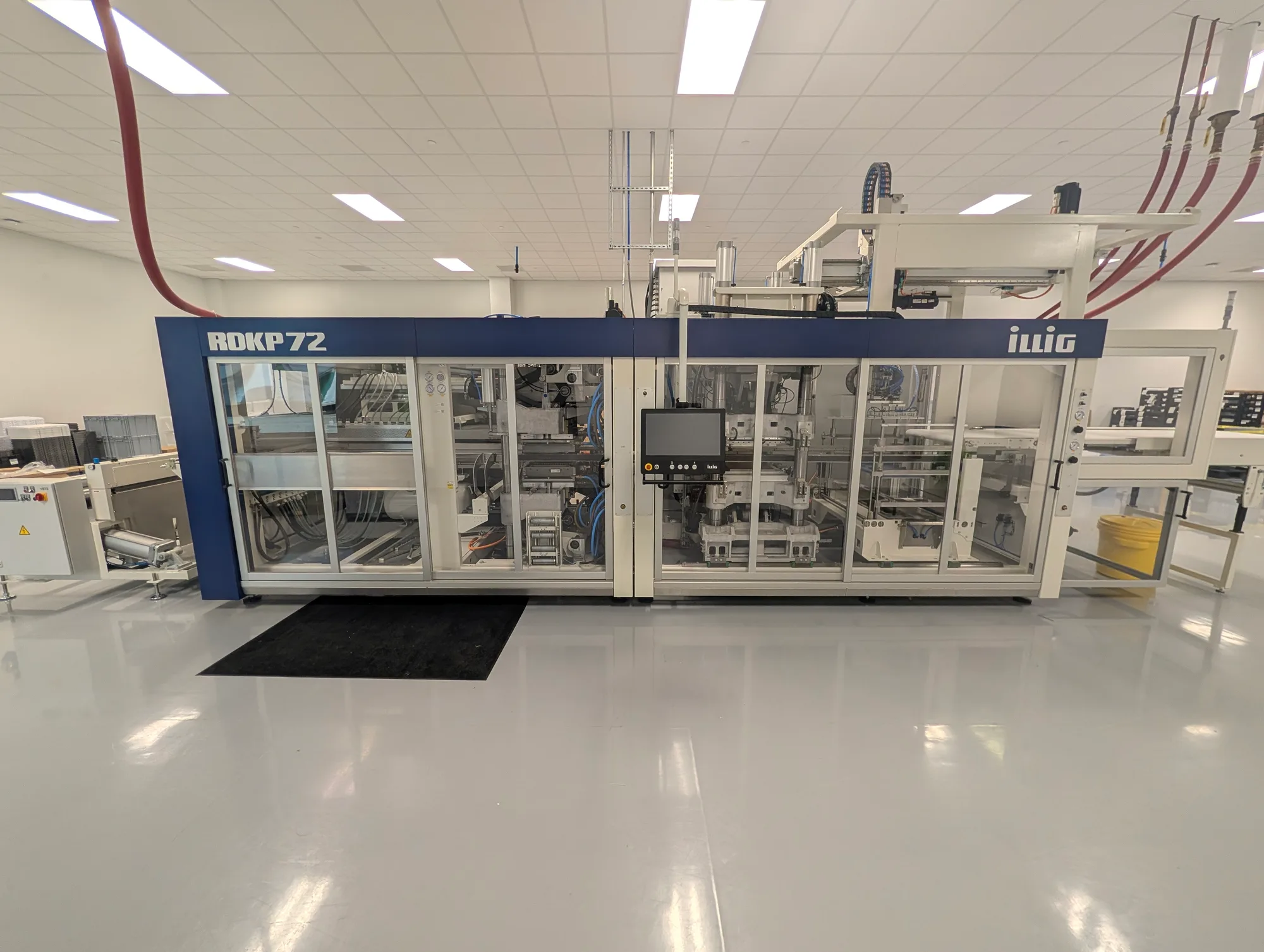

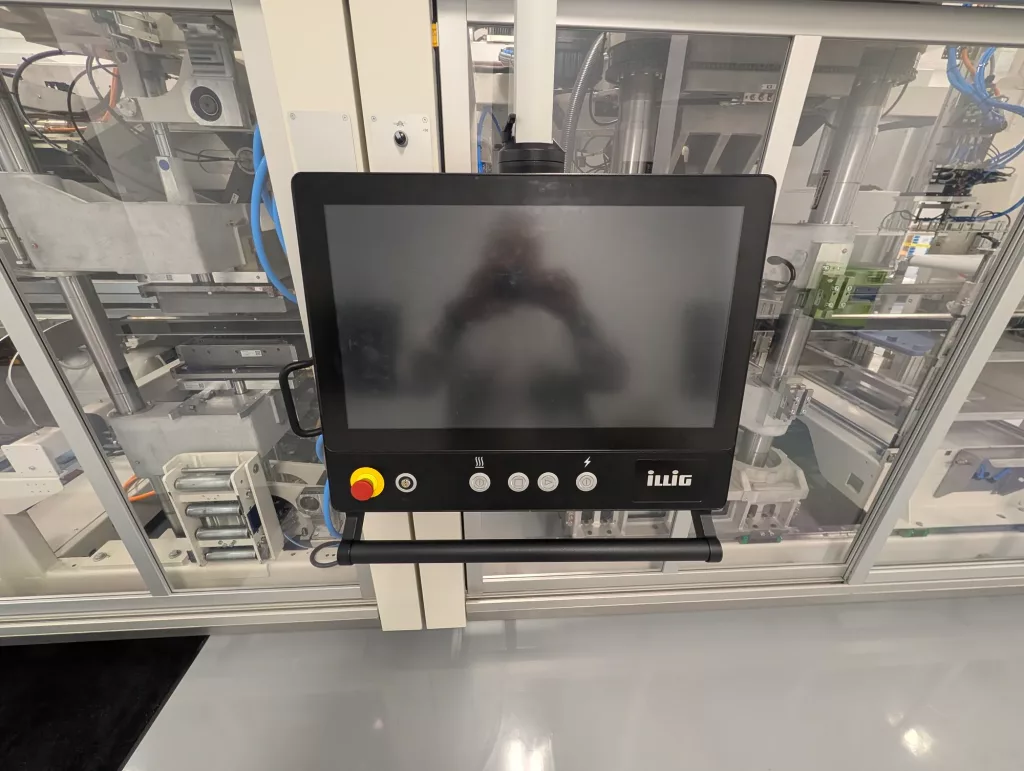

Used Illig RDKP 72K (2023) Thermoformer for Sale. This steel-rule die inline thermoformer handles a maximum mold size of 21.26″ x 17.72″ and carries ceramic top and bottom ovens. The top platen runs on electric motors with a stroke of 140mm (5.51″) maximum to 50mm (1.97″) minimum, and form station tonnage is listed at 22.5 tons. Indexing is by electric servo motor, and the trim station is electric motor driven with a platen stroke of 140mm (5.51″) maximum to 80mm (3.149″) minimum. Controls are the Illig PLC. Electrical requirements are 277v (480y), 3ph, 60hz. Loaded, coming out of a clean room environment producing medical parts. Available for inspection under power. See more used thermoforming equipment, then Activate Pricing or use the Inquire Now button.
Specifications
| Style of Inline Thermoformer |
Steel-Rule Die Inline Thermoformer |
|---|---|
| Max Mold Size |
21.26" x 17.72" |
| Top Oven |
Ceramic (TBD) |
| Top Platen Drive |
Electric Motors |
| Tope Platen Stroke |
140mm (5.51" ) Max / 50mm ( 1.97") Min. |
| Form Station Tonnage |
22.5 Tons (TBD) |
| Indexing |
Electric Motor (Servo Indexing) |
| Trim Station Drive |
Electric Motor |
| Trim Station Platen Stroke |
Max 140 mm (5.51") / Min. 80 mm (3.149") |
| Electrical Requirements |
277v (480y), 3ph, 60hz |
| Note |
Coming out of a clean room environment producing medical parts |
