Make |
Bertsch |
|---|---|
Model |
11 |
Description |
12' x 19/32" Plate Bending Roll |
Reference # |
8076346 |
Price |
Activate Pricing |

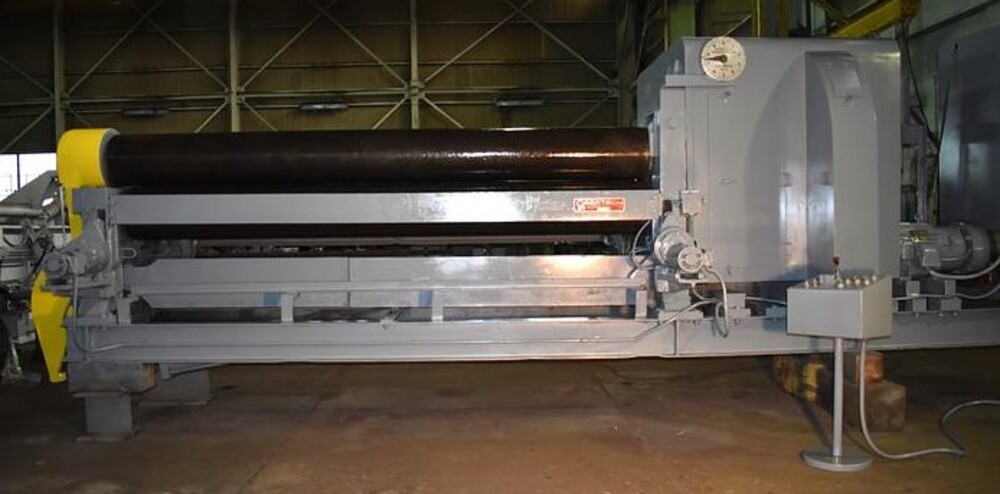

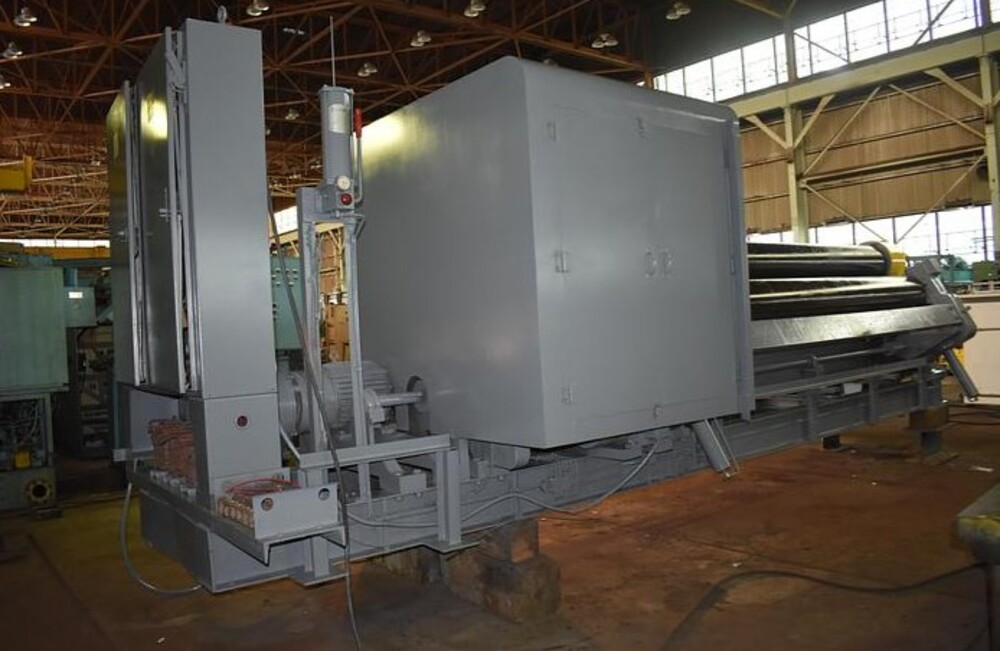

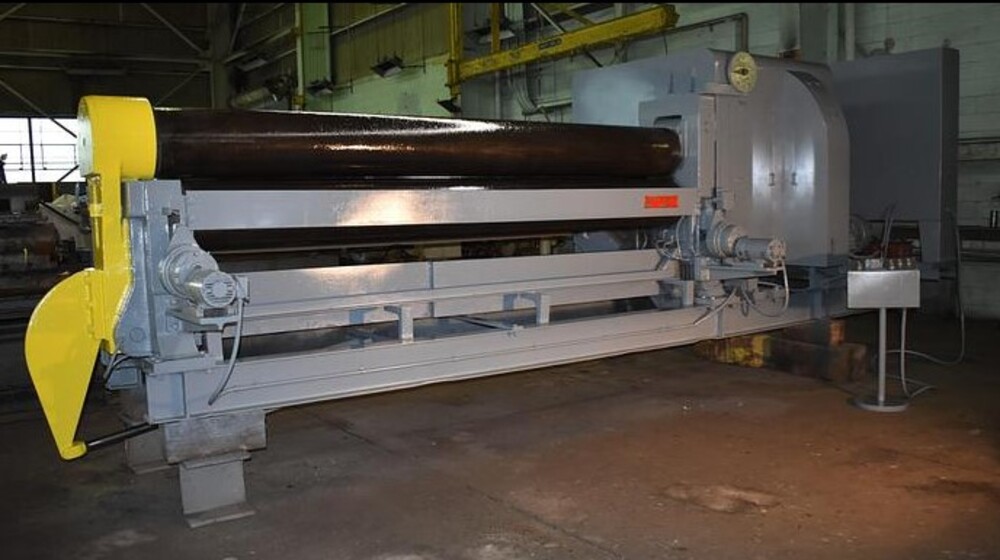

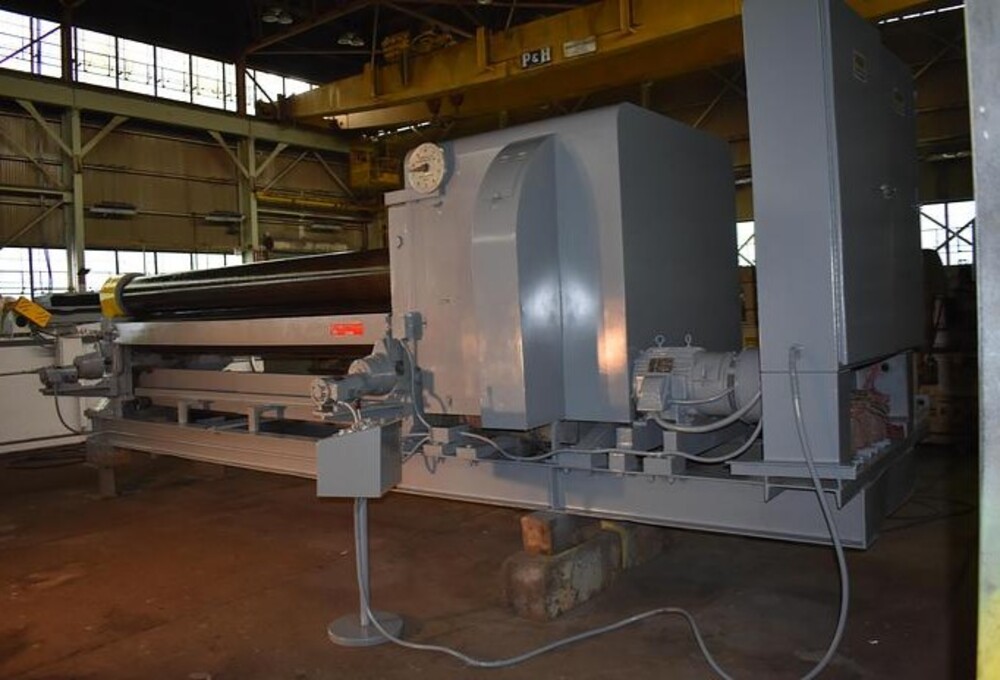

Used Bertsch 11 Plate Rolls for Sale. This machine offers 12′ capacity with rolling thickness rated at 19/32″ boiler duty and 29/64″ pipe duty. Top-roll and bottom-roll diameters both measure 15″. Power comes from a 20 HP/1200 RPM main drive motor, with a 10 HP/1200 RPM rear roll adjust motor. Equipment includes (2) 3/4 HP front roll adjusting motors, (2) front roll adjust motors, a 10 HP rear roll adjusting motor, Farval central lubrication system, power adjustment to the lower front pinch roll, rear roll dial indicator, an SCR control system with Vari-Speed drive, and an air drop end. The machine can be seen under power for an inspection. Request a Quote for further details and availability.
Specifications
| Capacity |
12' |
|---|---|
| Rolling Thickness Boiler Duty |
19/32" |
| Rolling Thickness Pipe Duty |
29/64" |
| Top-Roll Diameter |
15" |
| Bottom-Roll Diameter |
15" |
| Main Drive Motor |
20 HP/1200 RPM |
| Rear Roll Adjust Motor |
10 HP/1200 RPM |
Features
|
(2) 3/4 HP Front Roll Adjusting Motors |
(2) Front Roll Adjust Motors |
|
10 HP Rear Roll Adjusting Motor |
Farval Central Lubrication System |
|
Power Adjustment To Lower Front Pinch Roll |
Rear Roll Dial Indicator |
|

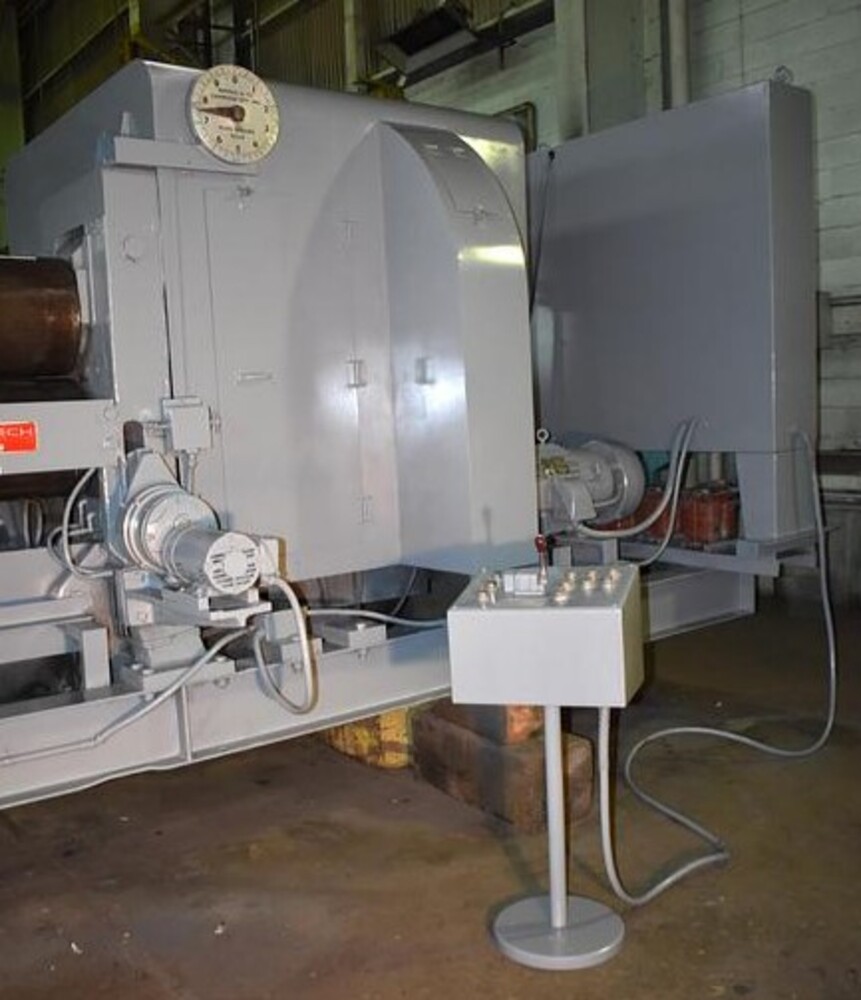

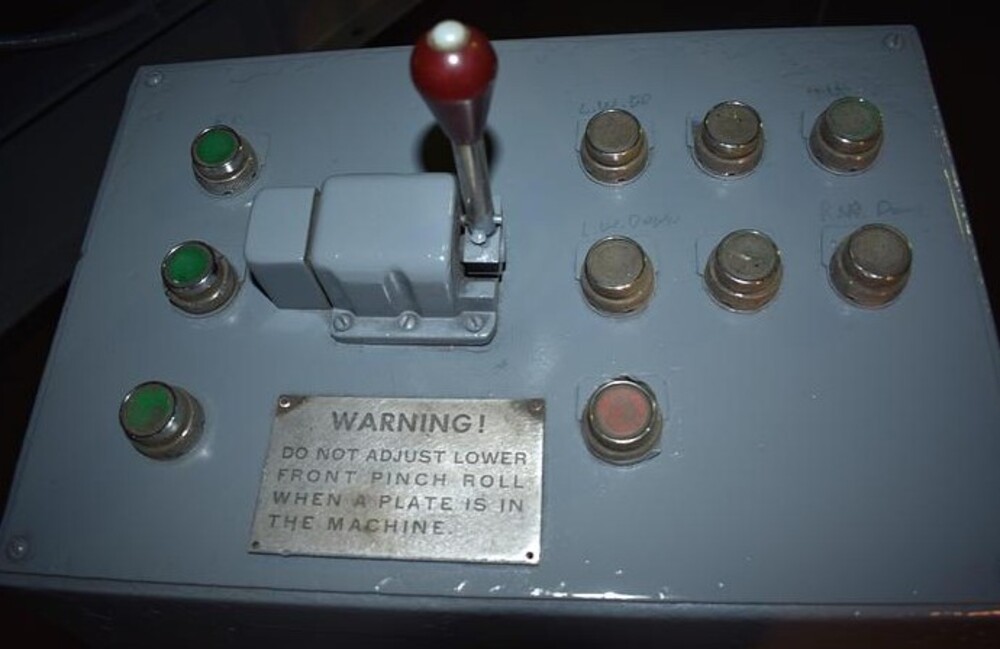

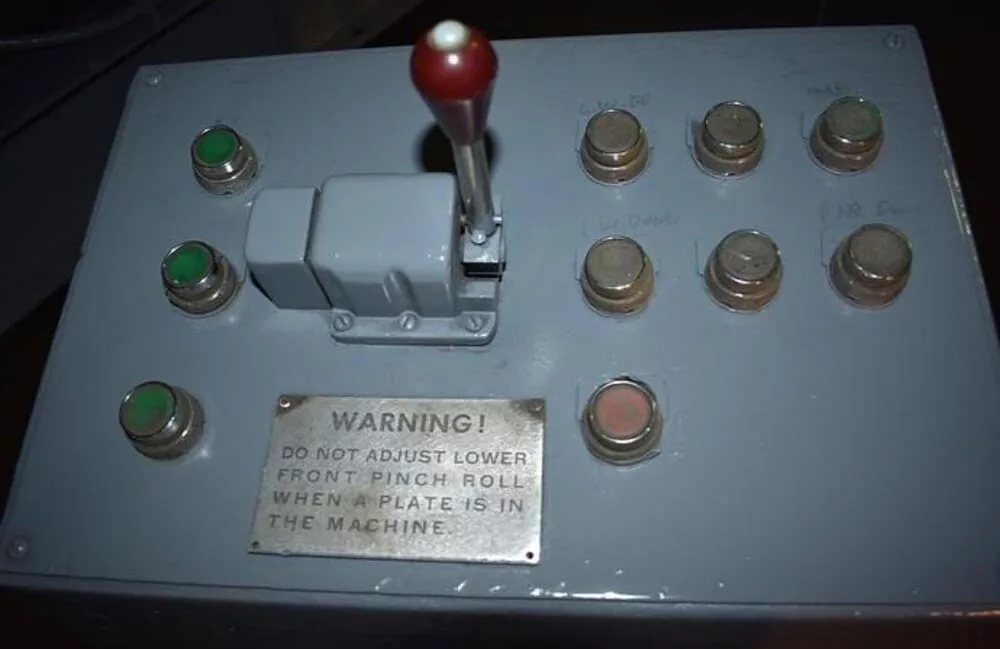

SCR Control System w/ Vari-Speed Drive |

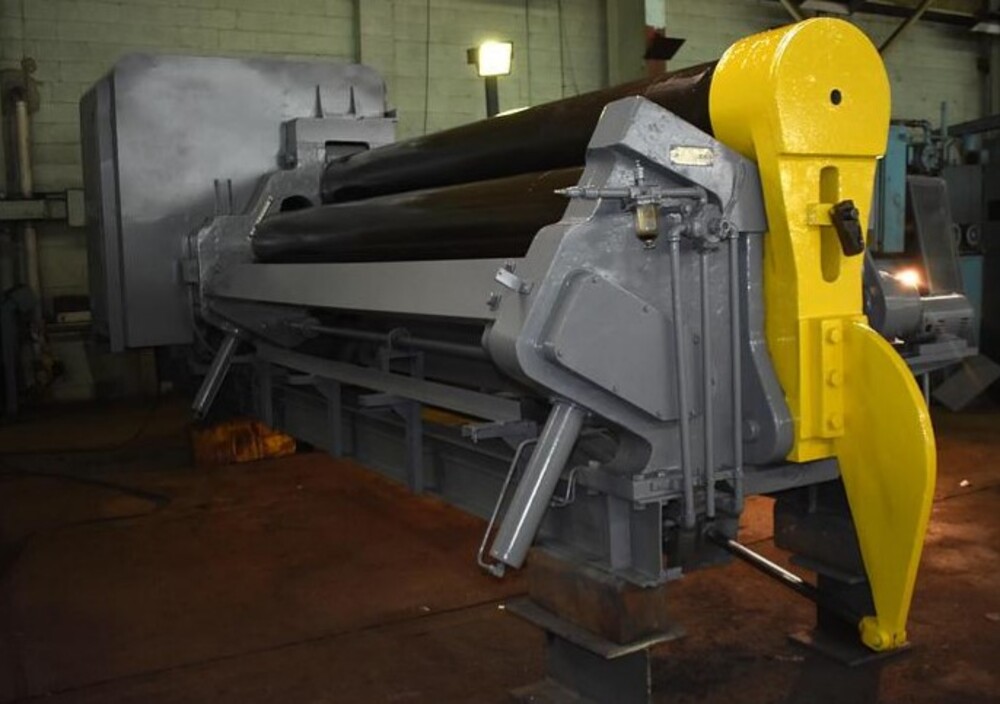

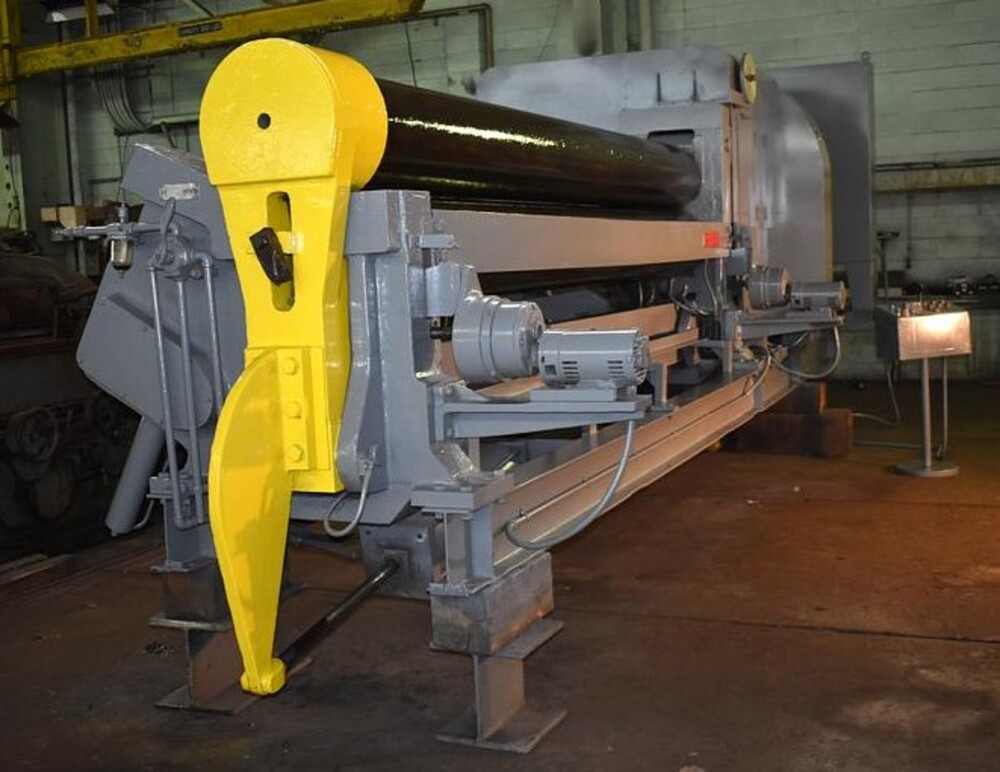

Air Drop End |
