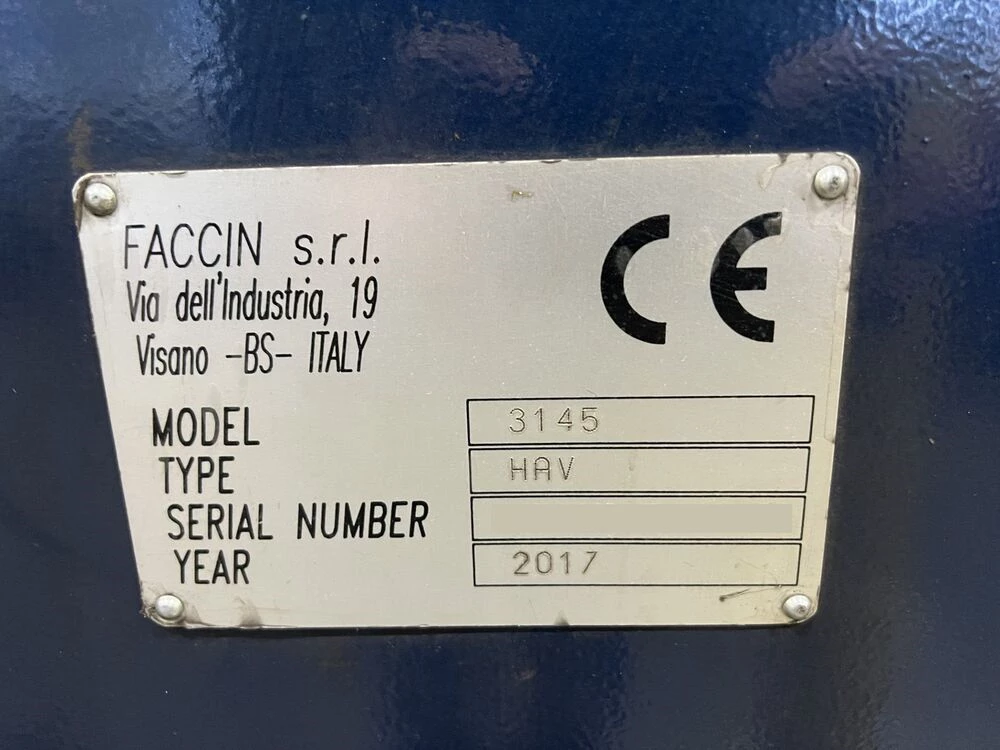

Year |
2017 |
|---|---|
Make |
Faccin |
Model |
HAV 3145 |
Description |
3-Roll Plate Roll |
Reference # |
8078049 |
Price |
Activate Pricing |

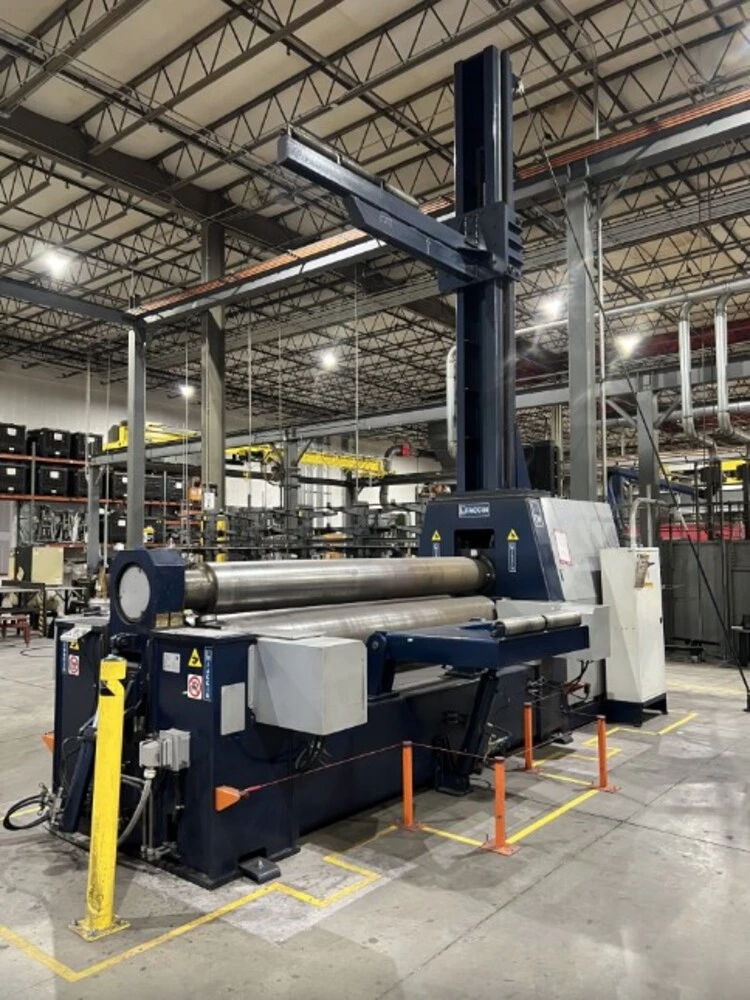

Used Faccin HAV 3145 (2017) Plate Rolls for Sale. This four-roll style hydraulic plate roll handles a maximum plate width of 120″, with a 17.72 top roll diameter and 15.75 side rolls diameter. Ton bending force on the top roll is listed at 3336 PSI, and maximum rotation speed is 23 FT/MIN. Full-length capacity at 37.7 KSI is 1.58″ bending thickness with 89″ ID and 1″ pre-bending thickness with 89″ ID. At 52.2 KSI, capacity is 1.34″ bending thickness at 8″ ID and .8″ pre-bending thickness with 89″ ID. Equipped with hardened and polished rolls and Siemens control. The machine can be seen under power for an inspection. Request a Quote for further details and availability.
Specifications
| Maximum Plate Width |
120" |
|---|---|
| Top Roll Diameter |
17.72 |
| Side Rolls Diameter |
15.75 |
| Ton Bending Force on Top Roll |
3336 PSI |
| Max Rotation Speed |
23FT/MIN |
| Full-Length Capacity at 37.7 KSI |
1.58" Bending Thickness with 89" ID / - 1" Pre-Bending Thickness WITH 89" ID |
| Full-Length Capacity at 52.2 KSI |
1.34" Bending Thickness at 8" ID / .8" Pre-Bending Thickness with 89" ID |
Features
|
Hardened and Polished Rolls |

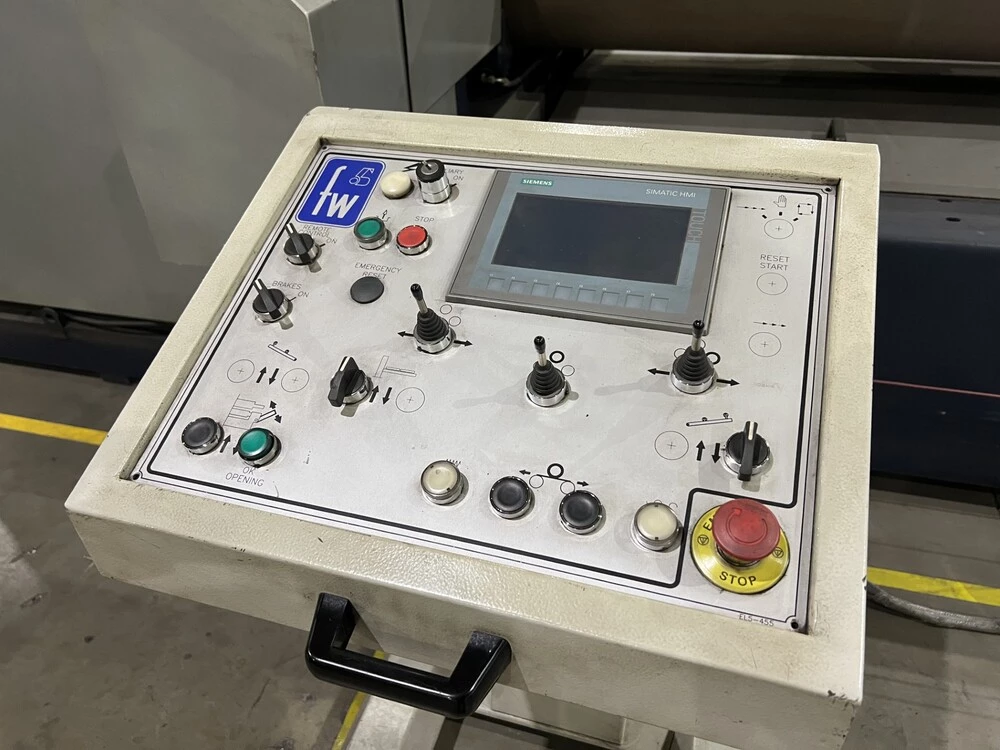

Siemens Control |
