Year |
2014 |
|---|---|
Make |
MG |
Model |
MH 345 G |
Description |
Double Pinch Four Roll Plate Roll |
Reference # |
8076007 |
Price |
Activate Pricing |

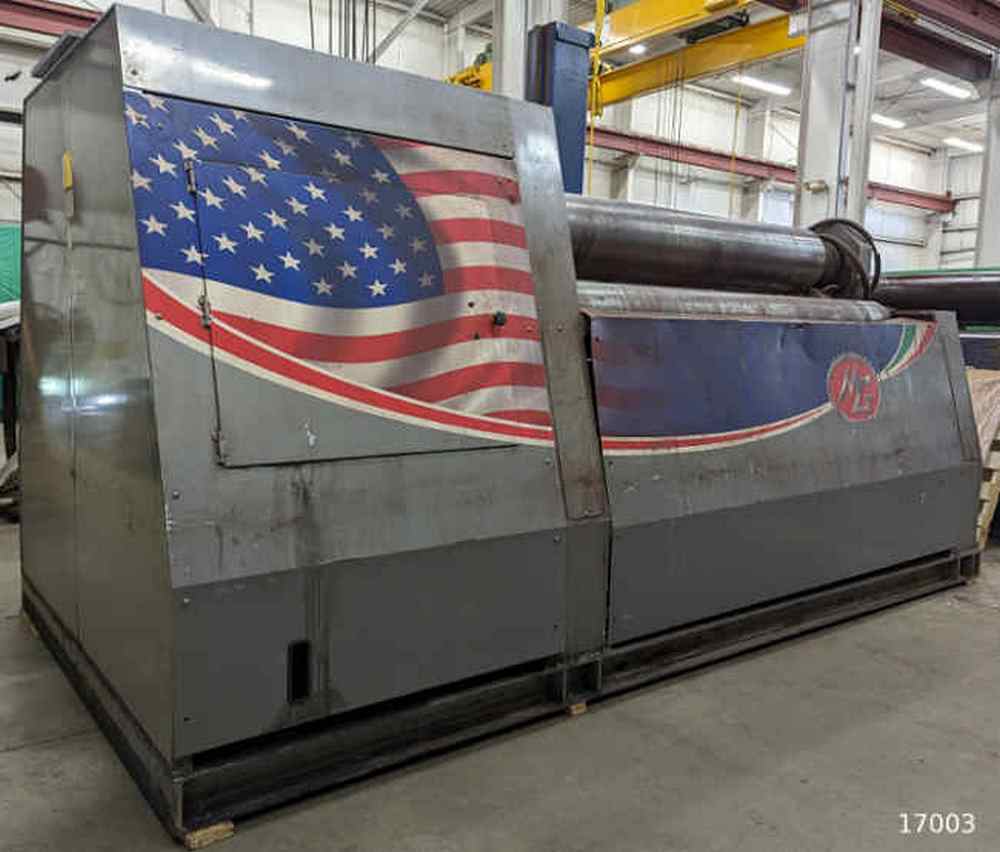

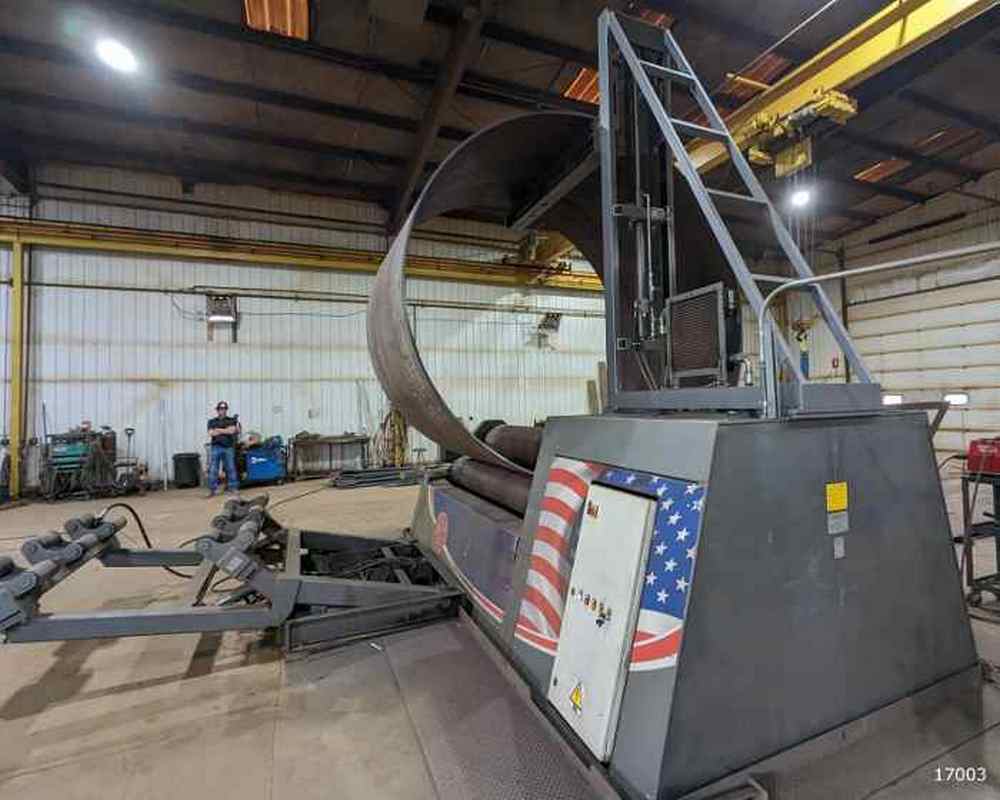

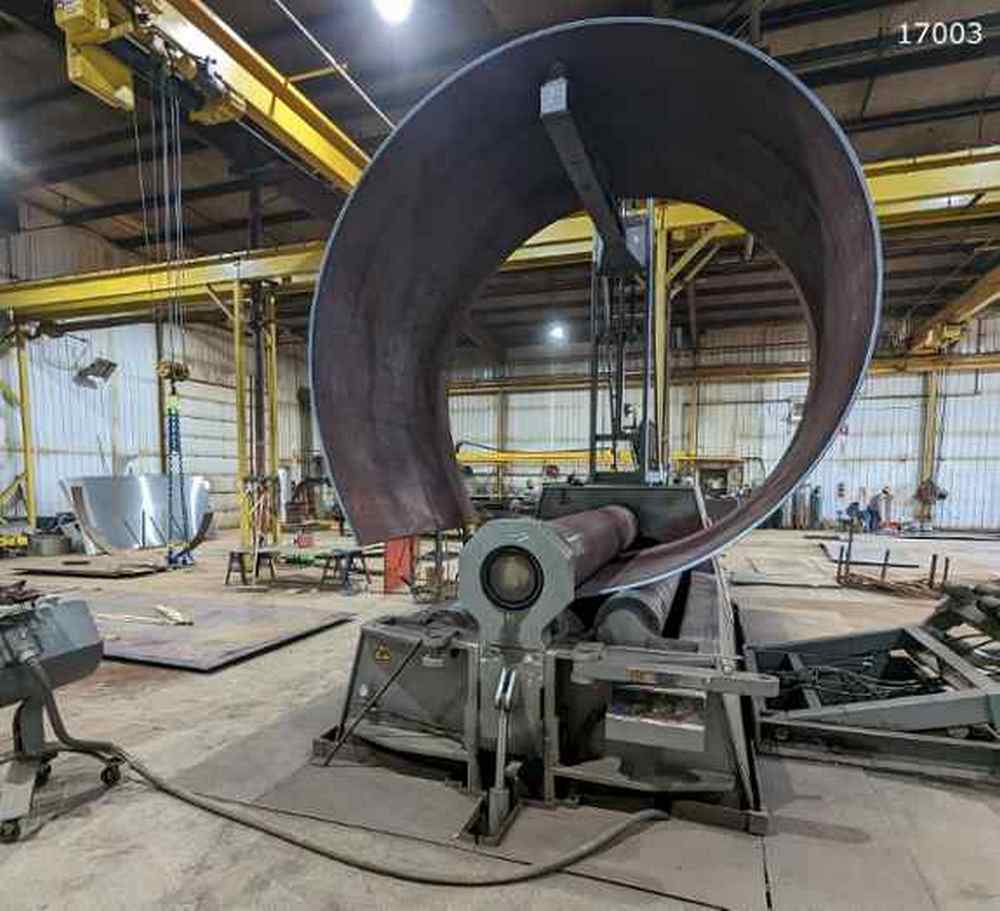

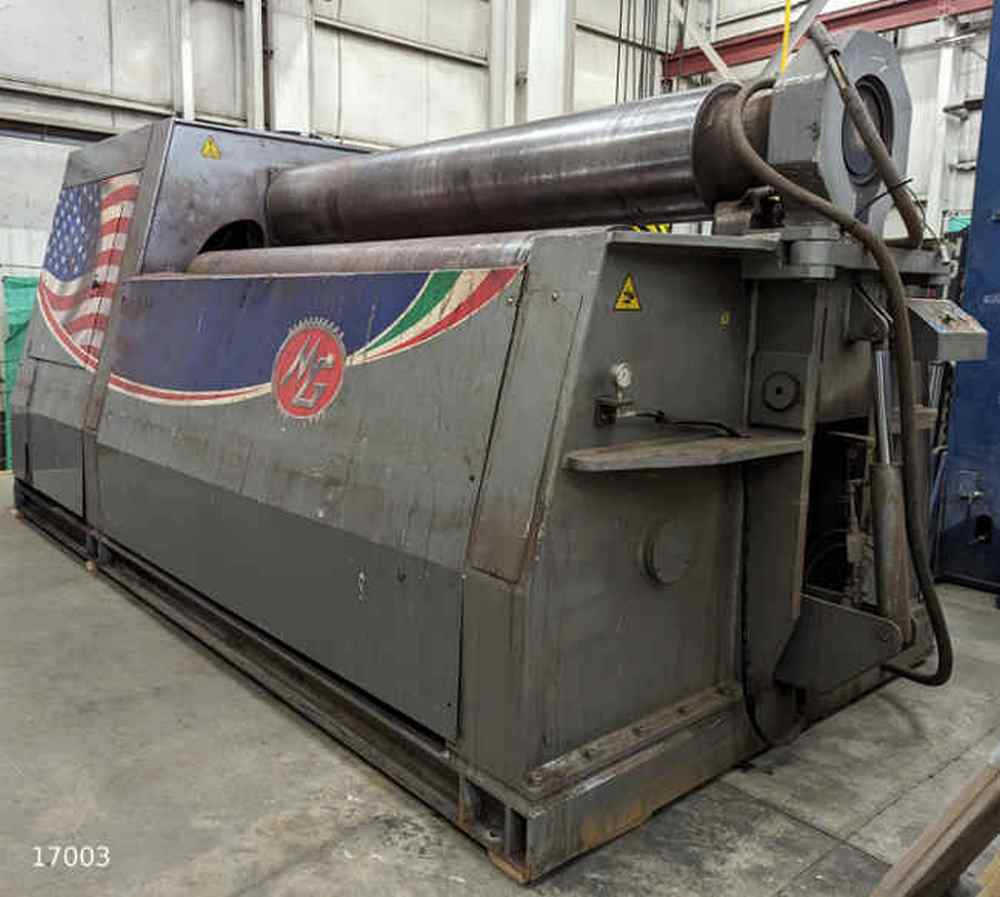

Used MG MH 345 G (2014) Plate Rolls for Sale. This four-roll plate roll has a working length of 122″, rolling thickness of 1-3/4″ and pre-bend thickness of 1-3/8″. The top roll measures 18.1″ in diameter, the lower roll 17.3″, and the side rolls 14.6″. Drive is by a 40 HP motor on 480V power. Overall dimensions are 242″ x 106″ x 97″ with a weight of 63,800 lbs. Equipped with a hydraulic system for opening the machine and removing the tube, a mobile control console, a safety system conforming to EC rules, side support and overhead support. The machine can be seen under power for an inspection. Request a Quote for further details and availability.
Specifications
| Working Length |
122" |
|---|---|
| Rolling Thickness |
1-3/4" |
| Pre-Bend Thickness |
1-3/8" |
| Top Roll Diameter |
18.1" |
| Lower Roll Diameter |
17.3" |
| Side Rolls Diameter |
14.6" |
| Motor |
40 HP |
| Dimensions |
242" x 106" x 97" |
| Weight |
63,800 Lbs. |
| Power Requirement |
480V |
Features
|
Hydraulic System for Opening Machine / Removing Tube |

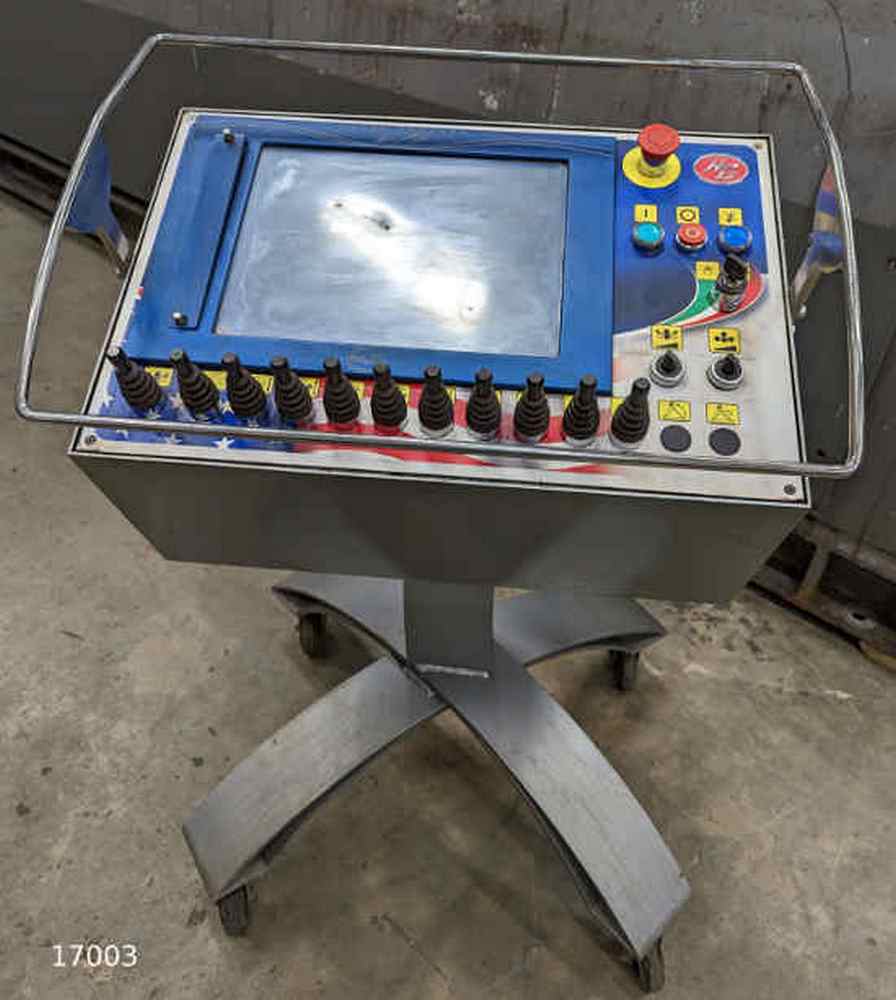

Mobile Control Console |
|
Safety System Conforms To EC Rules |
Side Support |
|
Overhead Support |
