Year |
2025 |
|---|---|
Make |
Faccin |
Model |
3HEP-SX210 |
Description |
3-Roll Planetary Design Plate Bending Roll |
Reference # |
8079314 |
Price |
Activate Pricing |

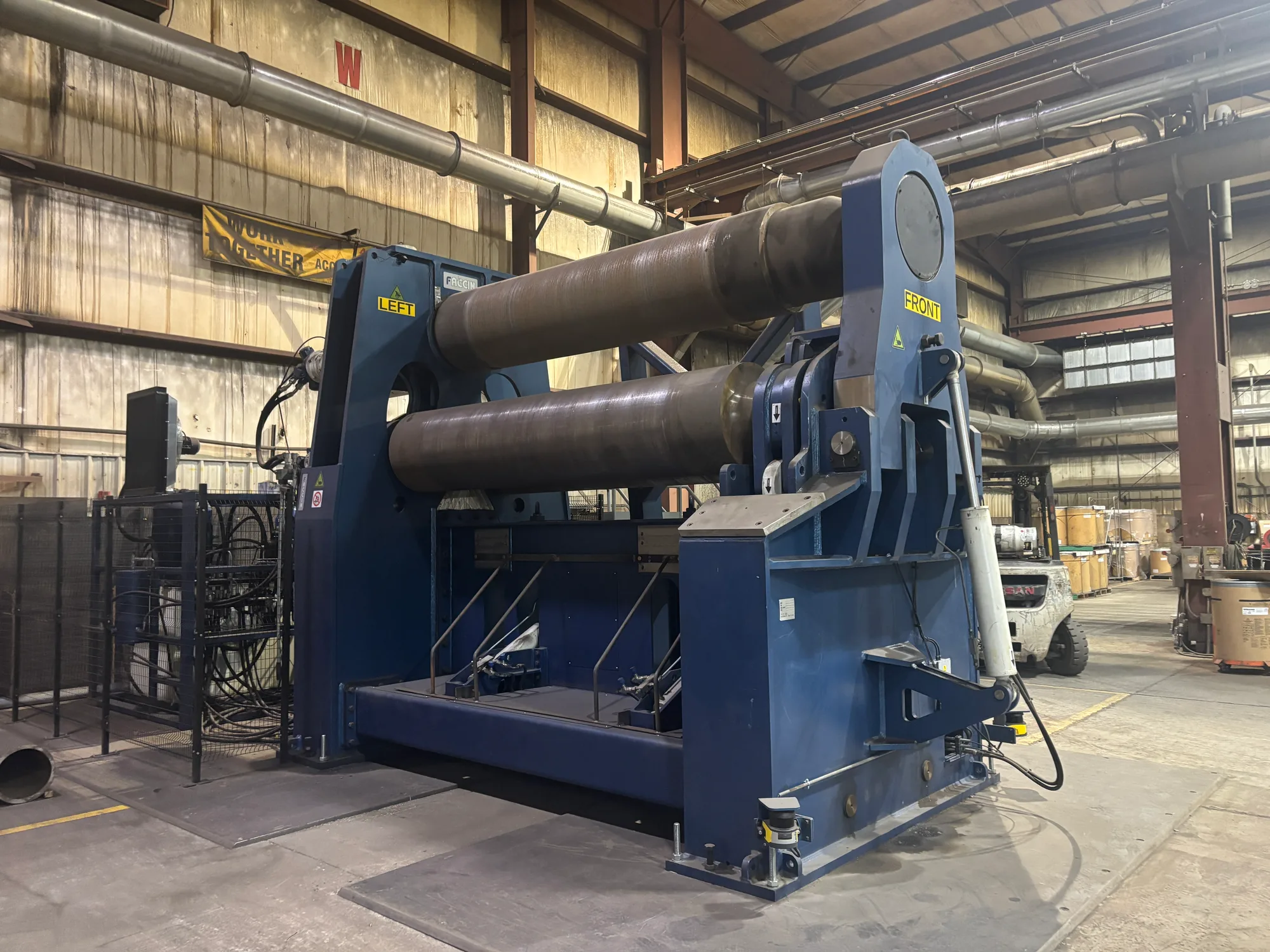

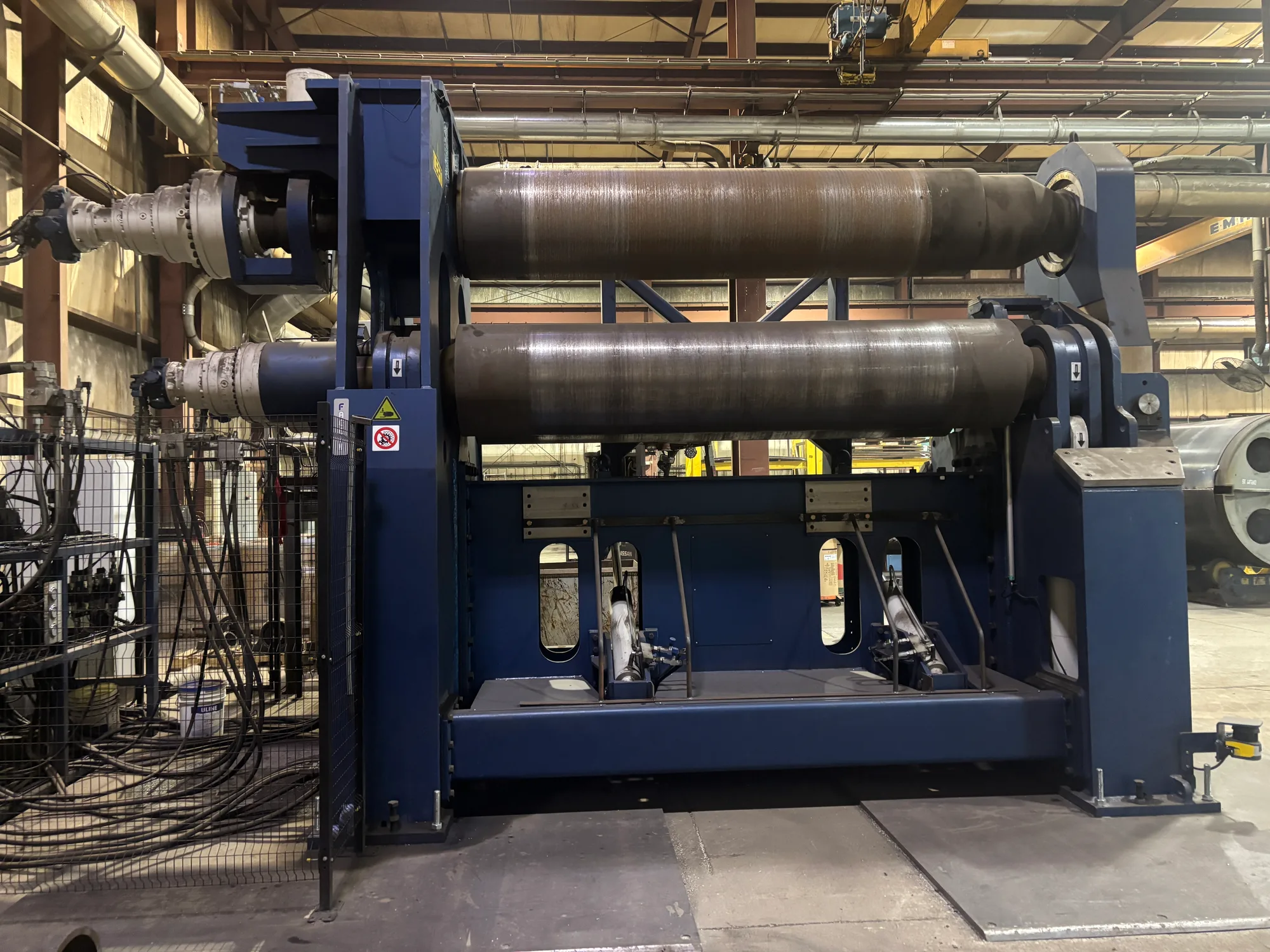

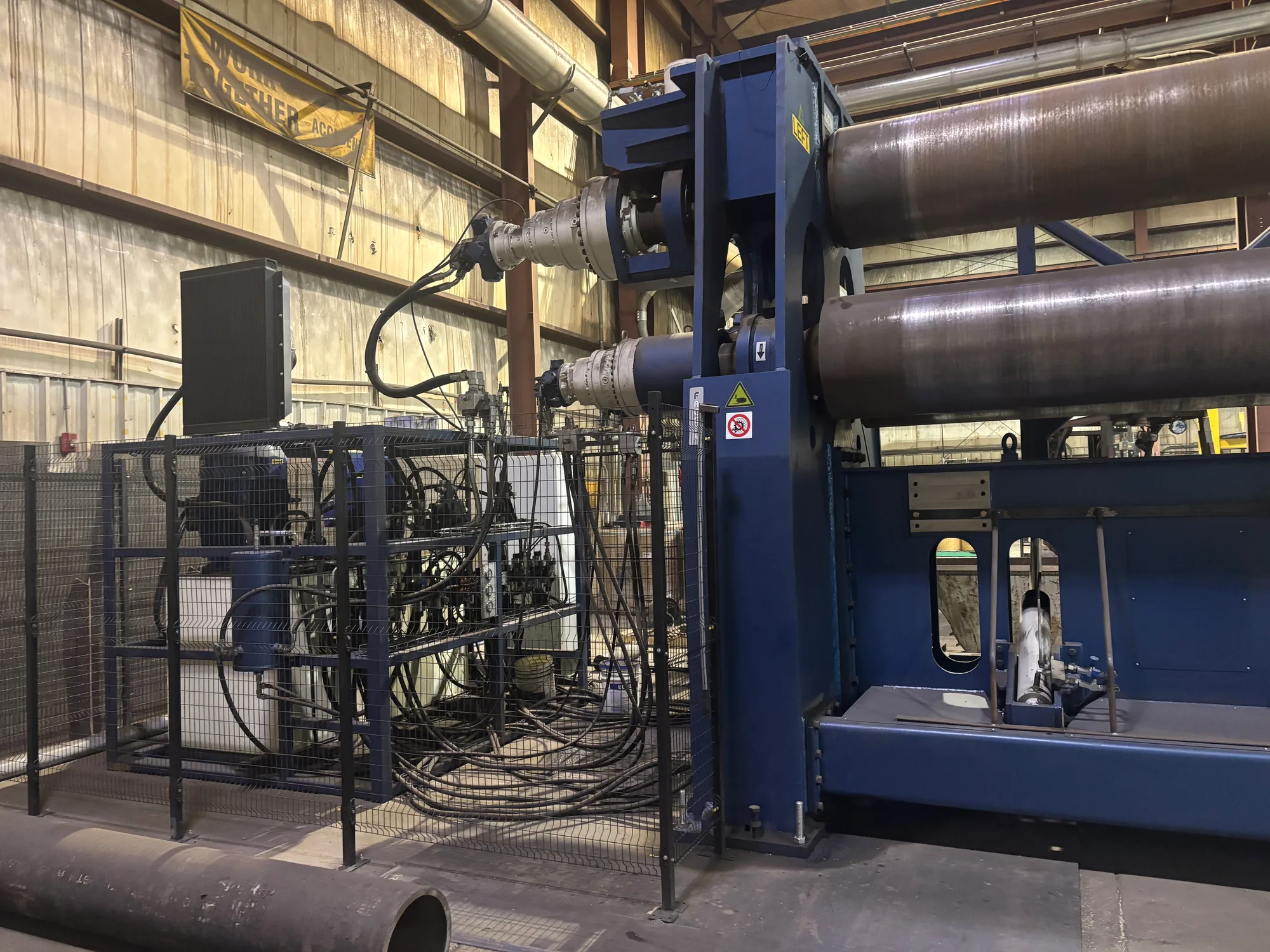

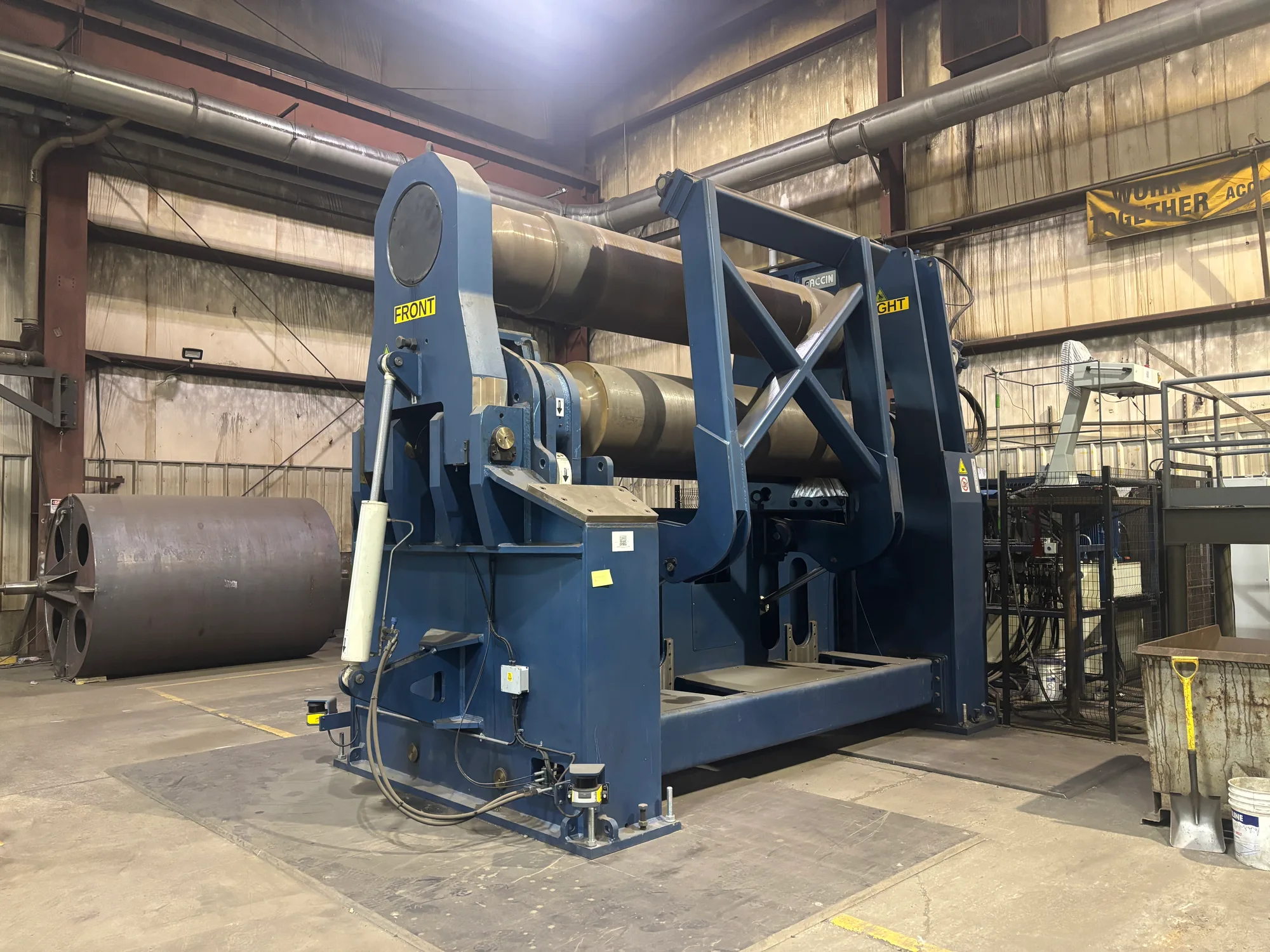

Used Faccin 3HEP-SX210 (2025) Plate Roll for Sale. This three-roll machine handles a maximum plate width of 120″, with a 26″ top roll and two 24.8″ side rolls driven by a 175 HP main motor at rolling speeds up to 20 FPM. At 37.7 KSI, bending capacity is 3″ x 120″ at 130″ ID and 2.5″ x 120″ at 34″ ID, with pre-bend of 2.5″ x 120″ at 130″ ID. At 52.2 KSI, bending runs 2.5″ x 120″ at 130″ ID and 2.18″ x 120″ at 34″ ID, with pre-bend of 2″ and 1.75″ respectively. Equipped with an operator’s control console on wheels, two electronic digital roll position readouts, special alloyed rolls, three independently motorized rolls, a planetary side roll system, electronic balancing for roll synchronization, and an extra-large double shaft drop end. Available for inspection under power. Compare our other used plate rolls, then Activate Pricing or use the Inquire Now button.
Specifications
| Number of Rolls |
3 |
|---|---|
| Max Plate Width |
120" |
| Top Roll Diameter |
26" |
| Side Rolls (2) Diameter |
24.8" |
| Max Rolling Speed |
20 FPM |
| Main Drive Motor |
175 HP |
| Bending Capacity Max. Plate Thickness @130" ID |
3" x 120" (37.7 KSI) |
| Bending Capacity Max. Plate Thickness @34" ID |
2.5" x 120" (37.7 KSI) |
| Pre-Bend Capacity Max. Plate Thickness @130" ID |
2.5" x 120" (37.7 KSI) |
| Pre-Bend Capacity Max. Plate Thickness @3" ID:acity Max. Plate Thickness @34" ID |
2" x 120" (37.7 KSI) |
| Bending Capacity (52.2 KSI) Max. Plate Thickness @130" ID |
2.5" x 120" |
| Bending Capacity (52.2 KSI) Max. Plate Thickness @34" ID |
2.18" x 120" |
| Pre-Bend Capacity (52.2 KSI) Max. Plate Thickness @130" ID |
2" x 120" |
| Pre-Bend Capacity (52.2 KSI) Max. Plate Thickness @34" ID |
1.75" x 120" |
Features
|
(2) Electronic Digital Roll Position Readouts |

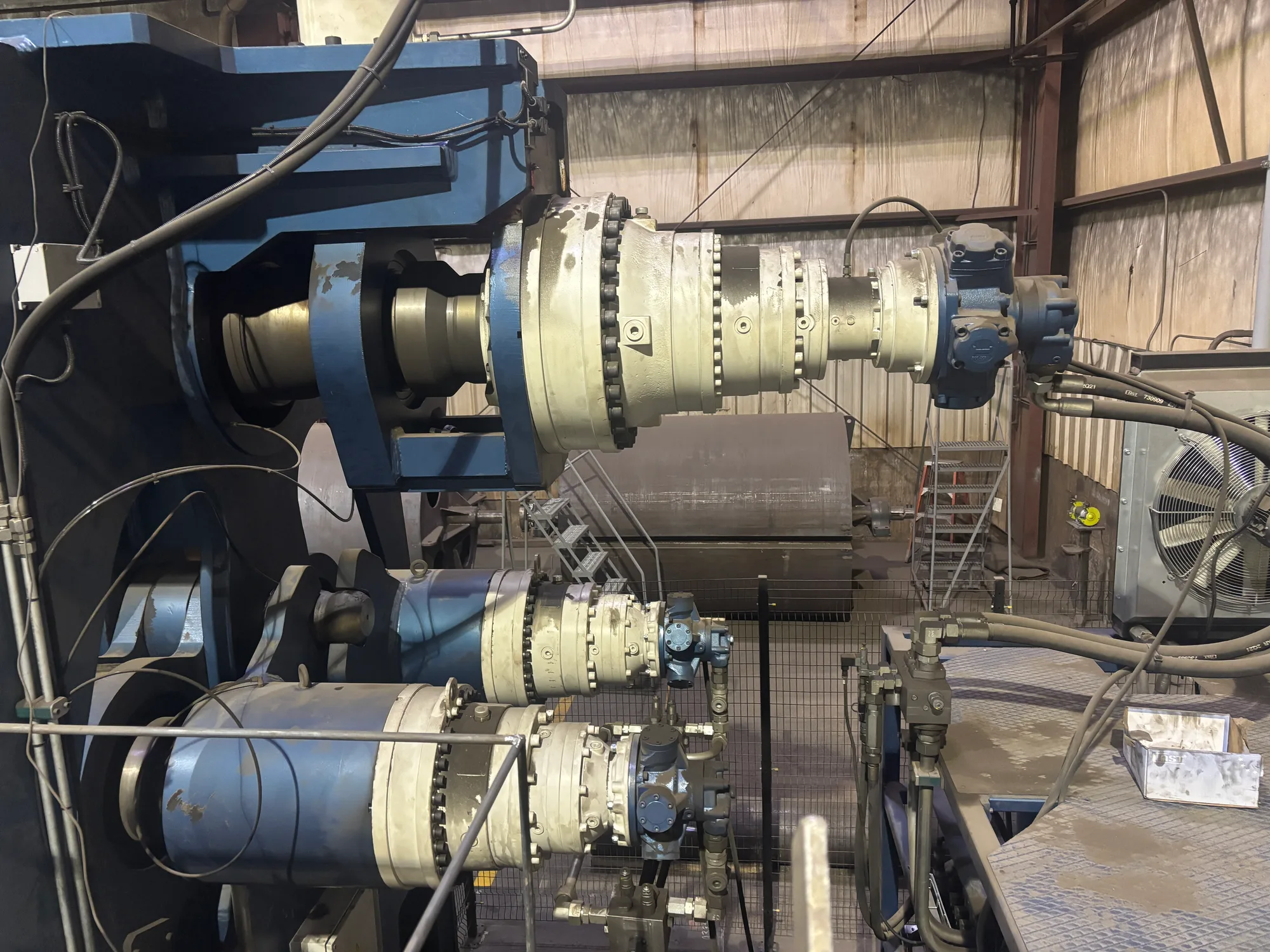

(3) Rolls Independently Motorized For Maximum Torque |
|
Electronic Balancing System For The Synchronization Of Rolls Movement |
Operators Control Console On Wheels |
|
Planetary System For Side Rolls Movement |
Special Alloyed Rolls For High Surface Hardness Plate Processing |
|
Extra-Large Double Shaft Drop End |
