Year |
1978 |
|---|---|
Make |
Haeusler |
Model |
VRM-HY |
Description |
1 1/2" x 12' Four Roll Plate Roll |
Reference # |
8070329 |
Price |
Activate Pricing |

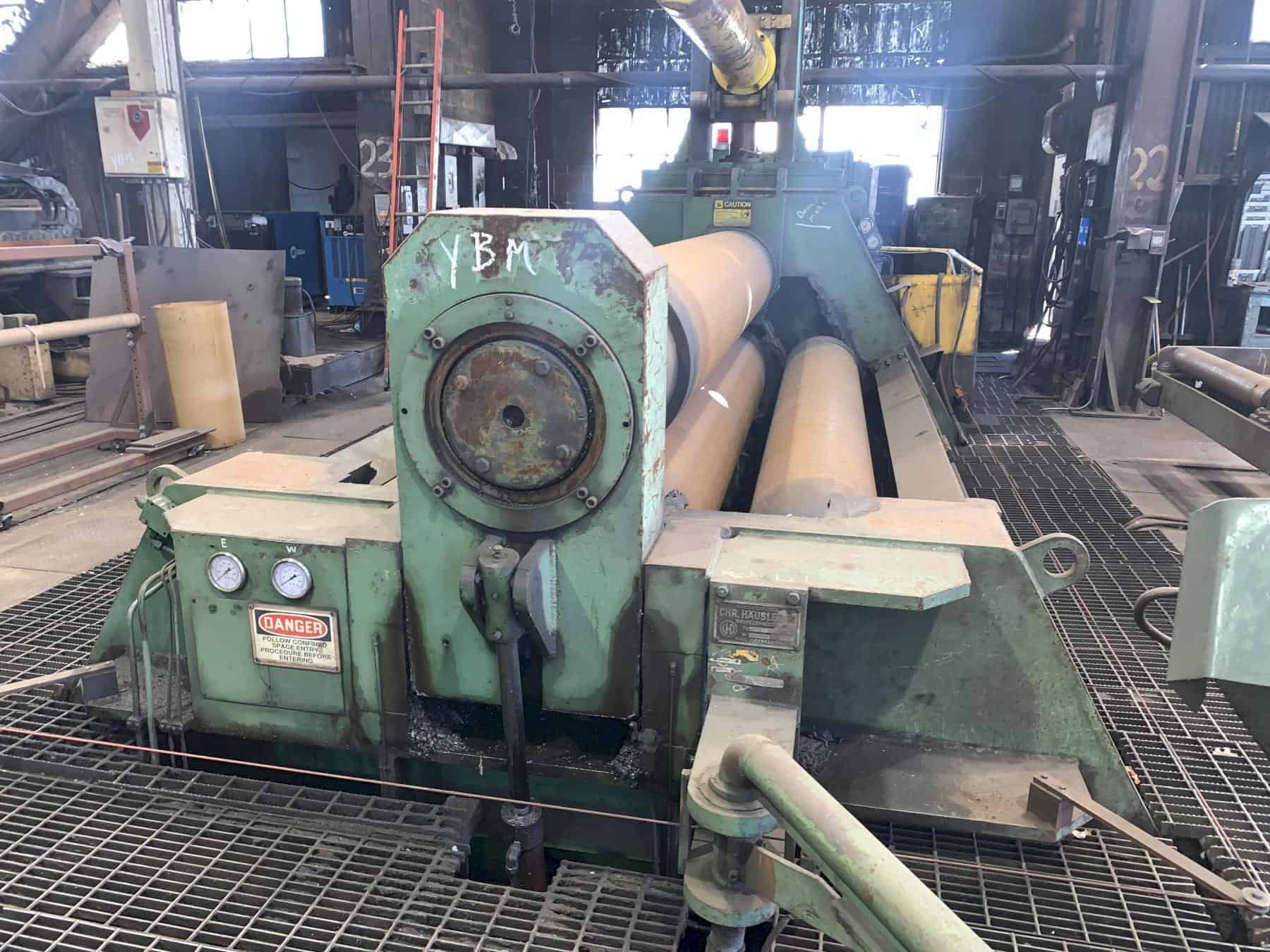

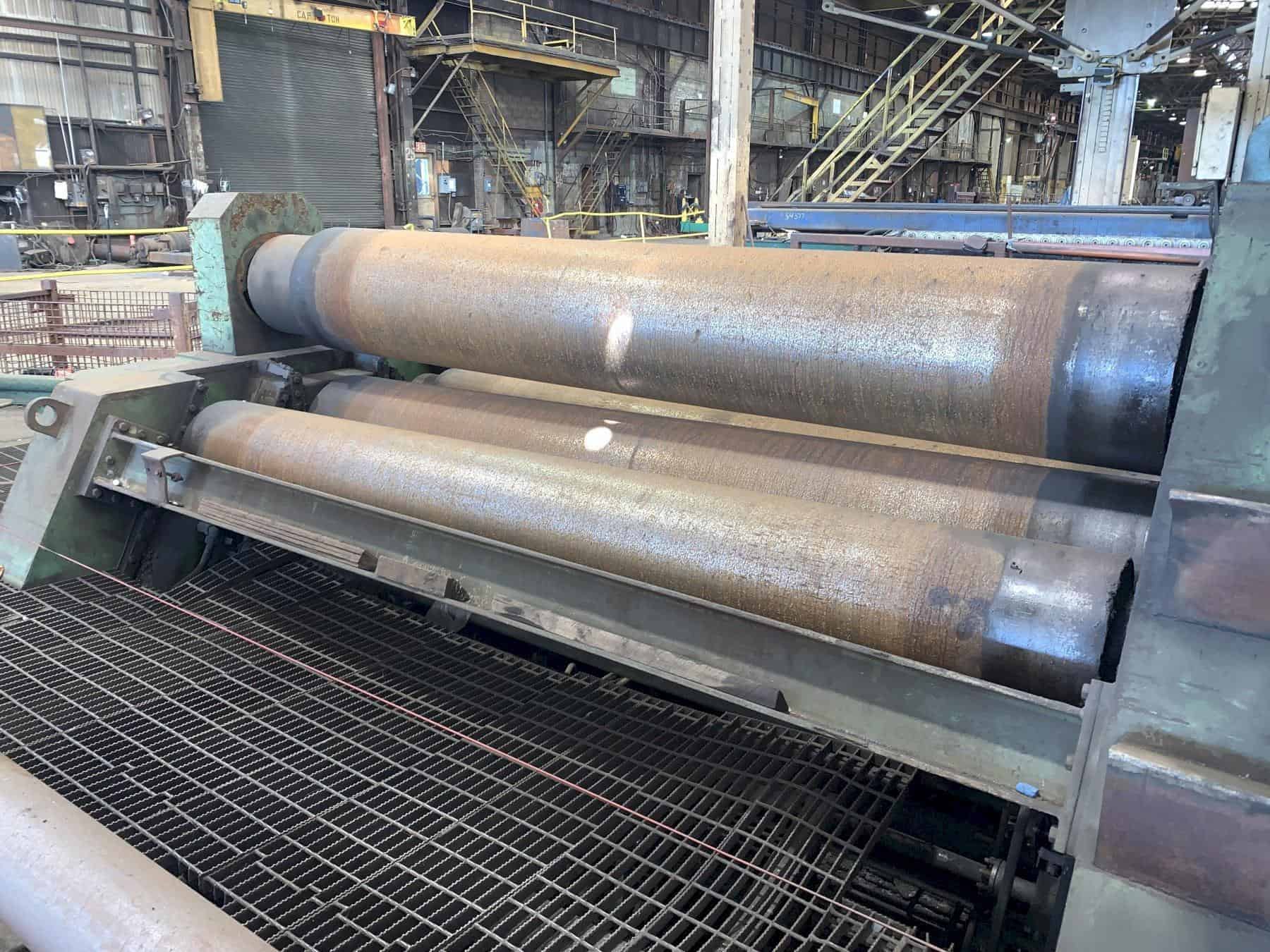

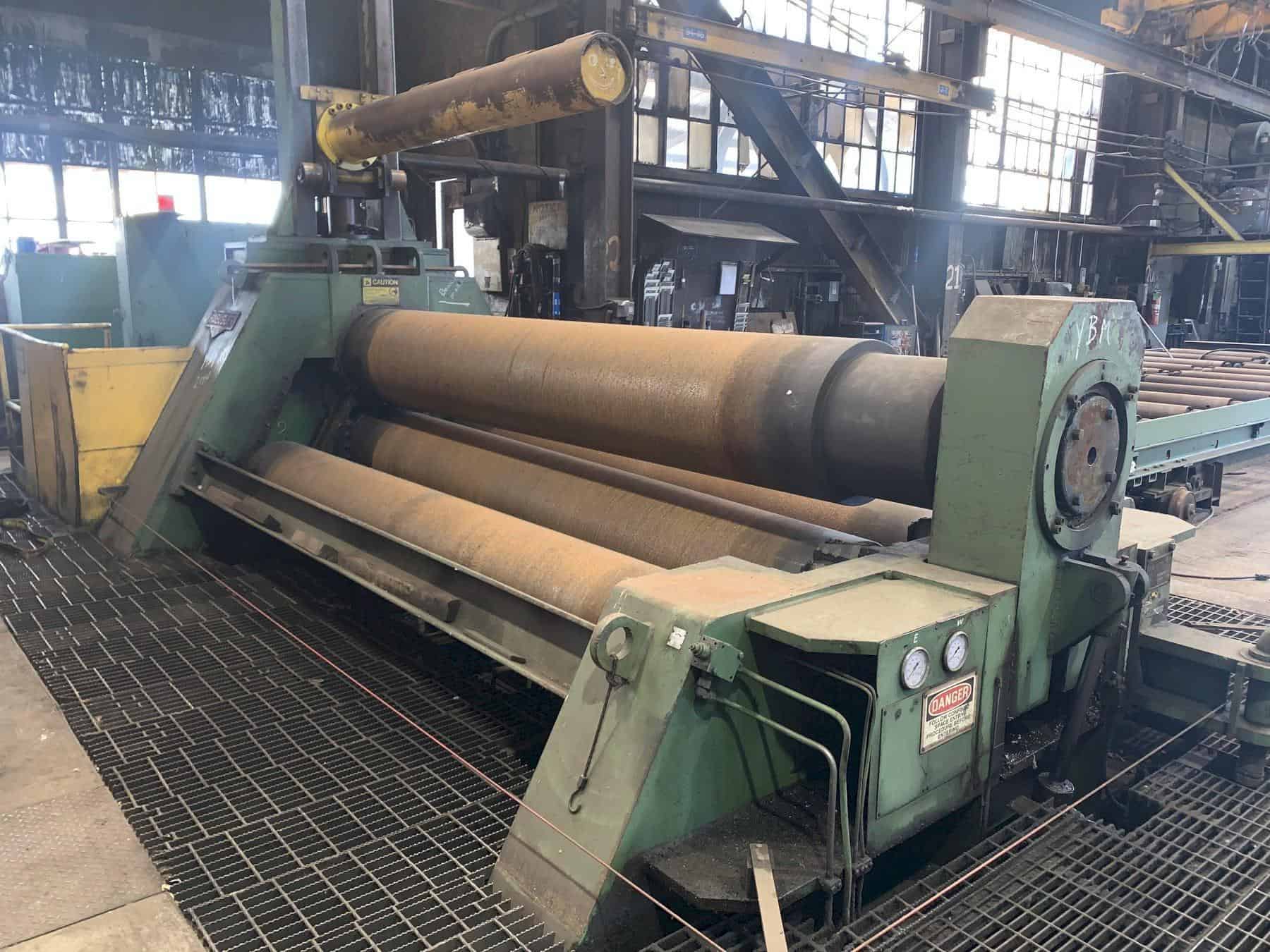

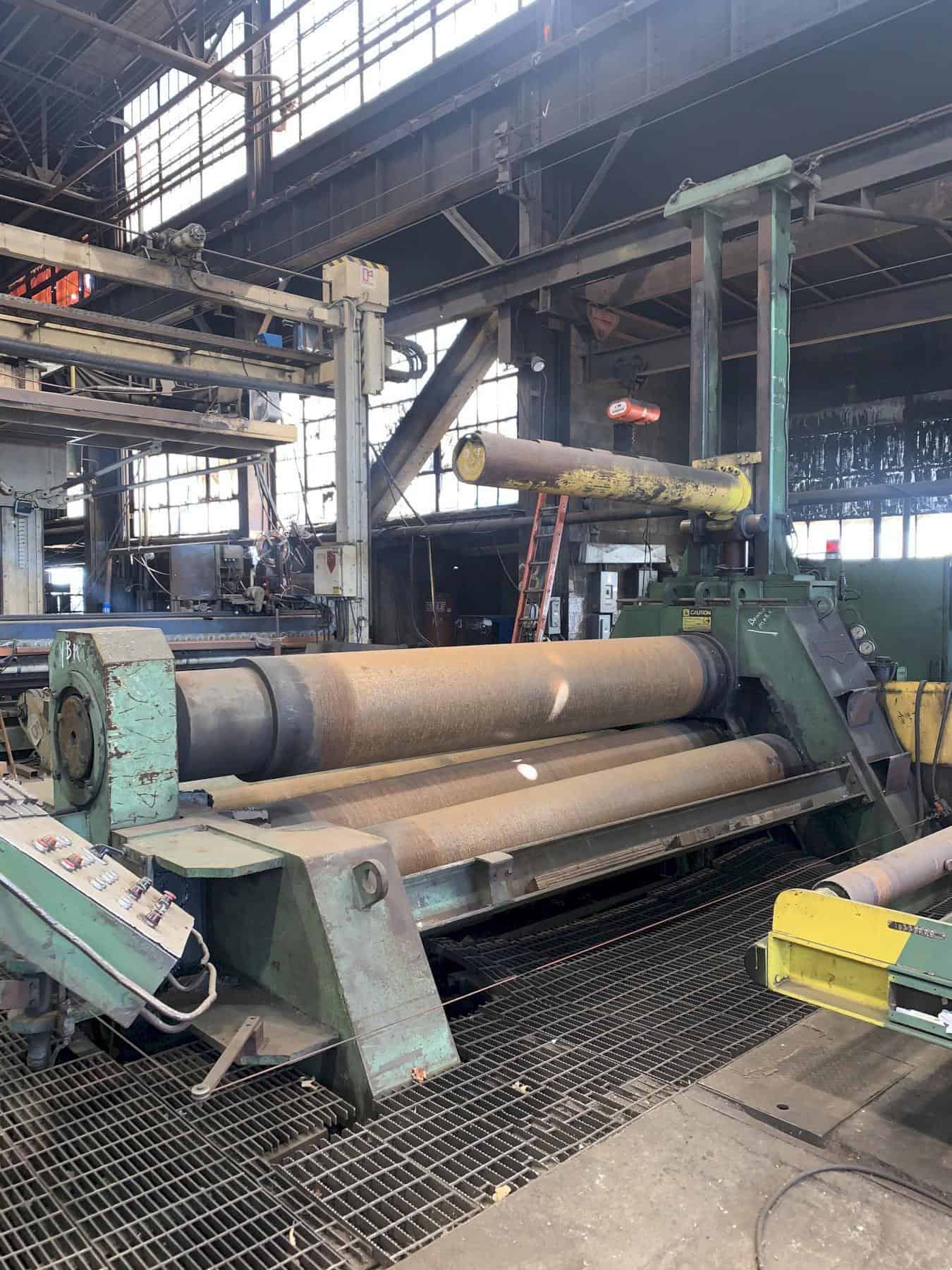

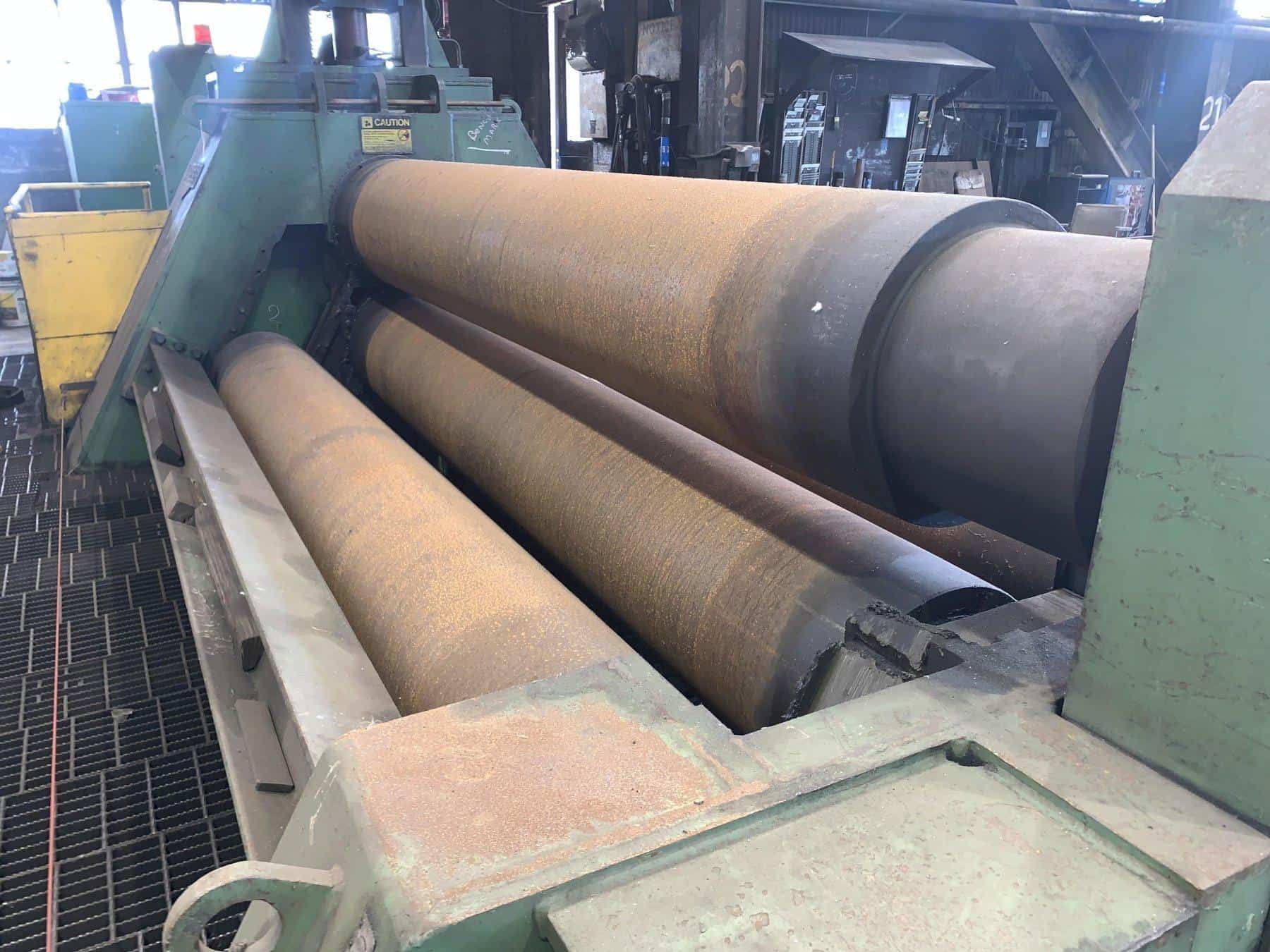

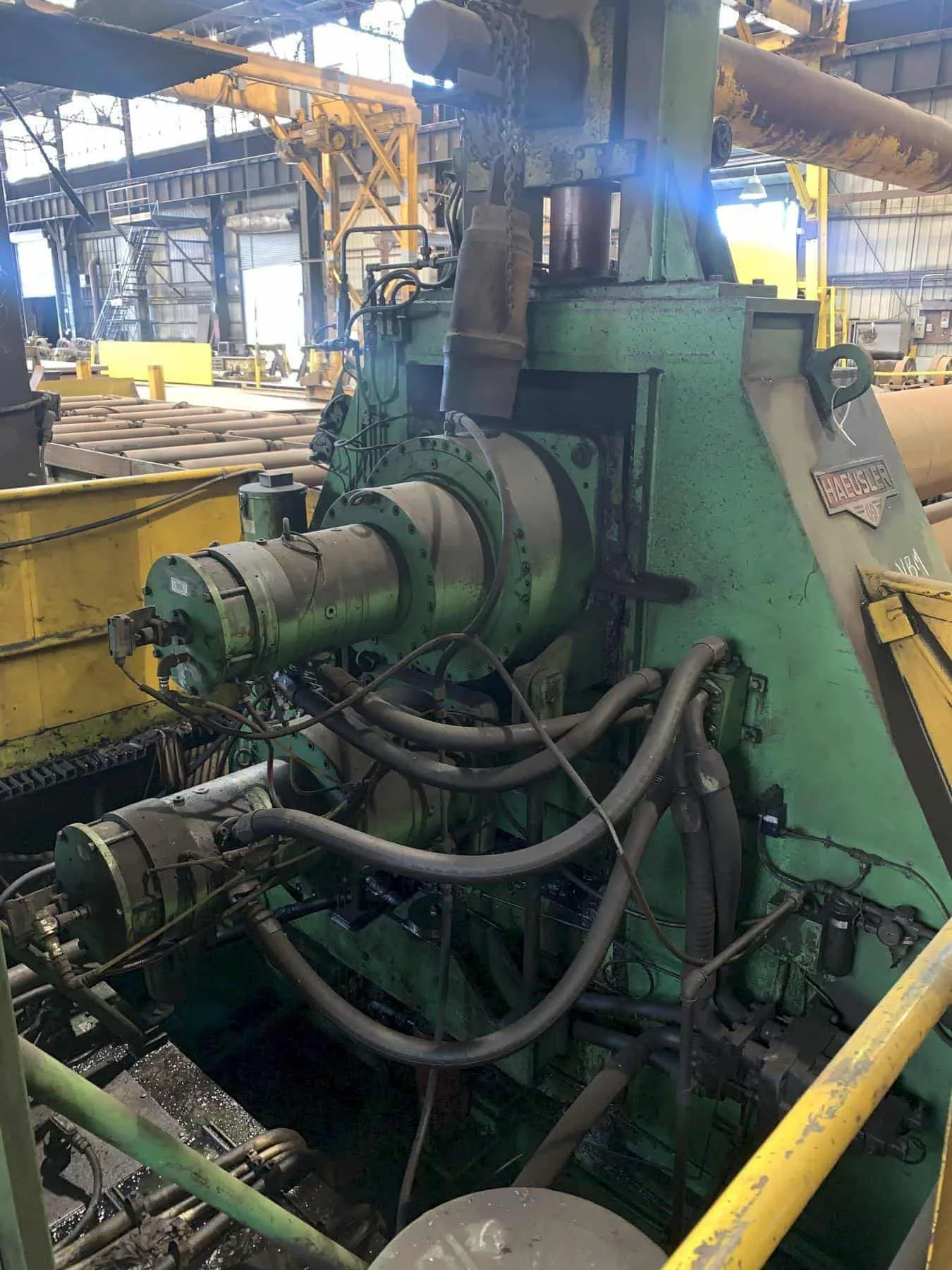

Used Haeusler VRM-HY (1978) Plate Rolls for Sale. This four-roll machine has a 1.5″ capacity with an overall roll length of 12′. Top and bottom rolls measure 23-1/2″ in diameter, with side rolls at 19″. Plate bending diameter is rated at 28″ @ 1-1/4″ and 36″ @ 1-1/2″, with a roll operating speed of 158 IPM (4m/min) driven by a 150 HP motor. Equipped with an air drop end, automatic speed compensation, cone bending attachment, digital readout indicators, forward and reverse capability, hydraulic power roll adjustment, operator control station, and overarm support device. The machine can be seen under power for an inspection by appointment. For further details or to move forward on this plate roll, Request a Quote.
Specifications
| Capacity |
1.5" |
|---|---|
| Overall Length of Rolls |
12' |
| Number of Rolls |
4 |
| Top & Bottom Roll Diameter |
23-1/2" |
| Side Rolls Diameter |
19" |
| Plate Bending Diameter |
28" @ 1-1/4"; 36" @ 1-1/2" |
| Roll Operating Speed |
158 IPM (4m/min) |
| Motor |
150 HP |
Features
|
Air Drop End |
Automatic Speed Compensation |
|
Cone Bending Attachment |
Digital Readout Indicators |
|
Forward & Reverse Capability |
Hydraulic Power Roll Adjustment |
|
Operator Control Station |
Overarm Support Device |
