Year |
2024 |
|---|---|
Make |
Salvagnini |
Model |
P2-2520.G4 |
Description |
Panel Bender |
Reference # |
8079014 |
Price |
Activate Pricing |

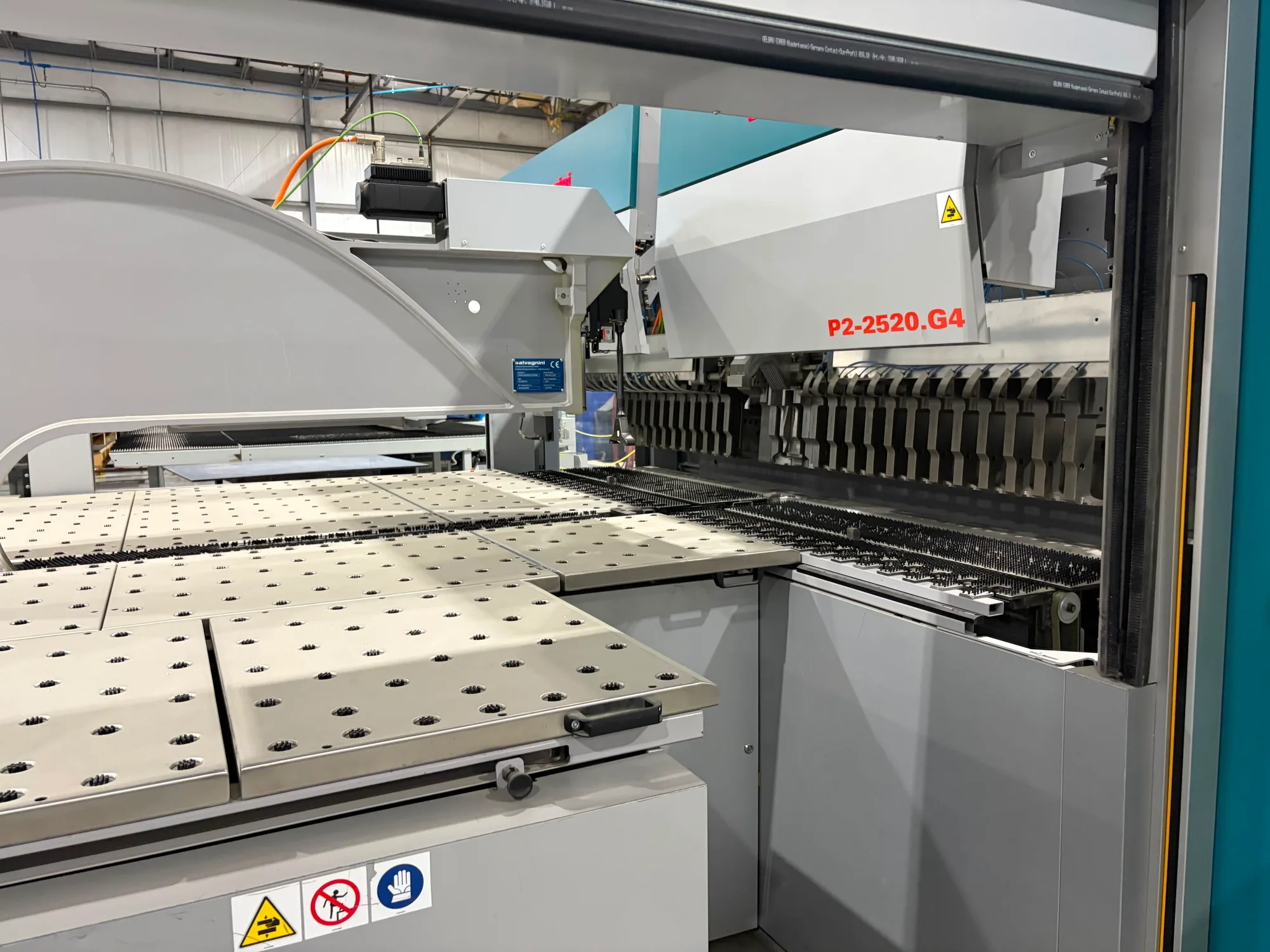

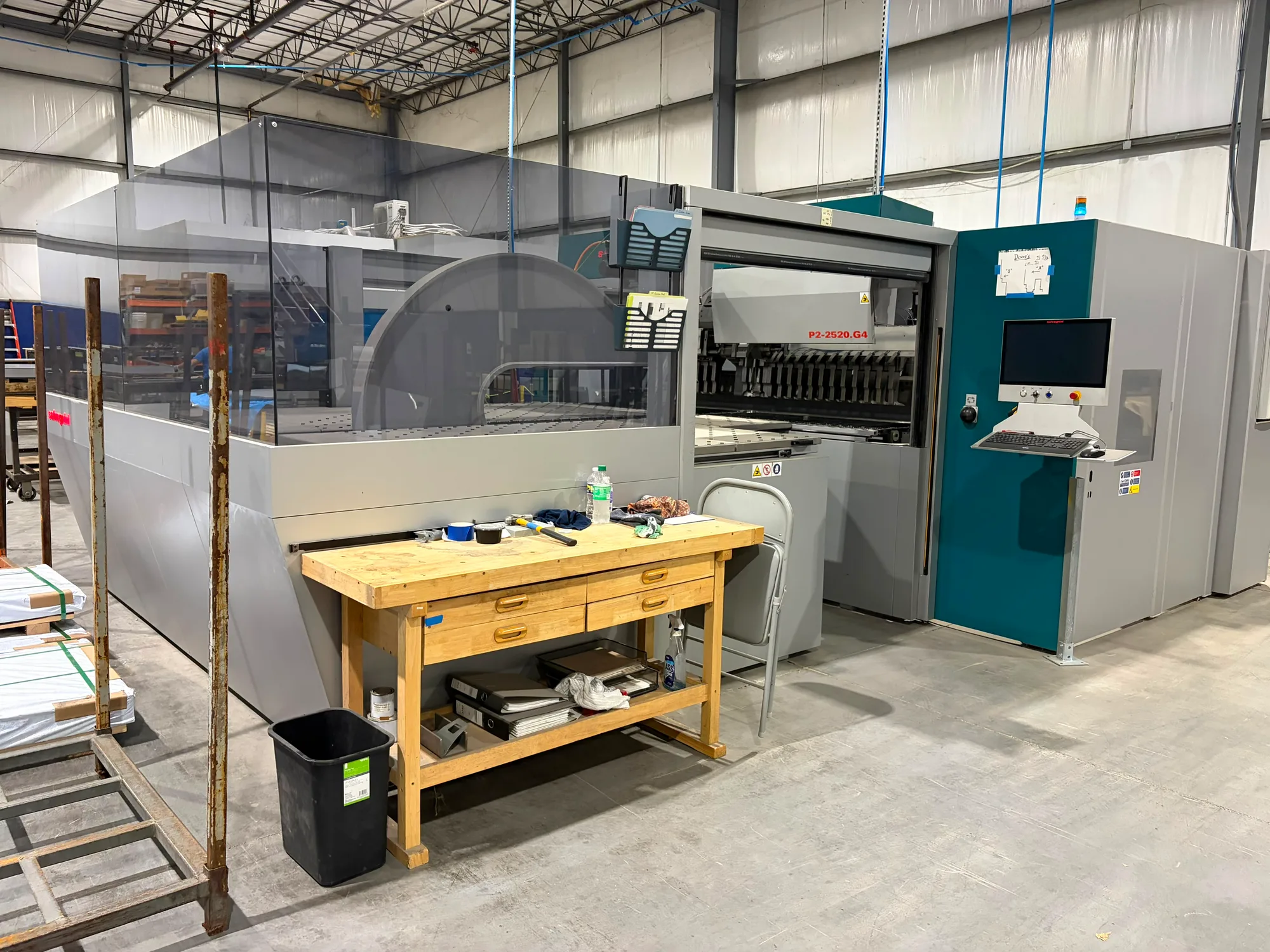

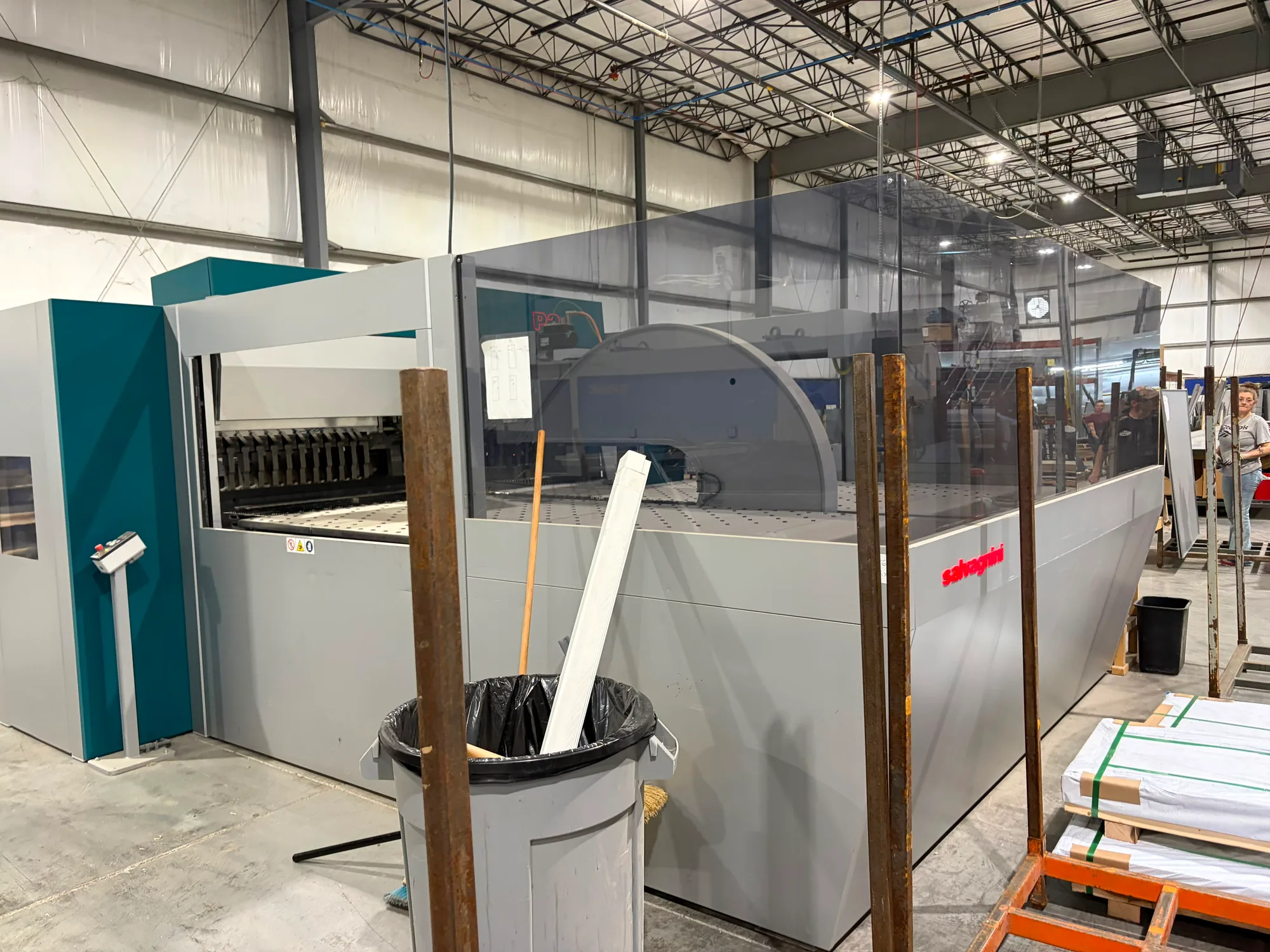

Used Salvagnini P2-2520.G4 (2024) Panel Bender for Sale. This CNC panel bender handles sheet up to 110.03″ long and 63″ wide, with a max diagonal rotation of 125.98″. Maximum bending length is 98.43″ and maximum bending height is 8″. On steel at 59 ksi UTS, the machine bends up to .126″ at +/-90 degrees, .098″ at +/-120 degrees and .083″ at +/-135 degrees, with a minimum thickness of .016″. Maximum bending force is 660 kN and maximum clamping force is 1060 kN. The P2-2520.G4 can be seen under power for an inspection prior to purchase, and it sits alongside the rest of our used CNC folding machinery. Activate Pricing to see the figure, or use the Inquire Now button to reach us with questions.
Specifications
| Max Sheet Length |
110.03" |
|---|---|
| Max Sheet Width |
63" |
| Max Diagonal Rotation |
125.98" |
| Max Bending Length |
98.43" |
| Max Bending Height |
8" |
| Max Thickness and Bending Angle (Steel UTS 59ksi) |
.126 (+/-90deg), .098 (+/- 120deg), .083 (+/-135deg) |
| Min Thickness |
.016" |
| Max Bending Force |
660 kN |
| Max Clamping Force |
1060 kN |
