Year |
2014 |
|---|---|
Make |
RAS |
Model |
MiniBend Center 79.05 |
Description |
CNC Robotic Folding Machine with Tool Changer |
Reference # |
8078032 |
Price |
Activate Pricing |

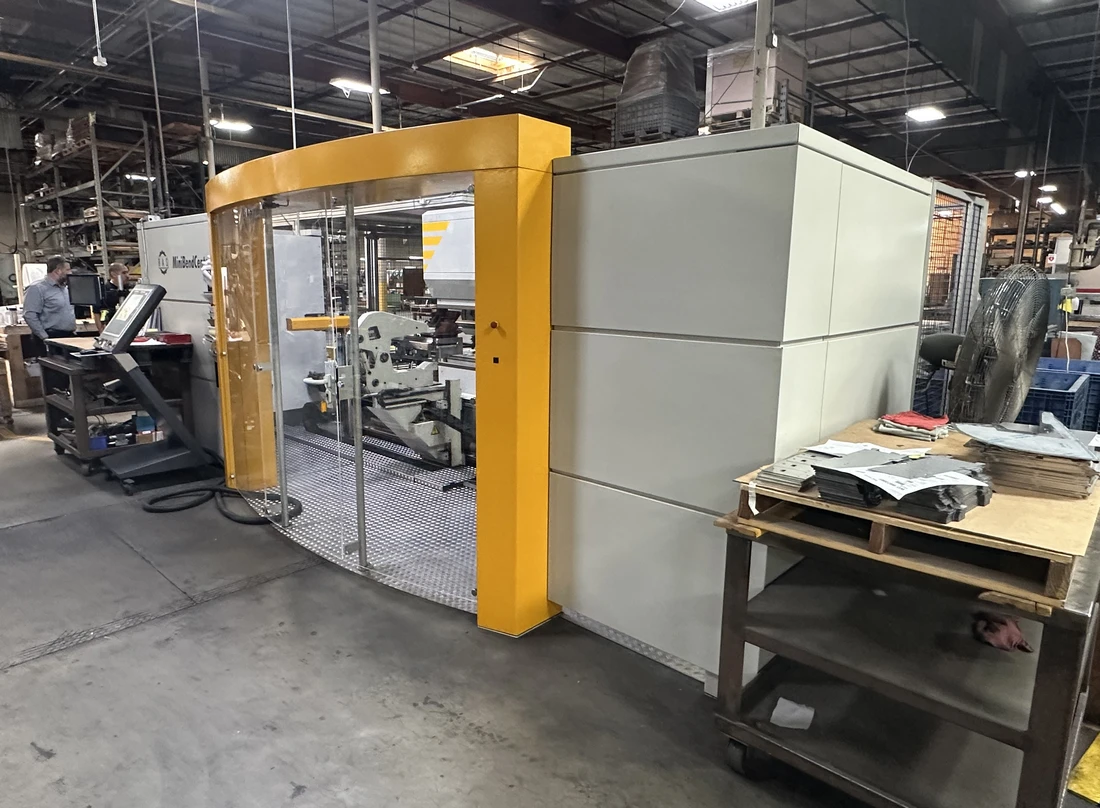

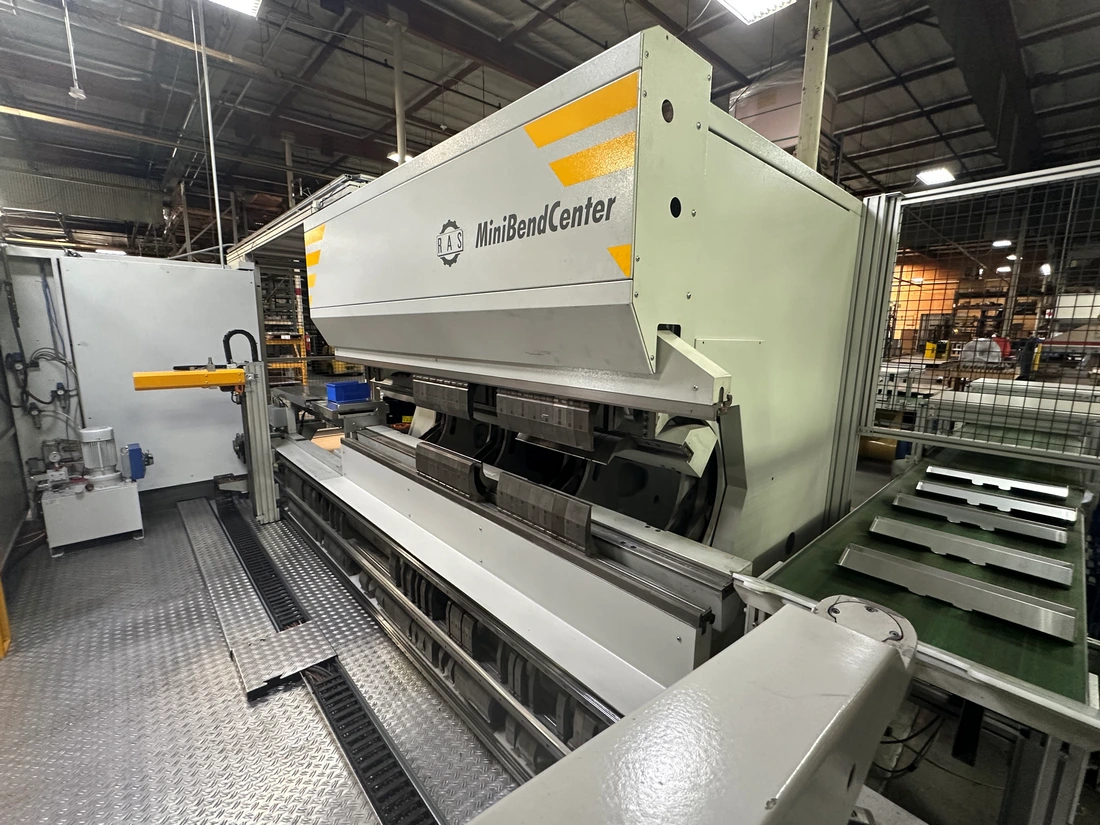

Used RAS MiniBend Center 79.05 (2014) Folding Machinery for Sale. This automated folding cell handles blank lengths from 1.97″ to 23.62″ and blank widths from 1.57″ to 23.62″, with a maximum thickness capacity of 16 Ga and up to 11 Ga depending on the tool. Pallet size is 47″ x 31.5″. Main manipulator positioning accuracy is (+/-) 0.0008″ on X and Y, (+/-) 0.002″ on Z, with rotation axis at (+/-) 0.01 degrees and tool changer accuracy of 0.0008″. Upper and lower beam lengths are 98.4″, with folding beams at 90.5″ and 98.4″. Equipped with an 18″ touch screen moveable operating panel, camera scanning system, finished part conveyor, Kuka KR 16-2 robot, material handling system, servo motor drive, transfer table with suction cups, two raw material carts, two skeleton pallets, upper and lower tool magazine, and tooling. Available for inspection under power. Activate Pricing or Request a Quote.
Specifications
| Max Thickness Capacity |
16 Ga |
|---|---|
| Min/Max Blank Length |
1.97"/23.62” |
| Min/Max Blank Width |
1.57"/23.62” |
| Max Material Thickness |
11 Ga. (Depending on the Tool) |
| Pallet Size |
47" x 31.5" |
| Main Manipulator Positioning Accuracy |
X-Axis: (+/-) 0.0008" Y-Axis: (+/-) 0.0008" Z-Axis: (+/-) 0.002" |
| Rotation Axis |
(+/-) 0.01 Deg. |
| Tool Changer Accuracy |
0.0008" |

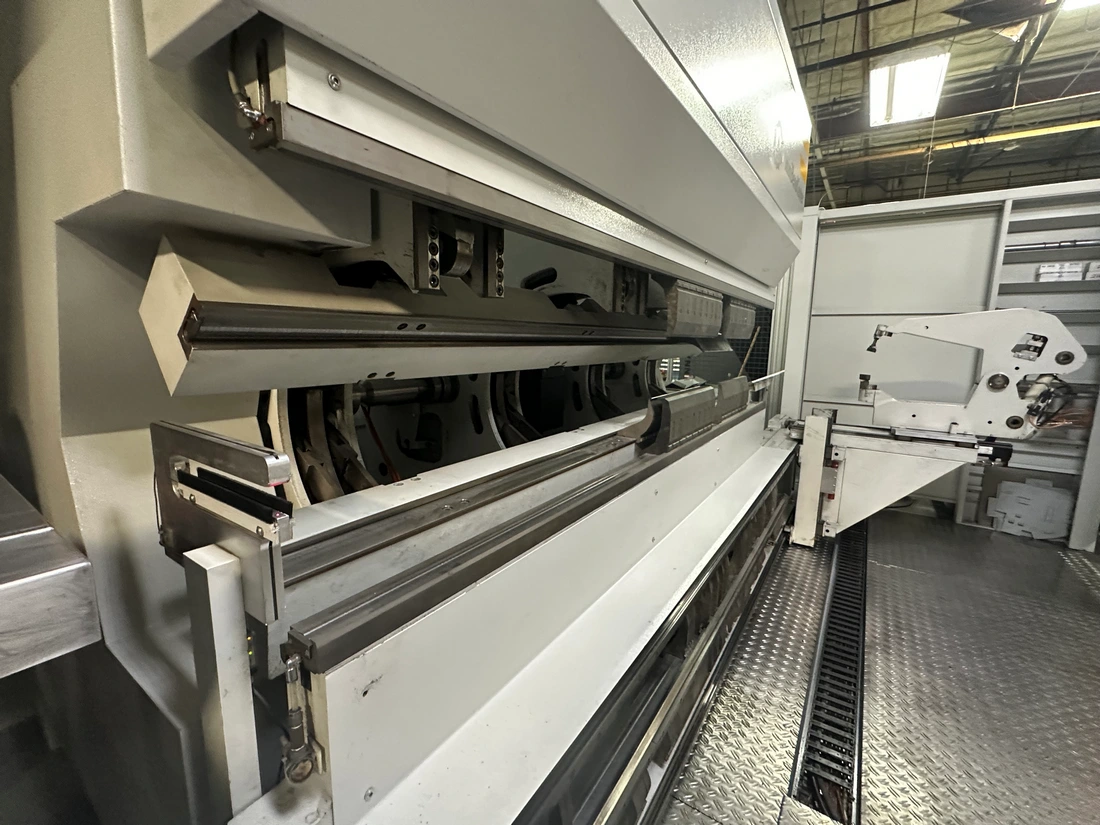

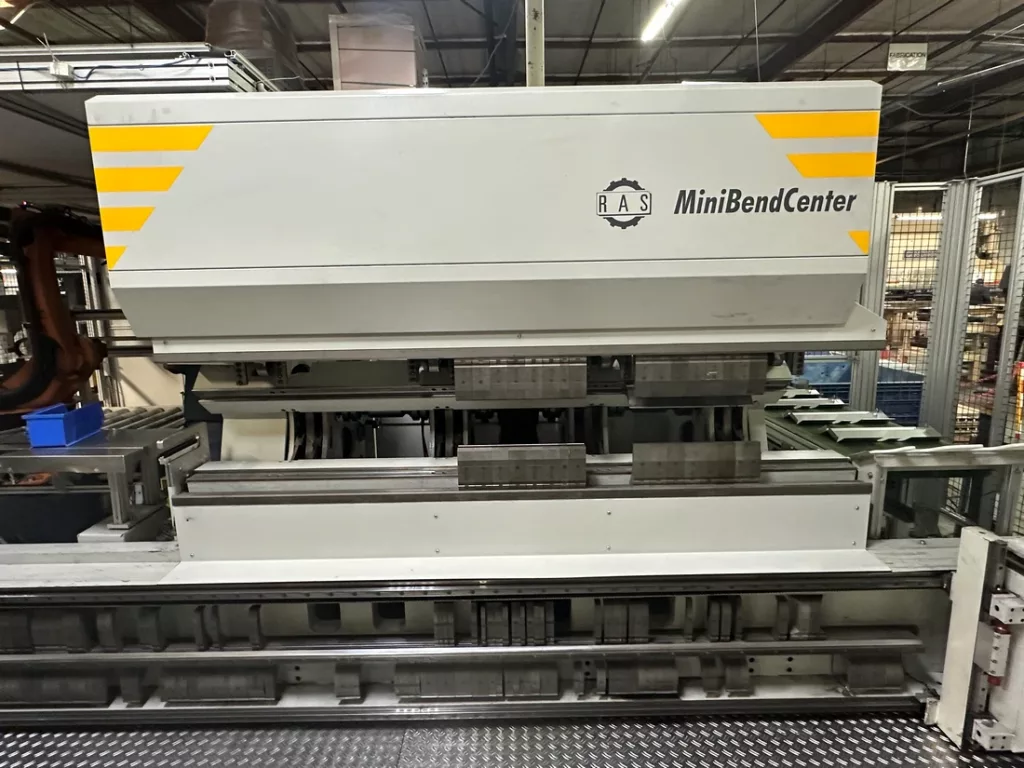

| Folding Cell Upper/ Lower Beam Length |
98.4" / 98.4” |

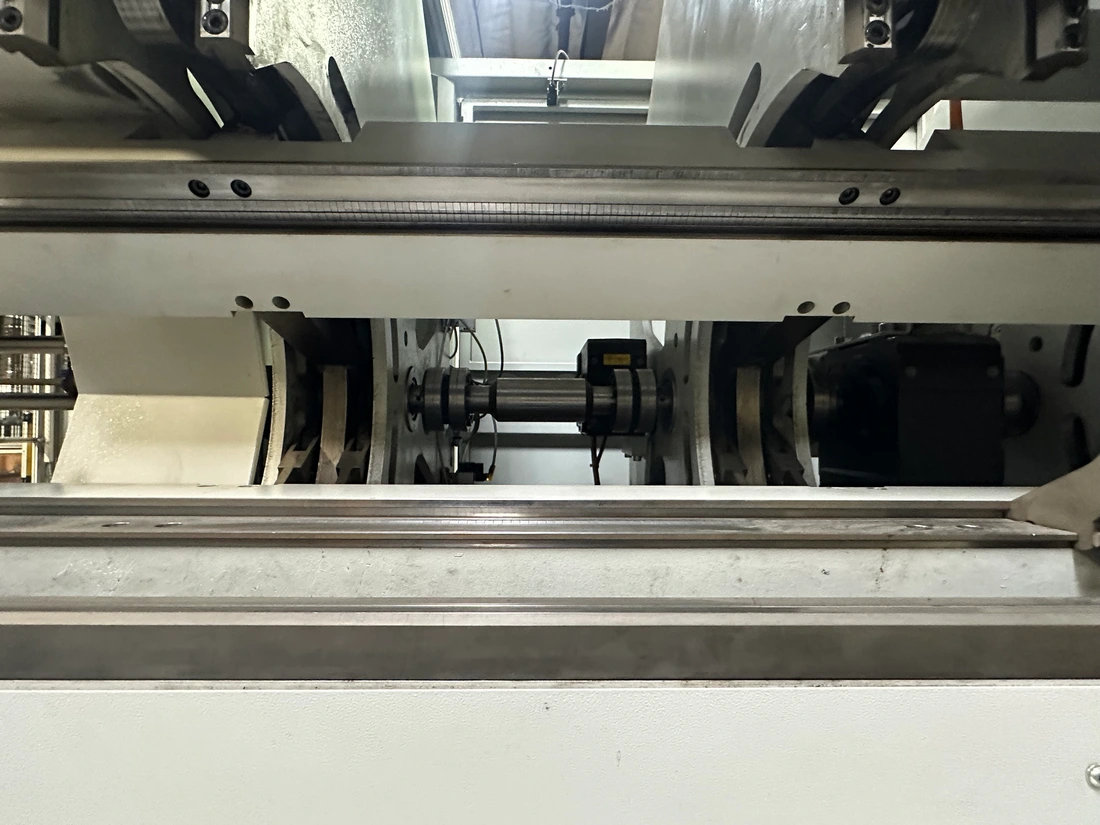

| Folding Cell Upper/Lower Folding Beam |
90.5" / 98.4" |
Features
|

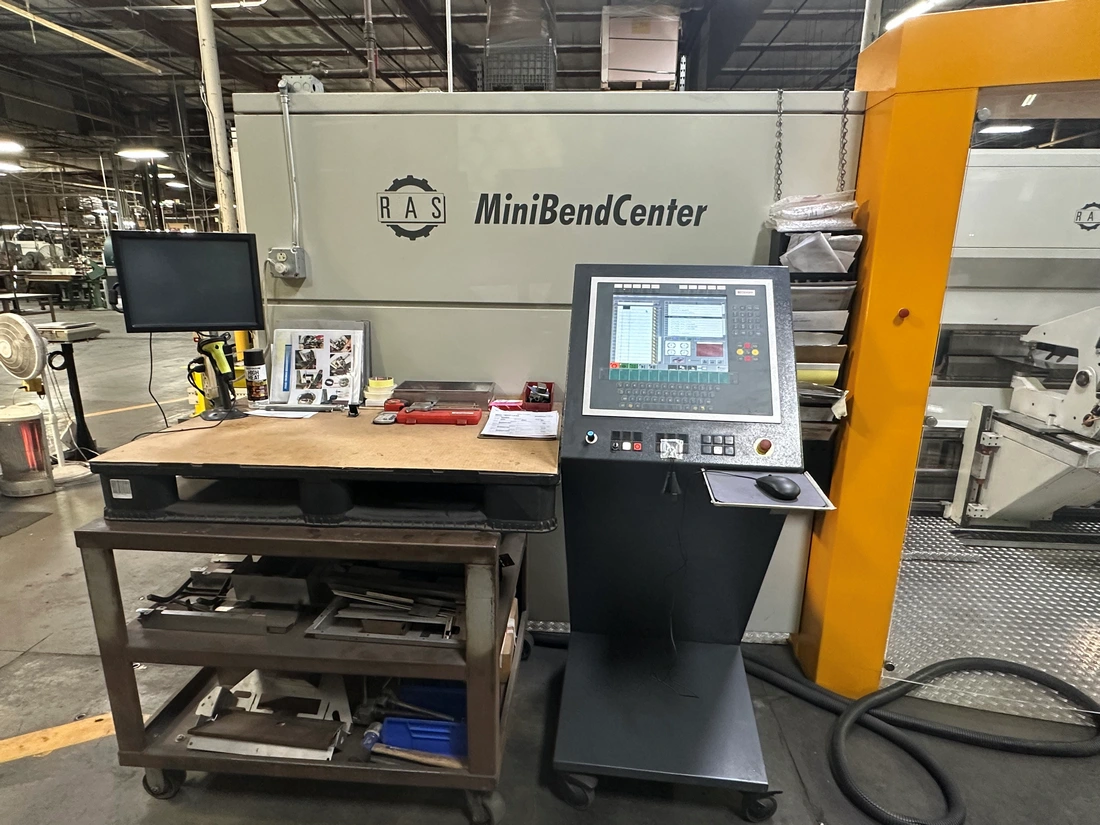

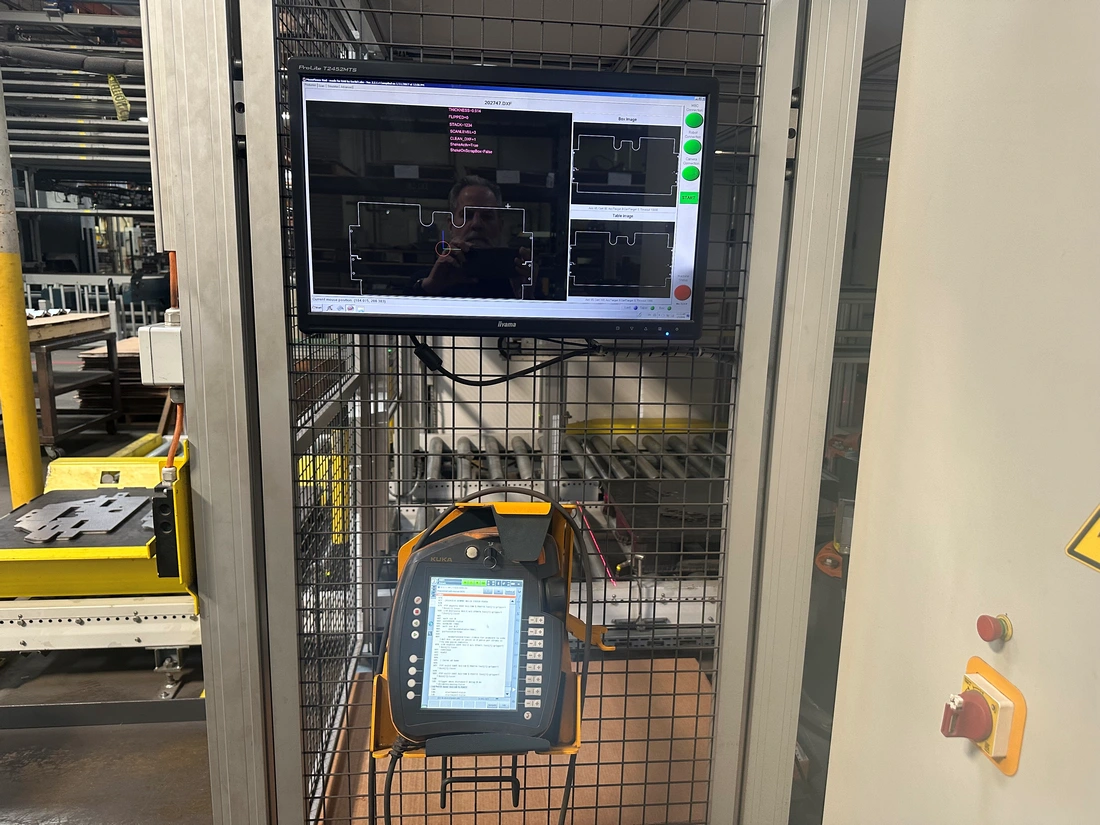

18" Touch Screen Moveable Operating Panel |

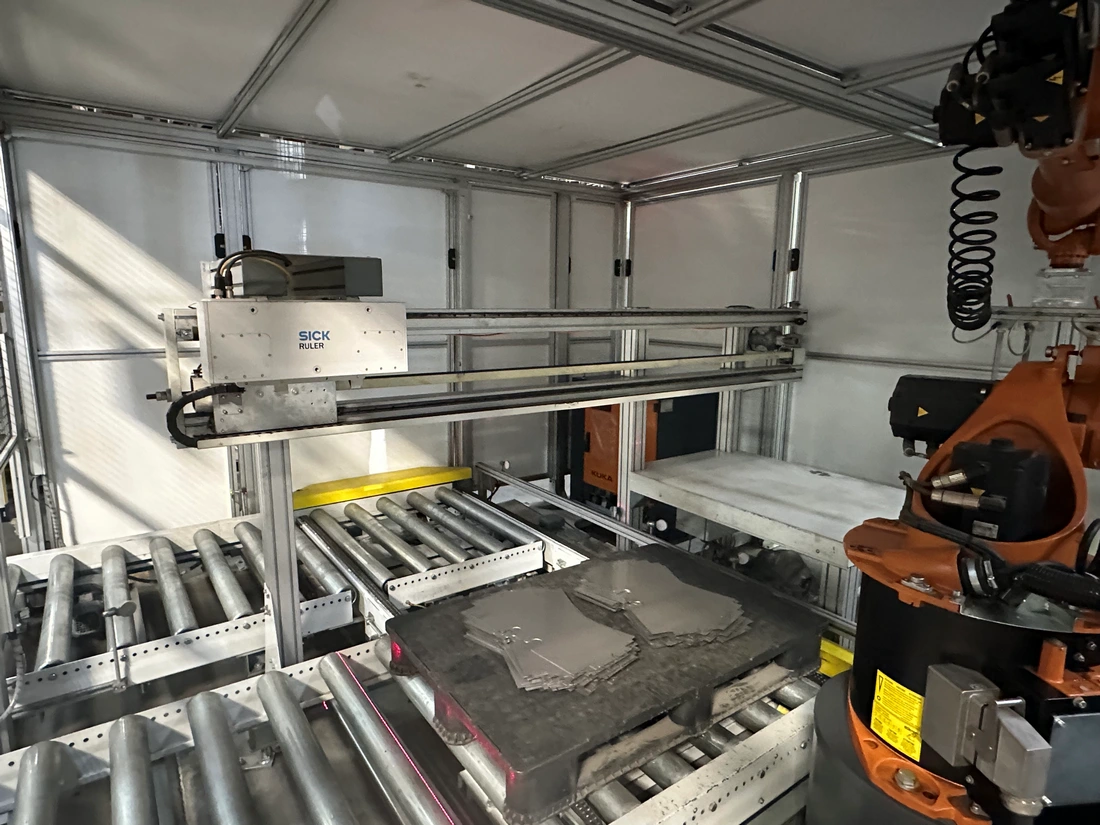

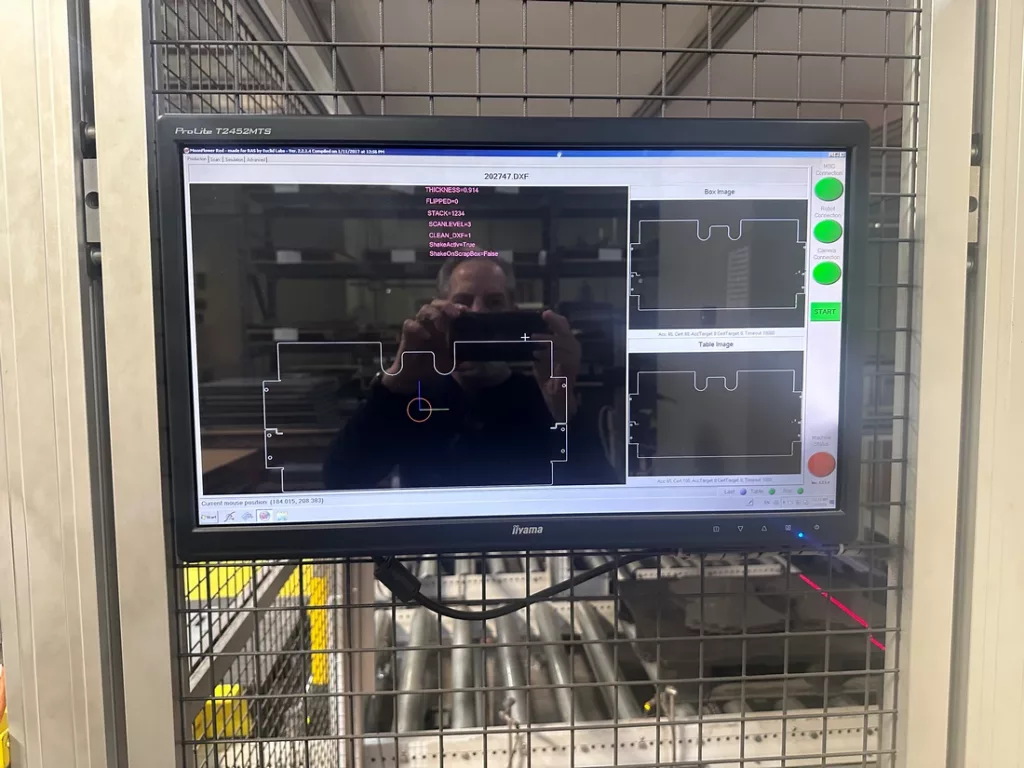

Camera Scanning System |
|

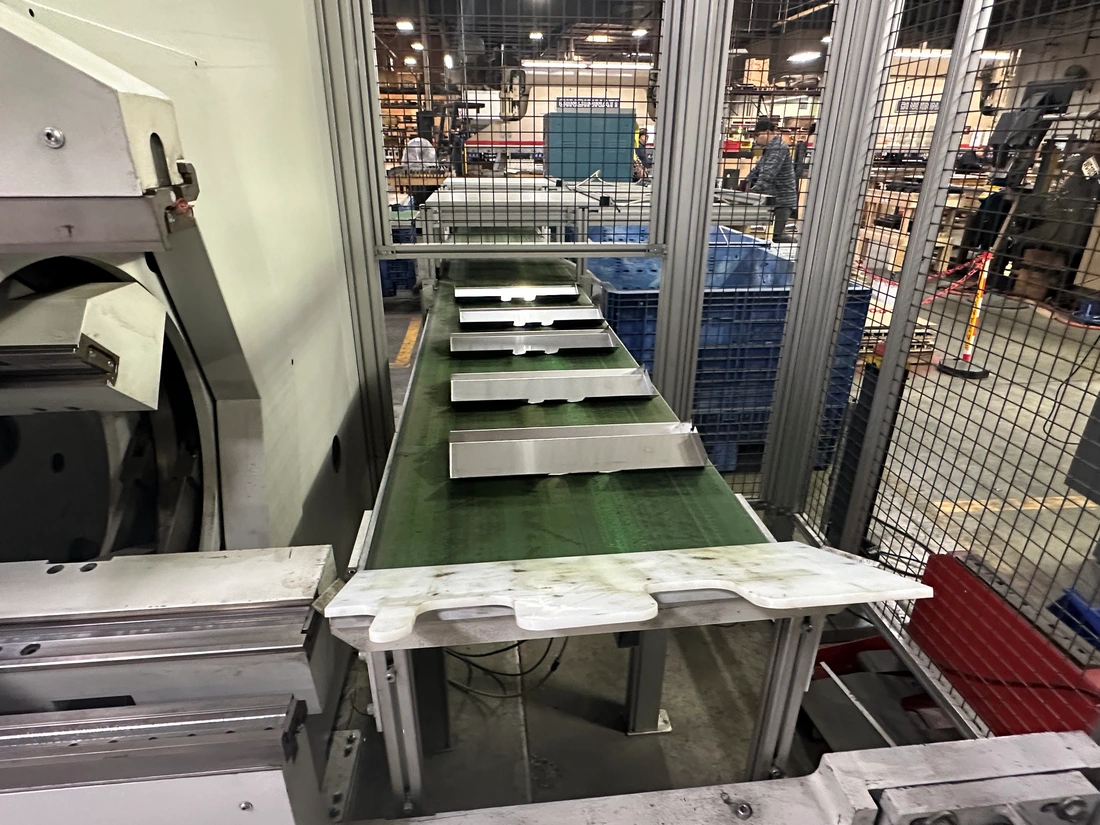

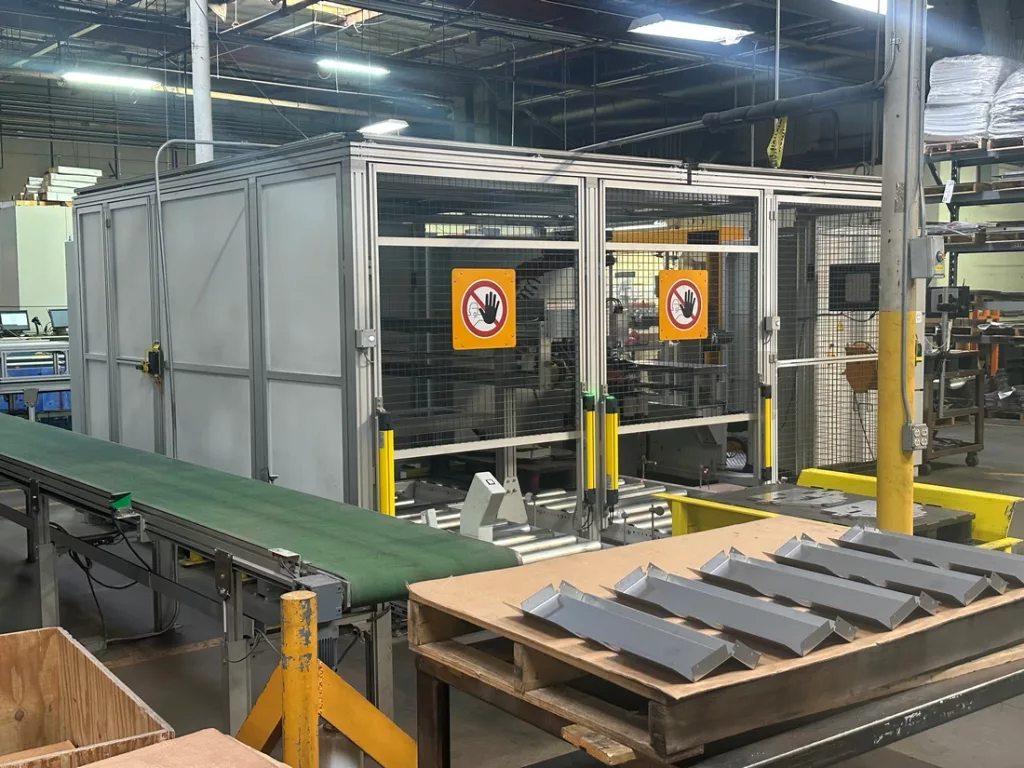

Finished Part Conveyor System |

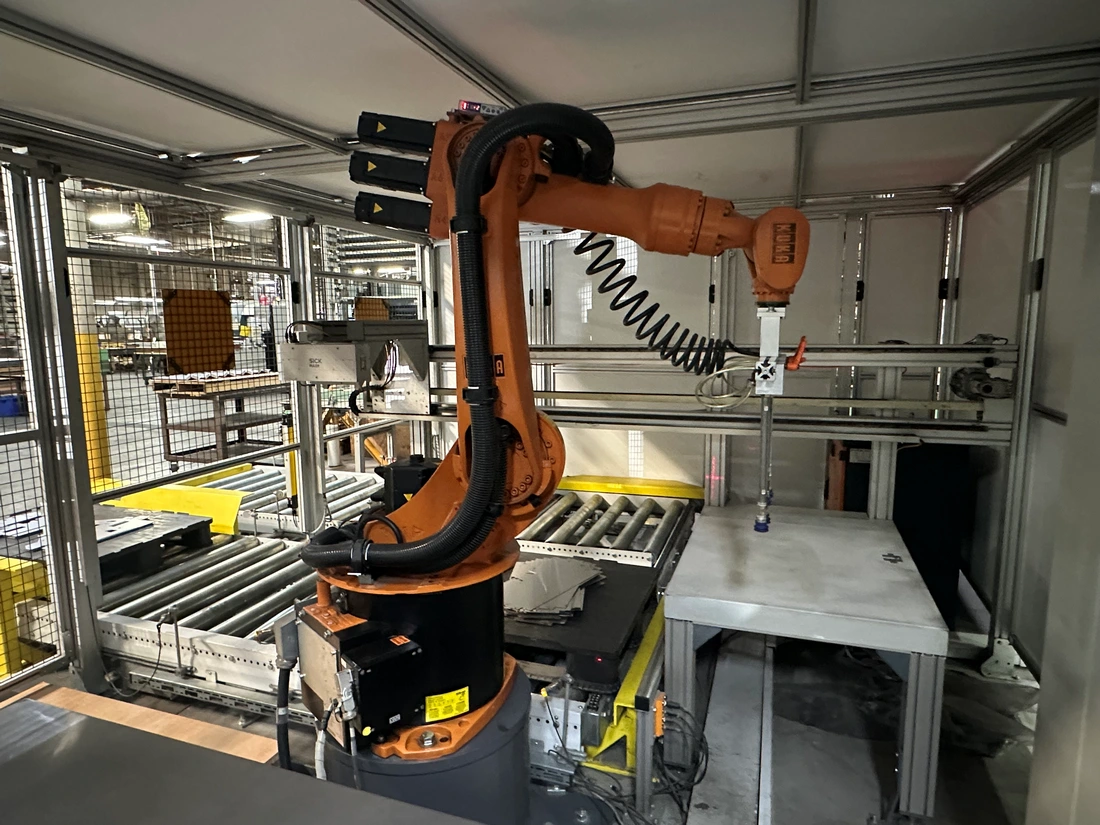

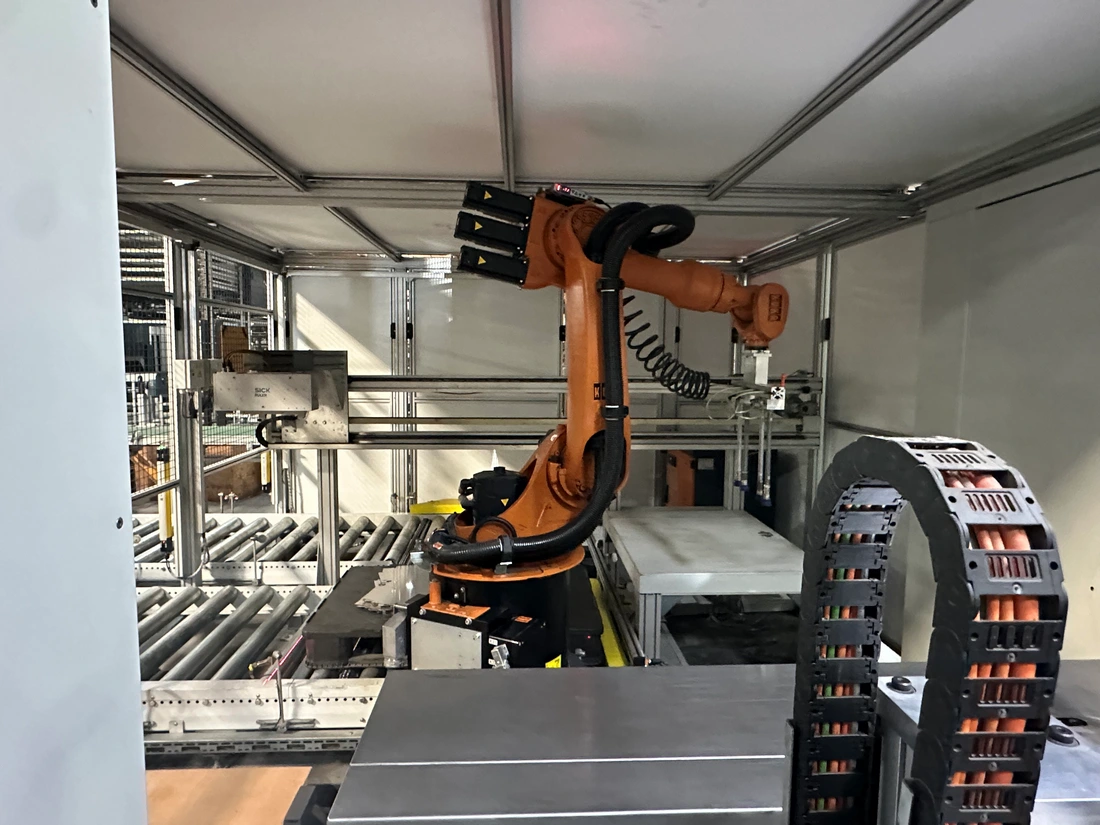

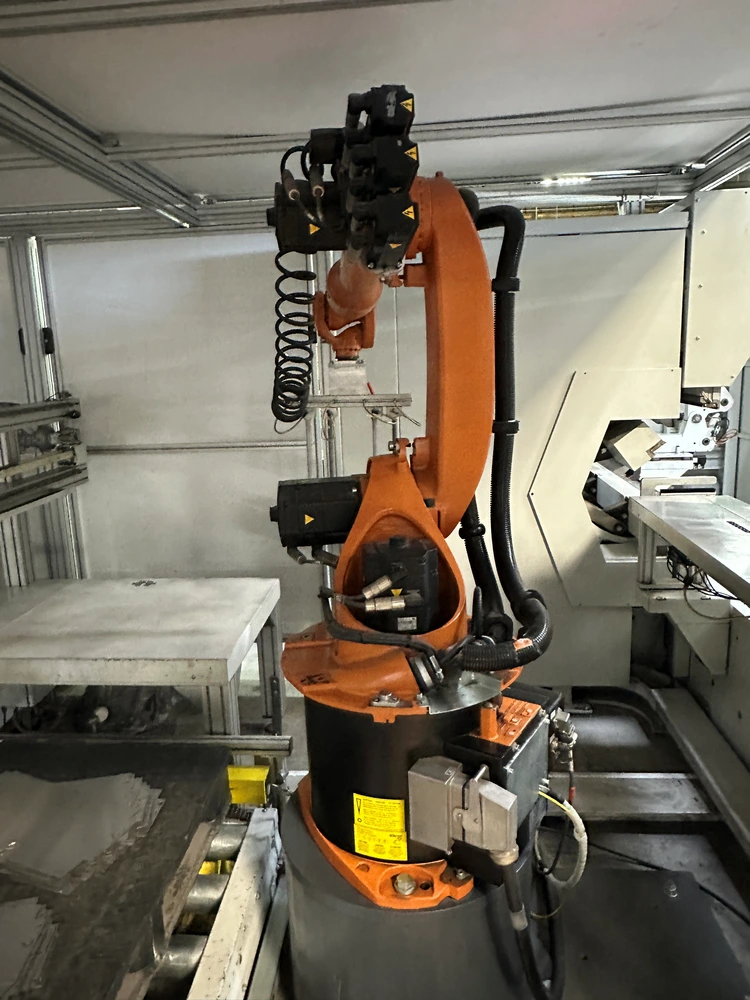

Kuka Kr 16-2 Robot |
|
Leveled Blank Quality |

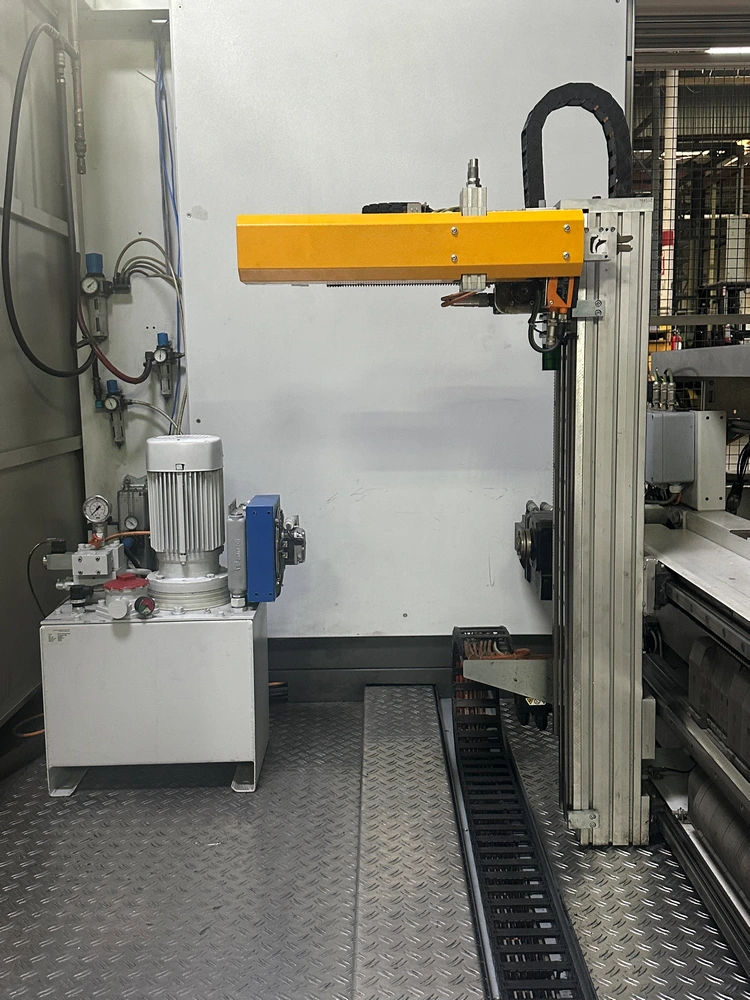

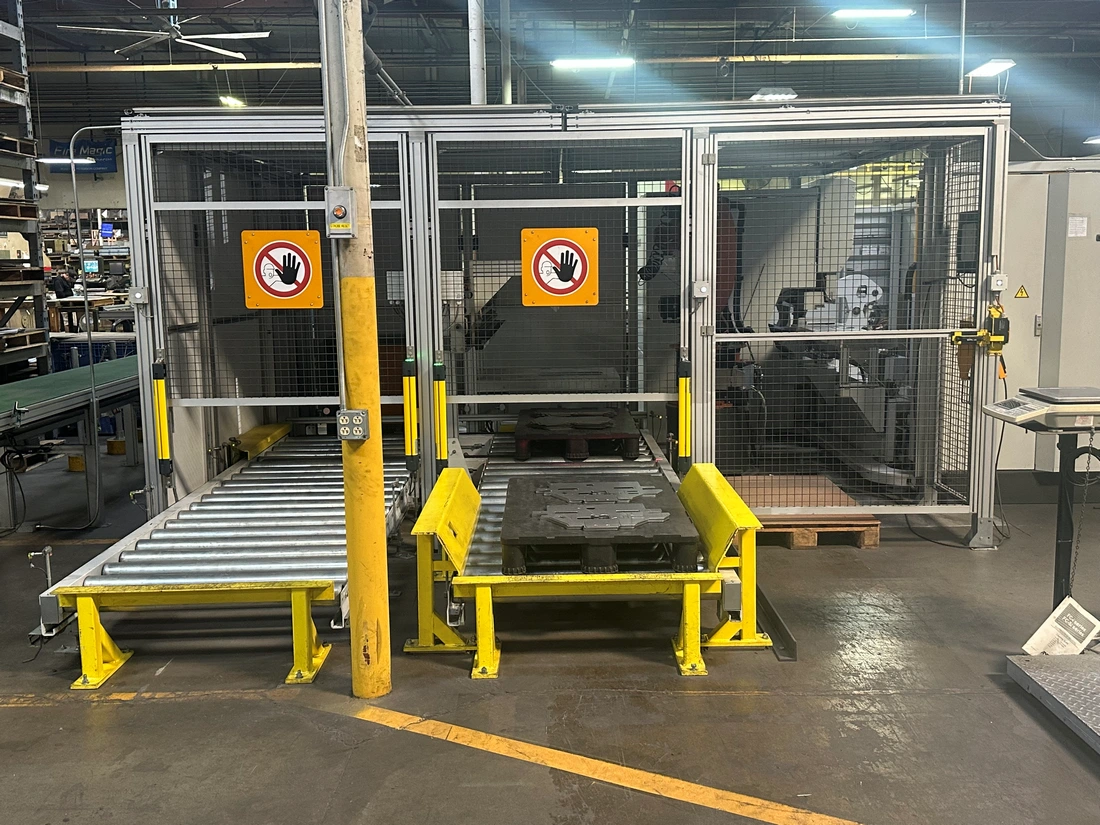

Material Handling System |
|
Servo Motor Drive |
Transfer Table with Suction Cups |
|
Two Raw Material Carts |
Two Skelton Pallets |
|

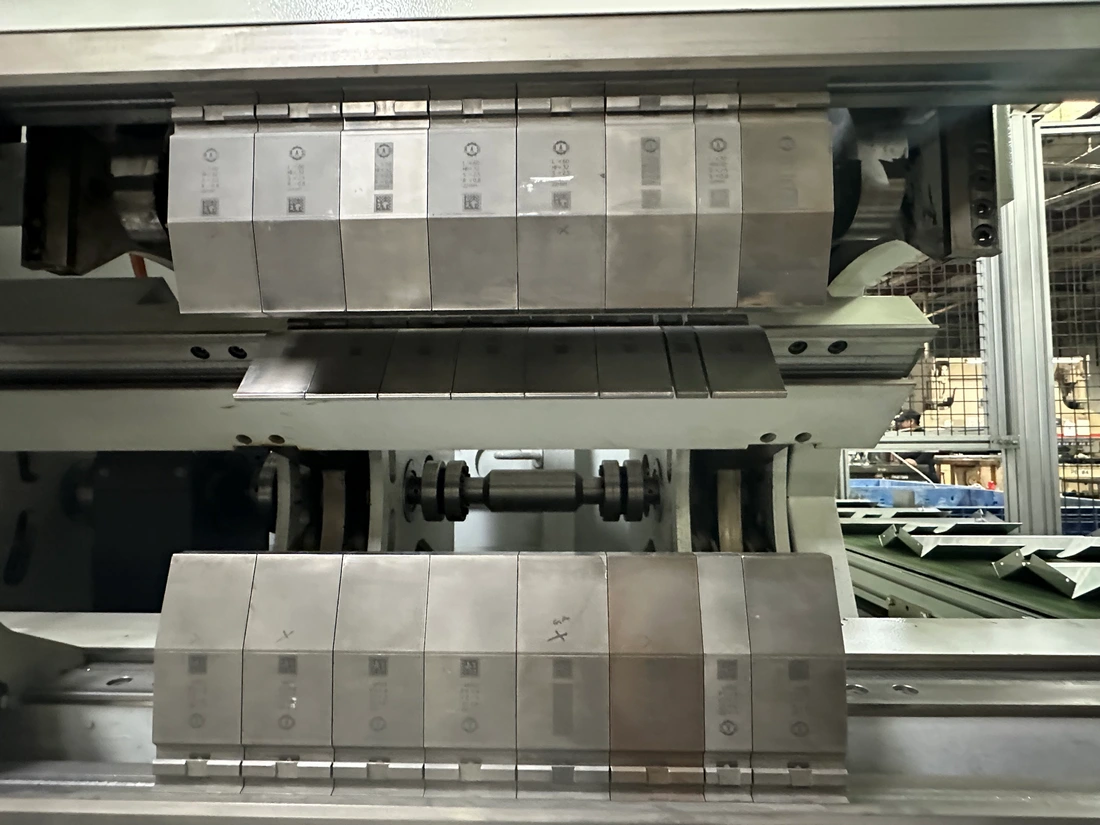

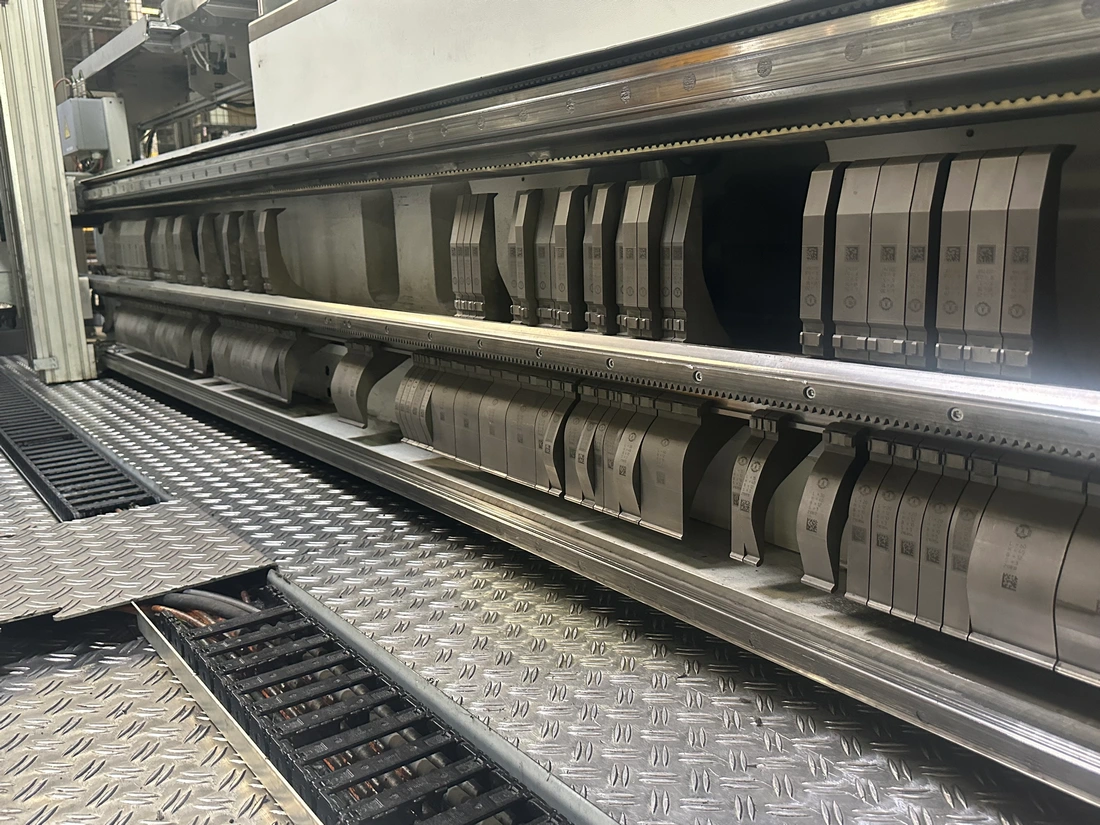

Upper And Lower Tool Magazine |
Tooling Included |
