Make |
Jorns |
|---|---|
Model |
Norma-Line-125-SM-CNC 400A-6.4 |
Description |
Folding Machine |
Reference # |
8078538 |
Price |
Activate Pricing |

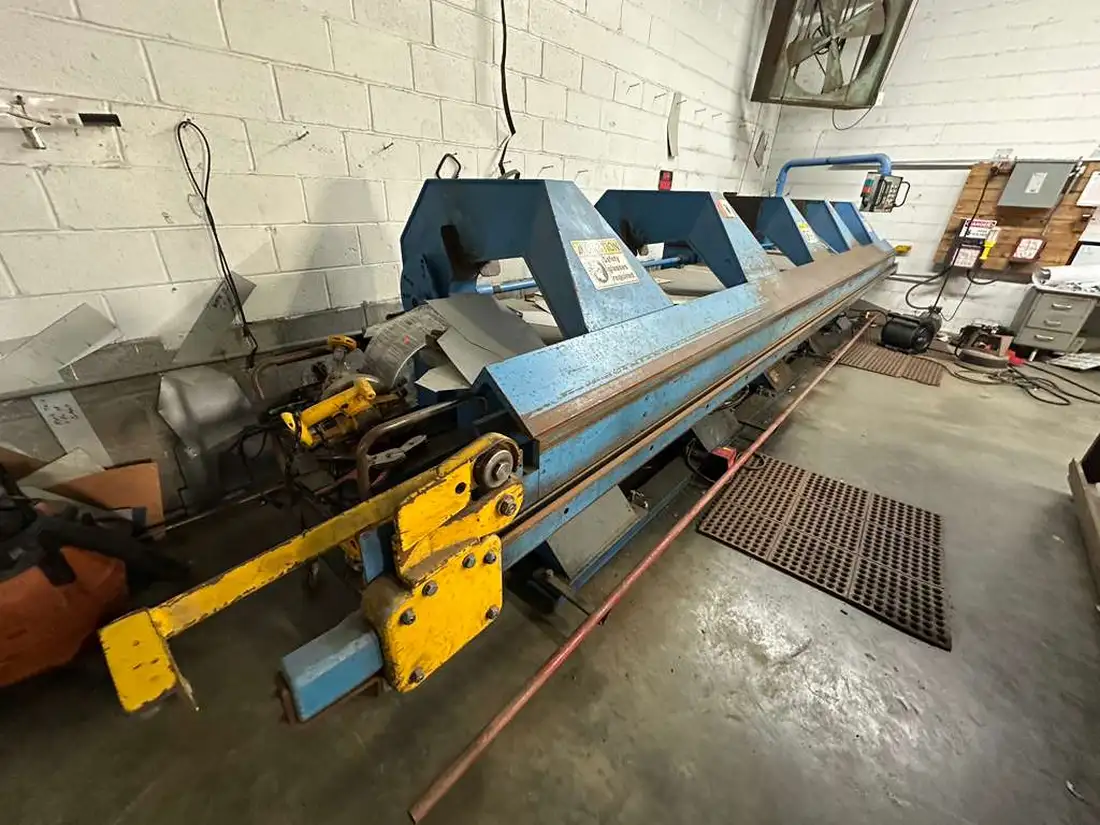

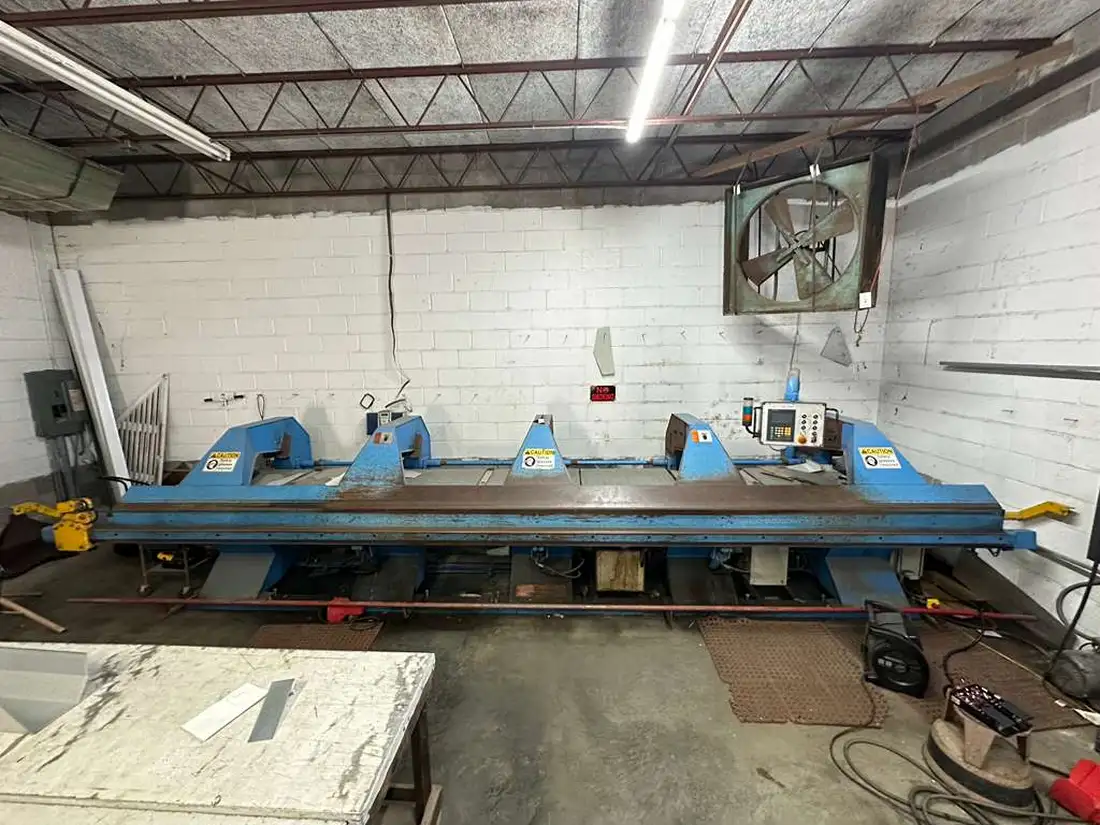

Used Jorns Norma-Line-125-SM-CNC 400A-6.4 Folding Machinery for Sale. This CNC folder has an overall bed and ram length of 21′ with a thickness capacity of 18 GA and a maximum bending angle of 140 degrees. Throat depth is 39″, with five arm supports and three bend cylinders. Control is by Beck Automation. Equipped with a powered slitter option, two electric foot pedal trips (both sides), backgauge, hydraulic unit, E-stop button, and a full-length foot treadle E-stop. The machine can be seen under power for an inspection. See additional listings in our used CNC folding machinery category, or use Activate Pricing to view the price on this unit. Request a Quote for full details and availability.
Specifications
| Overall Length of Bed and Ram |
21' |
|---|---|
| Thickness Capacity |
18 GA |
| Max Bending Angle |
140 Degrees |
| Throat Depth |
39" |

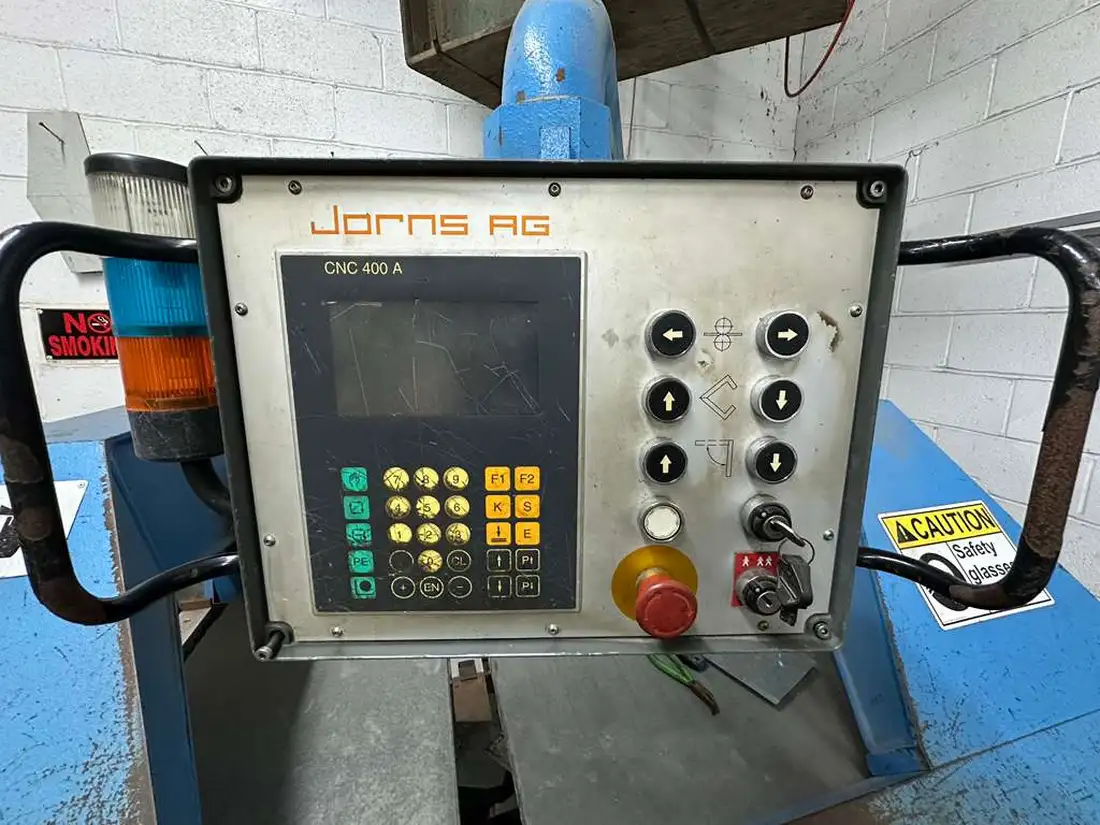

| Control |
Beck Automation |
| Number of Arm Supports |
5 |
| Number of Bend Cylinders |
3 |
Features
|
Powered Slitter Option |
(2) Electric Foot Pedal Trip (Both Sides) |
|
Backgauge |
Hydraulic Unit |
|
E-Stop Button |
Foot Treadle E-Stop (Full Length) |
