Year |
2018 |
|---|---|
Make |
Prima |
Model |
BCe Smart 2220 |
Description |
Panel Bending Machine |
Reference # |
8078430 |
Price |
Activate Pricing |

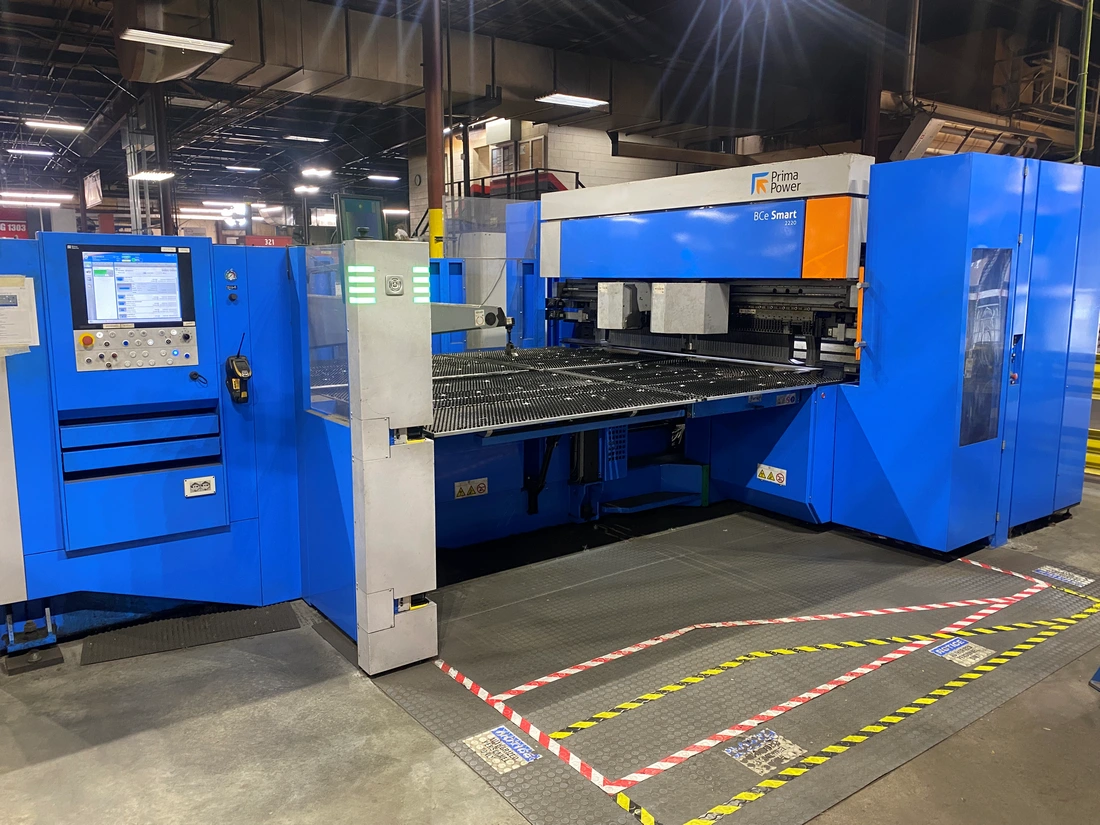

Used Prima BCe Smart 2220 (2018) Folding Machinery for Sale. This panel bender offers a max bending length of 88.58″ with a max bending width between bends of 6.29″ and a max bending height of 8.03″. Sheet length range is 8.46″ to 112″, sheet width range is 7.08″ to 59.05″, and max panel diagonal is 118.11″. Bending force is rated at 32 Ton with 52 Ton of sheet clamping force, run through the Prima Power Control. See the photos for additional specifications and equipment details. The machine can be seen under power for an inspection, so you can confirm operation and control function before committing. If this Prima BCe Smart 2220 fits your fabrication requirements, Request a Quote and we will follow up with details.
Specifications
| Max Bending Length |
88.58" |
|---|---|
| Max Bending Width between Bends |
6.29" |
| Max Bending Height |
8.03" |
| Min/Max Sheet Length |
8.46"/112" |
| Min/Max Sheet Width |
7.08"/59.05" |
| Max Panel Diagonal |
118.11" |
| Bending Force |
32 Ton |
| Sheet Clamping Force |
52 Ton |
| Control |
Prima Power Control |

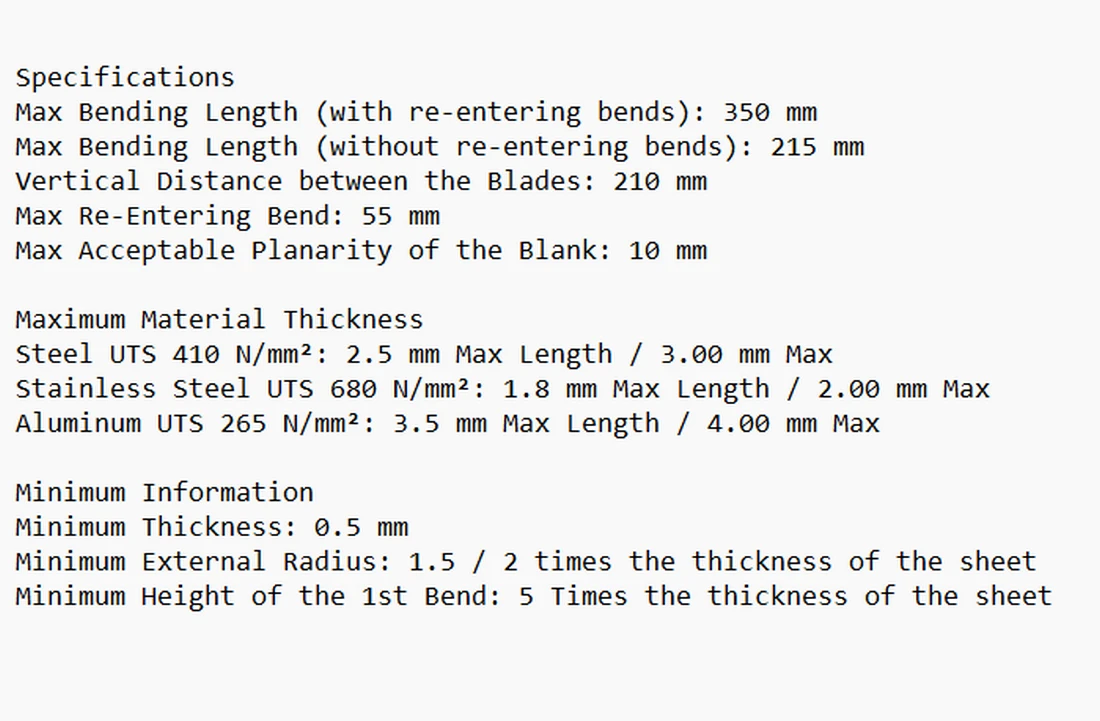

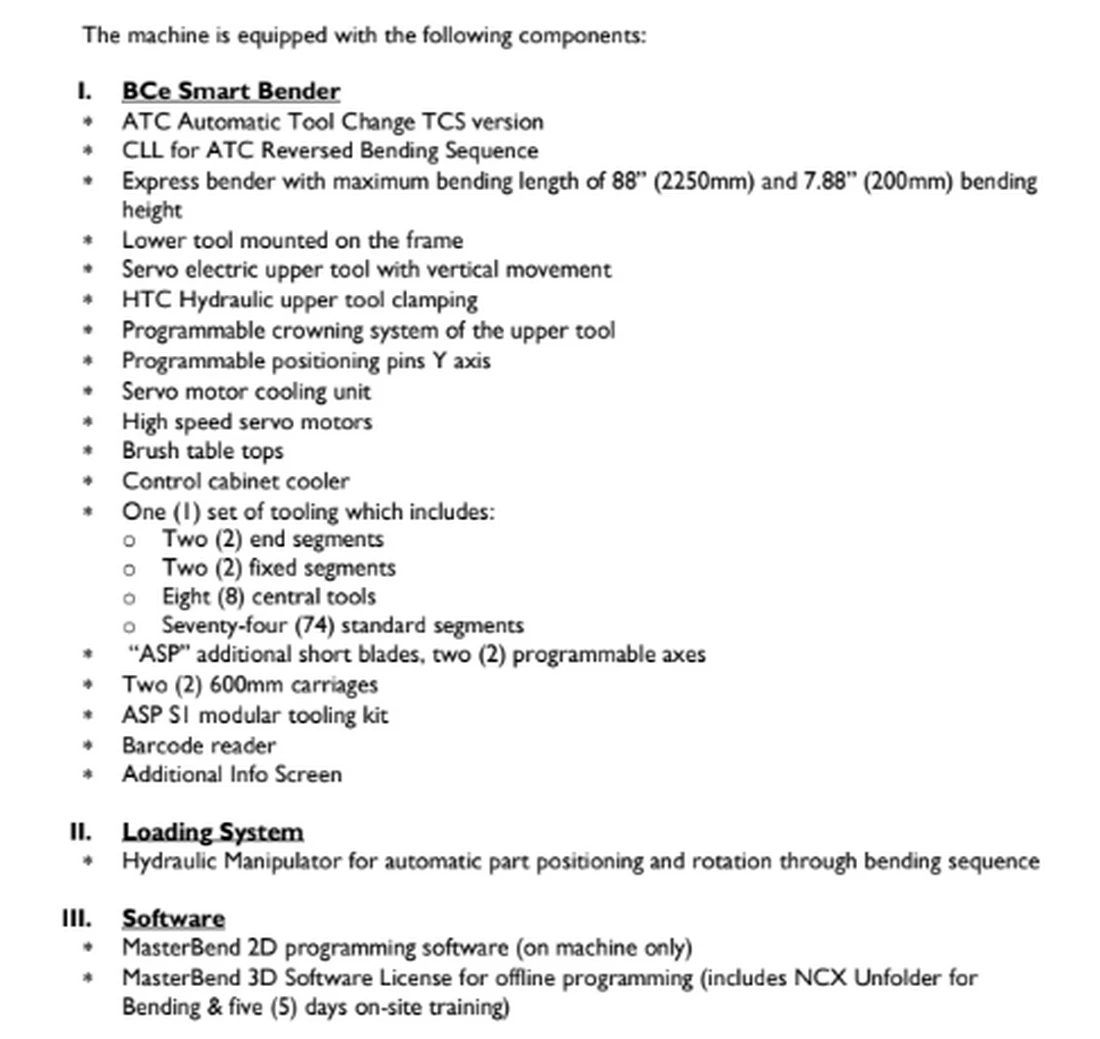

Features
|
See Photos for More Specs |
