Year |
2016 |
|---|---|
Make |
Thalmann |
Model |
TD 200 6.4 |
Description |
Folding Machine |
Reference # |
8079136 |
Price |
Activate Pricing |

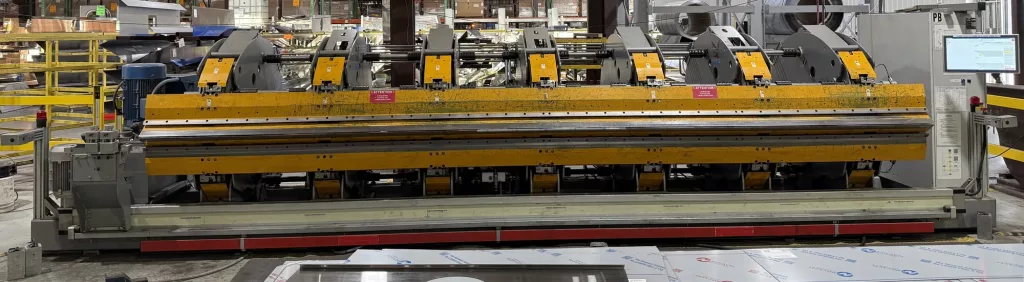

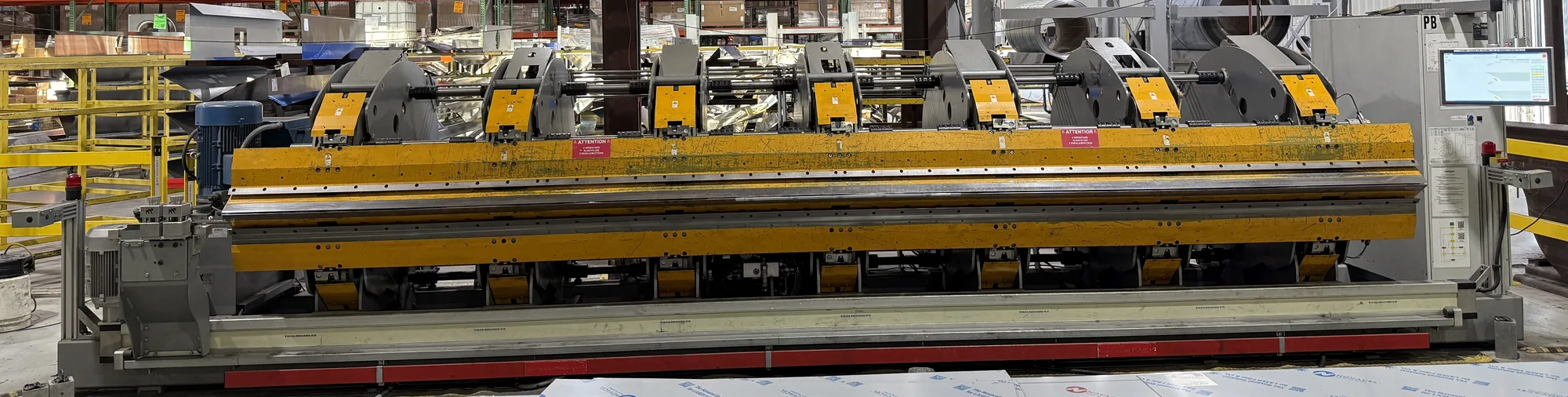

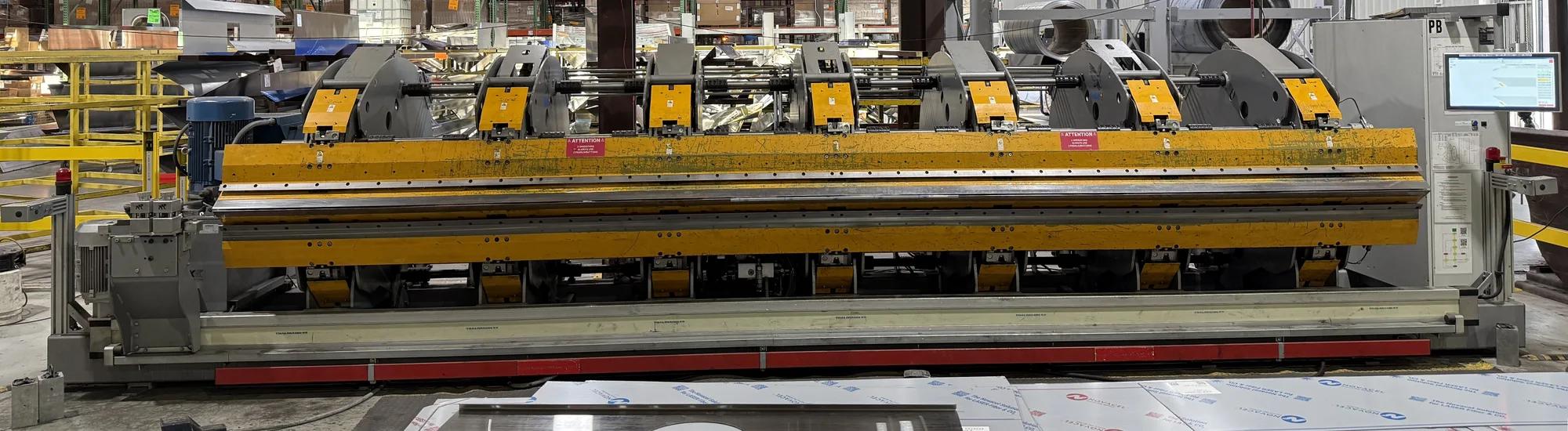

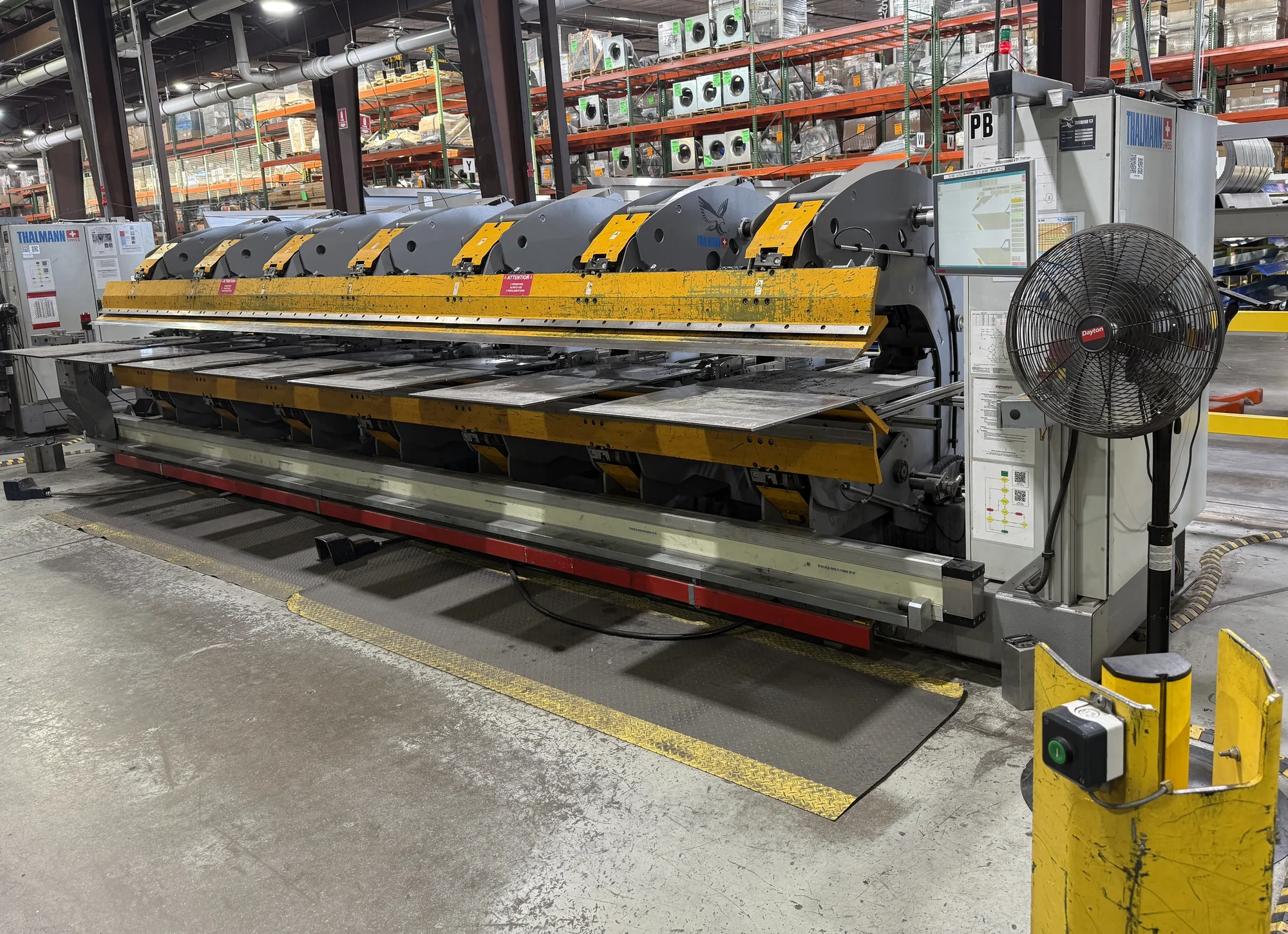

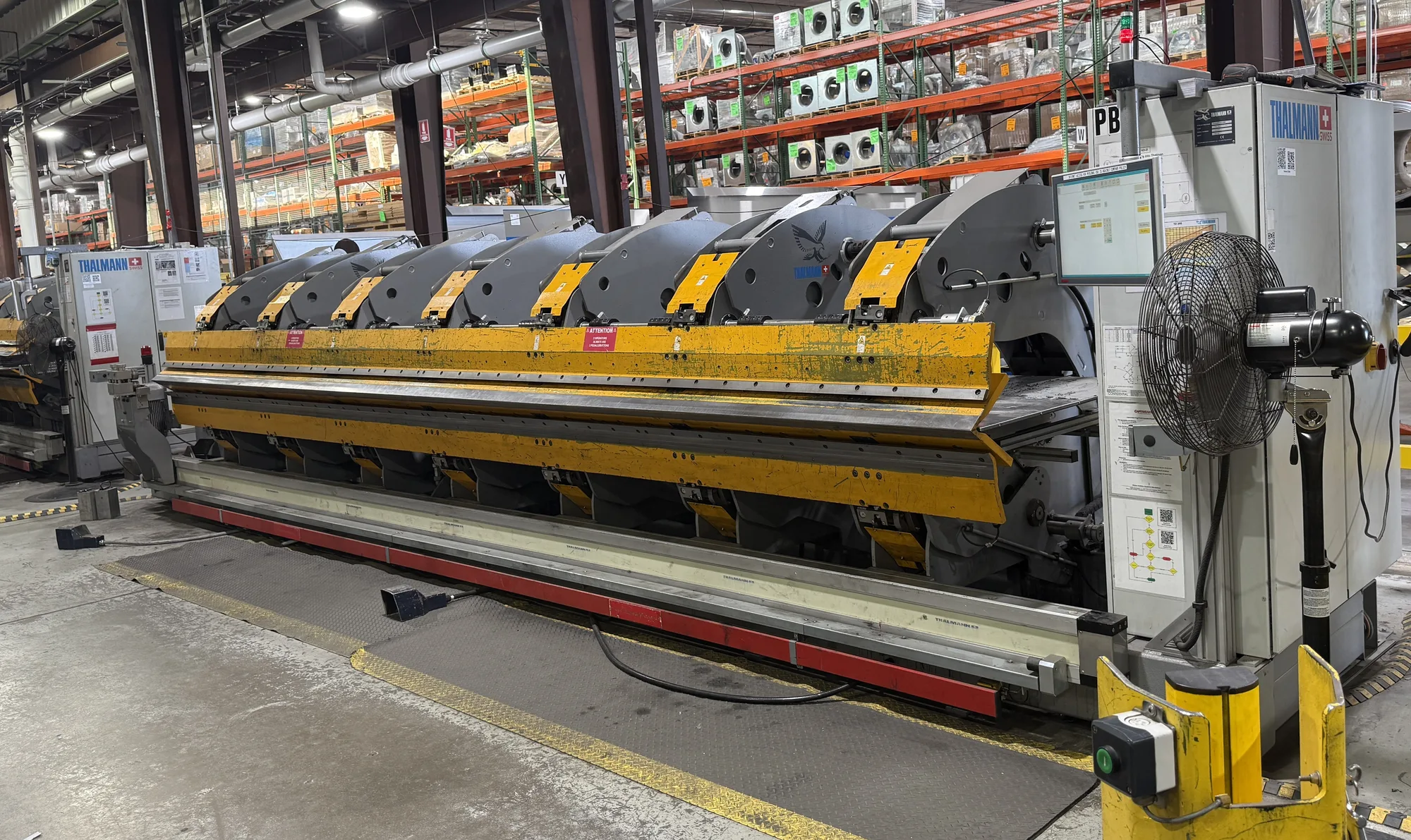

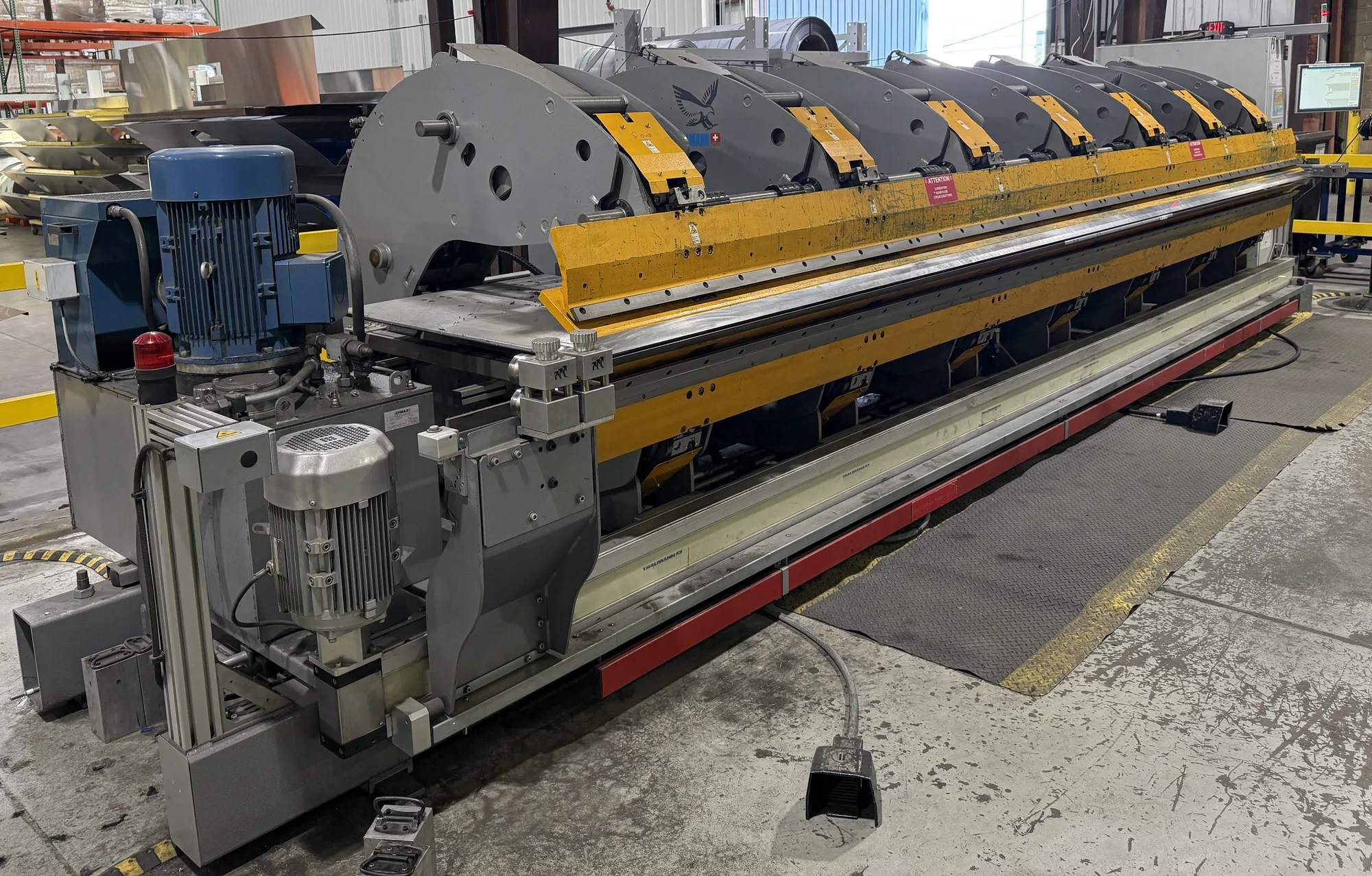

Used Thalmann TD 200 6.4 (2016) Folding Machine for Sale. This machine offers a 21′ (6.4m) bending length with a maximum thickness capacity of 14 Ga (2mm), a 49.2″ (1250mm) backgauge depth, 5.9″ (150mm) clamping stroke, a folding range of 143 degrees and a .394″ (10mm) folding beam width. Power requirements are 460V, 3 Phase. Equipped with 7 C-frames instead of 6, automatic extending tables to support large parts between bend steps, G6 grippers able to clamp over 32x26mm return flanges, Hardox upper beam, lower beam, folding beams and carrier blades for stainless steel folding, heavy duty back gauge finger stops, a horizontal hemming unit, light curtains in place of top and floor scanners, M-Guard plus VPN access, and a safety indicator light with 1- and 2-man toggle. Available for inspection under power. See more used CNC folding machinery, then Activate Pricing or use the Inquire Now button.
Specifications
| Max Thickness Capacity |
14 Ga (2mm) |
|---|---|
| Bending Length |
21' (6.4m) |
| Backgauge Depth |
49.2" (1250mm) |
| Clamping Stroke |
5.9" (150mm) |
| Folding Range |
143 Degrees |
| Folding Beam Width |
.394" (10mm) |
| Power Requirements |
460V, 3 Phase |
Features
|

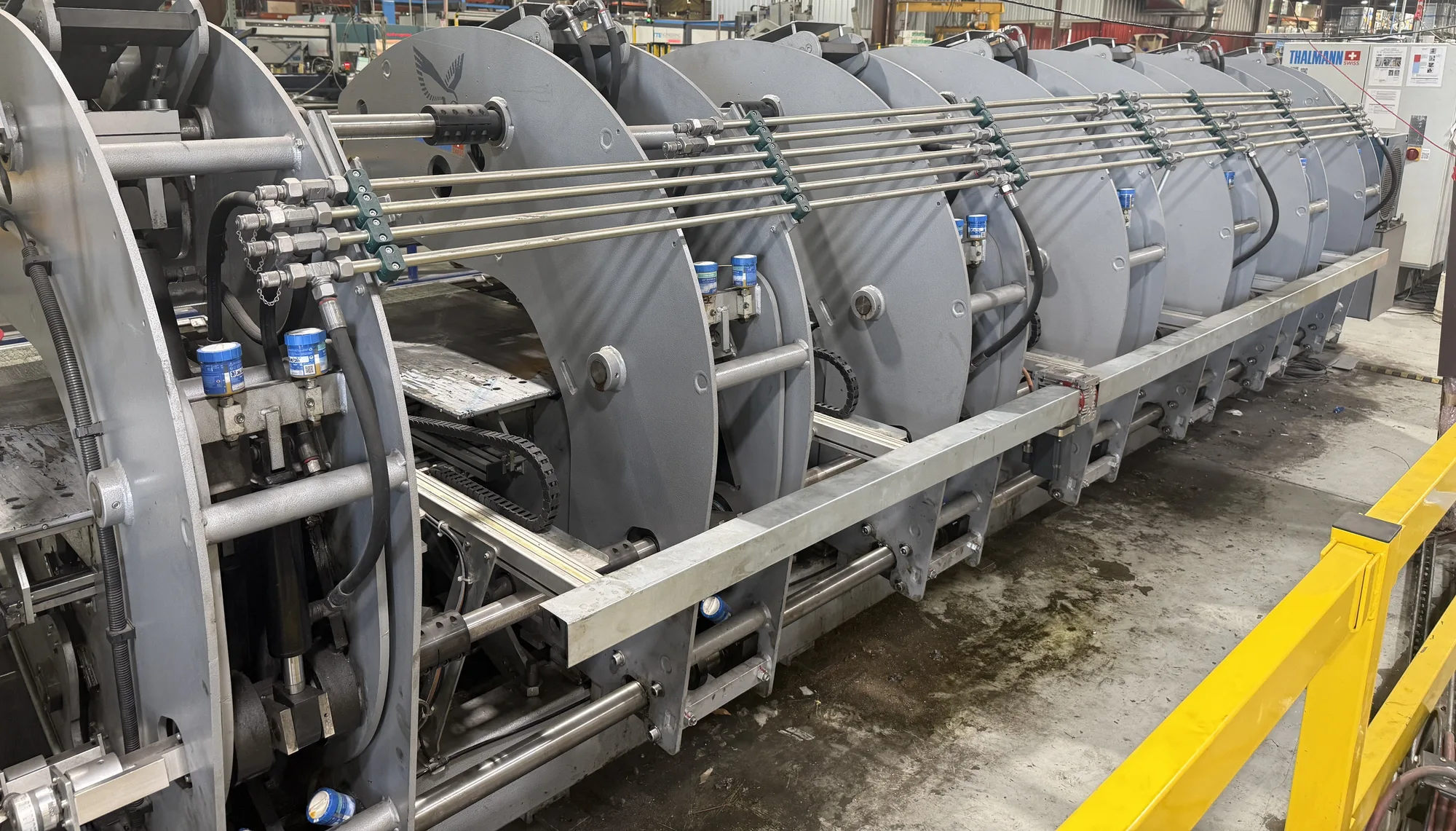

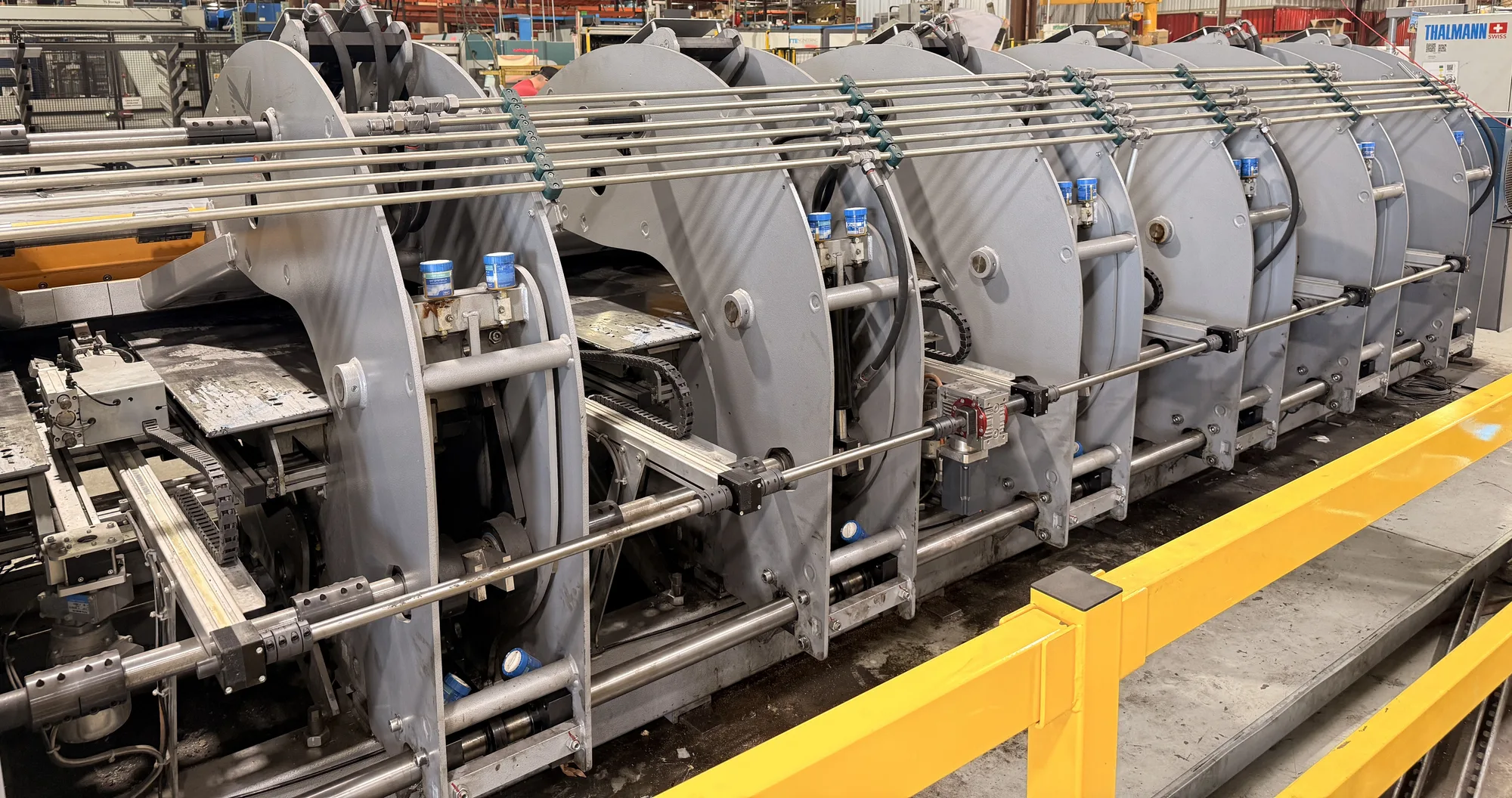

7 C-Frames Instead of 6- C-Frames |

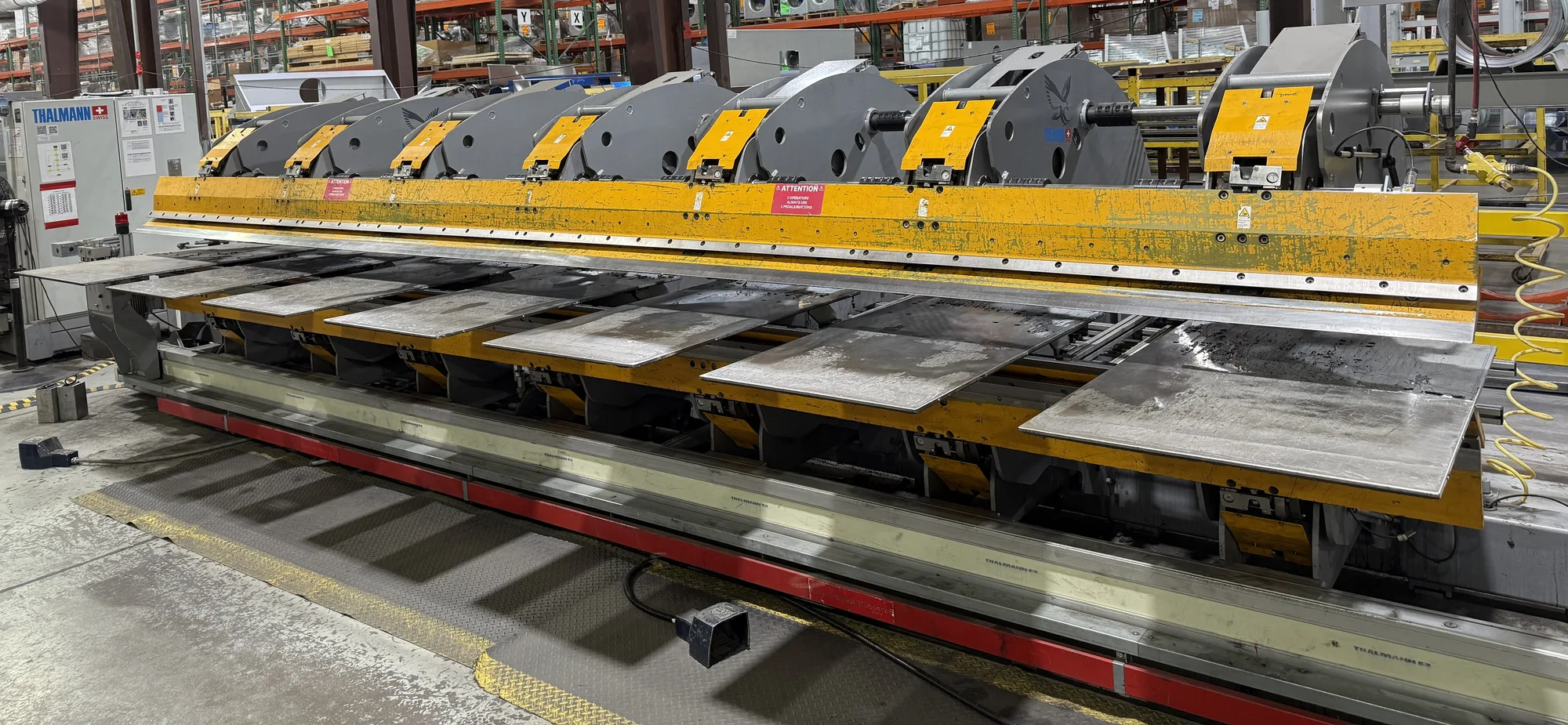

Automatic Extending Tables (Supports Large Parts in Between Bend Steps) |
|
G6 Grippers Able to Clamp Over 32x26mm Return Flanges |
Hardox of Upper Beam-Lower Beam-Folding Beams-Carrier Blades (More Robust Tooling Optimized for Stainless Steel Folding) |
|

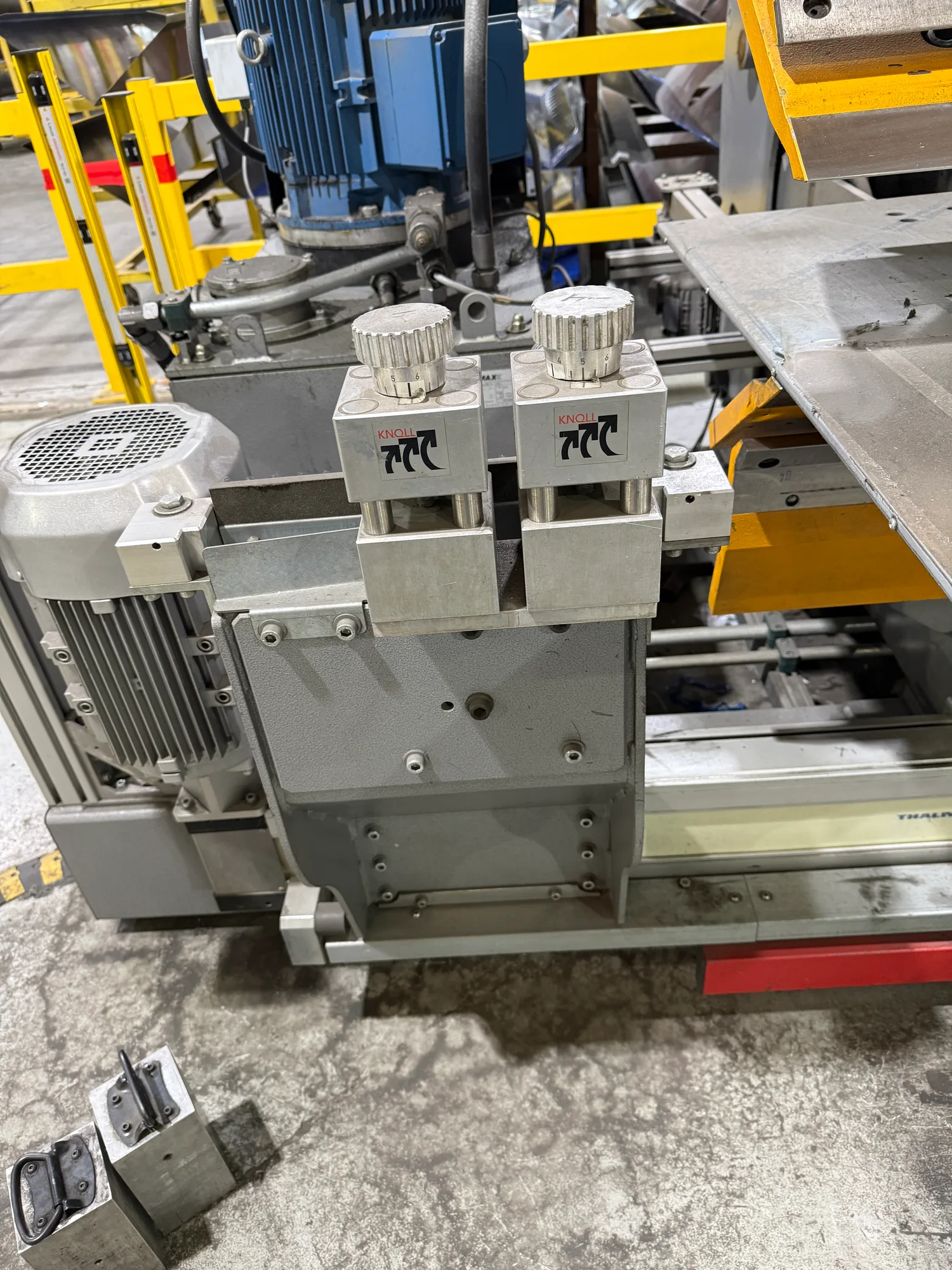

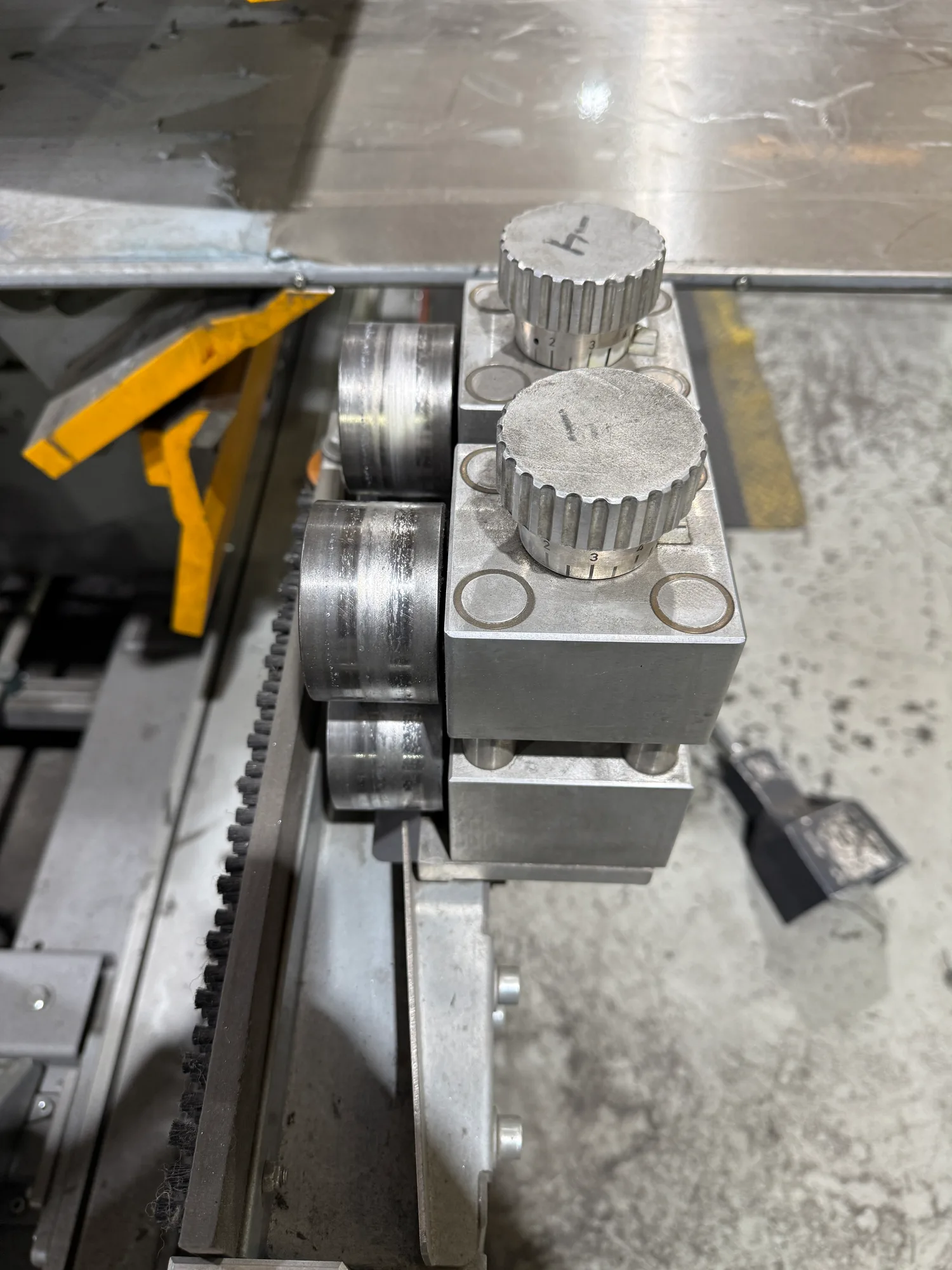

Heavy Duty Back Gauge Finger Stops |
Horizontal Hemming Unit |
|
Light Curtains Instead of Top Scanner and Floor Scanners |
M-Gaurd + VPN Access (Allows Factory to Remote into Machine for Support) |
|
Safety Indicator Light and Toggle Switch for Changing Between 1- and 2-Man Operation |
