Year |
2026 |
|---|---|
Make |
BesCutter |
Model |
BesBender |
Description |
Folding Machine |
Reference # |
8077064 |
Price |
Activate Pricing |

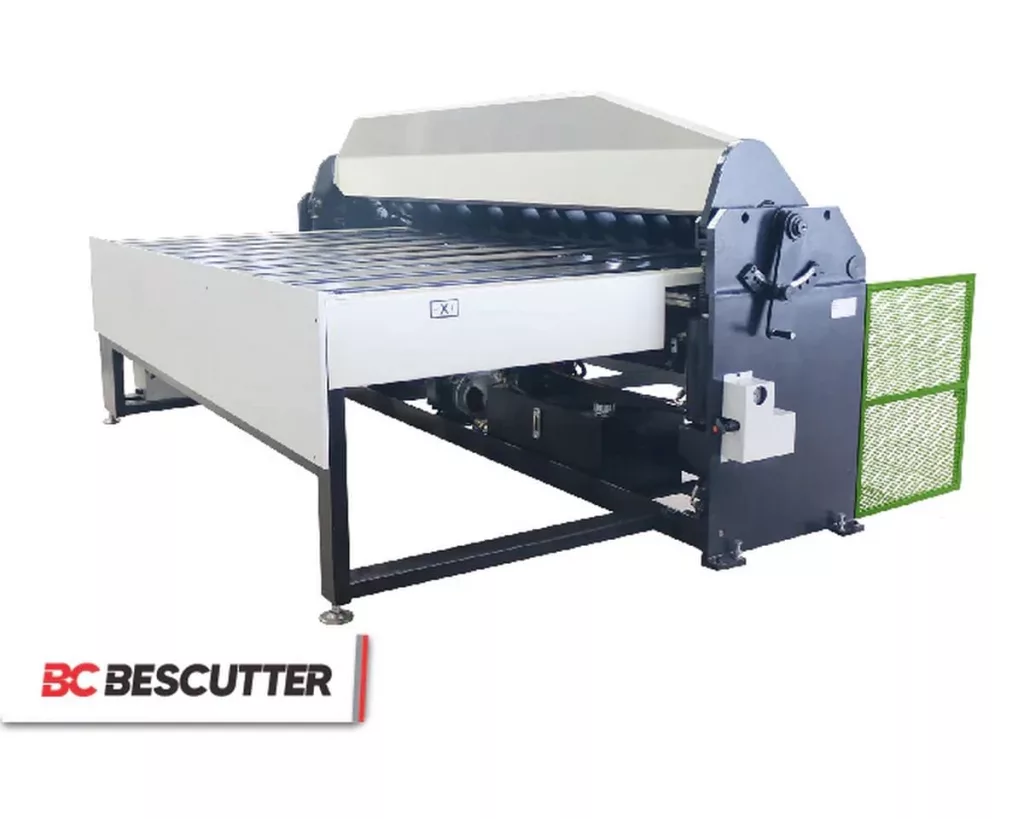

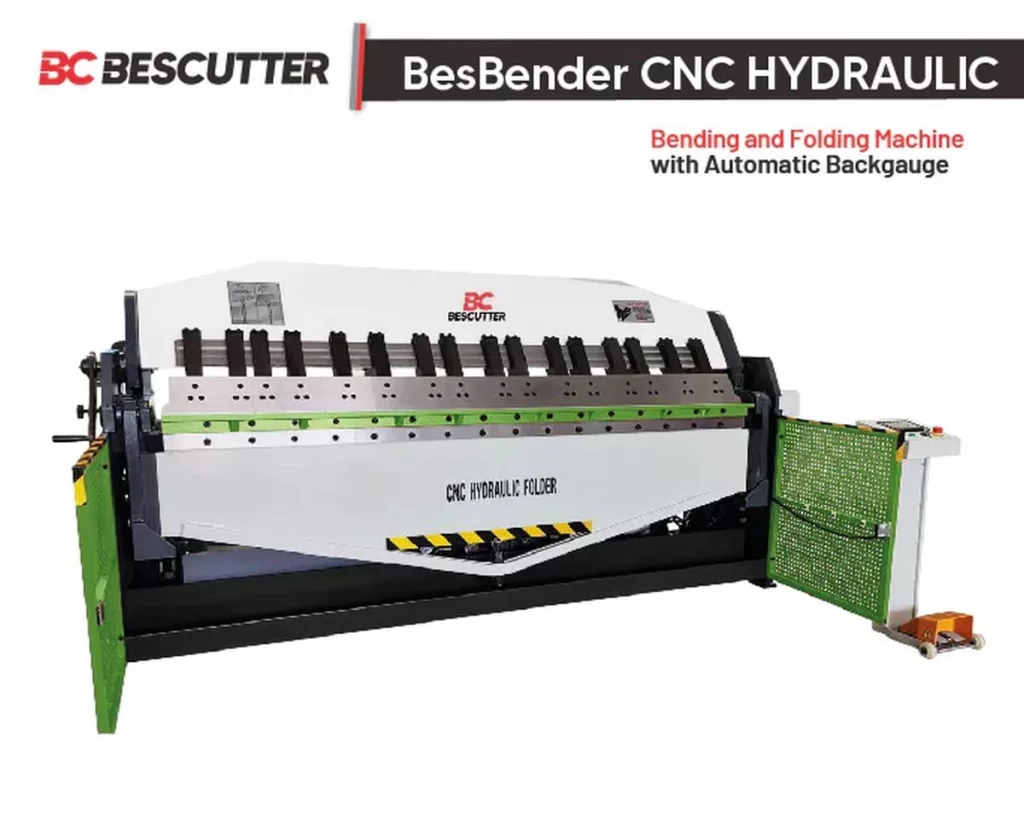

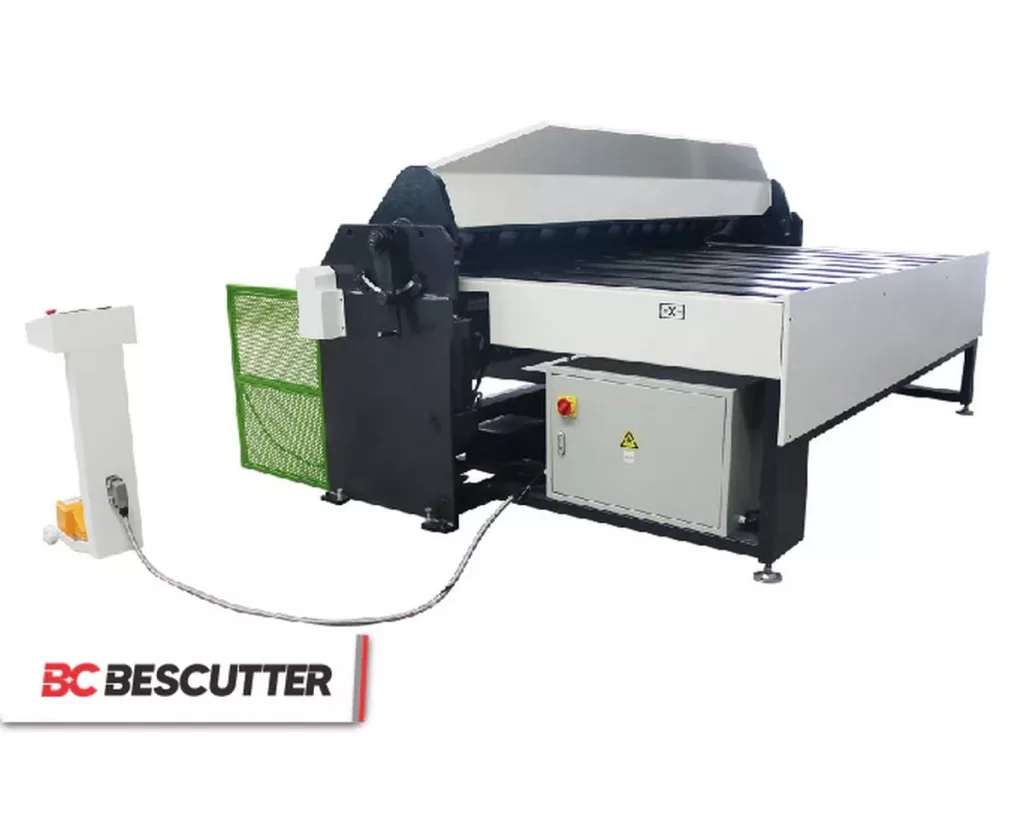

Used BesCutter BesBender (2026) Folding Machinery for Sale. This folder offers a 98″ folding length and handles material from .02″ to .157″ thick, with a maximum upper beam lift of 7.9″ and bending beam angles evolving from 0 to 120 degrees. Power comes from a 5.5 kW main motor. It is equipped with a 2-axis control system covering bend angles and back gauge, plus a 7″ color touch screen control panel holding 99 programs with adjustment for material thicknesses from 1mm to 4mm. Each program allows up to 20 bends with material compensation per bend, and extended fingers permit bending pans and boxes to a depth of 205mm. Footprint is 118″ x 76″ x 59″ at 7,055 lbs. The machine can be seen under power for an inspection. See more folding machinery or Request a Quote.
Specifications
| Folding Length |
98" |
|---|---|
| Folder Thickness |
.02" - .157" |
| Max Lift of the Upper Beam |
7.9" |
| Evolving Angles of the Bending Beam |
0 - 120 Degrees |
| Main Motor |
5.5 kW |
| Footprint |
118" x 76" x 59" |
| Weight |
7,055 Lbs |
Features
|
2-Axis Control System (Bend Angles & Back Gauge) |
7” Color Touch Screen Control Panel With 99 Programs |
|
Allowing Adjusting for Different Material Thicknesses From 1mm to 4mm |
Each Program Has Up To 20 Bends (Each Bend Has Material Compensation) |
|
Extended Fingers Allow the Bending of Pans and Boxes to a Depth of 205mm |
