Year |
2018 |
|---|---|
Make |
Cidan |
Model |
Pro30 Multifold |
Description |
CNC Folding Machine |
Reference # |
8078203 |
Price |
Activate Pricing |

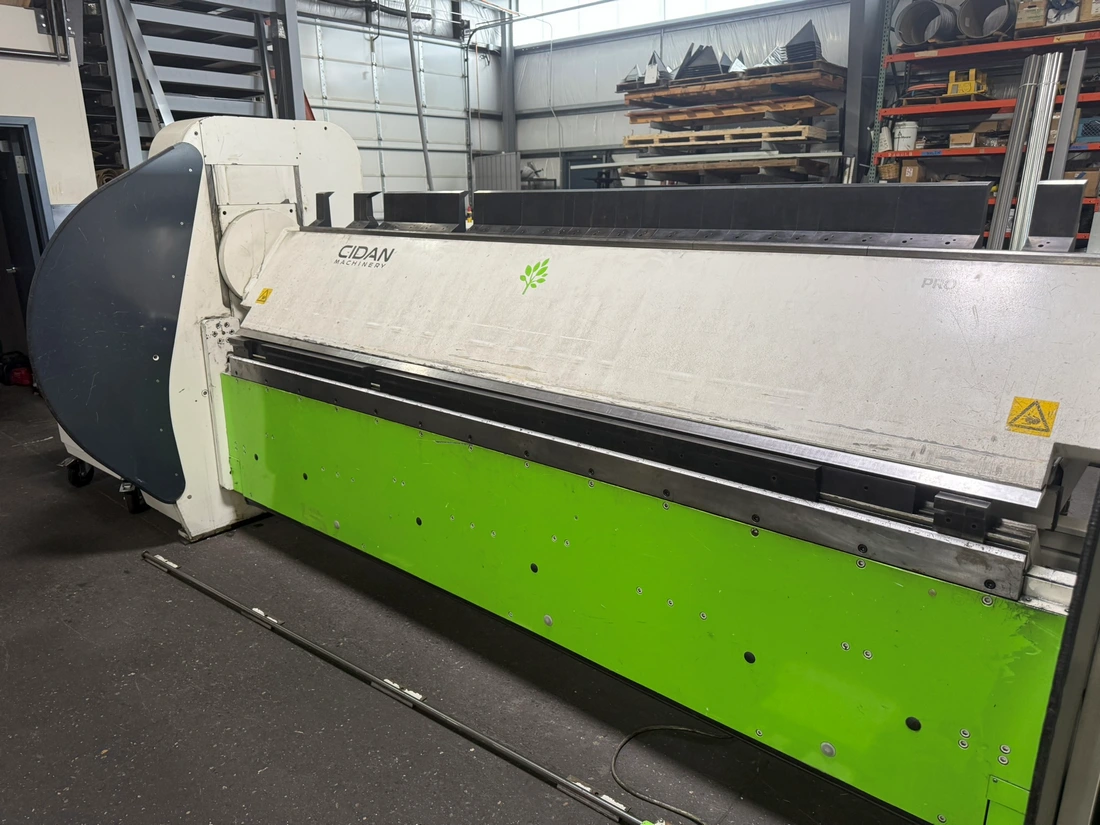

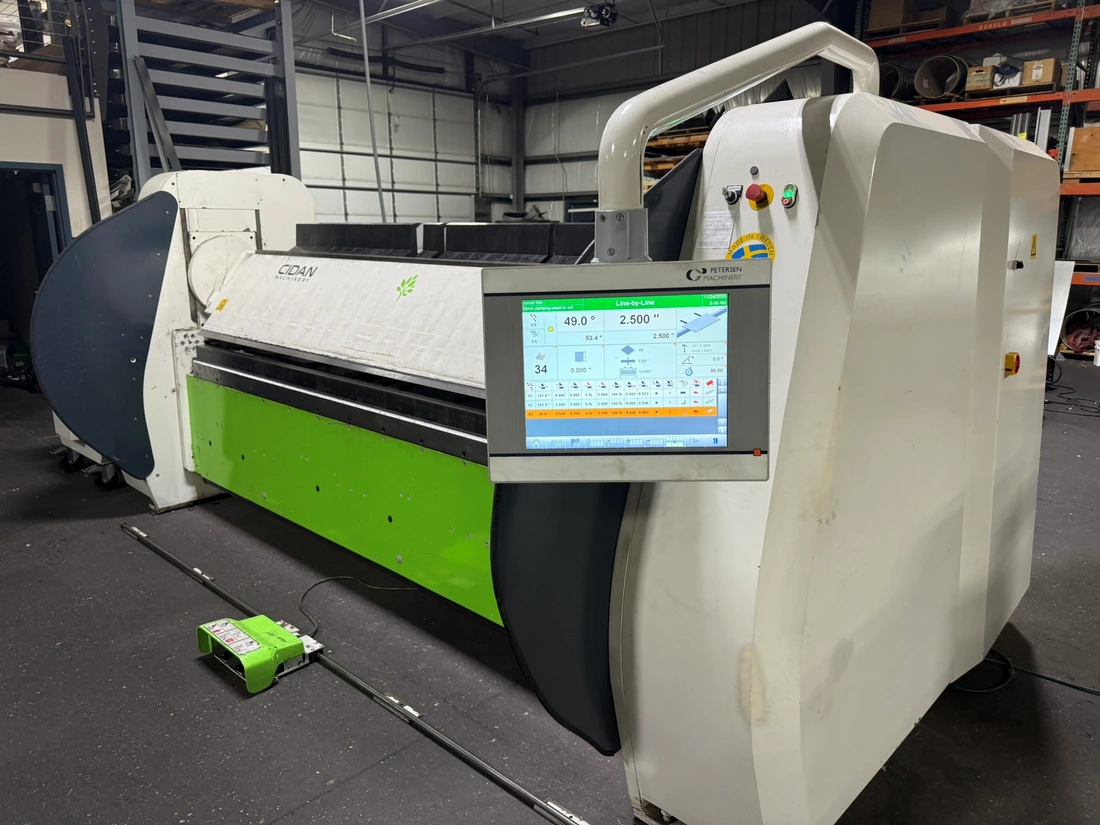

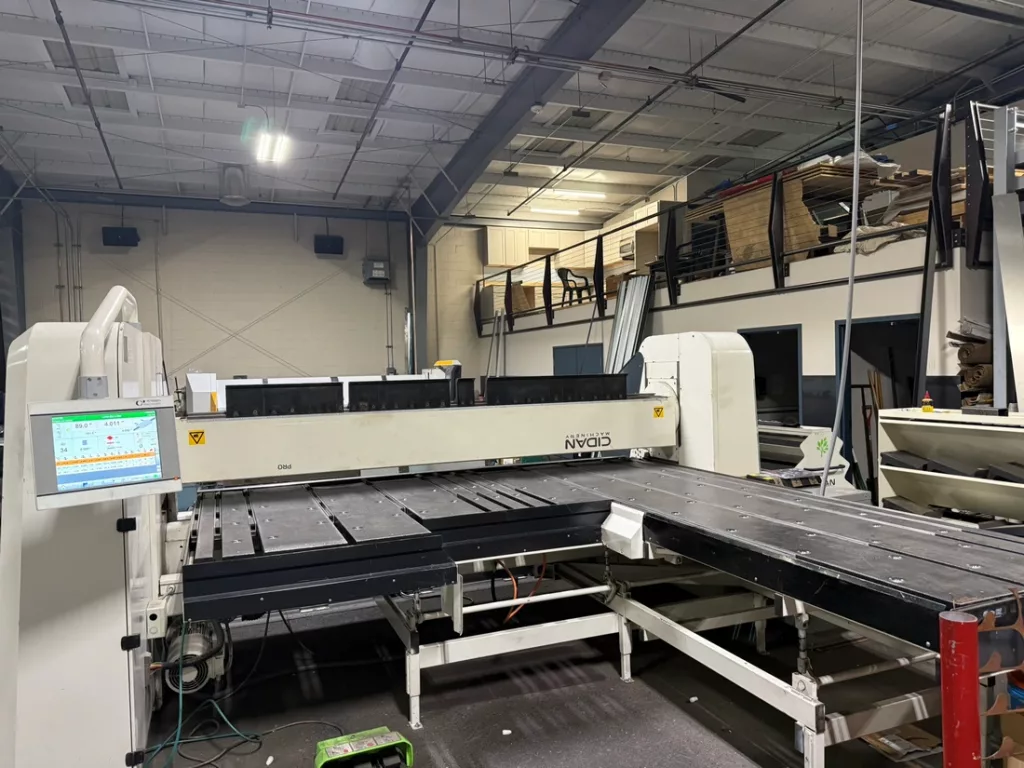

Used Cidan Pro30 Multifold (2018) Folding Machinery for Sale. This folder has a 10′ working length with maximum capacities of 9 gauge steel, 12 gauge stainless, and 0.235″ aluminum. Control is a ProLink CNC with an 18.5″ touch screen, and the upper beam includes a safety stop at 0.236″. The clamping beam motor is 5.4 HP and the folding beam motor is 7.4 HP, with 7.8″ open height at the clamping beam. Machine weight is 17,960 lbs. Equipped with an eccentric drive clamping system, program controlled sheet thickness adjustment, side stop / squaring arm, standard J-shape backgauge, extra table-side foot pedal, movable foot pedal on rail, two foot pedal emergency switches, and tooling. Available to be seen under power for inspection. See more CNC folding machinery, Activate Pricing, or Request a Quote.
Specifications
| Working Length |
10' |
|---|---|
| Max Capacity Steel |
9 gauge |
| Max Capacity Stainless |
12 gauge |
| Max Capacity Aluminum |
0.235" |
| Open Height Clamping Beam |
7.8" |
| Control |

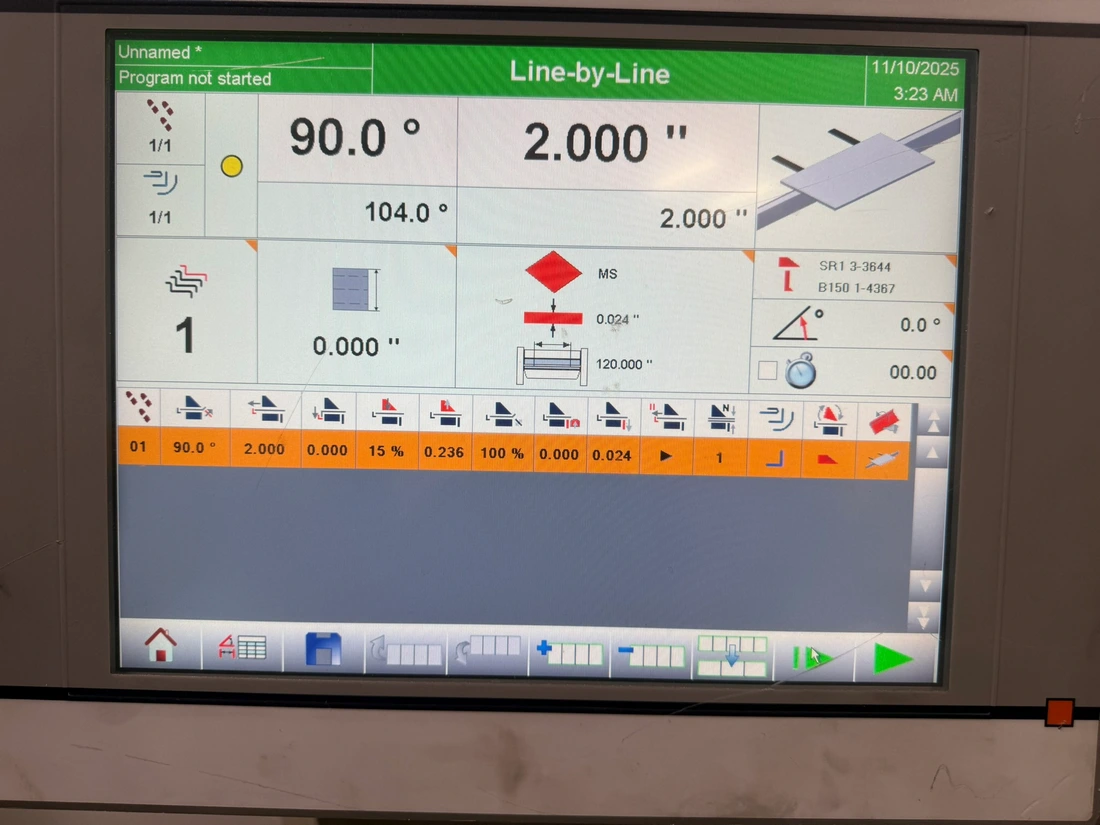

ProLink CNC 18.5" Touch Screen |
| Upper Beam |
Safety Stop at 0.236" |
| Motor Clamping Beam |
5.4 HP |
| Motor Folding Beam |
7.4 HP |
| Weight |
17,960 Lbs |
Features
|
Eccentric Drive Clamping System |
Extra Foot Pedal (Table Side) |
|
Foot Pedal Emergency Switches (2) |
Movable Foot Pedal on Rail |
|
Program Controlled Sheet Thickness Adjustment |
Side Stop / Squaring Arm |
|

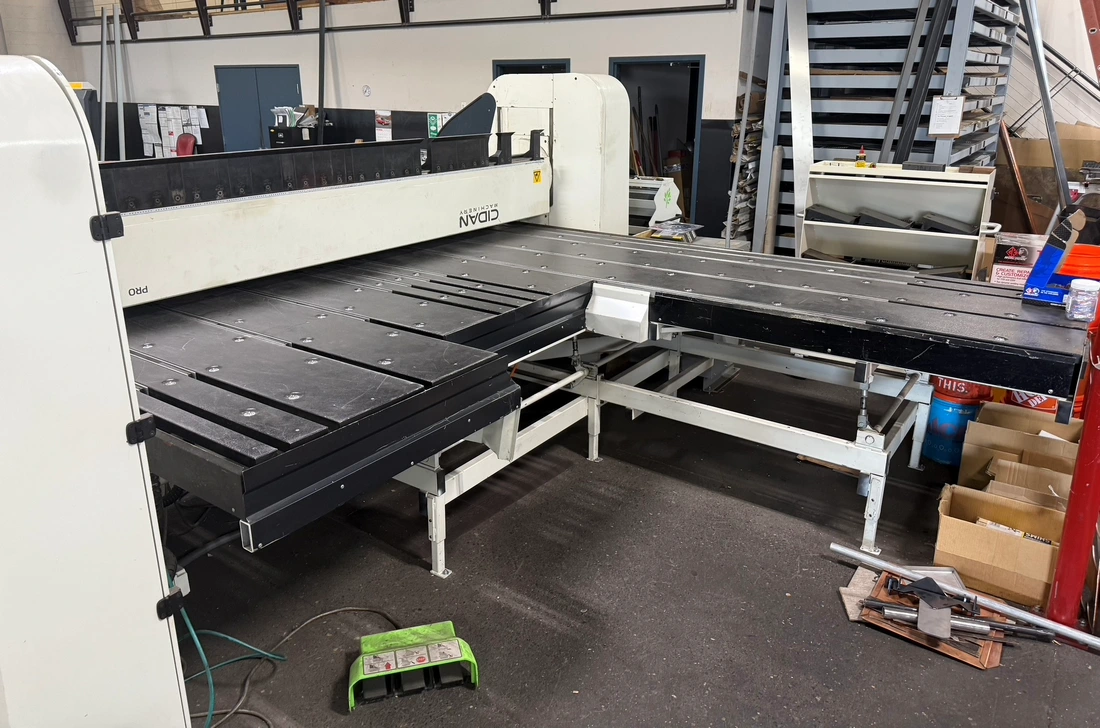

Standard Backgauge (J-Shape) |

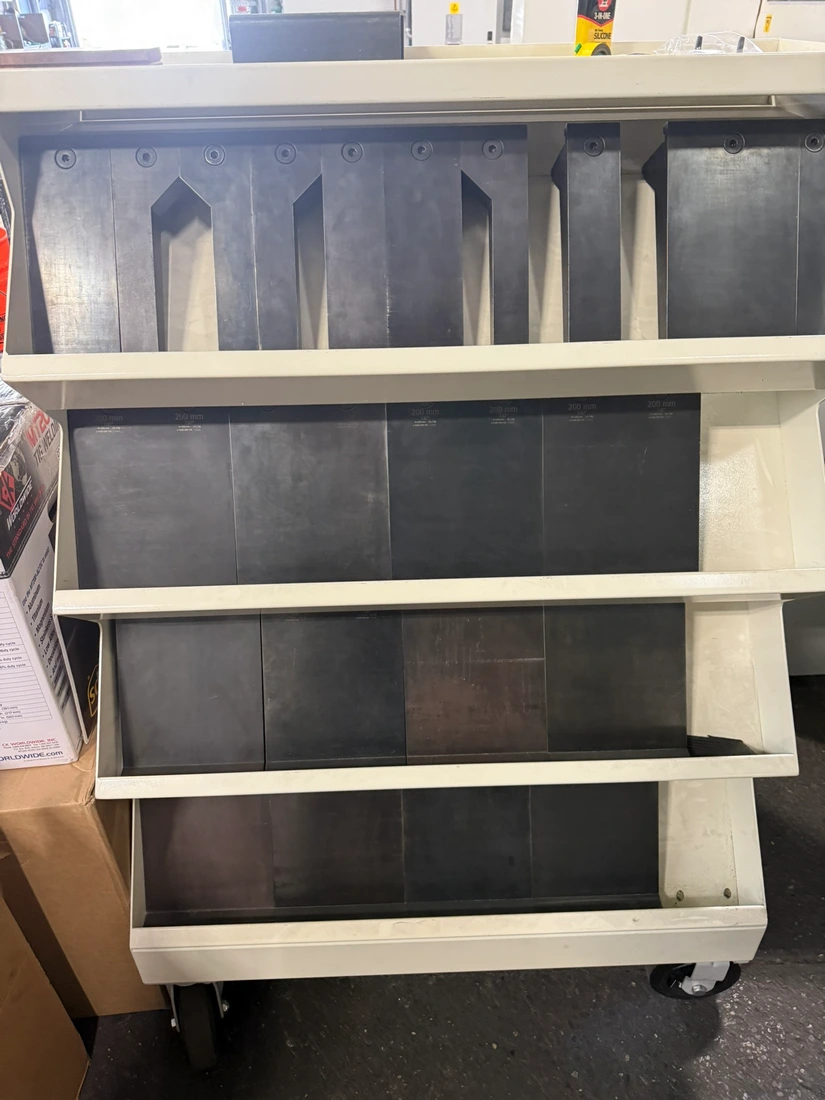

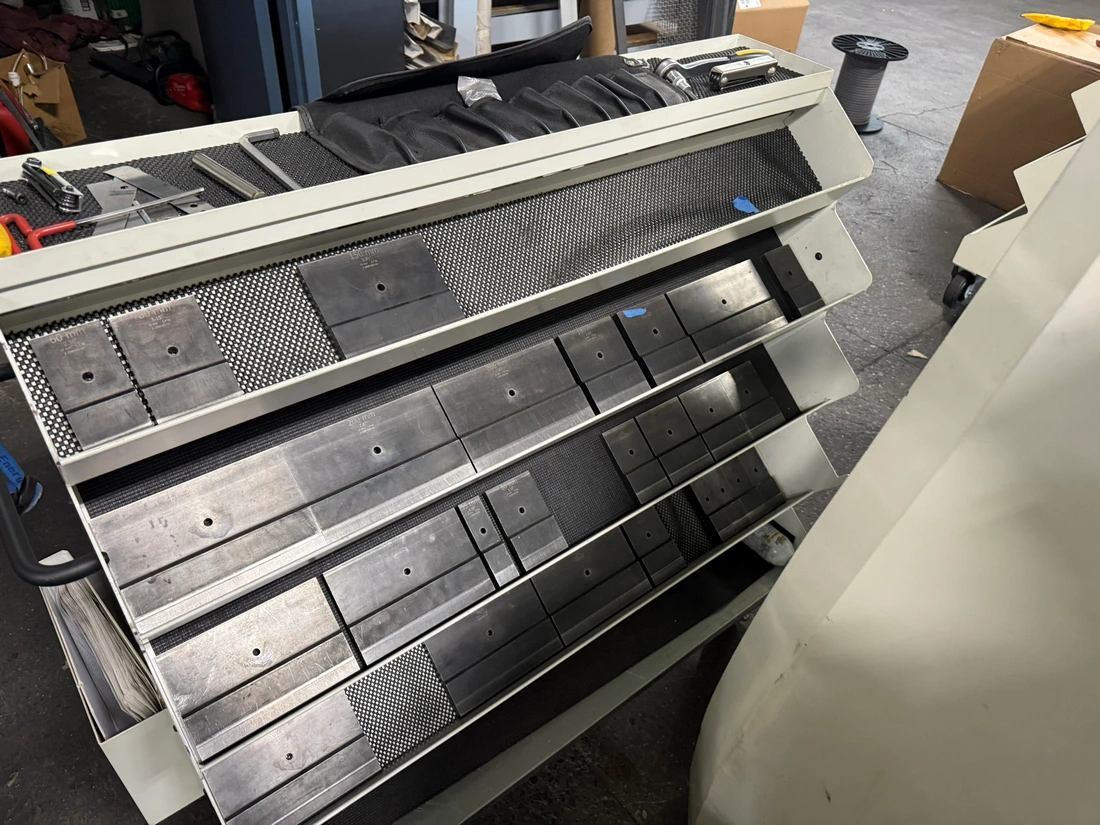

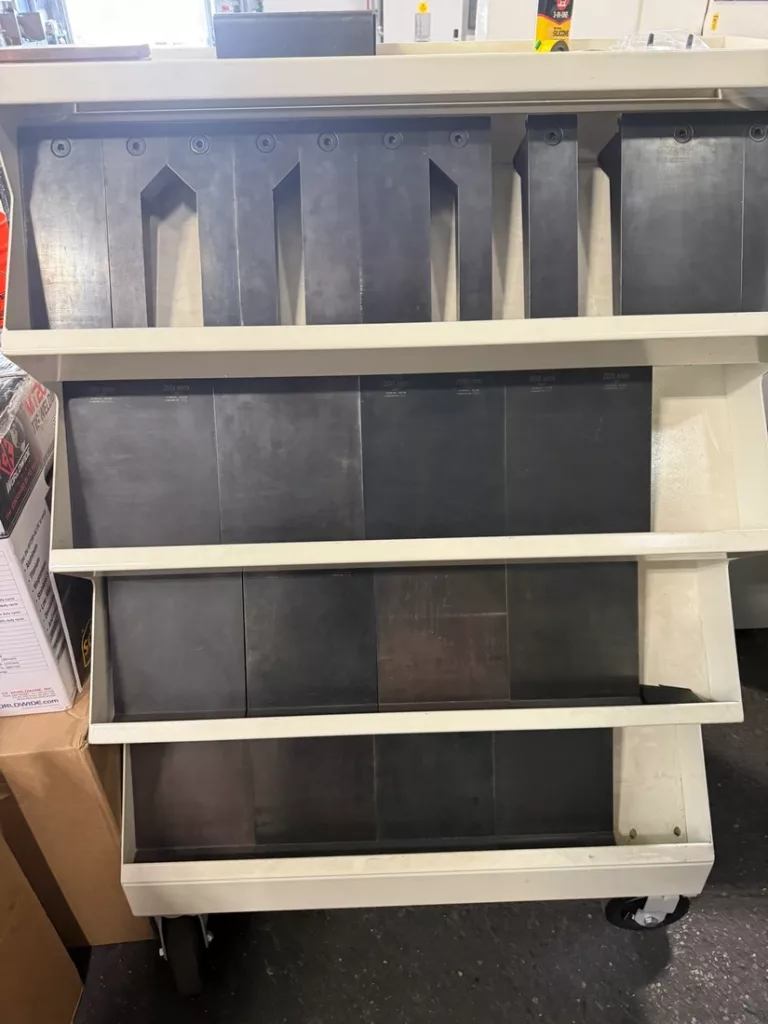

Tooling Included |
