Year |
2023 |
|---|---|
Make |
Sodick |
Model |
VN600Q |
Description |
EDM Wire |
Reference # |
8078966 |
Price |
Activate Pricing |

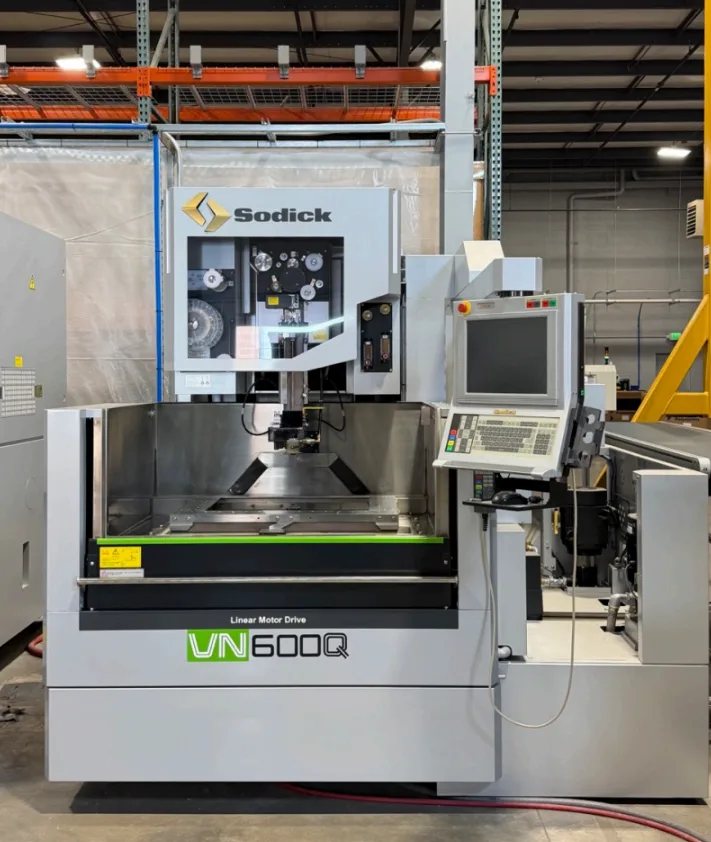

Used Sodick VN600Q (2023) EDM for Sale. This wire EDM runs a Sodick control with 23.62″ of X-axis travel, 15.75″ of Y-axis travel and 12.2″ of Z-axis travel, plus 3.54″ x 3.54″ of U/V axis travel for tapered work. Wire diameter range is .004″ to .012″. The work tank measures 40.94″ x 30.71″ (WxD), maximum workpiece weight is 1,874 lbs, and the distance from floor to table is 36.61″. Machine tool dimensions are 103.15″ x 102.56″ x 81.89″ with a machine weight of 7,275 lbs. The VN600Q is under power and can be seen running for an inspection. See our other used EDM machines and used Sodick machines, then Activate Pricing or use the Inquire Now button for details.
Specifications
| Control |
Sodick |
|---|---|
| X-Axis Travel |
23.62" |
| Y-Axis Travel |
15.75" |
| Z-Axis Travel |
12.2" |
| Wire Diameter Range |
.004" - .012" |
| U/V Axis Travel |
3.54" x 3.54" |
| Work Tank Dimensions |
40.94" x 30.71" (WxD) |
| Max Workpiece Weight |
1,874 Lbs |
| Distance From Floor to Table |
36.61" |
| Machine Tool Dimensions |
103.15" x 102.56" x 81.89" |
| Machine Weight |
7,275 Lbs |
Features
|
Under Power |
