Year |
2005 |
|---|---|
Make |
AgieCharmilles |
Model |
Robofil 440CC |
Description |
EDM Wire |
Reference # |
8079289 |
Price |
Activate Pricing |

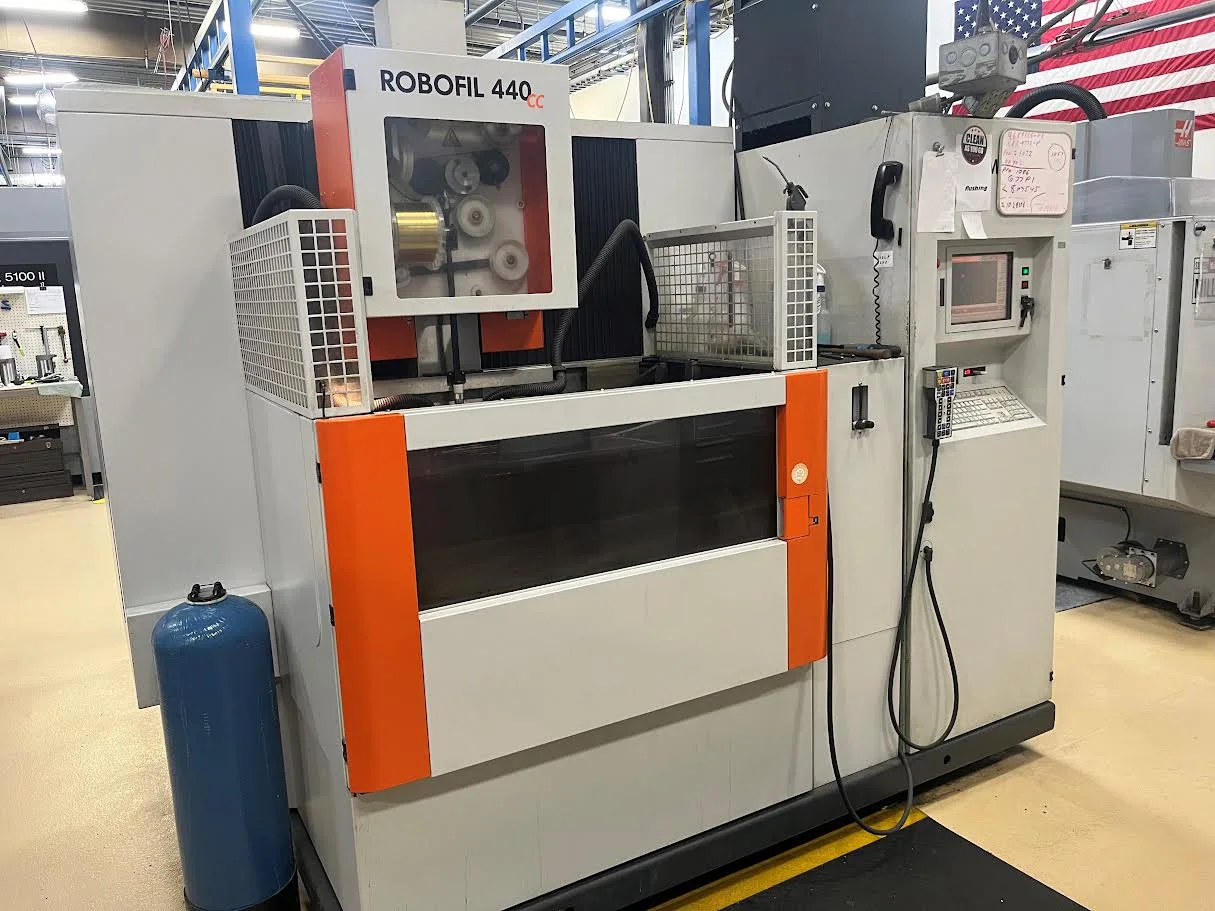

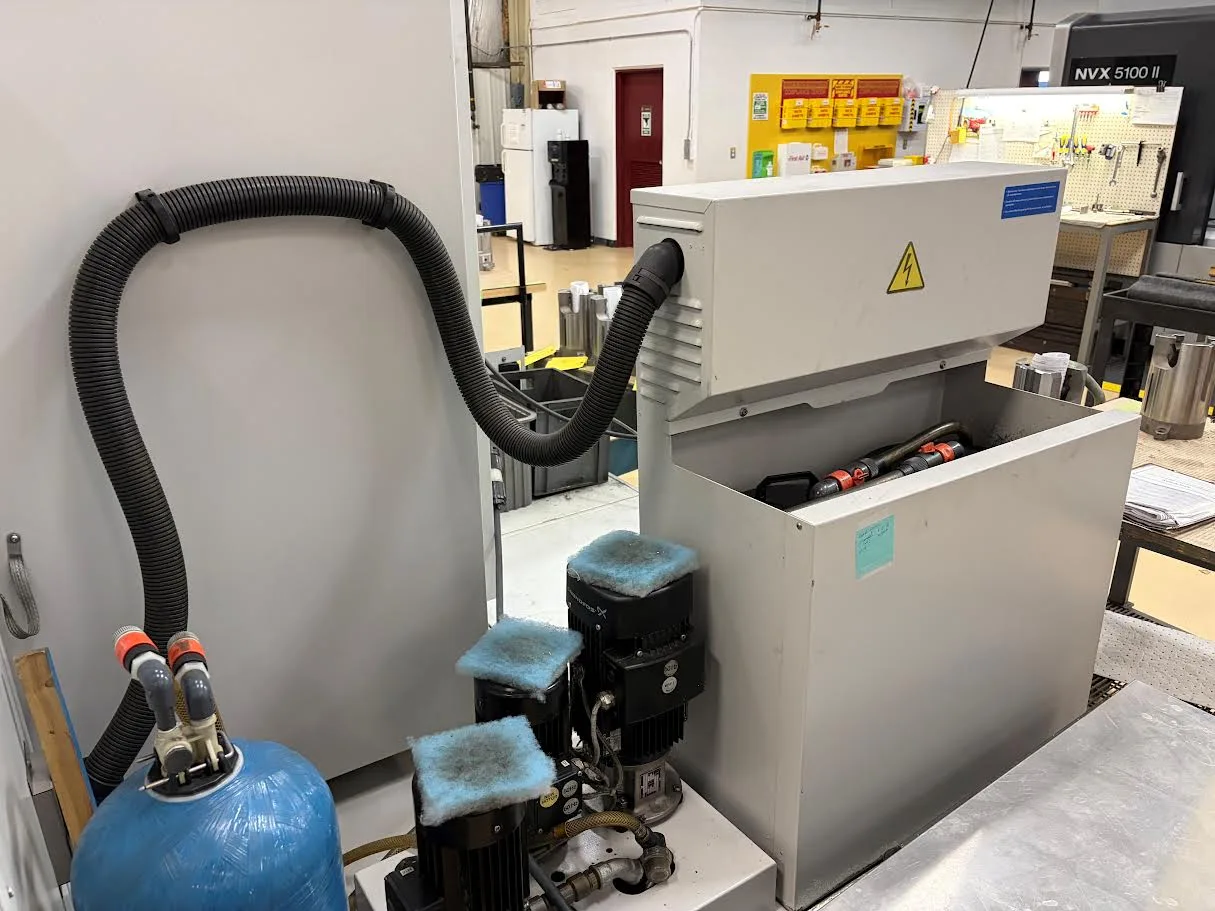

Used Charmilles Robofil 440CC (2005) EDM for Sale. This wire EDM offers 21.6″ of X-axis travel, 13.7″ in Y and 15.7″ in Z, with U/V travel of 21.65 x 13.77 and taper cutting to +/- 30 degrees. Wire diameter range is .004″ to .012″, and maximum workpiece size is 47″ x 28″ x 16″. Control is CT Millennium with touch screen, RS-232 and Ethernet. Equipped with a built-in spent wire processor, automatic wire threader (AT), collision protection on all axes, Dynamic Screen Function (DSF), dielectric chiller, coordinate alignment system and glass scales on the XYZ axes. Power requirement is 400/3/60. The machine can be seen under power for an inspection. Browse more used EDM machines and used AgieCharmilles machines, then Activate Pricing or use the Inquire Now button.
Specifications
| X-Axis Travel |
21.6" |
|---|---|
| Y-Axis Travel |
13.7" |
| Z-Axis Travel |
15.7" |
| Control |
CT Millennium |
| U/V Axis Travel |
21.65 x 13.77 |
| Degree Taper Cutting |
+/- 30 Degree |
| Wire Diameter |
.004" To .012” |

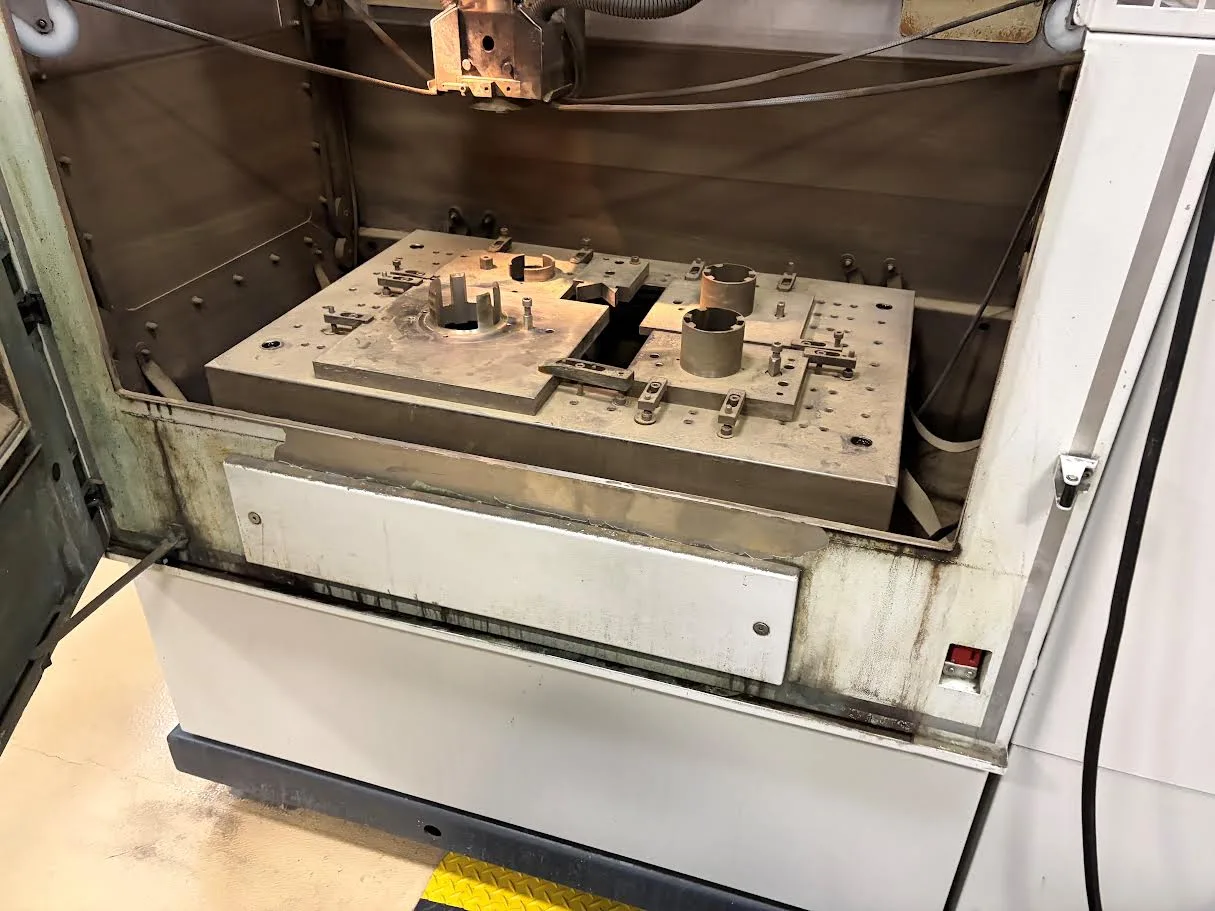

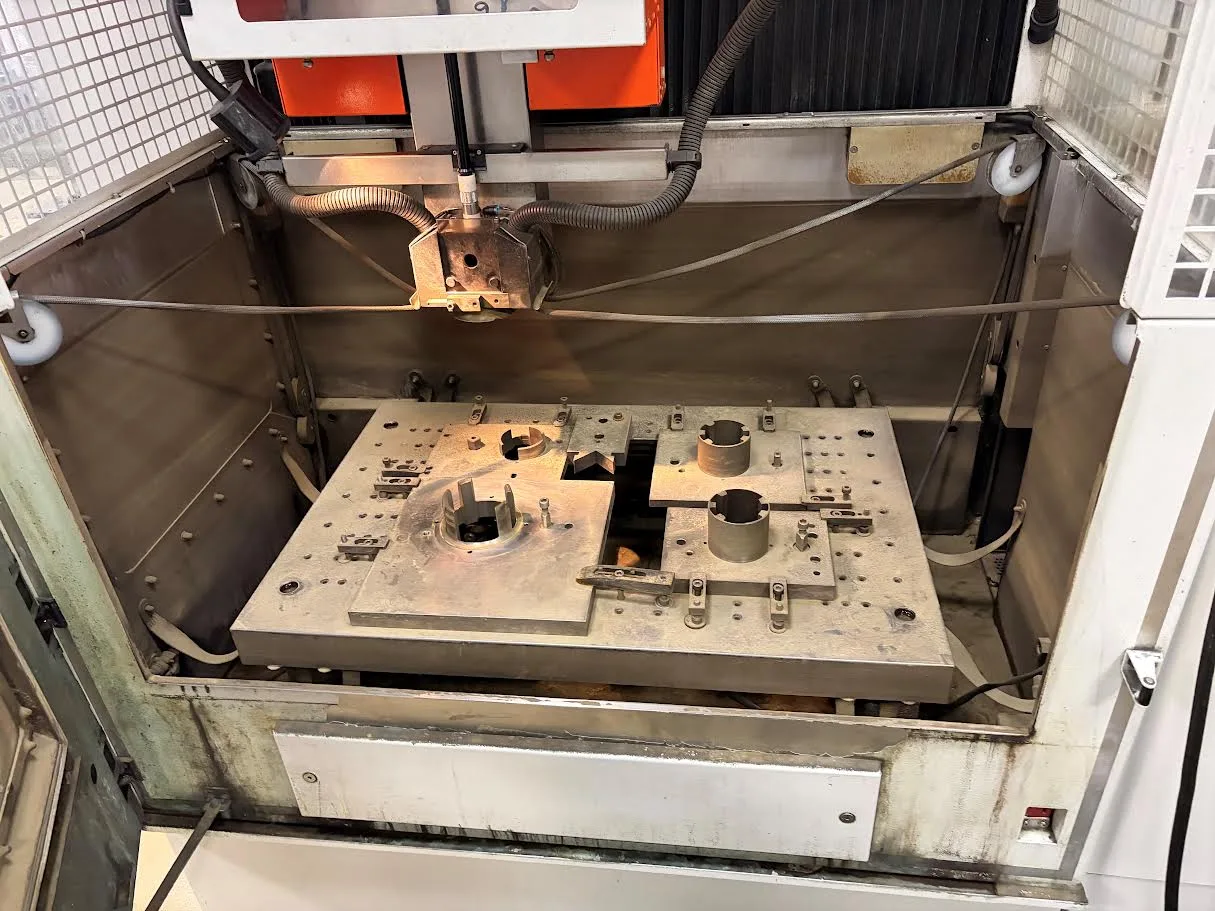

| Max Work Piece Size |
47" x 28" x 16" |

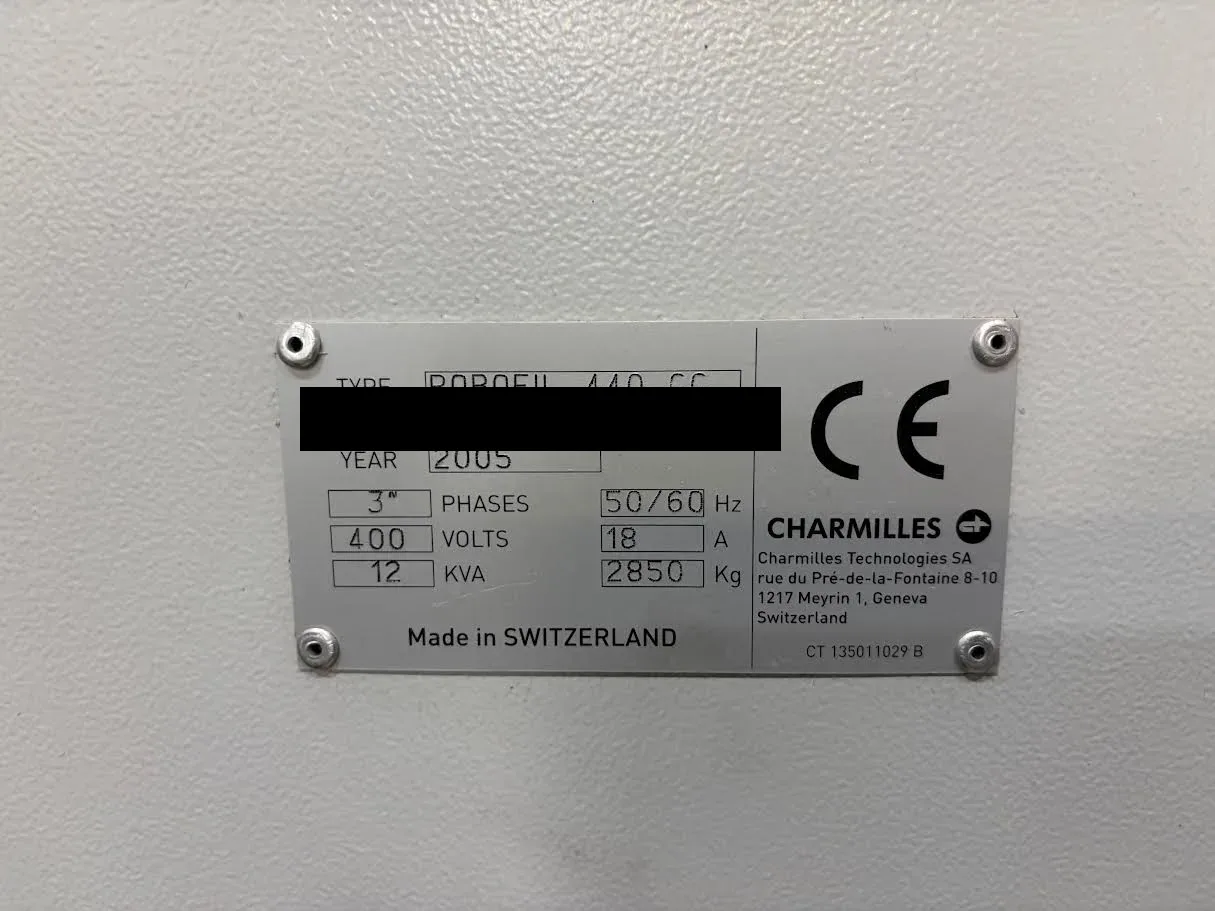

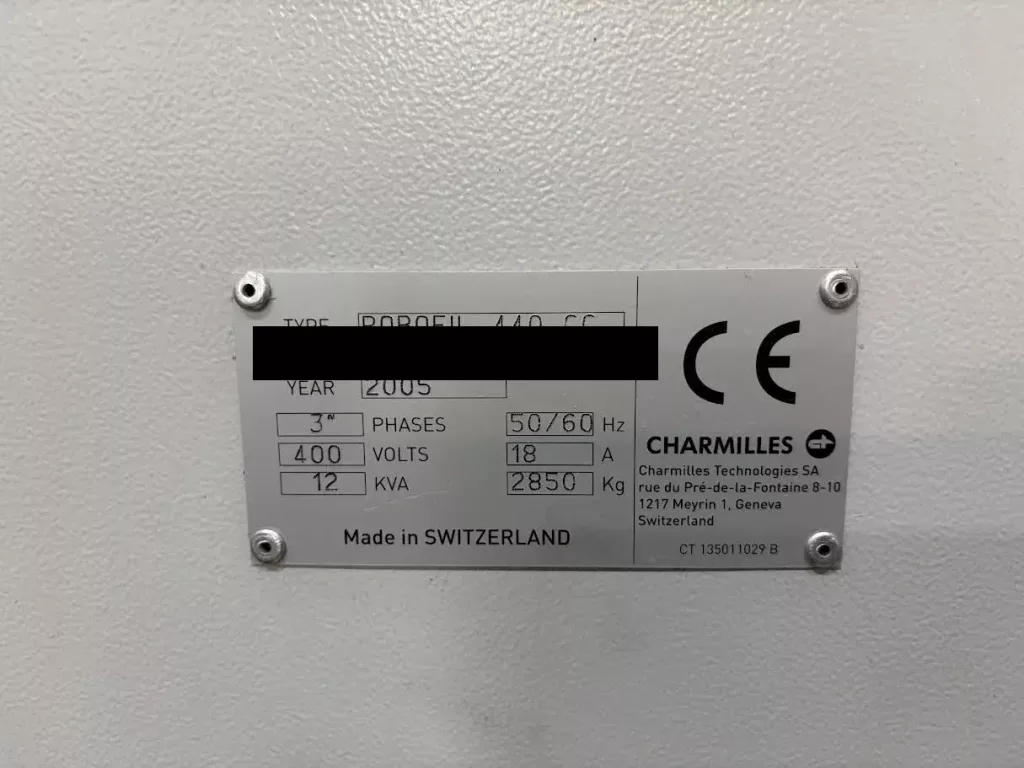

| Power Requirement |
400/3/60 |
Features
|
Coordinate Alignment System |
Glass Scales On XYZ Axes |
|

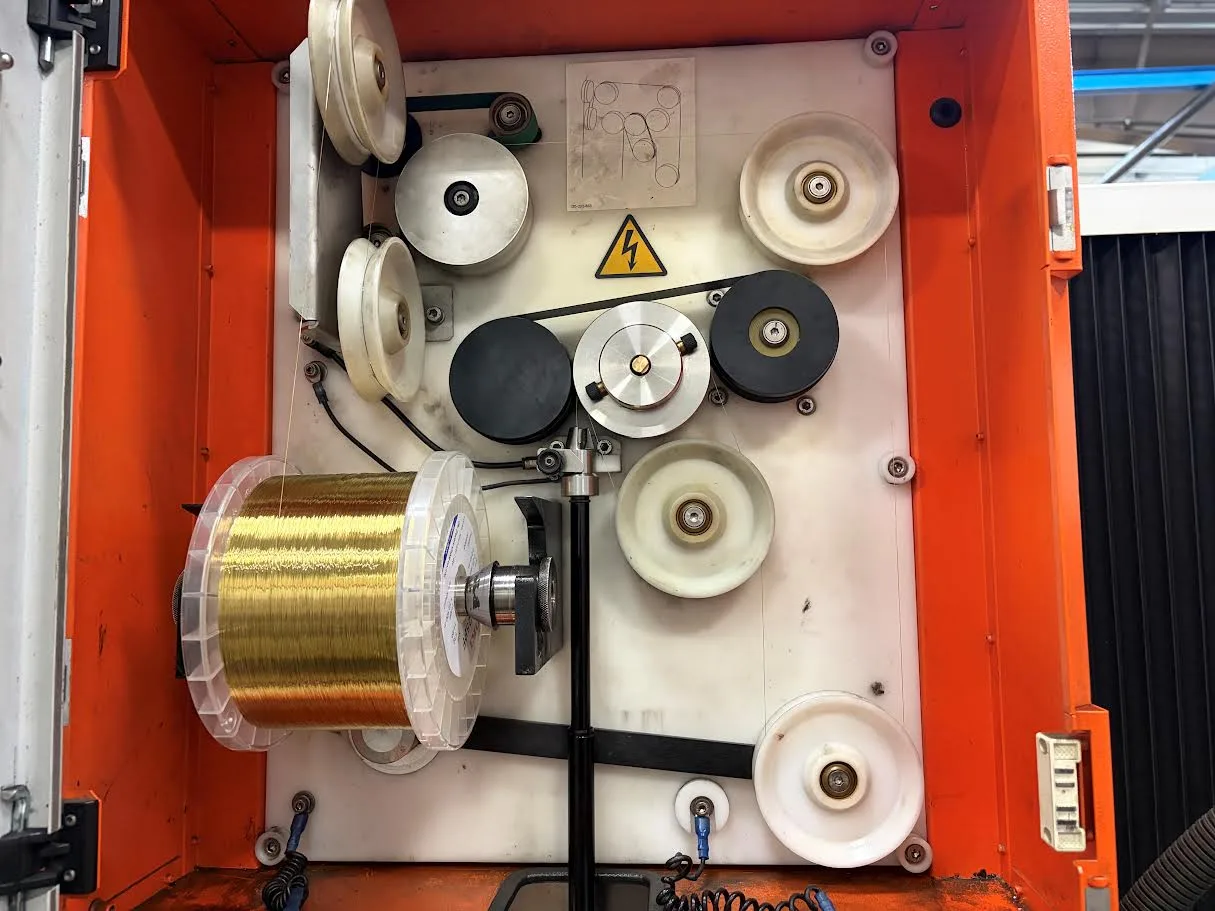

Built-in Spent Wire Processor |
Collision Protection All Axes |
|
Dynamic Screen Function (DSF) |

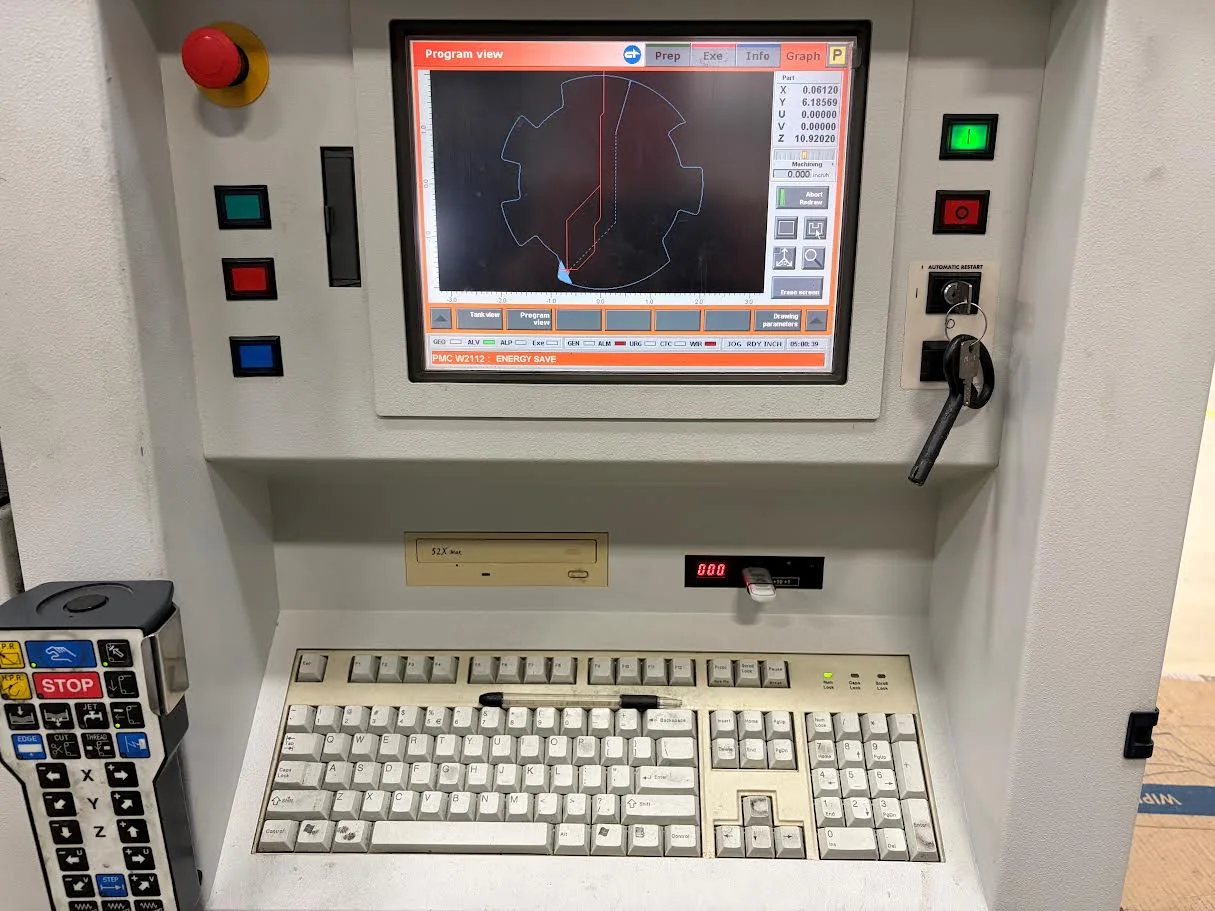

Touch Screen / RS-232 / Ethernet |
|

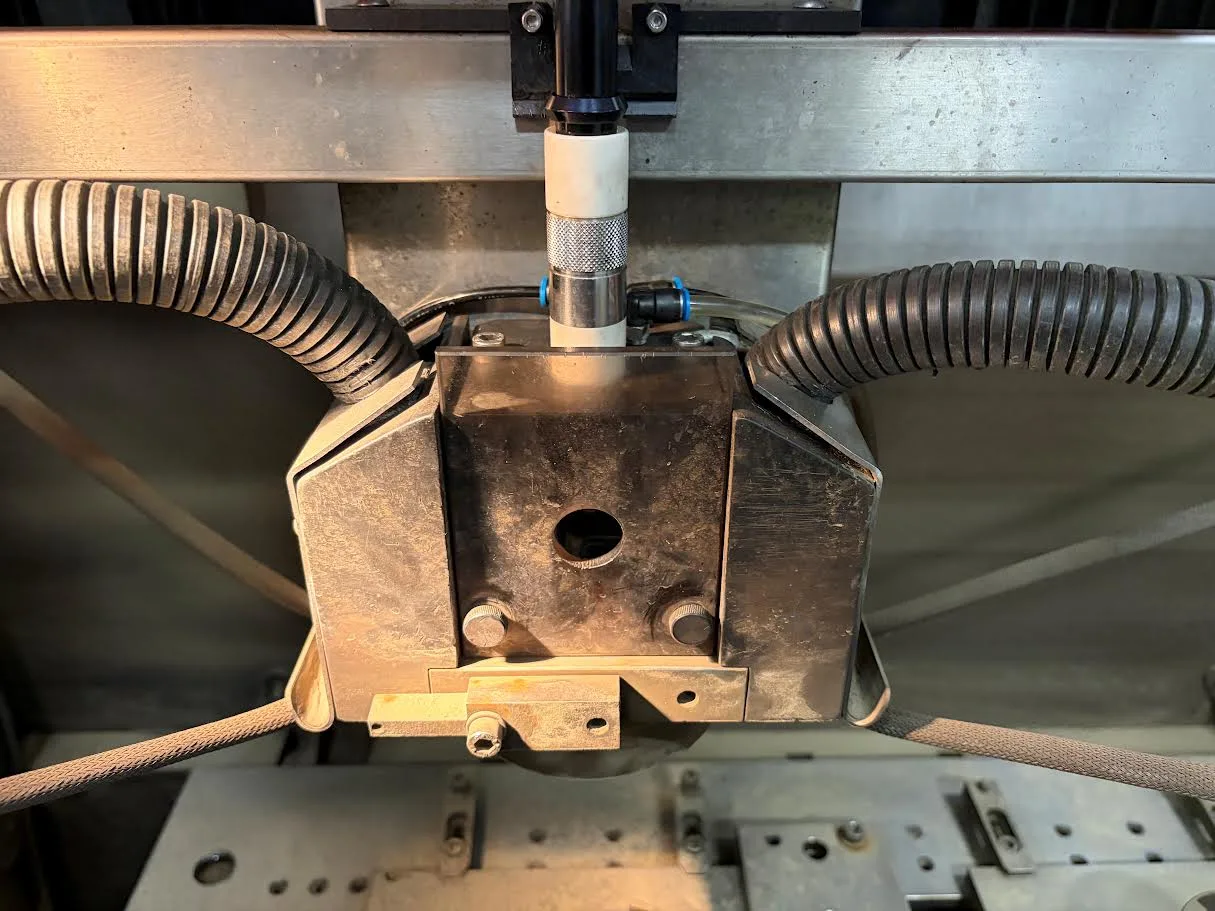

Automatic Wire Threader (AT) |
Dielectric Chiller |
