Year |
2018 |
|---|---|
Make |
Makino |
Model |
U6 H.E.A.T. |
Description |
EDM Wire |
Reference # |
8078403 |
Price |
Activate Pricing |

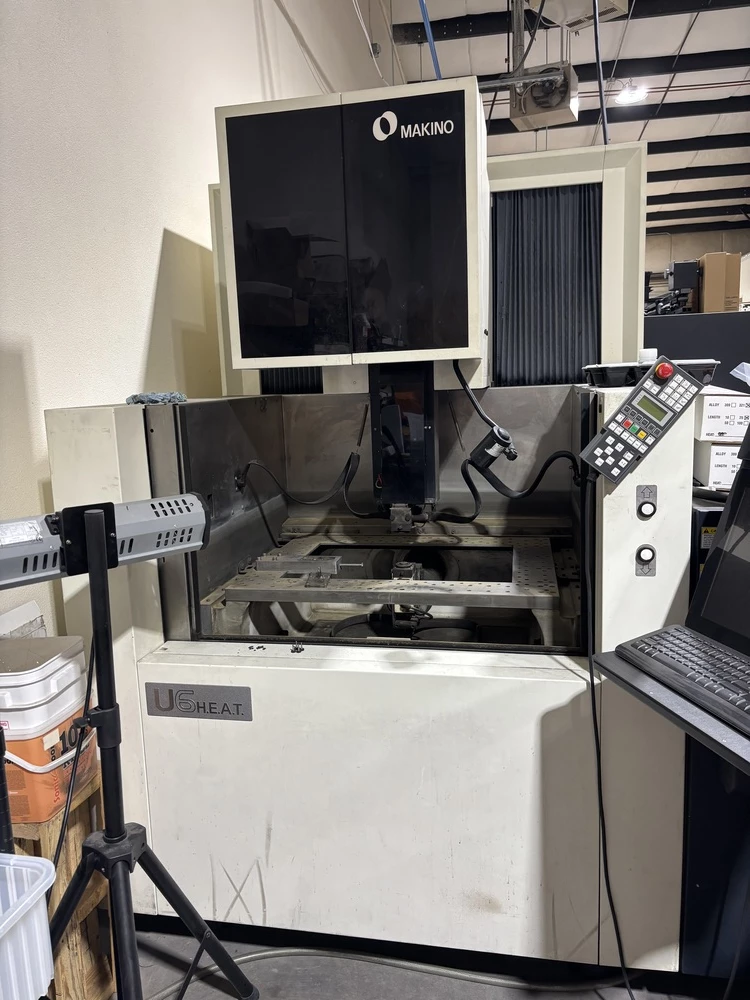

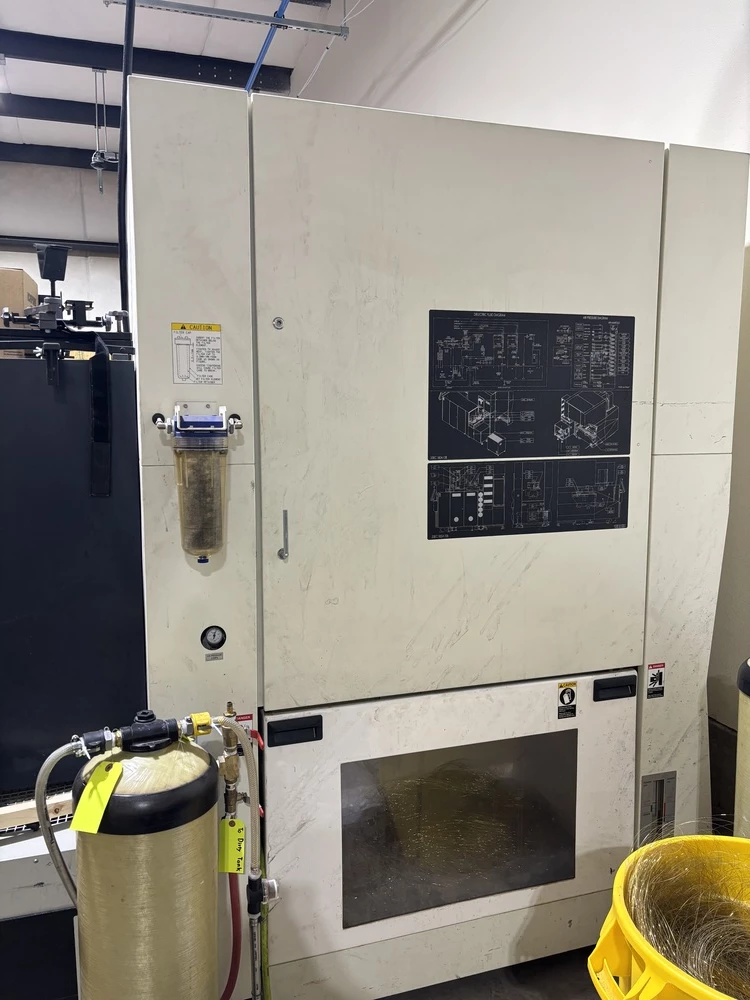

Used Makino U6 H.E.A.T. (2018) EDM for Sale. This wire EDM offers 25.59″ of X-axis travel, 17.71″ of Y-axis travel and 16.53″ in Z, with U/V axis travel of 2.95″ x 2.95″ and taper cutting of 15 degrees at 4″. Inside tank dimensions measure 42.13″ x 34.65″. Rapid traverse on X/Y/Z is 78.74 IPM, and X/Y-axes full stroke repeatability is +/- 0.000039″. The Hyper I control handles wire electrode sizes of 0.07, 0.10, 0.15, 0.20, 0.25 and 0.30 mm. Equipped with a dielectric chiller unit, direct drive PWM digital AC servo, power supply, auto wire threading, chiller and wire chopper. The machine can be seen under power for an inspection. See more used EDM machines or browse our Makino inventory, then Request a Quote.
Specifications
| X-Axis Travel |
25.59" |
|---|---|
| Y-Axis Travel |
17.71" |
| Z-Axis Travel |
16.53" |
| Control |
Hyper I |
| U/V Axis Travel |
2.95" x 2.95" |
| Degree Taper Cutting |
15 @ 4" |
| Inside Tank Dimensions |
42.13" x 34.65" |
| Rapid Traverse (X/Y/Z) |
78.74 IPM |
| Wire Electrode Size Range |
0.07, 0.10, 0.15, 0.20, 0.25, 0.30 mm |
| X/Y-Axes (Full Stroke) Repeatability |
+/- 0.000039" |
Features
|
Dielectric Chiller Unit |
Direct Drive PWM Digital AC Servo |
|
Power Supply |
Auto Wire Threading |
|
Chiller |
Wire Chopper |
