Year |
2014 |
|---|---|
Make |
Mitsubishi |
Model |
MD-Pro II |
Description |
EDM Wire |
Reference # |
8079209 |
Price |
Activate Pricing |

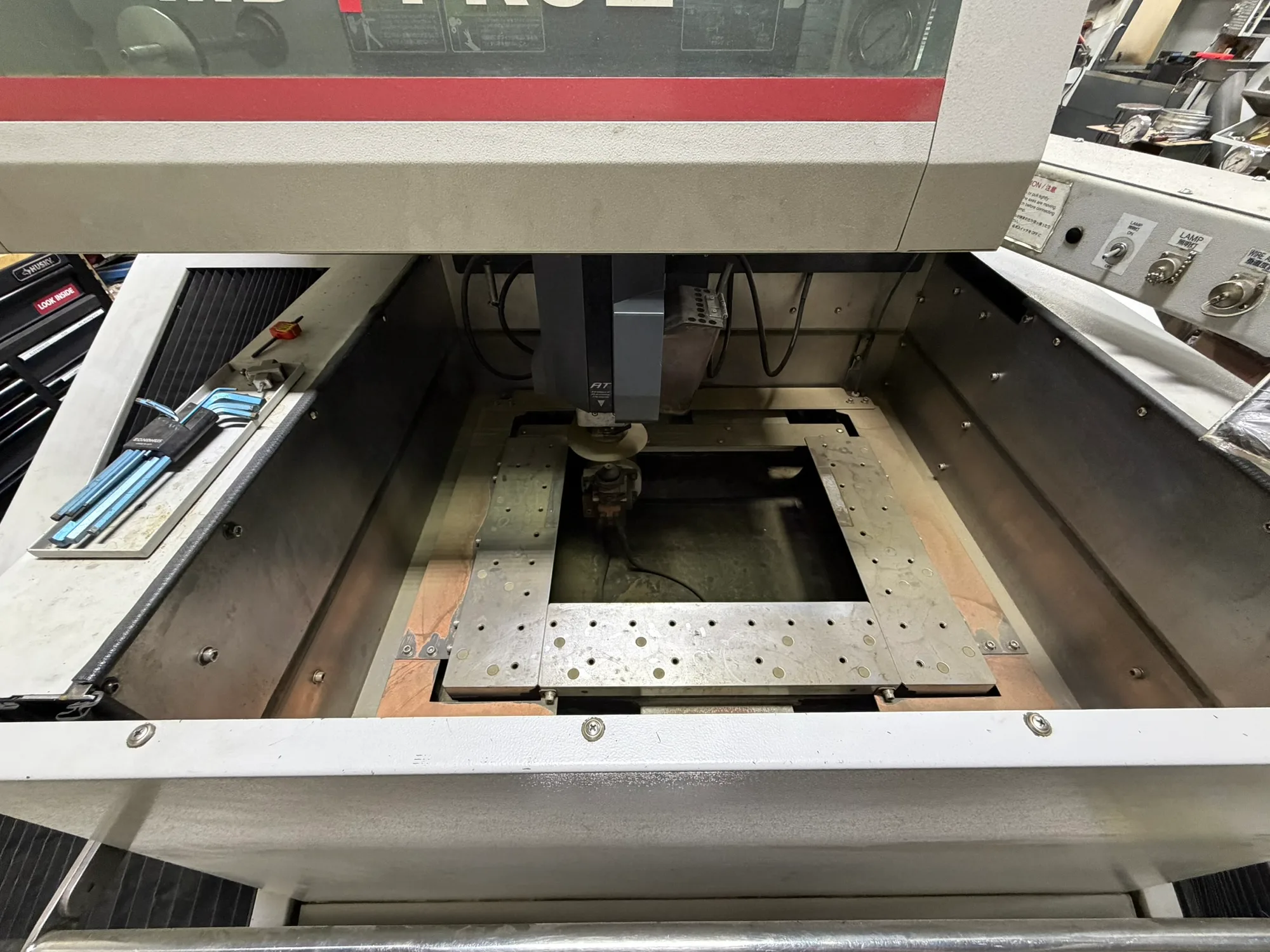

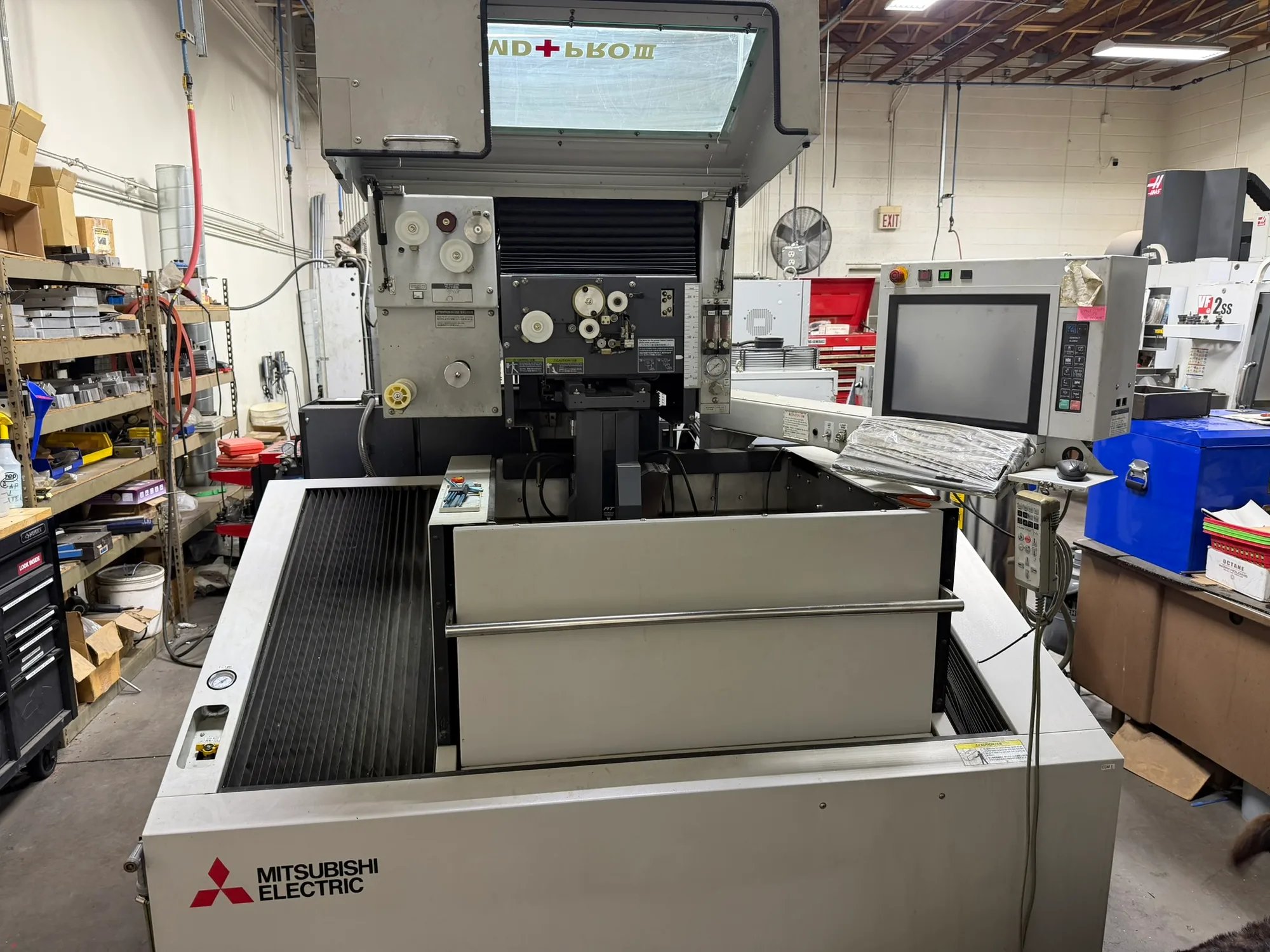

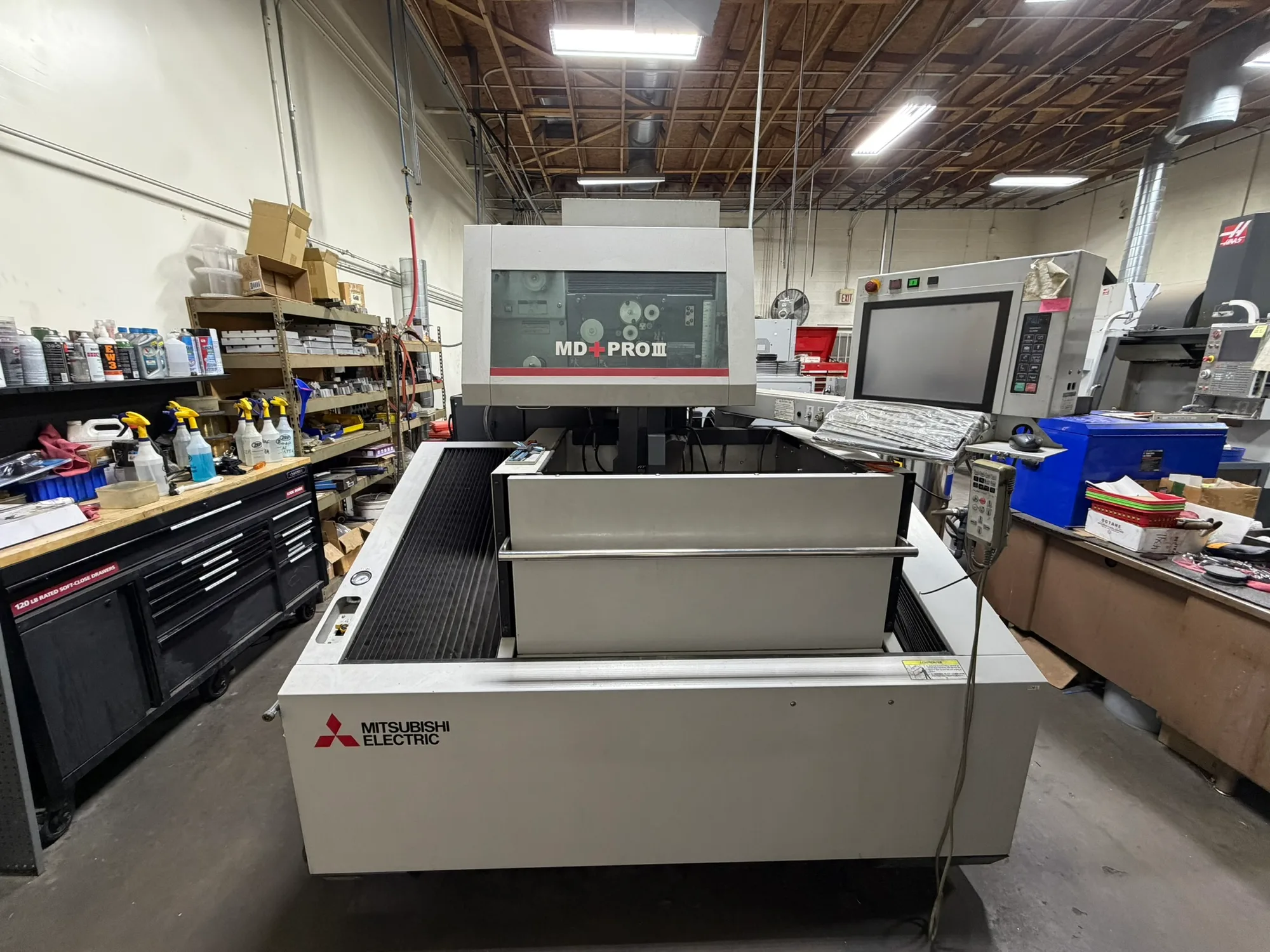

Used Mitsubishi MD-Pro II (2014) EDM for Sale. This wire EDM offers 12.6″ of X-axis travel, 9.8″ Y-axis, 8.7″ Z-axis, and 1.3″ x 1.3″ U/V travel, with taper cutting to 15 degrees. It runs a Mitsubishi M-700 control with the ESPER graphic user interface expert system, and is equipped with auto wire threading, submerged cutting, 5-axis capability, a chiller, and manuals and disc. Wire diameter range is .004″ to .012″. The table measures 21.3″ x 16.9″, matching the inside tank dimensions, with a 1,100 lb load capacity. Power requirement is 200-220/3/60. Overall dimensions are 70″ x 94″ x 80″ at 4,500 lbs. The machine can be seen under power for an inspection. Browse more used EDM machines and used Mitsubishi machines, then Activate Pricing or use the Inquire Now button.
Specifications
| X-Axis Travel |
12.6" |
|---|---|
| Y-Axis Travel |
9.8" |
| Z-Axis Travel |
8.7" |

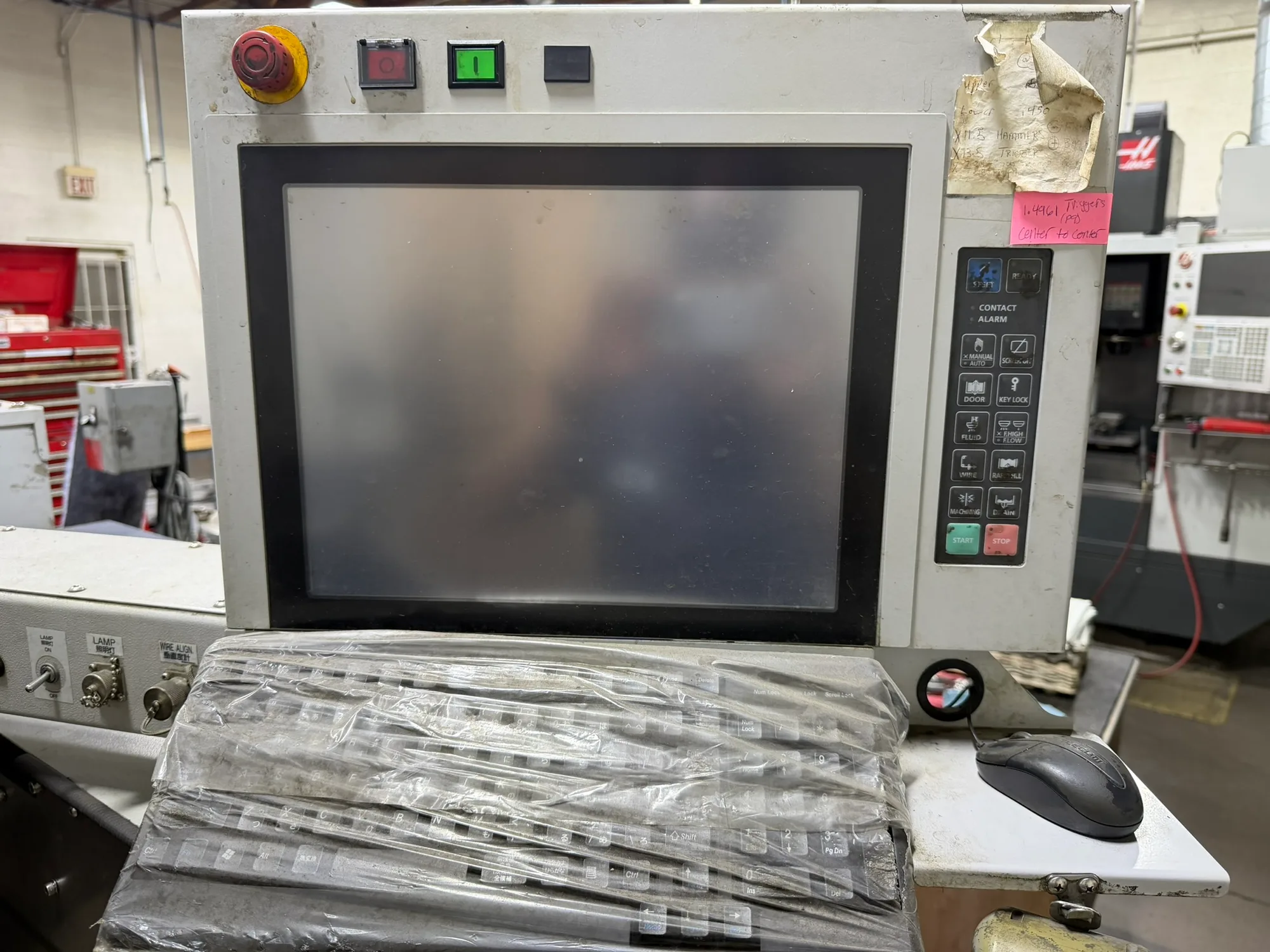

| Control |
Mitsubishi M-700 Control |
| U/V Axis Travel |
1.3" x 1.3" |
| Degree Taper Cutting |
15 Degrees |
| Inside Tank Dimensions |
21.3" x 16.9" |
| Power Requirement |
200-220/3/60 |
| Min/Max Wire Diameter |
.004" - .012" |
| Table Load Capacity |
1,100 Lbs |
| Table Size |
21.3" x 16.9" |
| Dimensions |
70" x 94" x 80" |
| Weight |
4,500 Lbs |
Features
|
Graphic User Interface Expert System ESPER |
Manuals and Disc |
|
Auto Wire Threading |

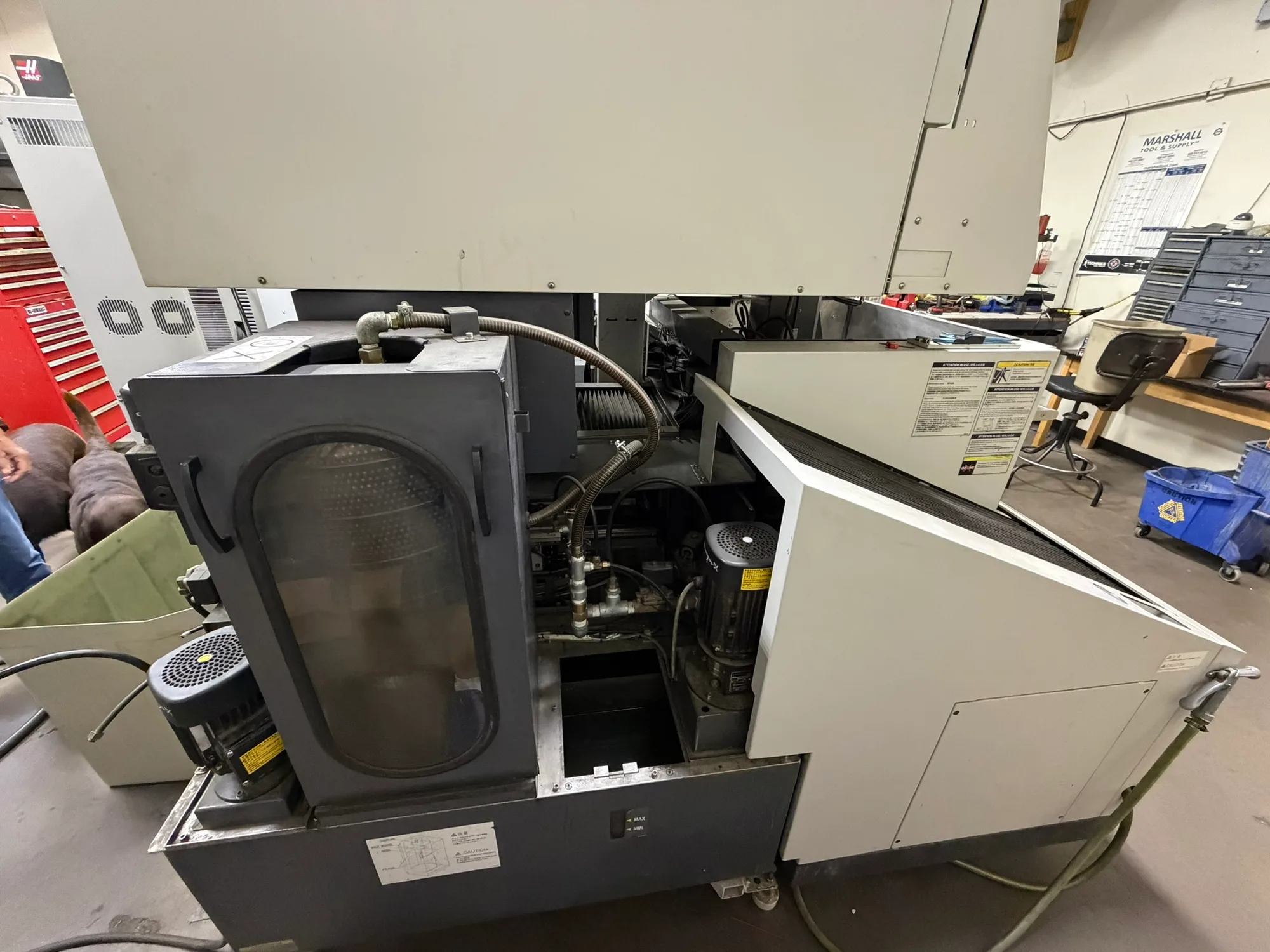

Chiller |
|
Submerged Cutting |
5-Axis |
