Year |
2015 |
|---|---|
Make |
Mitsubishi |
Model |
MD-Pro II |
Description |
EDM Wire |
Reference # |
8079208 |
Price |
Activate Pricing |

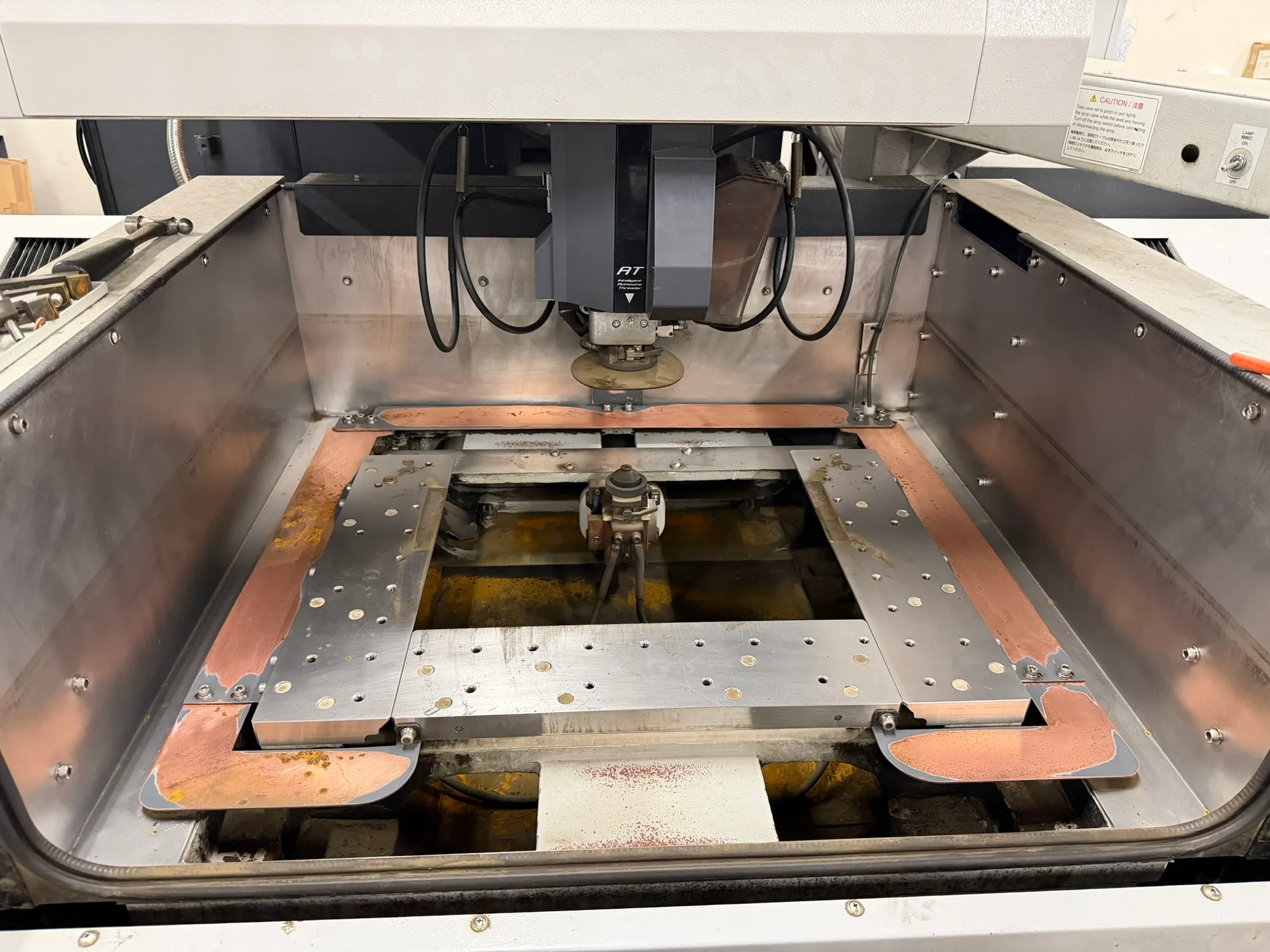

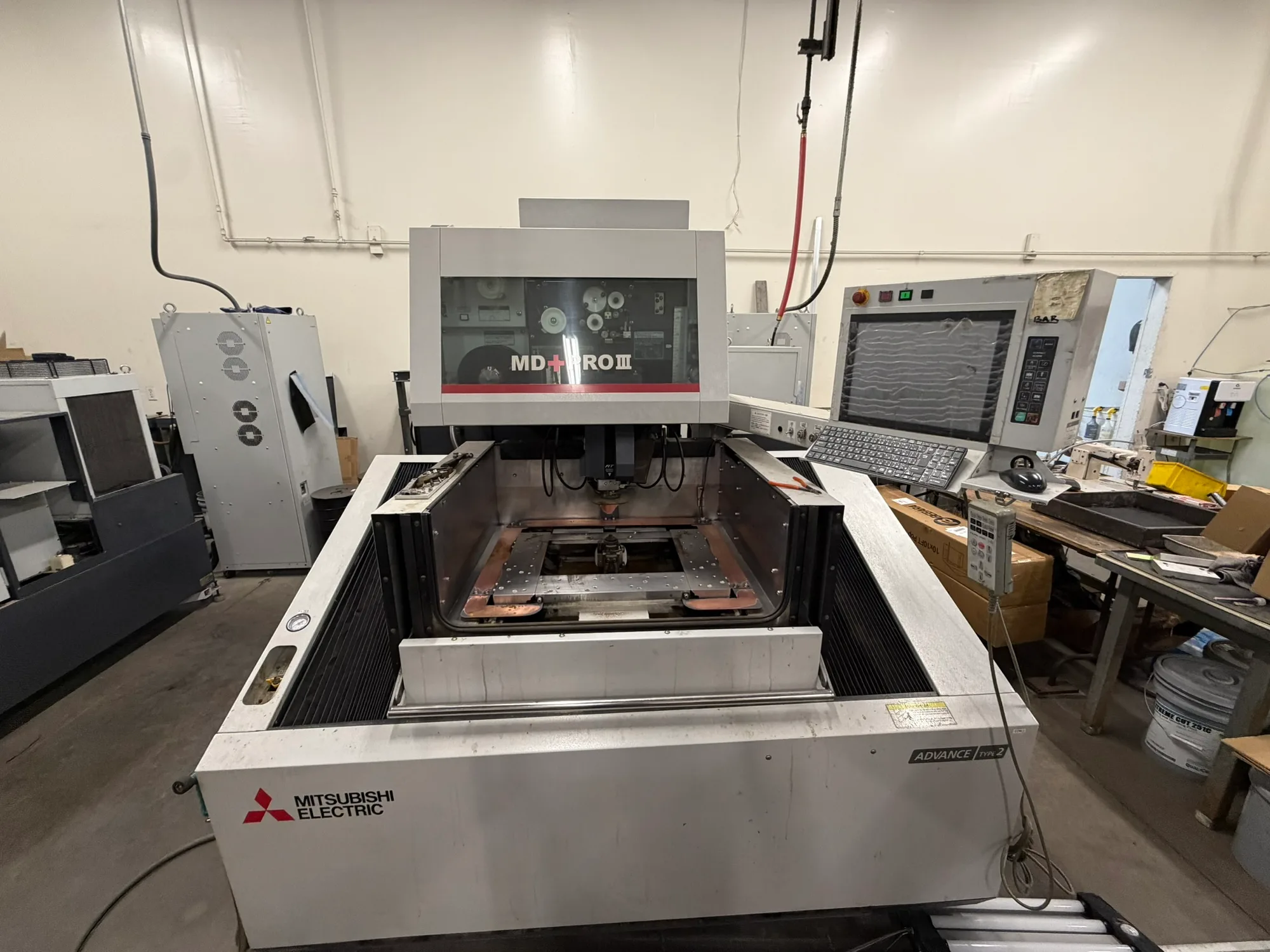

Used Mitsubishi MD-Pro II (2015) EDM for Sale. This wire EDM runs a Mitsubishi M-700 control with 12.6″ of X-axis travel, 9.8″ of Y-axis travel and 8.7″ of Z-axis travel, plus 1.3″ x 1.3″ of U/V travel and taper cutting to 15 degrees. The table measures 21.3″ x 16.9″, matching the inside tank dimensions, and carries up to 1,100 lbs. Wire diameter range is .004″ – .012″. Equipped with the Graphic User Interface Expert System ESPER, auto wire threading, chiller, submerged cutting, 5-axis capability, and manuals and disc. Power requirement is 200-220/3/60. Overall dimensions are 70″ x 94″ x 80″ at 4,500 lbs. It can be seen under power for an inspection. Browse our other used EDM machines and used Mitsubishi machines, then Activate Pricing or use the Inquire Now button. See more used EDM machines and used Mitsubishi machines.
Specifications
| X-Axis Travel |
12.6" |
|---|---|
| Y-Axis Travel |
9.8" |
| Z-Axis Travel |
8.7" |
| Control |
Mitsubishi M-700 Control |
| U/V Axis Travel |
1.3" x 1.3" |
| Degree Taper Cutting |
15 Degrees |
| Inside Tank Dimensions |
21.3" x 16.9" |
| Power Requirement |
200-220/3/60 |
| Min/Max Wire Diameter |
.004" - .012" |
| Table Load Capacity |
1,100 Lbs |
| Table Size |
21.3" x 16.9" |
| Dimensions |
70" x 94" x 80" |
| Weight |
4,500 Lbs |
Features
|

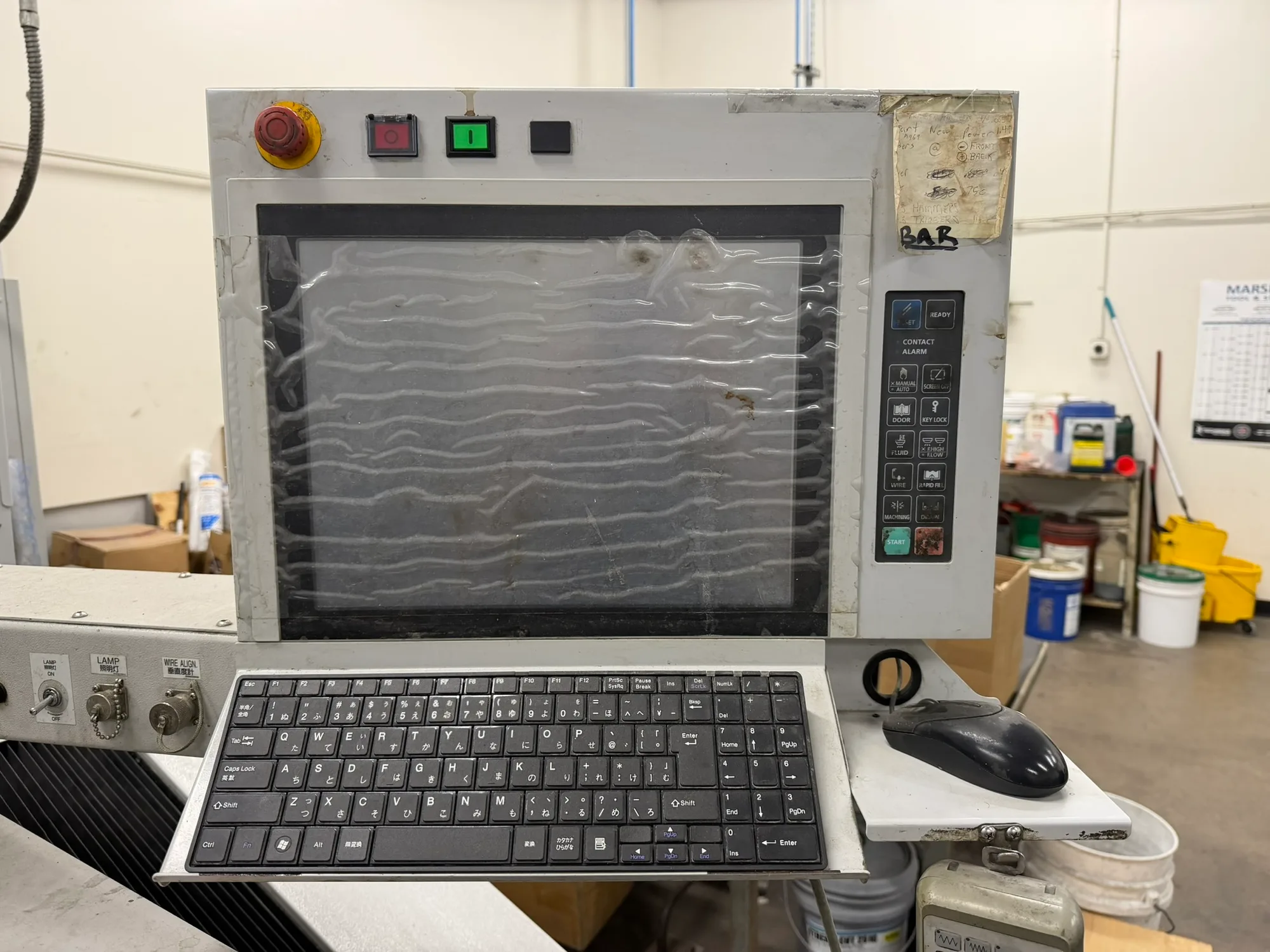

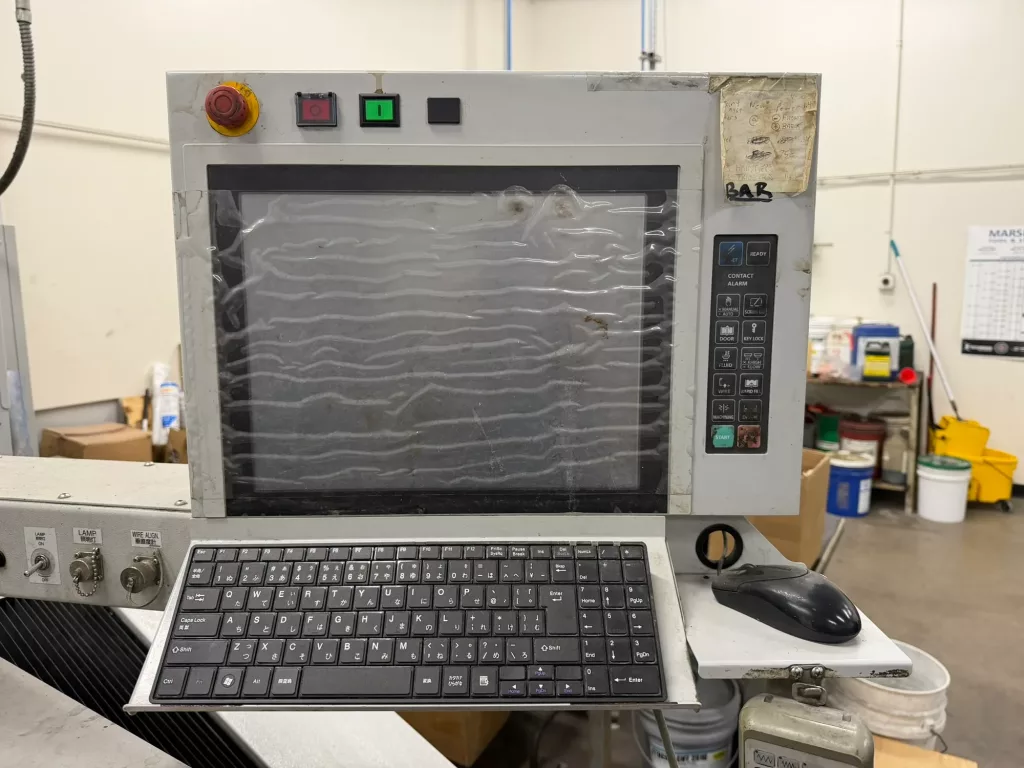

Graphic User Interface Expert System ESPER |
Manuals and Disc |
|

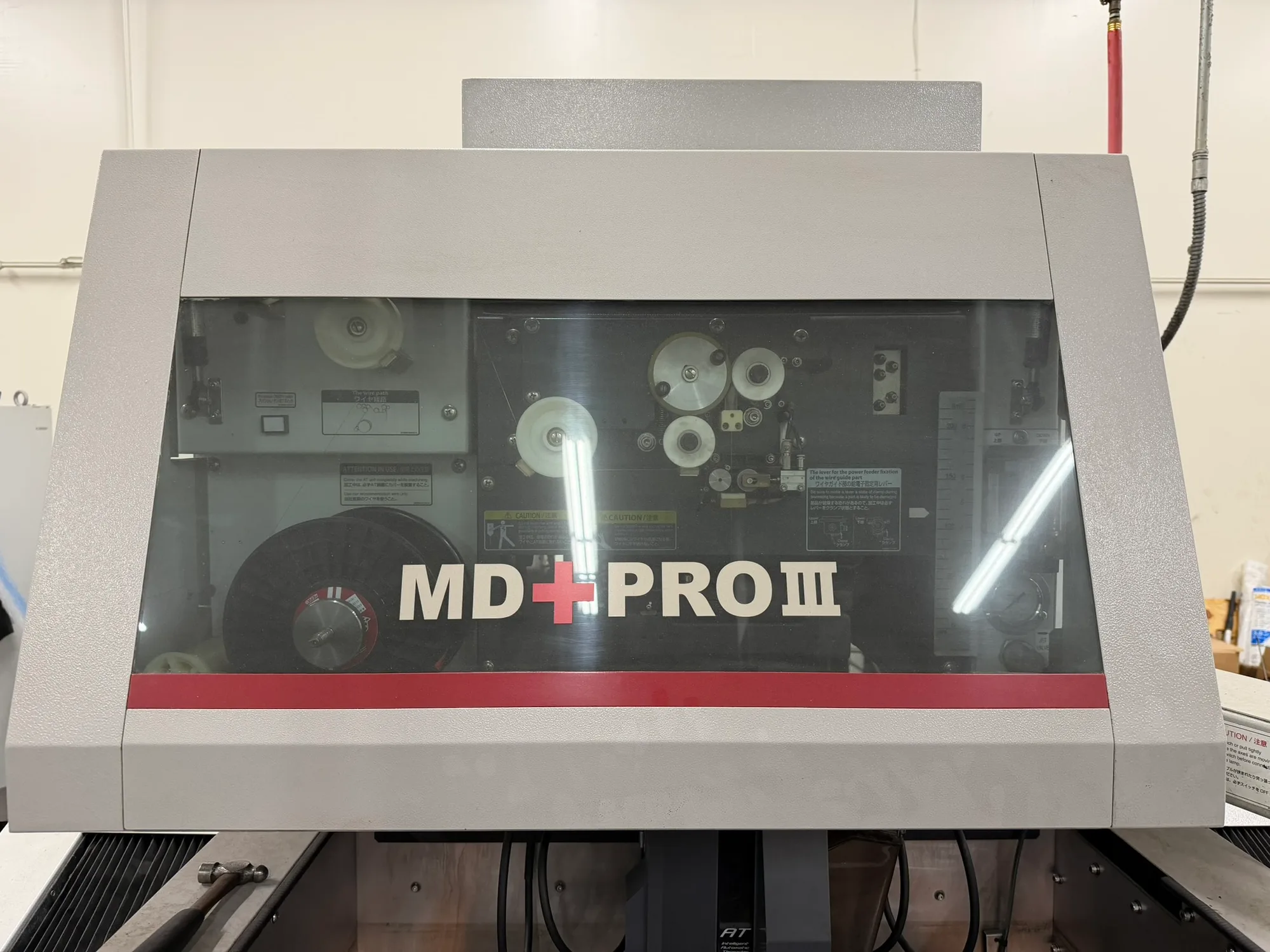

Auto Wire Threading |
Chiller |
|
Submerged Cutting |
5-Axis |
