Year |
2023 |
|---|---|
Make |
Makino |
Model |
U3 |
Description |
EDM Wire |
Reference # |
8078197 |
Price |
Activate Pricing |

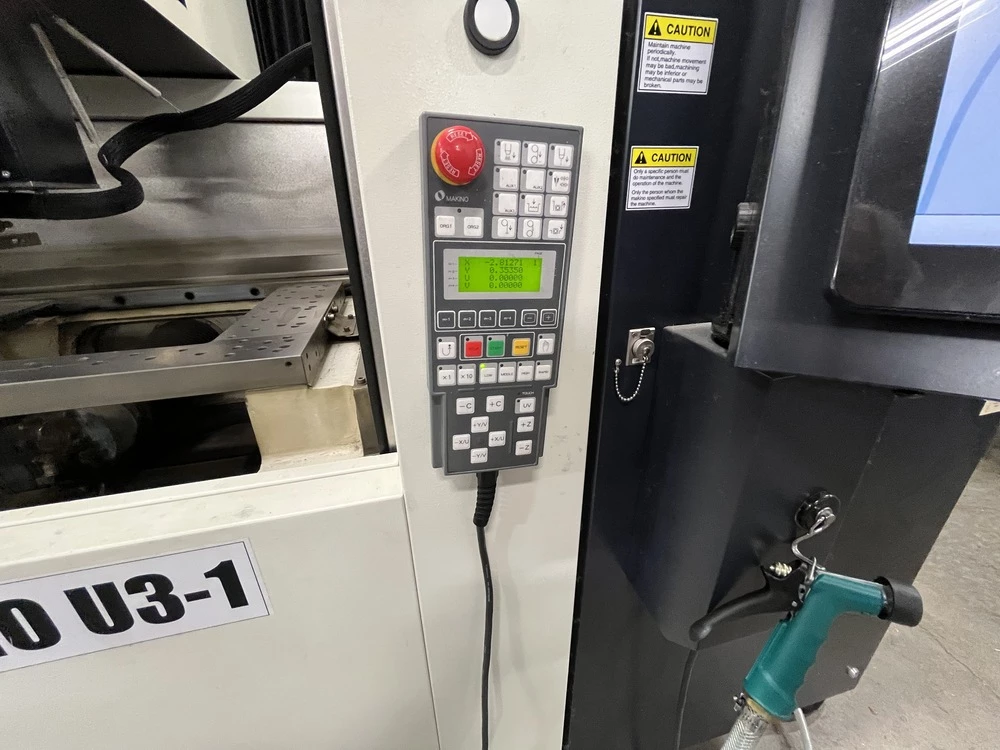

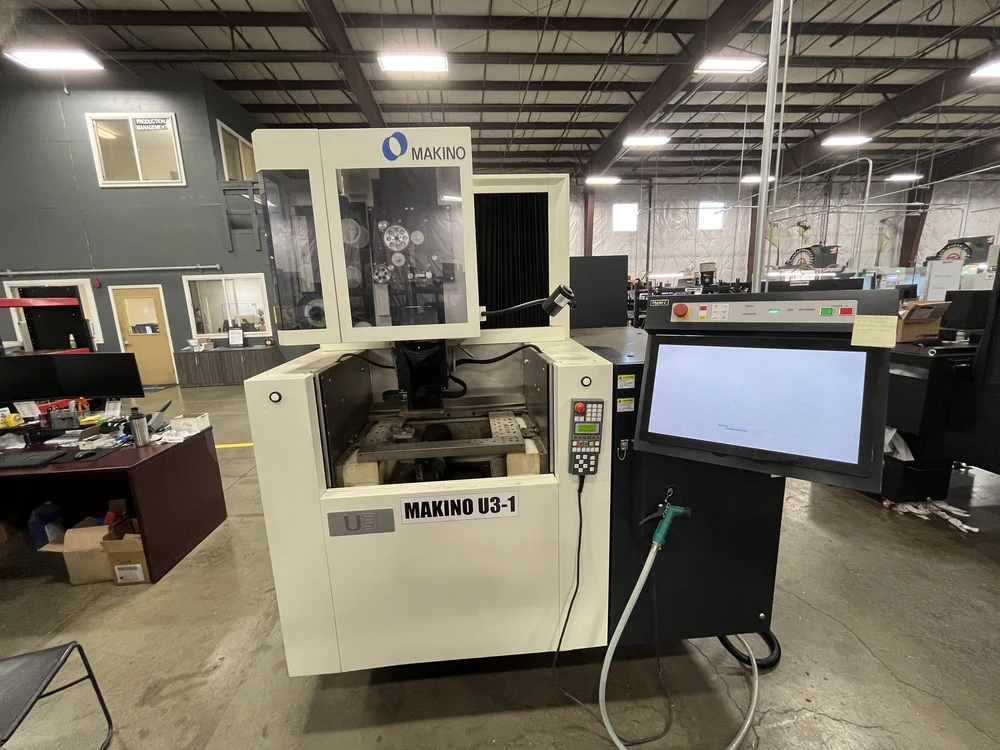

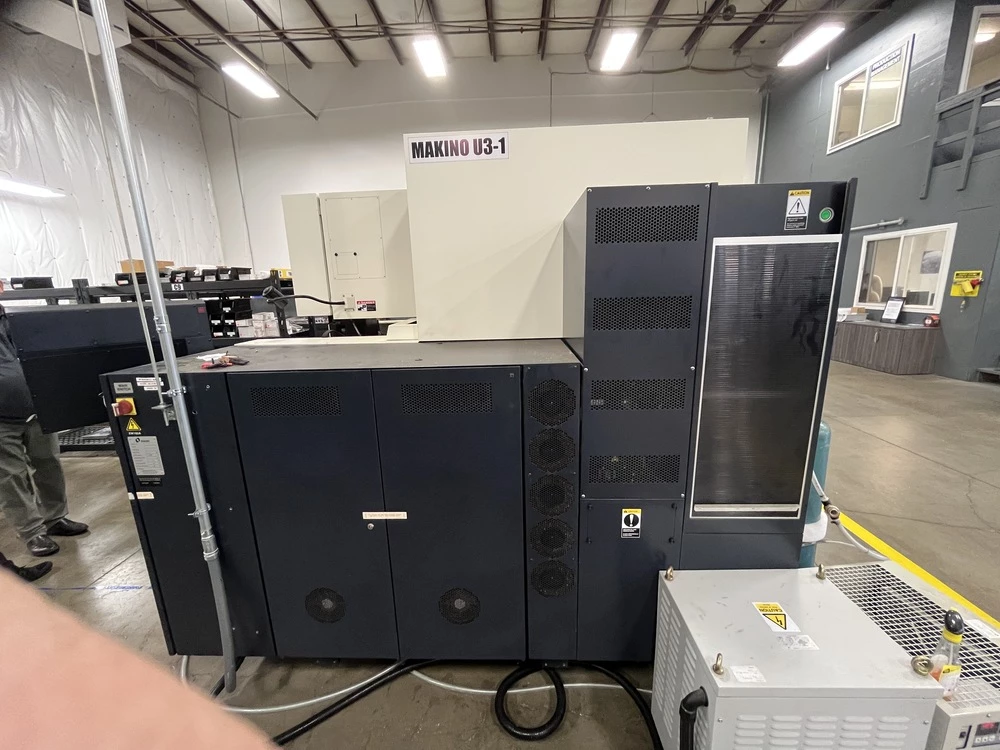

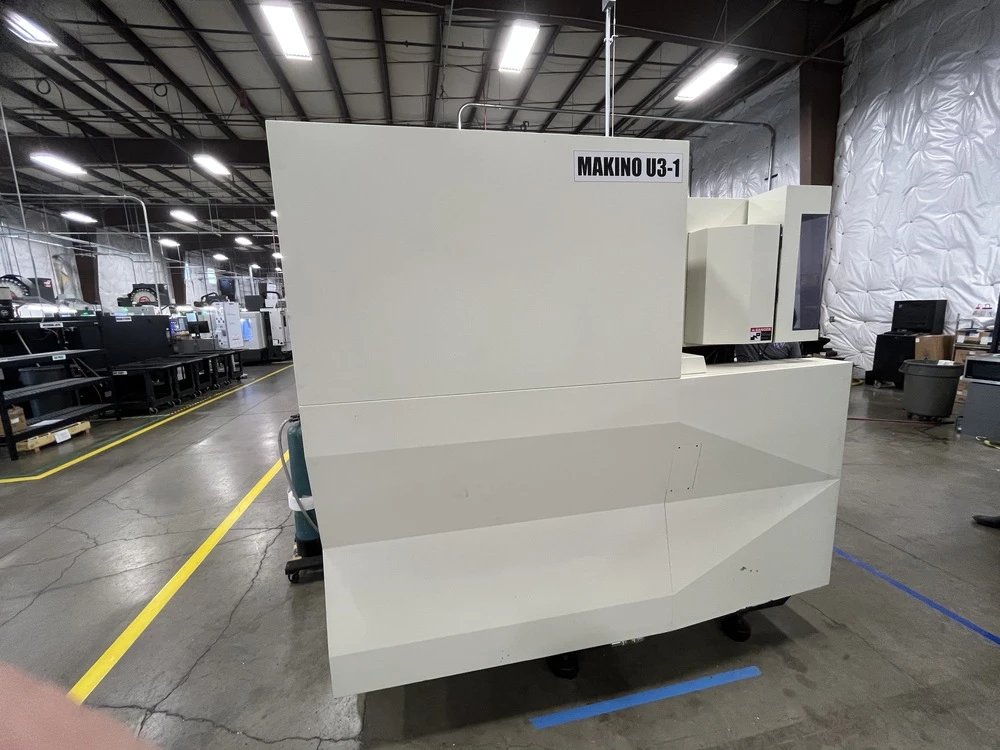

Used Makino U3 (2023) EDM for Sale. This wire EDM offers 14.6″ of X-axis travel, 10.6″ Y, and 8.7″ Z, with a 2″ x 2″ U/V axis and taper cutting to ±15° at 3.94″ (100mm). The table working area measures 24.8″ x 18.1″ (630 mm x 460 mm), with inside tank dimensions of 31.1″ x 24.1″. Wire electrode diameter range is 0.004″ to 0.012″ (0.1 mm to 0.3 mm). Control is Hyper-i CNC with a 24″ HD touch-screen display, glass scale feedback on X and Y, micron scale feedback, PICO Precision Guide, low wire consumption technology, dielectric fluid height setting, auto wire threading, and chiller. Power requirement is 480VAC/3PH/60Hz. The machine can be seen under power for an inspection. See more used EDM machines and other Makino equipment, Activate Pricing, and Request a Quote.
Specifications
| X-Axis Travel |
14.6" |
|---|---|
| Y-Axis Travel |
10.6" |
| Z-Axis Travel |
8.7" |
| Control |
Hyper-i CNC |
| Glass Scale Feedback |
X and Y Axes |
| U/V Axis Travel |
2" X 2" |
| Degree Taper Cutting |
±15° at 3.94" (100mm) |
| Inside Tank Dimensions |
31.1" x 24.1" |

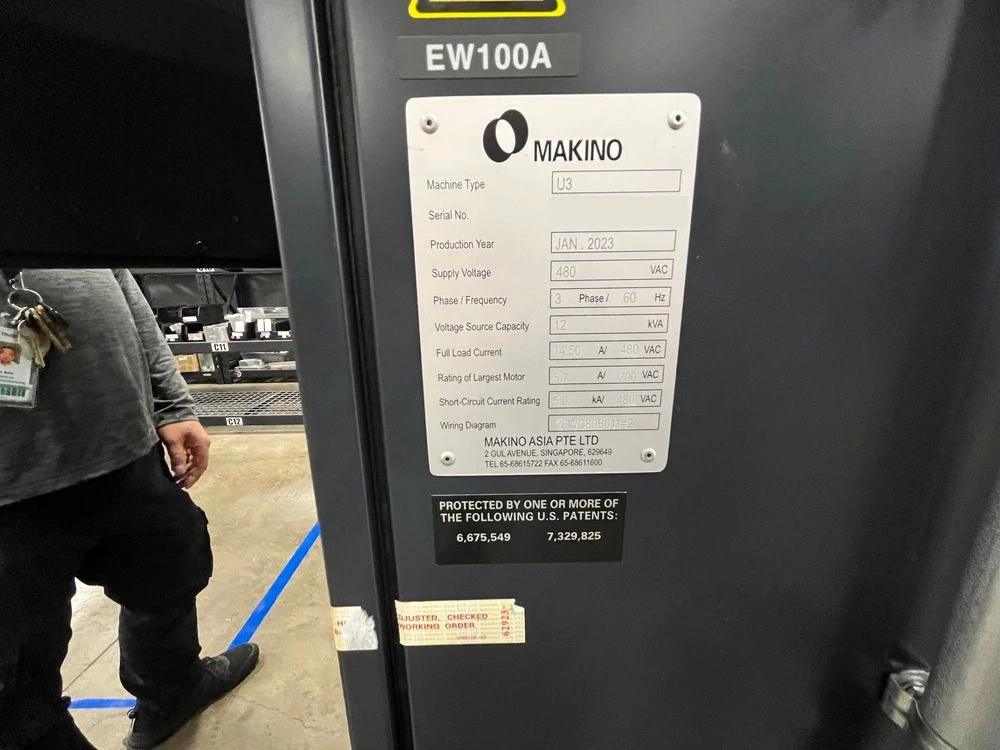

| Power Requirement |
480VAC/ 3PH/ 60Hz |

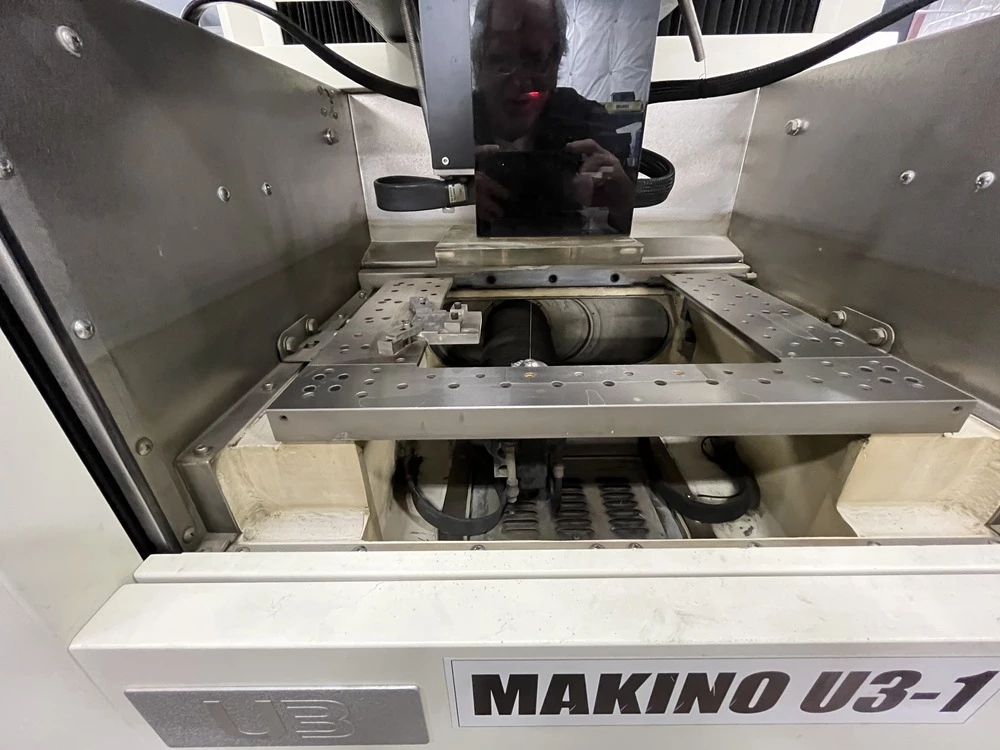

| Table Working Area |
24.8" × 18.1" (630 mm × 460 mm) |

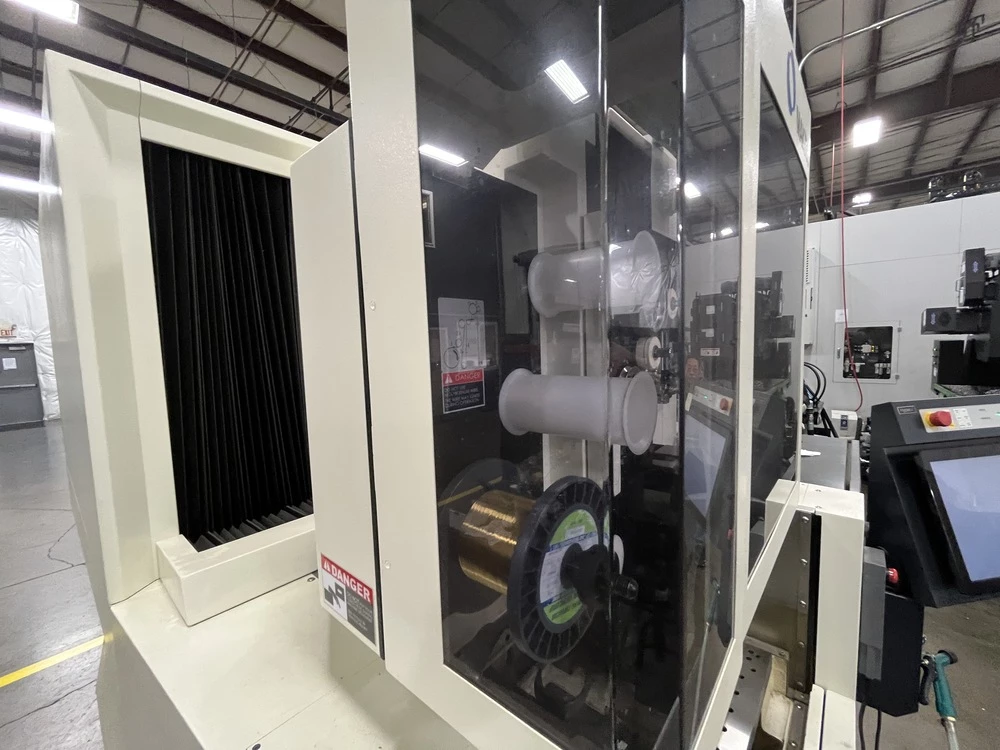

| Wire Electrode Diameter |
0.004" to 0.012" (0.1 mm to 0.3 mm) |
Features
|
Dielectric Fluid Height Setting Function |

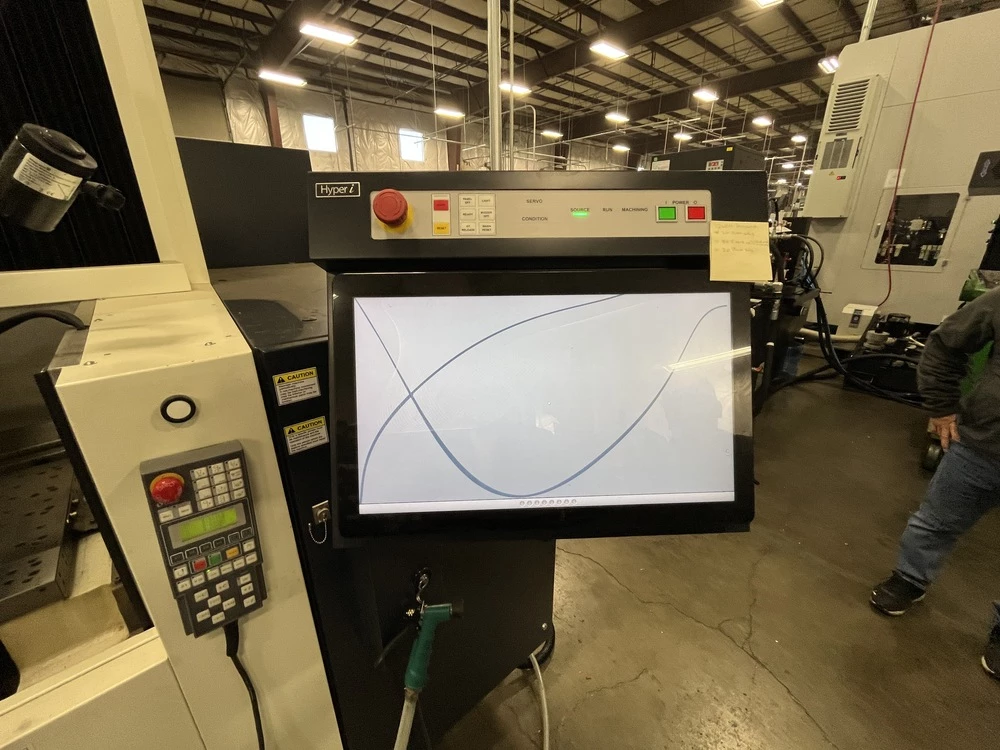

Large 24” HD Touch-Screen Display |
|
Low Wire Consumption Technology |
Micron Scale Feedback |
|
PICO Precision Guide |

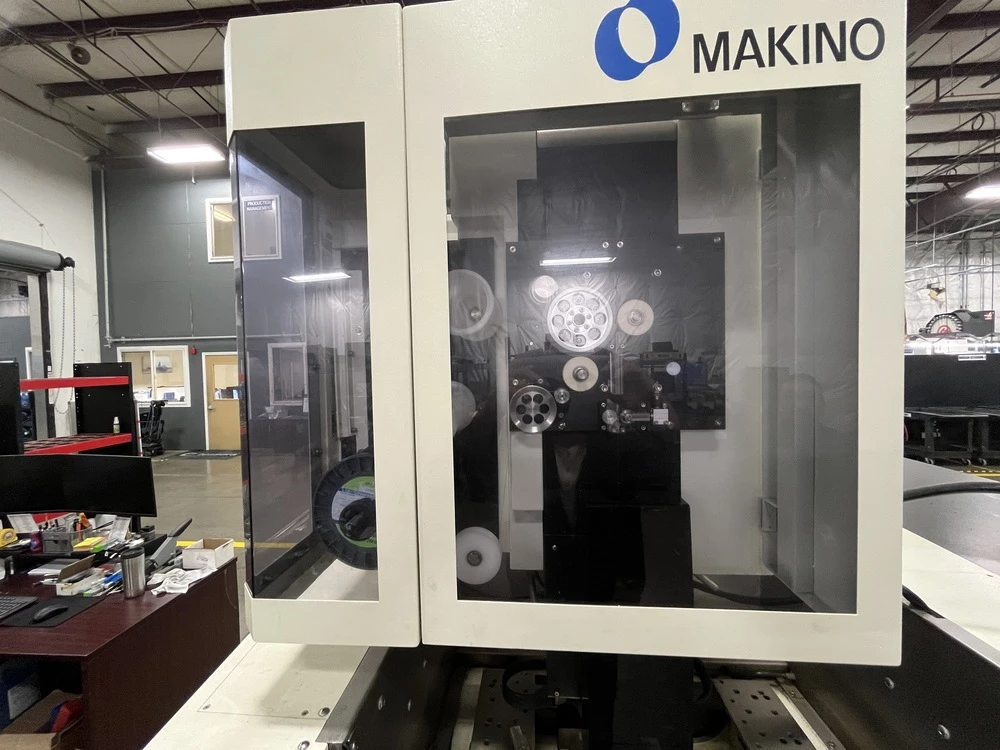

Auto Wire Threading |
|
Chiller Included |
