Year |
2011 |
|---|---|
Make |
Sodick |
Model |
AQ600L |
Description |
EDM Wire |
Reference # |
8078224 |
Price |
Activate Pricing |

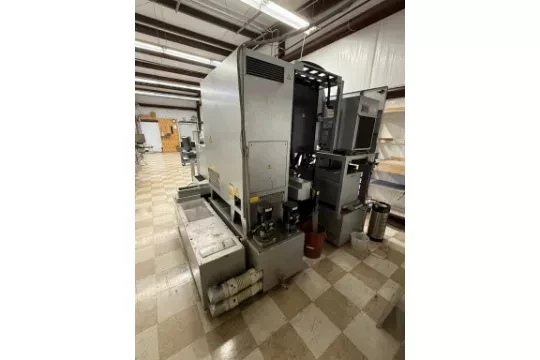

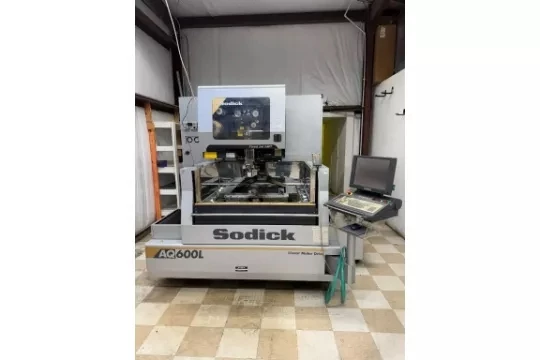

Used Sodick AQ600L (2011) EDM for Sale. This wire EDM has 11.81″ of travel in X, Y and Z, with U/V axis travel of 3.15″ x 4.73″ and taper cutting to +/- 20 degrees. It runs a Sodick LN2W control with linear motor drives and glass scale feedback. Wire diameter range is .006 – .012″. Inside tank dimensions are 44.68″ x 35.03″, handling a submerged workpiece up to 31.1″ x 21.65″ x 9.84″ and 1741 lbs. Equipped with dielectric system, auto wire threading, chiller and wire chopper. Machine dimensions are 94.48″ x 115.35″ x 86.02″ with a weight of 10648 lbs. The machine can be seen under power for an inspection. See more used EDM machines or other Sodick equipment, Activate Pricing, and Request a Quote.
Specifications
| X-Axis Travel |
11.81" |
|---|---|
| Y-Axis Travel |
11.81" |
| Z-Axis Travel |
11.81" |
| Control |
Sodick LN2W |
| U/V Axis Travel |
3.15" x 4.73" |
| Degree Taper Cutting |
+/- 20 Degrees |
| Inside Tank Dimensions |
44.68" x 35.03" |
| Wire Diameter |
.006 - .012" |
| Max Workpiece Dimensions (Submerged) |
31.1" x 21.65" x 9.84" |
| Max Workpiece Weight (Submerged) |
1741 Lbs |
| Machine Dimensions |
94.48" x 115.35" x 86.02" |
| Machine Weight |
10648 Lbs |
Features
|

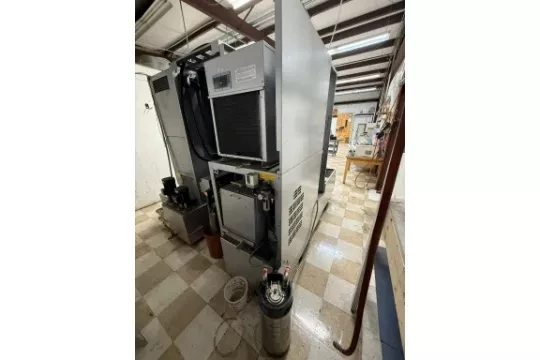

Dielectric System |
Linear Motor Drives |
|

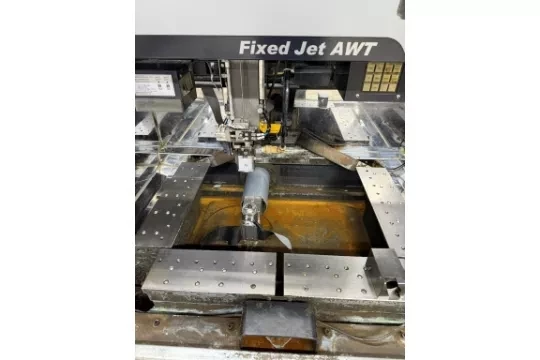

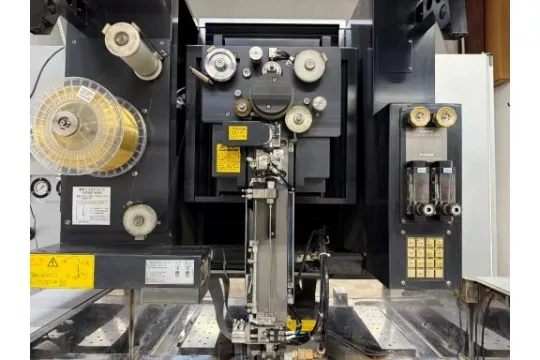

Auto Wire Threading |

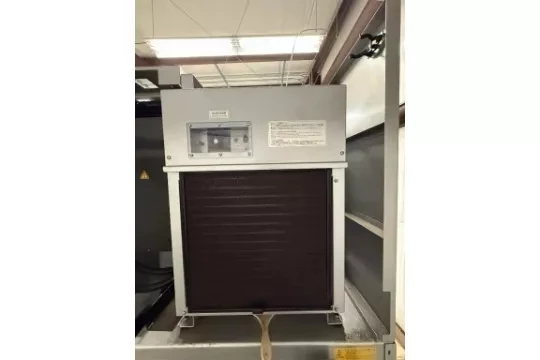

Chiller |
|
Glass Scale Feedback |
Wire Chopper |
