Year |
2010 |
|---|---|
Make |
Makino |
Model |
DUO43 |
Description |
EDM Wire |
Reference # |
8078758 |
Price |
Activate Pricing |

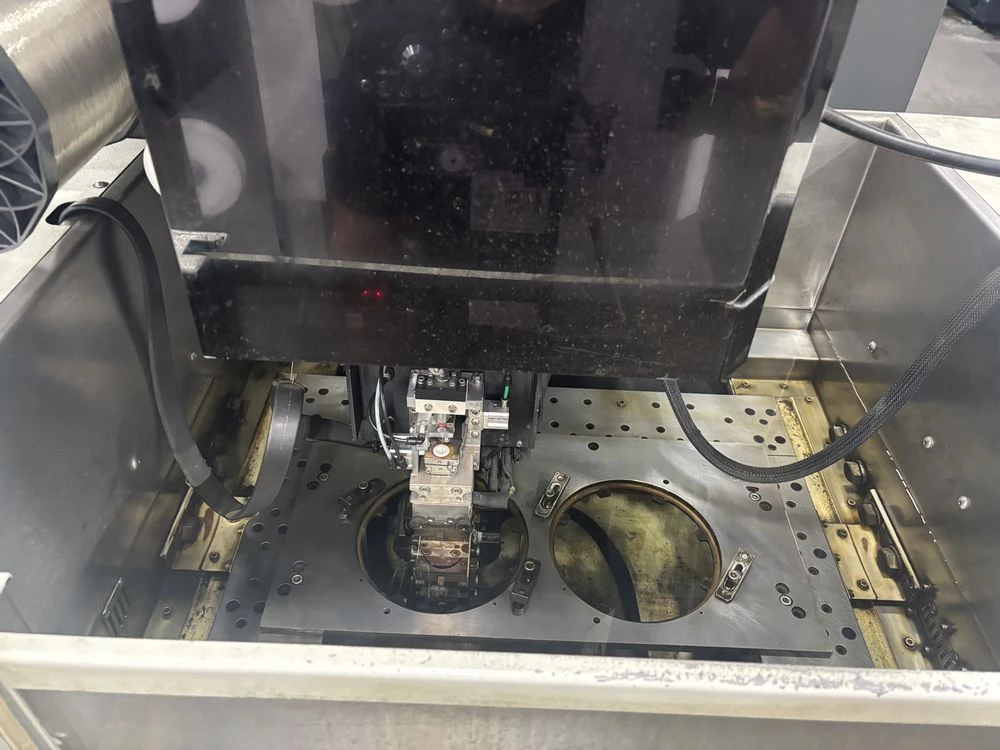

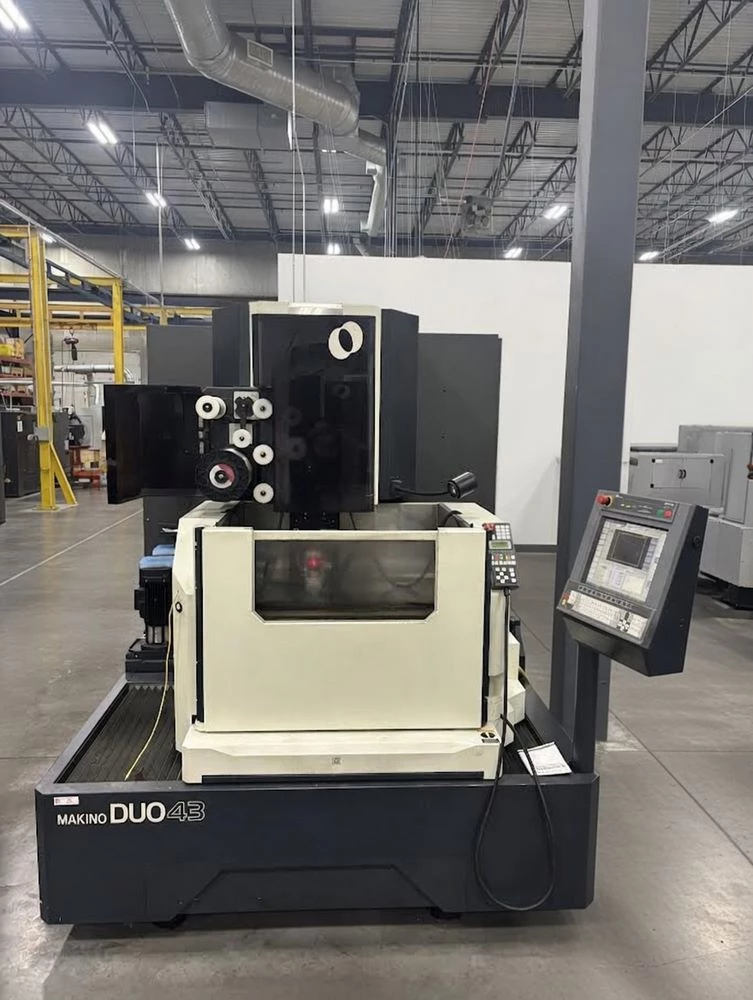

Used Makino DUO43 (2010) EDM for Sale. This wire EDM offers 17.8″ of X-axis travel, 11.8″ of Y-axis travel and 12.6″ of Z-axis travel, with U/V axis travel of 3.97″ x 3.97″ and taper cutting to 15 degrees. It runs a Makino MGW S-6 CNC with 0.05 micron glass scale feedback on X and Y, and accepts wire diameters from 0.004″ to 0.012″. Inside tank dimensions are 35.25″ x 29.72″, with a maximum workpiece size of 28″ x 22″ x 11.8″ and maximum workpiece weight of 1764 lbs. Equipped with auto door drop, dielectric tank with pump, dual high-pressure flush pumps, HEAT, spent wire bin, split-V diamond wire guides, auto wire threading, chiller and remote jog handle. Available for inspection under power. See more used EDM machines and other Makino equipment, Activate Pricing or Request a Quote.
Specifications
| X-Axis Travel |
17.8" |
|---|---|
| Y-Axis Travel |
11.8" |
| Z-Axis Travel |
12.6" |

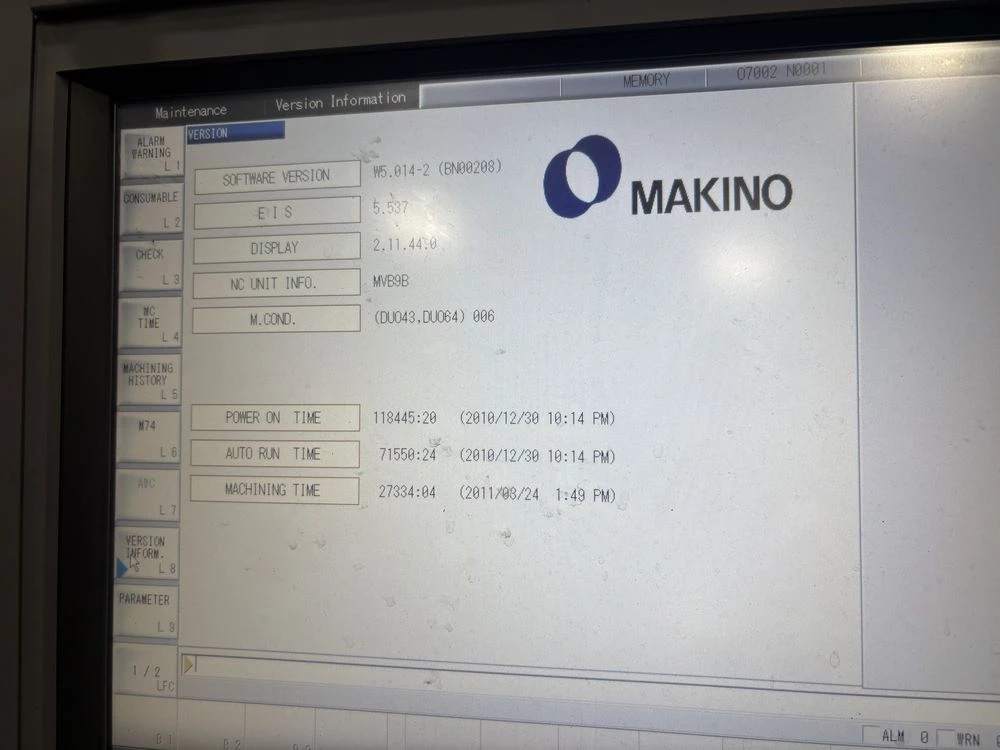

| Control |
Makino MGW S-6 CNC |
| Glass Scale Feedback |
0.05 Micron (X/Y) |
| U/V Axis Travel |
3.97" x 3.97" |
| Degree Taper Cutting |
15 Degrees |
| Inside Tank Dimensions |
35.25" x 29.72" |
| Max Workpiece Weight |
1764 Lbs |
| Max Workpiece Size |
28" x 22" x 11.8" |
| Wire Diameters |
0.004" to 0.012" |
Features
|
Auto Door Drop |
Dielectric Tank with Pump |
|
Dual High-Pressure Flush Pumps |
HEAT (High Energy Applied Technology) |
|
Spent Wire Bin |
Split-V Diamond Wire Guides |
|
Auto Wire Threading |

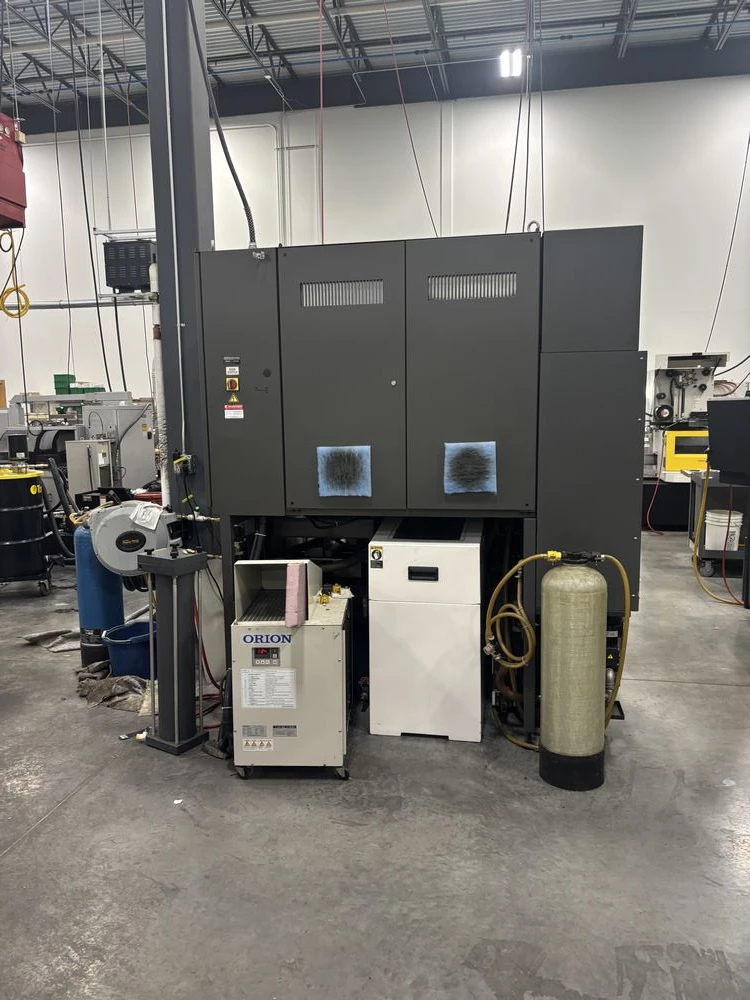

Chiller Included |
|
Remote Jog Handle |
