Year |
2012 |
|---|---|
Make |
Mitsubishi |
Model |
EA12D |
Description |
EDM Sinker |
Reference # |
8075197 |
Price |
Activate Pricing |

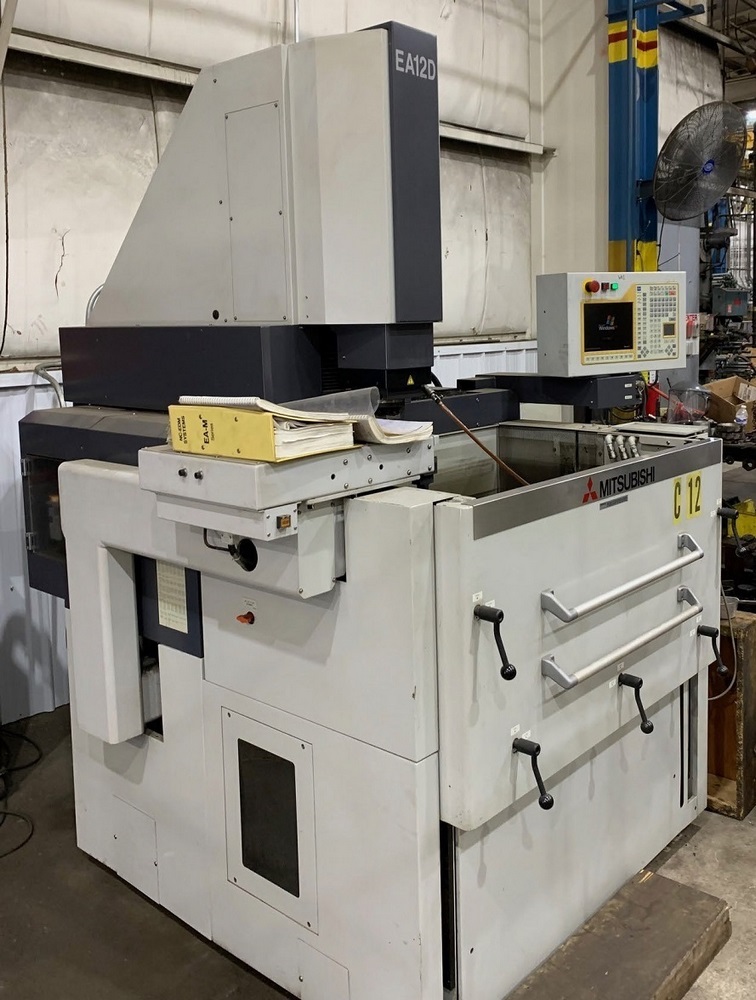

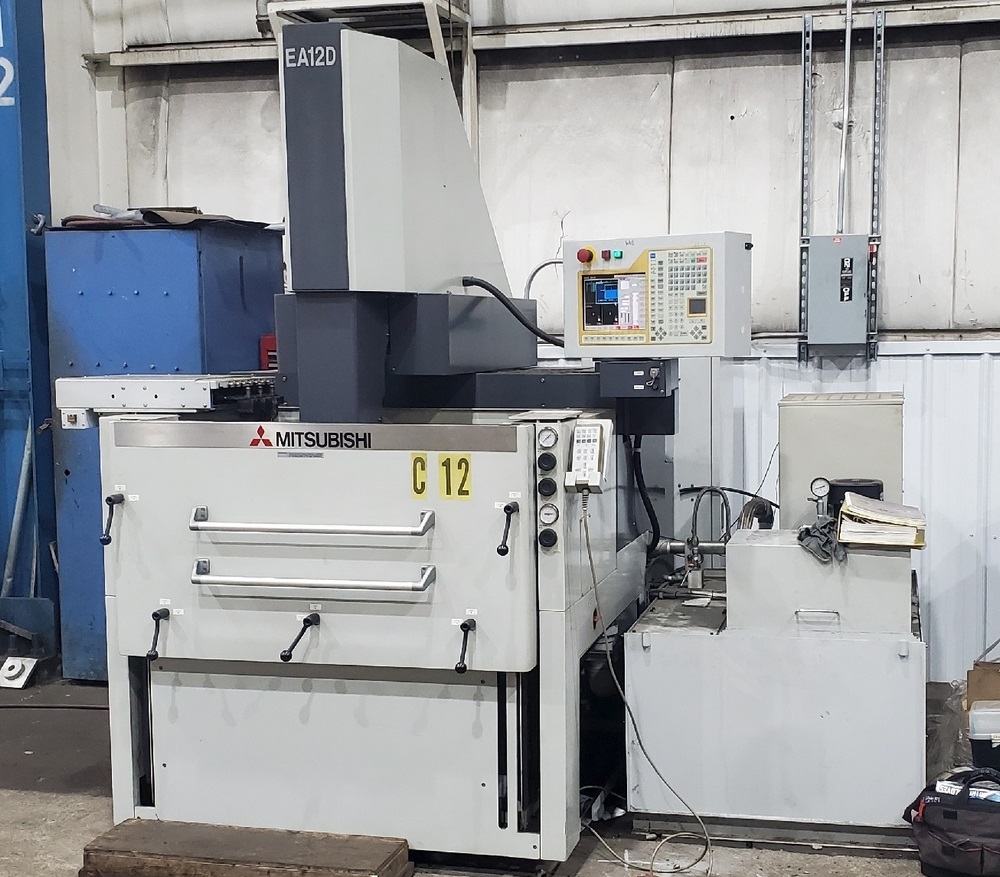

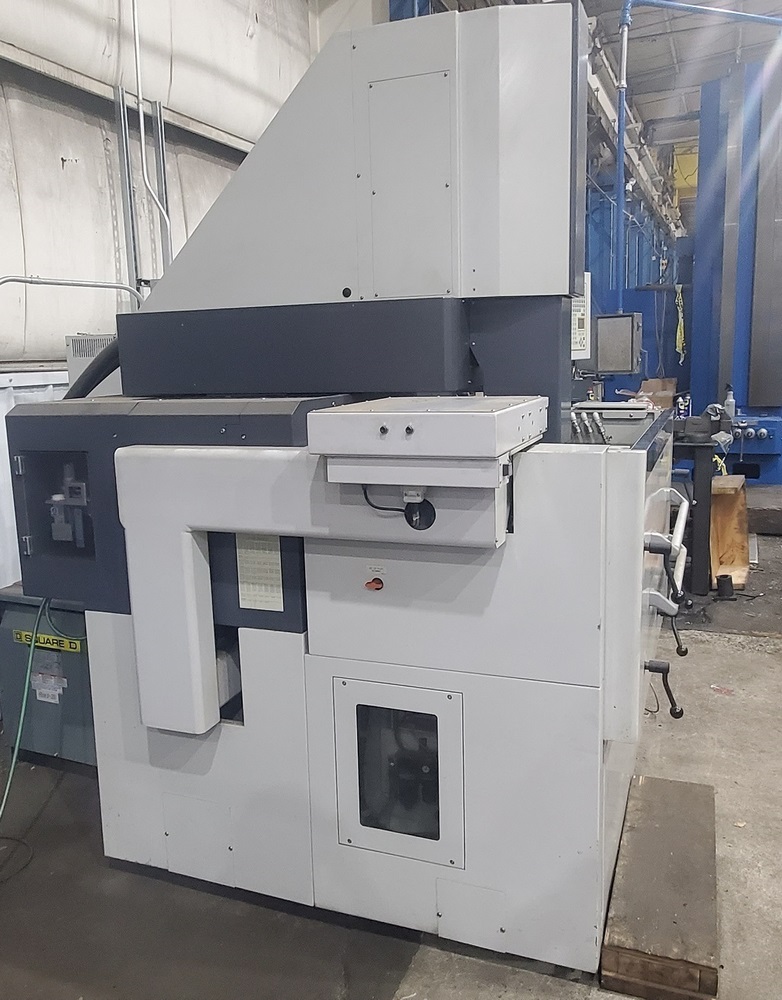

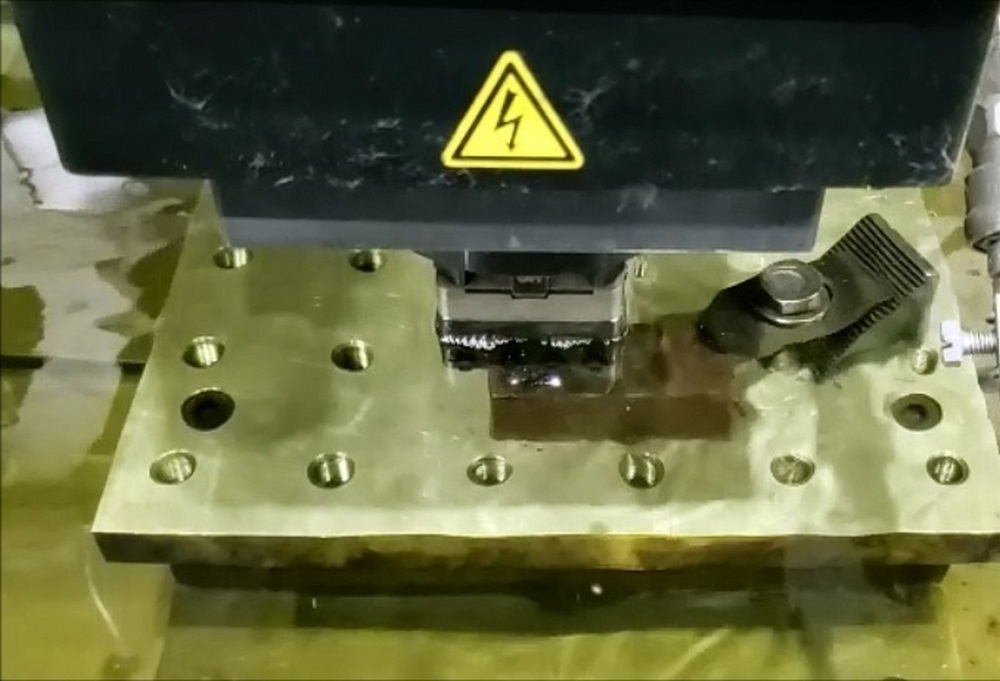

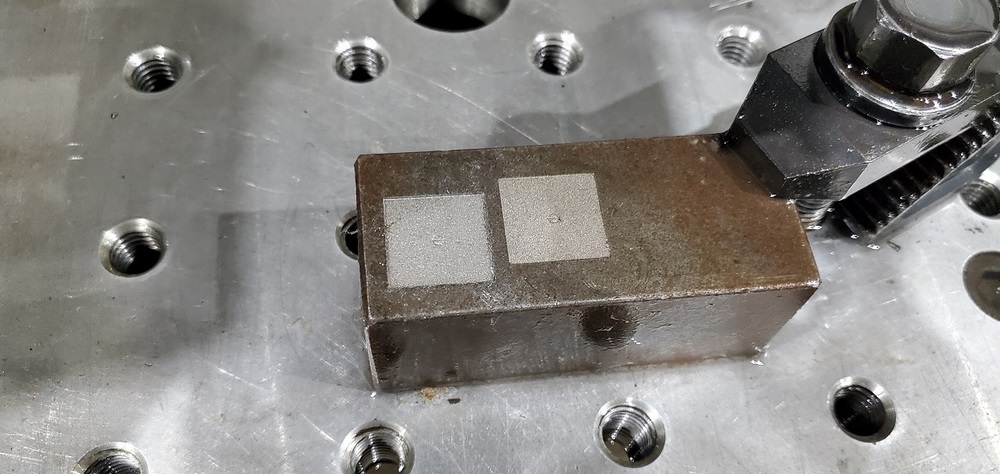

Used Mitsubishi EA12D (2012) EDM for Sale. This sinker EDM offers 15.7″ of X-axis travel with 11.8″ in both Y and Z, and is run by a Mitsubishi M700 64 Bit Fuzzy Logic CNC Control with a 14″ LCD, fed by an 80 AMP FP60EA power supply. The fixed worktank measures 41.3″ x 27.5″ x 17.7″ with a 132 gallon dielectric capacity and front drop door access, and the 27.5″ x 19.6″ table handles workpieces up to 39.3″ x 25.5″ x 13.7″ and 2,200 lbs. Rapid traverse is 78.74 IPM, resolution is .000002″, and C-axis rotation covers 360 degrees in .001 degree increments. Equipped with a 3R chuck, chiller, 20 AEC shuttle and 10.4″ TFT color LCD graphic display. Power requirement is 200-220/3/60. Available for inspection under power. See more used EDM machines and other Mitsubishi equipment, then Activate Pricing or Request a Quote.
Specifications
| X-Axis Travel |
15.7" |
|---|---|
| Y-Axis Travel |
11.8" |
| Z-Axis Travel |
11.8" |
| Control |

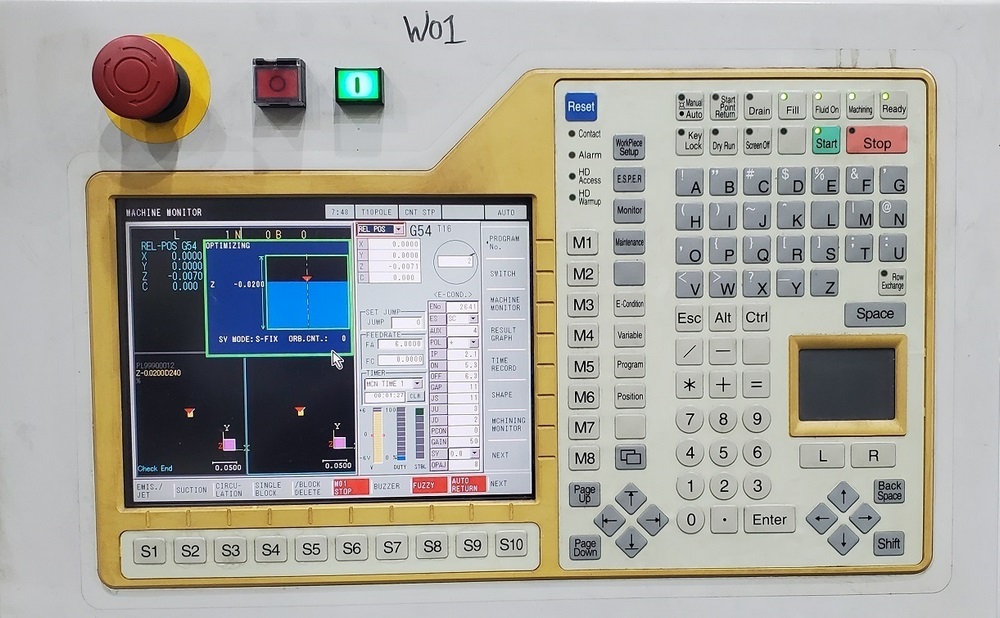

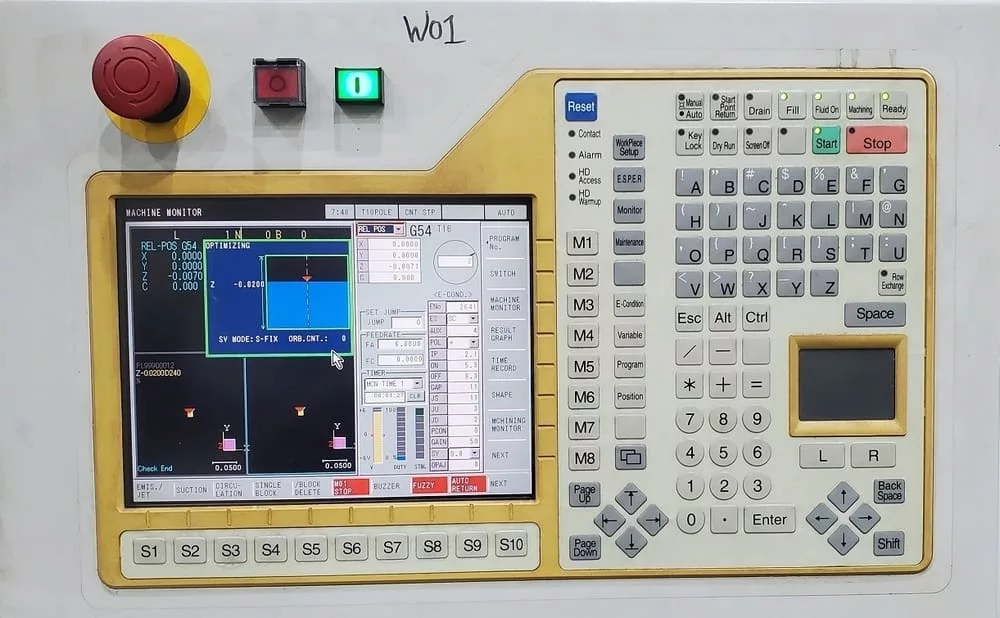

Mitsubishi M700 64 Bit Fuzzy Logic CNC Control W/14" LCD |
| Power Source |
80 AMP FP60EA Power Supply |
| Dielectric Fluid Level (Max / Min) |
15.7"/ 7.0" |
| Table to Platen Distance |
11.8" x 23.6" |
| Machining Movement (C) |
360 Degrees / .001 Degree Increment |
| Min. Command Input |
.00001" |
| Resolution |
.000002" |
| Shuttle Type |

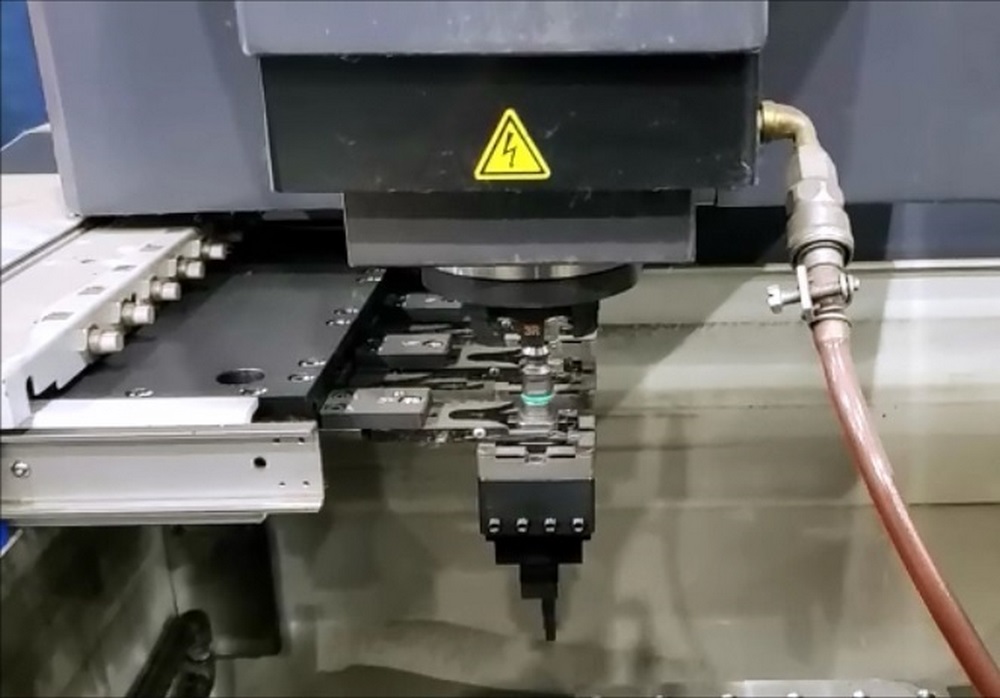

20 AEC |
| Rapid Traverse |
78.74 IPM |
| Dielectric Capacity |
132 Gal |
| Worktank Internal Dimensions |
41.3" x 27.5" x 17.7" |
| Maximum Workpiece Dimensions |
39.3"x 25.5" x 13.7" |
| Maximum Workpiece Weight |
2,200 lbs |

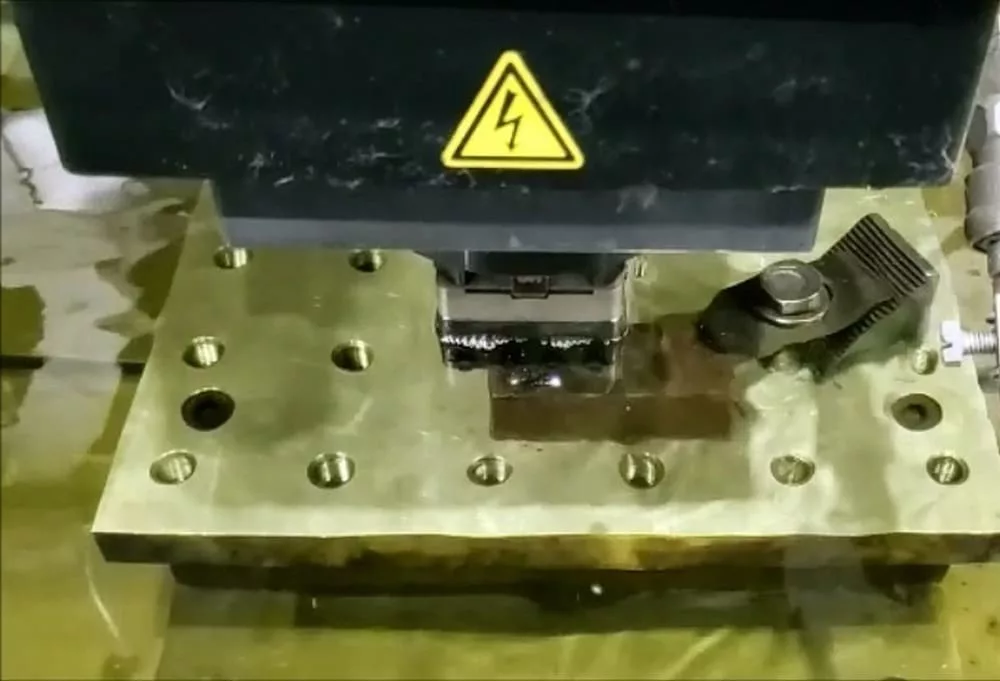

| Table Dimensions |

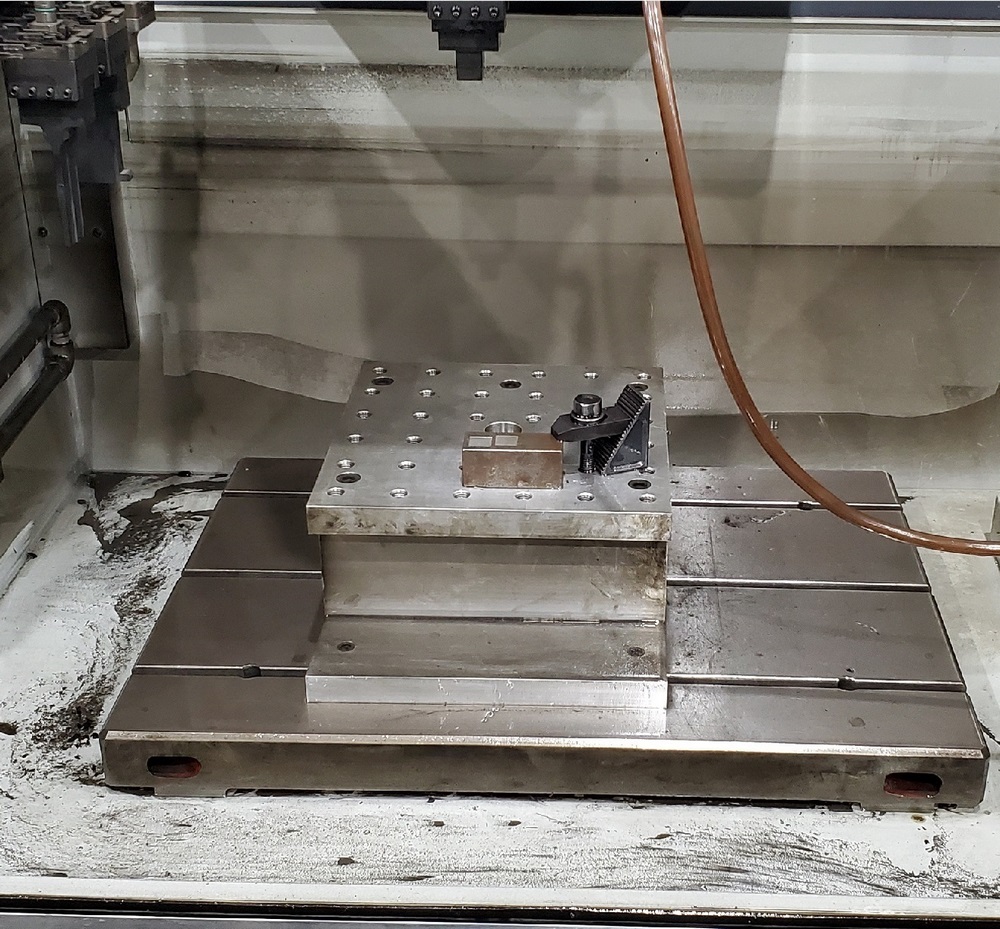

27.5" x 19.6" |
| Maximum Electrode Weight |
110 lbs / 11 lbs with C-Axis |
| Power Requirement |
200-220/3/60 |
| Total Shipping Weight |
6,889 Lbs |
| Installation Dimensions |
(W x D ) 91.5" x 87.2" |
Features
|
Fixed Tank Type |
Worktank Access Front Drop Door |
|

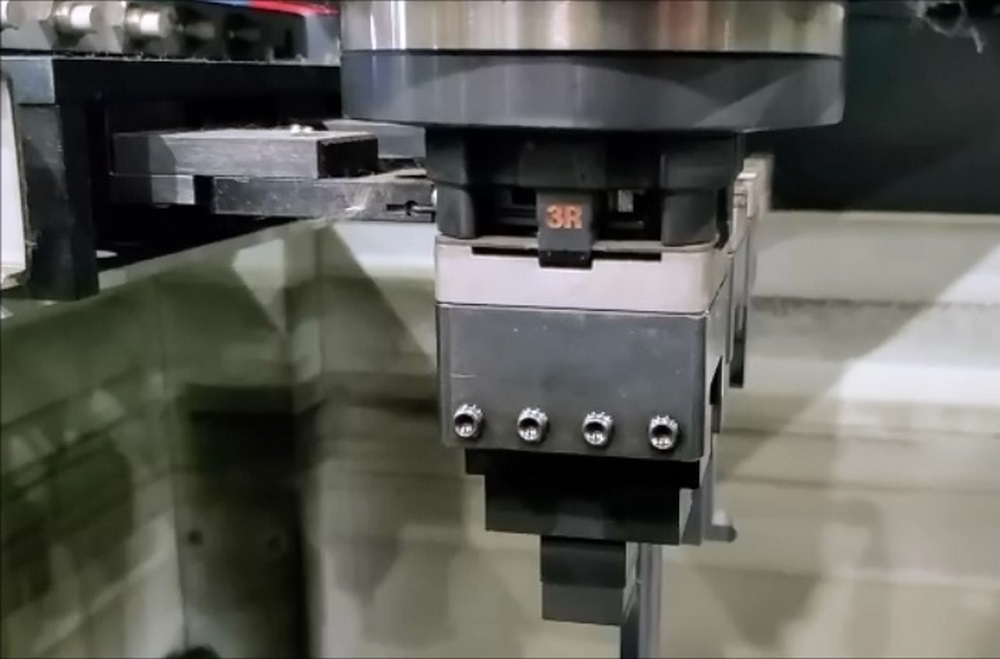

3R Chuck |
C-Axis |
|
Chiller |
Graphic Display 10.4" TFT Color LCD |
