Year |
2010 |
|---|---|
Make |
Mitsubishi |
Model |
MD-Pro II |
Description |
EDM Wire |
Reference # |
8073104 |
Price |
Activate Pricing |

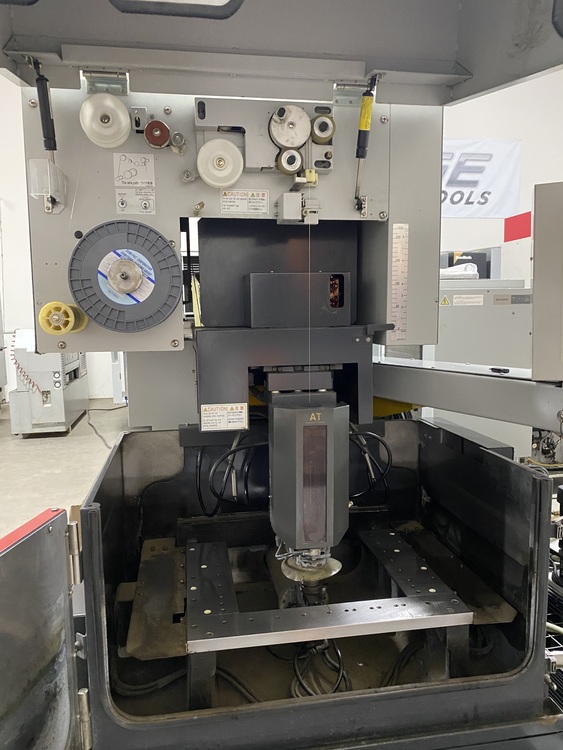

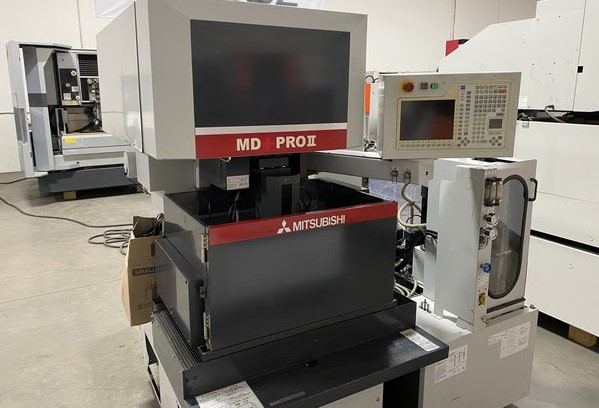

Used Mitsubishi MD-Pro II (2010) EDM for Sale. This wire EDM offers 12.6″ of X-axis travel, 9.8″ of Y-axis travel and 8.7″ of Z-axis travel, with U/V axis travel of 1.3″ x 1.3″ and taper cutting to 15 degrees. It runs a Mitsubishi 64-Bit CNC and is equipped with the Graphic User Interface Expert System ESPER, auto wire threading, chiller, submerged cutting and 5-axis capability. Table size and inside tank dimensions are 21.3″ x 16.9″, with a table load capacity of 1,100 lbs. Wire diameter range is .004″ to .012″. Power requirement is 200-220/3/60. Machine dimensions are 70″ x 94″ x 80″ and weight is 4,500 lbs. Manuals and disc are included. It can be seen under power for an inspection. See more used EDM machines or other Mitsubishi equipment, Activate Pricing, and Request a Quote.
Specifications
| X-Axis Travel |
12.6" |
|---|---|
| Y-Axis Travel |
9.8" |
| Z-Axis Travel |
8.7" |
| Control |
Mitsubishi 64-Bit CNC |
| U/V Axis Travel |
1.3" x 1.3" |
| Degree Taper Cutting |
15 Degrees |
| Inside Tank Dimensions |
21.3" x 16.9" |
| Power Requirement |
200-220/3/60 |
| Min/Max Wire Diameter |
.004" - .012" |
| Table Load Capacity |
1,100 Lbs |
| Table Size |
21.3" x 16.9" |
| Dimensions |
70" x 94" x 80" |
| Weight |
4,500 Lbs |
Features
|
Graphic User Interface Expert System ESPER |
Manuals and Disc |
|
Auto Wire Threading |

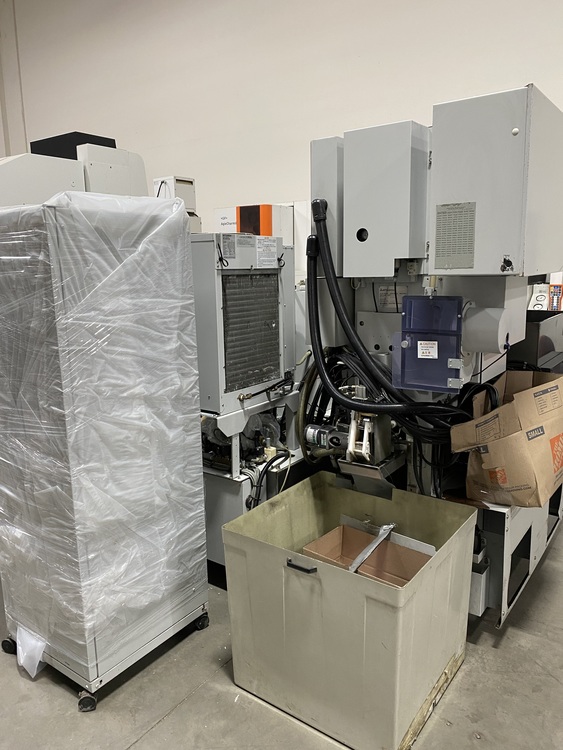

Chiller |
|
Submerged Cutting |
5-Axis |
