Year |
2022 |
|---|---|
Make |
ABB |
Model |
IRB 1660ID-6/1.55 |
Description |
6-Axis Articulated Industrial Robot with Integrated Dressing (ID) |
Reference # |
8078497 |
Price |
Activate Pricing |

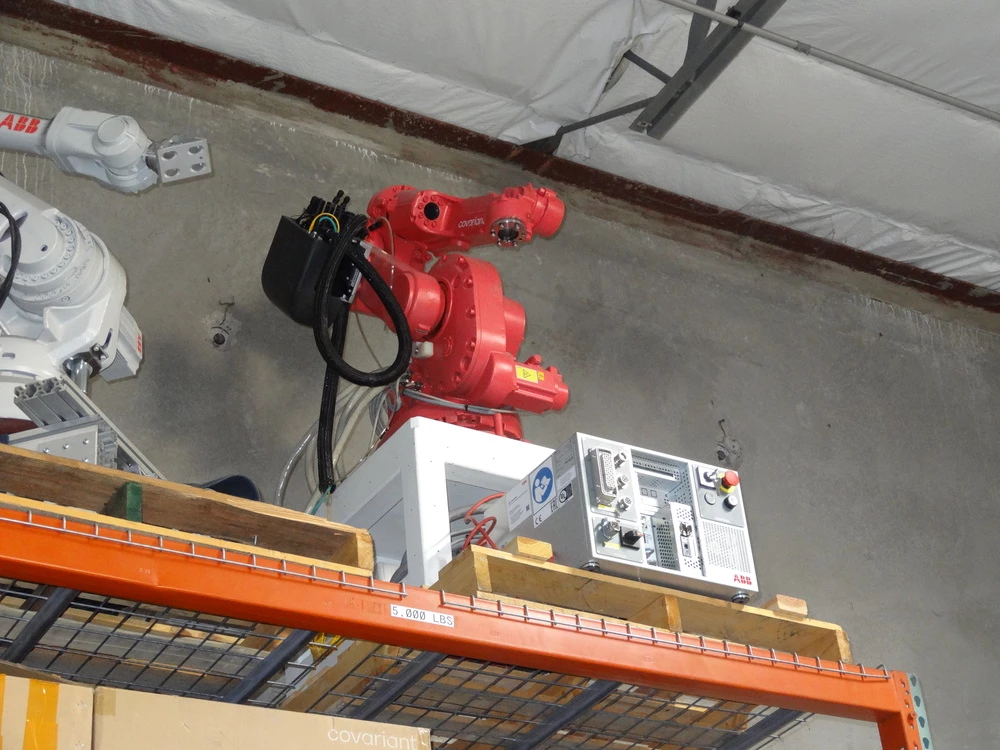

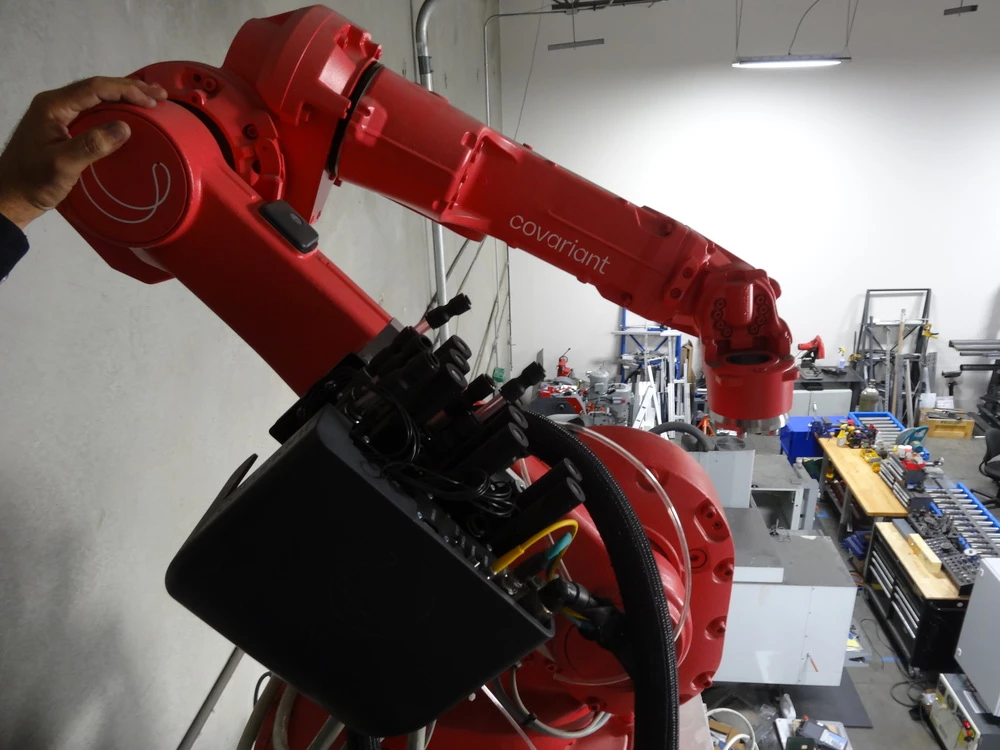

Used ABB IRB 1660ID-6/1.55 (2022) Robot for Sale. This integrated dresspack six-axis robot carries a 6 Kg payload with a 1550 mm reach, repeatability of +/-0.02 mm and path repeatability of 0.05 mm. Robot weight is 257 Kg, height 1392 mm, with a 484 mm x 648 mm base and floor, tilted or inverted mounting. Protection is IP67, with IP40 on Axis 4. Axis travel covers +180°/-180° on Axis 1, +150°/-90° on Axis 2, +79°/-238° on Axis 3, +/-175° on Axis 4, +/-120° on Axis 5 and +/-400° on Axis 6, with 15+15 Kg arm load. Control options include IRC5 Single Cabinet, Panel Mounted or Compact, or OmniCore C30, C90XT, V250XT and V400XT. Suited to arc welding, machine tending and high-density cell production. Available to be seen under power for inspection. See more used robots or Request a Quote.
Specifications
| Payload |
6 Kg |
|---|---|
| Reach |
1550 mm |
| Repeatability |
+/-0.02 mm |
| Path Repeatability |
0.05 mm |
| Robot Weight |
257 Kg |
| Robot Height |
1392 mm |
| Robot Base |
484 mm x 648 mm |
| Protection |
IP67 (Axis 4: IP40) |
| Mounting |
Floor / Tilted / Inverted |
| Control |

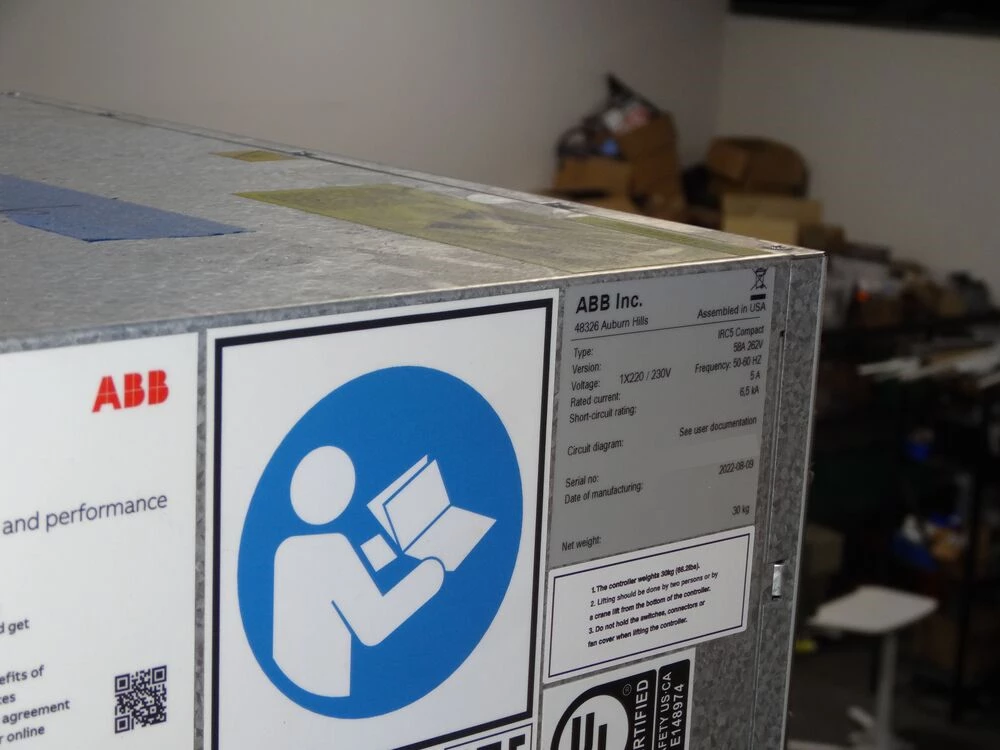

IRC5 Single Cabinet/Panel Mounted/Compact or OmniCore C30/C90XT/V250XT/V400XT |
| Axis 1 |
+180°/-180° @180° |
| Axis 2 |
+150°/-90° @180° |
| Axis 3 |
+79°/-238° @180° |
| Axis 4 |
+/-175° @320° |
| Axis 5 |
+/-120° @360° |
| Axis 6 |
+/-400° (default) @500° |
| Arm Load |
15+15 Kg |
| Applications |
Arc Welding / Machine Tending / High-Density Cell Production |
