Year |
2020 |
|---|---|
Make |
Kawasaki |
Model |
RS010N |
Description |
6-Axis Articulated Industrial Robot |
Reference # |
8078484 |
Price |
$15,000 |

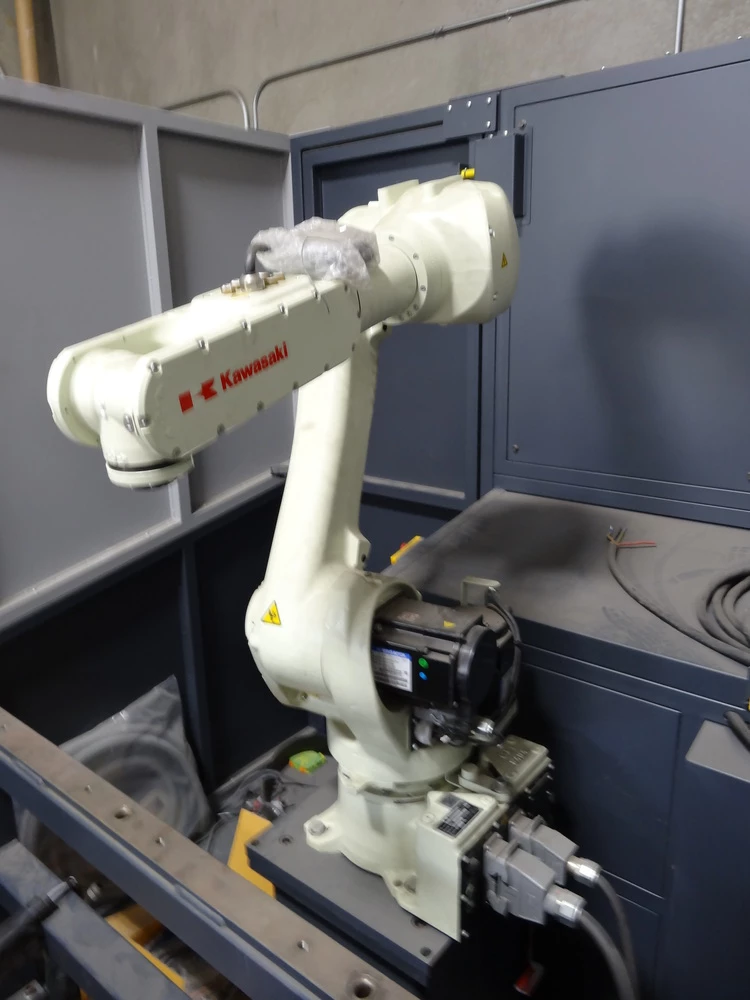

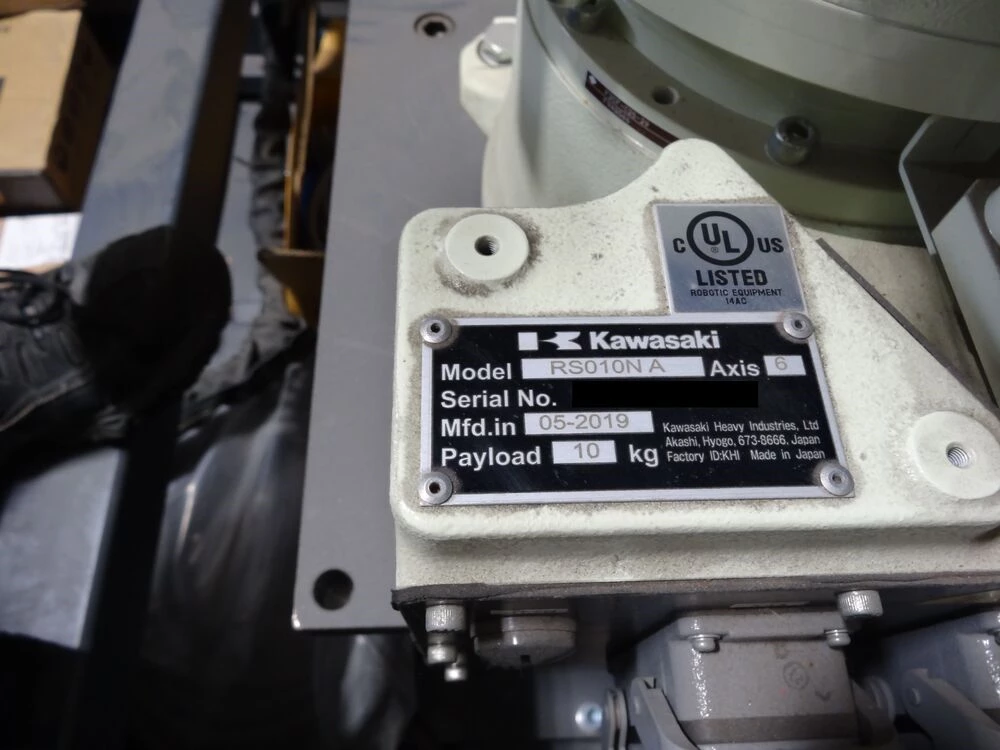

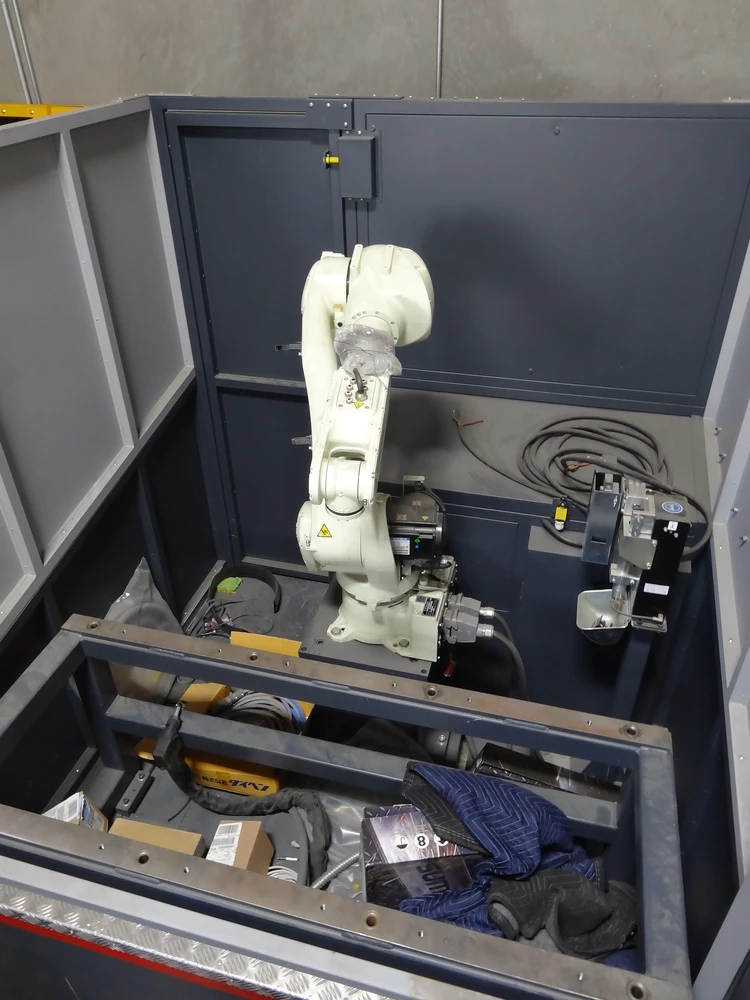

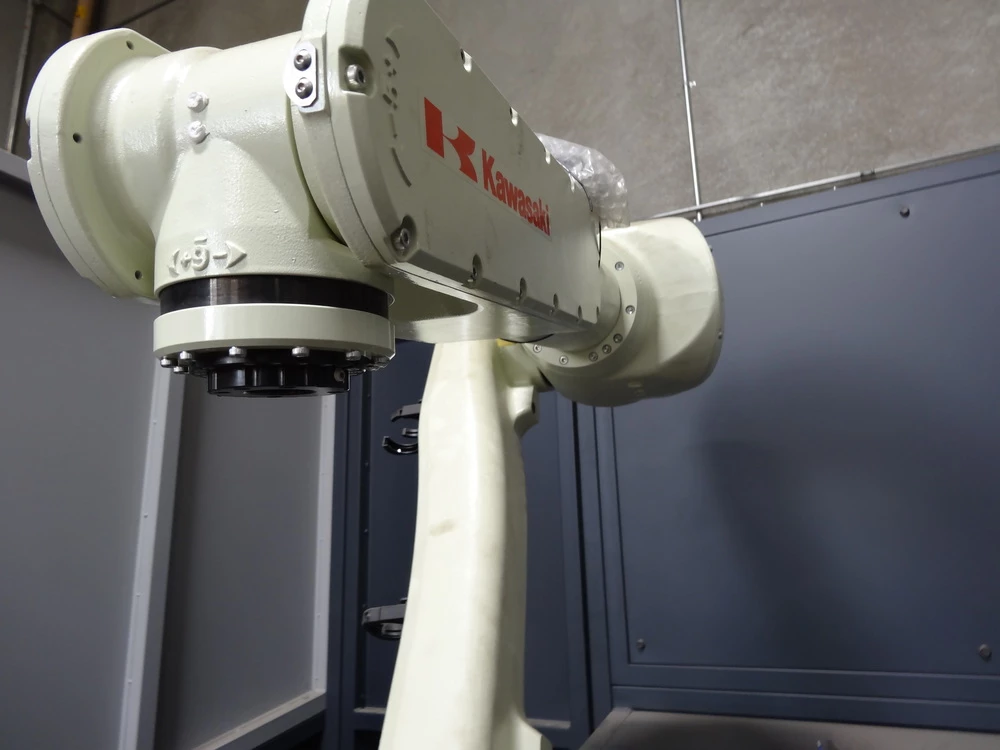

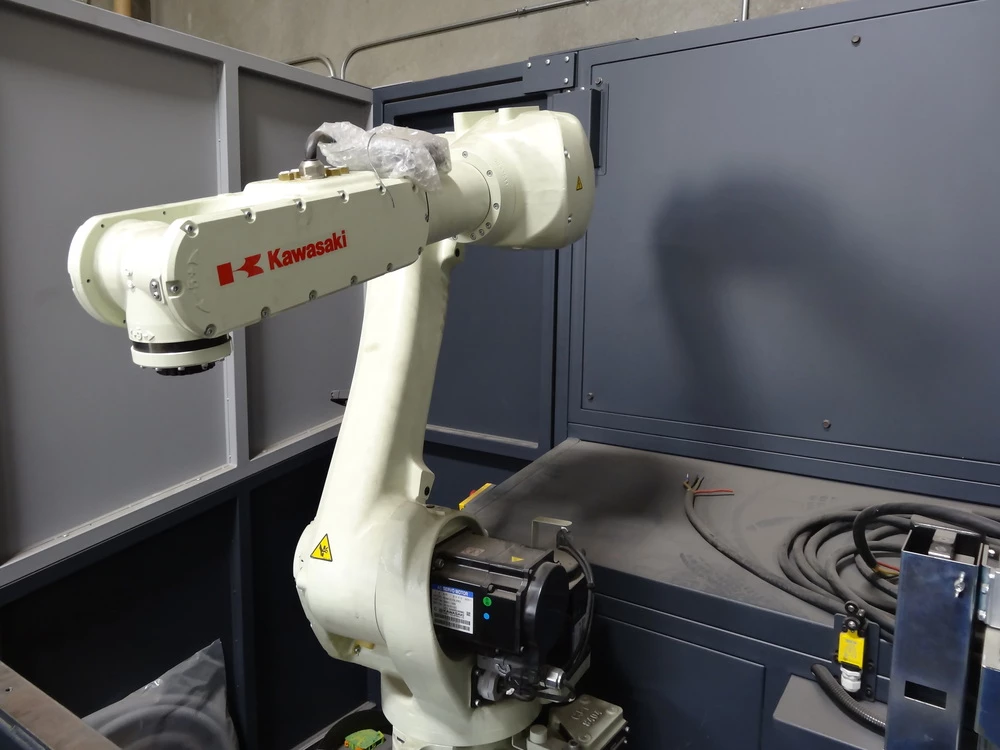

Used Kawasaki RS010N (2020) Robot for Sale. This R-Series six-axis robot carries a 10 Kg payload with a 1450 mm reach and repeatability of +/-0.03 mm. Robot weight is 150 Kg, and it can be mounted on the floor or ceiling. Axis travel is JT1 +/-180° @250°, JT2 +145°/-105° @250°, JT3 +150°/-163° @215°, JT4 +/-270° @365°, JT5 +/-145° @380°, and JT6 +/-360° @700°, with a JT4 wrist moment of 22 Nm. It is supplied with the F60 control. Suited to assembly, material handling, machine tending, sealing and dispensing, and material removal. The robot can be seen under power for an inspection. See more listings in our used robots section, or Request a Quote for full details.
Specifications
| Payload |
10 Kg |
|---|---|
| Reach |
1450 mm |
| Repeatability |
+/-0.03 mm |
| Robot Weight |
150 Kg |
| Mounting |
Floor or Ceiling |
| Series |
R-Series |
| JT1 |
+/-180° @250° |
| JT2 |
+145°/-105° @250° |
| JT3 |
+150°/-163° @215° |
| JT4 |
+/-270° @365° |
| JT5 |
+/-145° @380° |
| JT6 |
+/-360° @700° |
| Control |
F60 |
| Wrist Moment JT4 |
22 Nm |
| Applications |
Assembly / Material Handling / Machine Tending / Sealing/Dispensing / Material Removal |
