Year |
2024 |
|---|---|
Make |
ABB |
Model |
IRB 2600ID-8/2.00 |
Description |
6-Axis Articulated Industrial Robot with Integrated Dressing (ID) |
Reference # |
8078496 |
Price |
Activate Pricing |

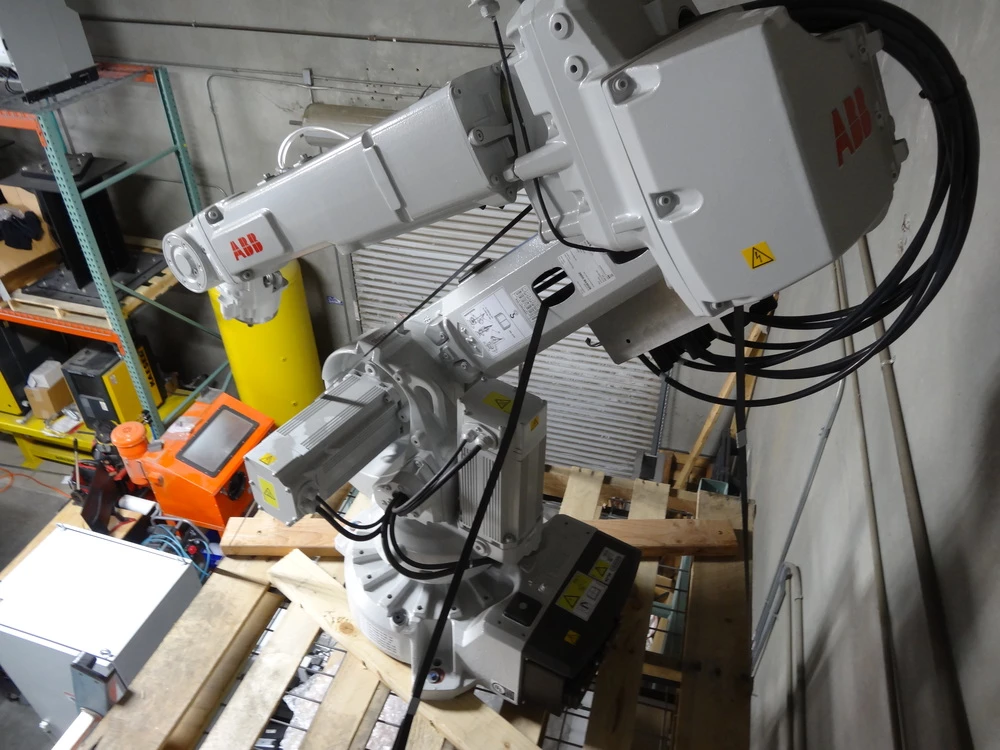

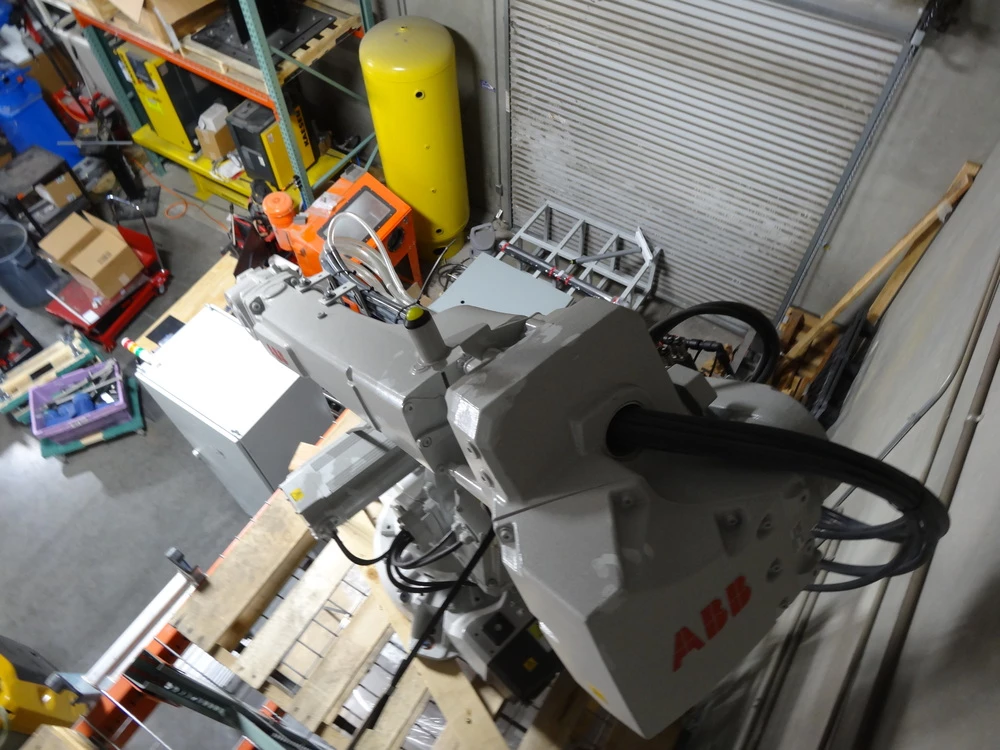

Used ABB IRB 2600ID-8/2.00 (2024) Robot for Sale. This six-axis robot carries an 8 Kg payload with a 2000 mm reach and repeatability of +/-0.04 mm. It can be mounted floor, wall, shelf or inverted, and runs on either IRC5 or OmniCore control. The swing base radius is 337 mm with a base width of 511 mm, and wrist dimensions measure 227 mm x 130 mm. Axis travels are +/-180° @150° on axis 1, +95°/-180° @150° on axis 2, +75°/-180° @150° on axis 3, +/-360° @360° on axis 4, +120°/-120° @360° on axis 5 and +400°/-400° @500° on axis 6. Suited to arc welding, machine tending, material handling and assembly. The robot can be seen under power for an inspection. See more used robots or Request a Quote.
Specifications
| Payload |
8 Kg |
|---|---|
| Reach |
2000 mm |
| Repeatability |
+/-0.04 mm |
| Mounting |
Floor / Wall / Shelf / Inverted |
| Control |
IRC5 or OmniCore |
| Swing Base Radius |
337 mm |
| Base Width |
511 mm |
| Wrist Dimensions |
227 mm x 130 mm |
| Axis 1 |
+/-180° @150° |
| Axis 2 |
+95°/-180° @150° |
| Axis 3 |
+75°/-180° @150° |
| Axis 4 |
+/-360° @360° |
| Axis 5 |
+120°/-120° @360° |
| Axis 6 |
+400°/-400° @500° |
| Applications |
Arc Welding / Machine Tending / Material Handling / Assembly |
