Year |
2015 |
|---|---|
Make |
Fanuc |
Model |
LR Mate 200iD/7L |
Description |
6-Axis Articulated Industrial Robot |
Reference # |
8078480 |
Price |
Activate Pricing |

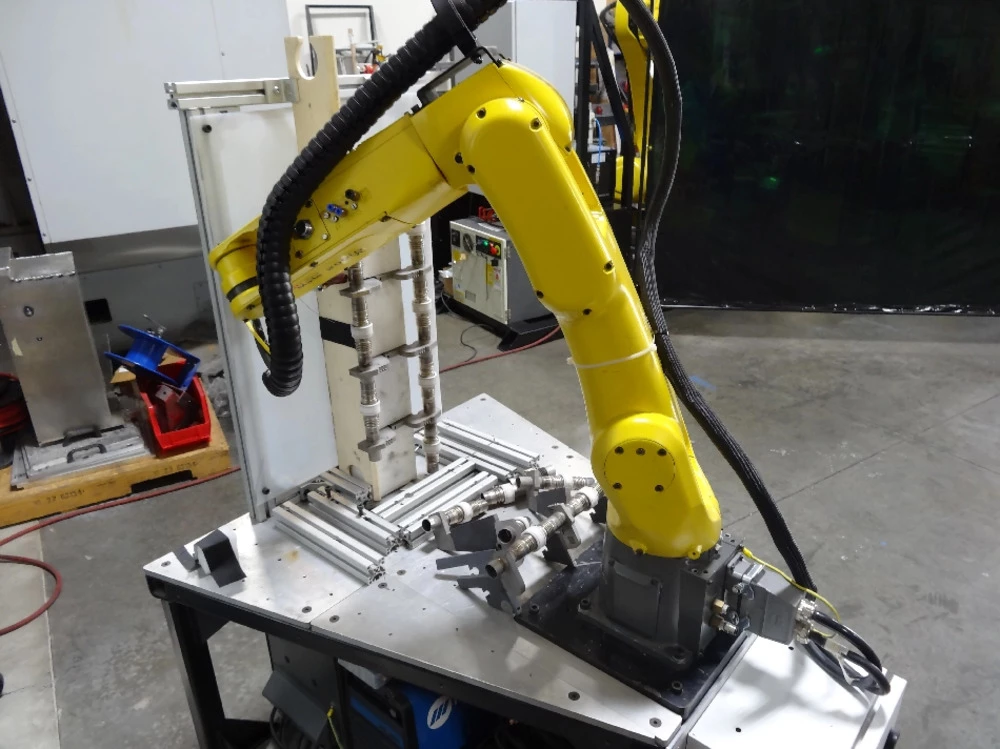

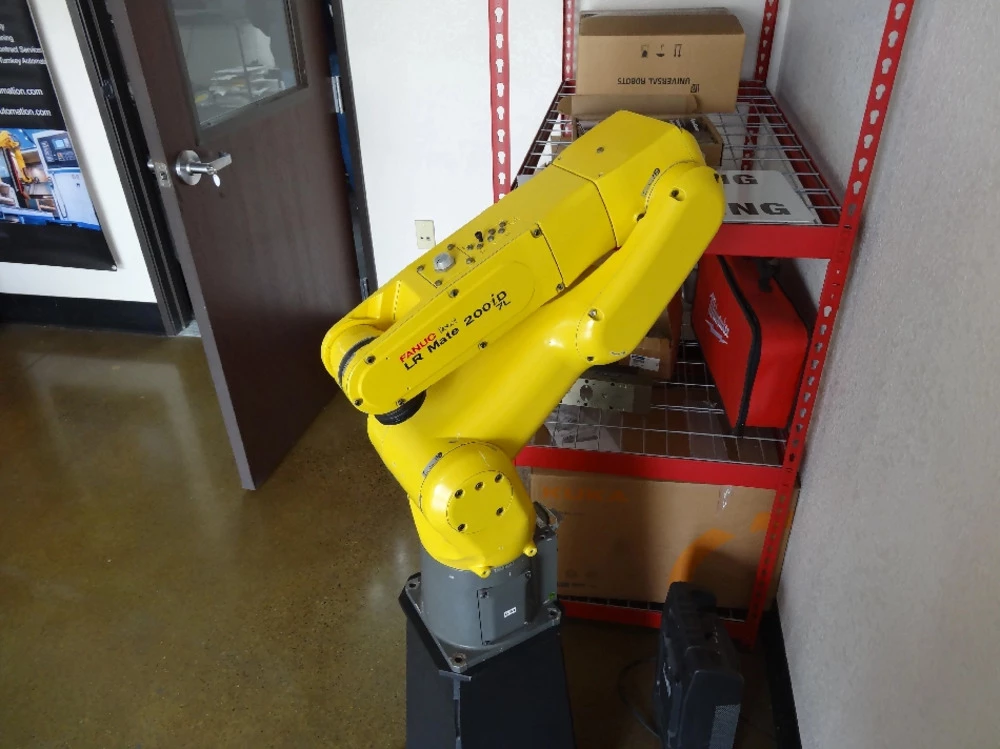

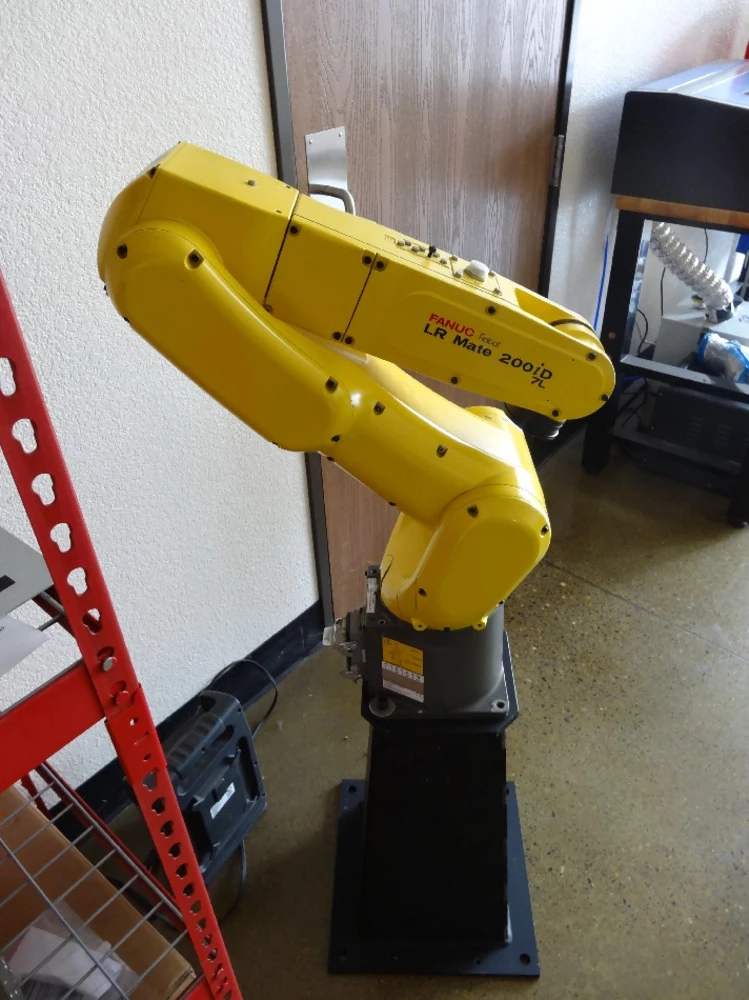

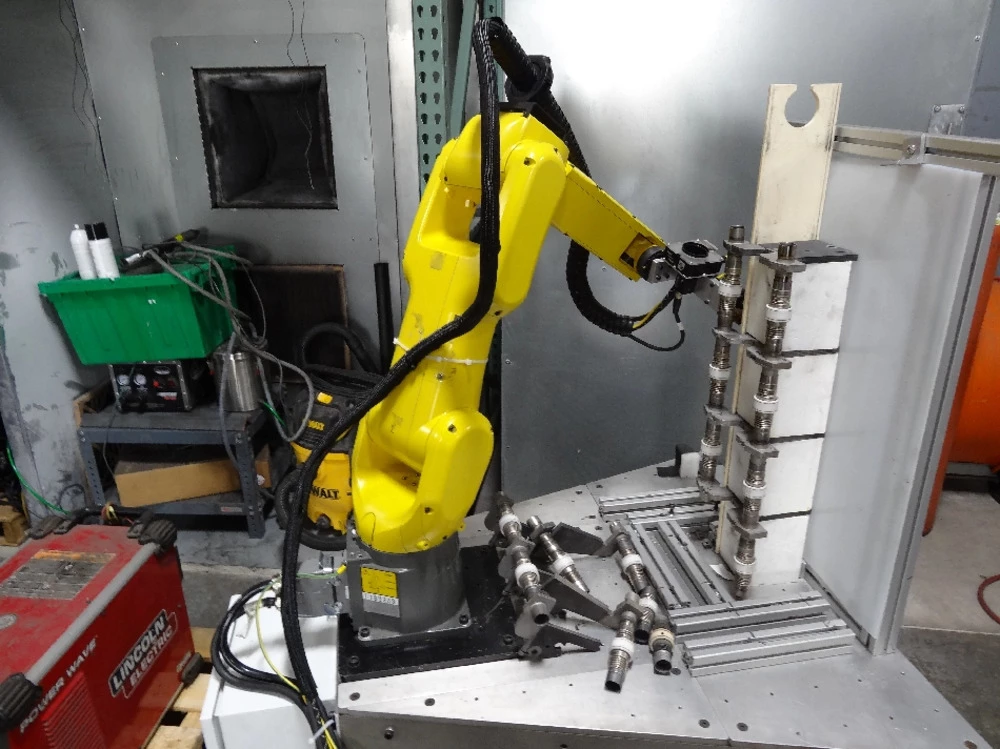

Used Fanuc LR Mate 200iD/7L (2015) Robot for Sale. This long-arm six-axis unit carries a 7 Kg payload with 911mm reach and +/-0.01mm repeatability, and the robot itself weighs 27 Kg. Axis travel and speed are rated at J1: 340° @460d°, J2: 380° @550°, J3: 250° @545°, J4: 250° @545°, J5: 430° @410° and J6: 720° @1000°, with floor, upside-down or angle mounting. Wrist moment is 16.6 N.m and wrist inertia 0.47 kg.m2. Control is R-30iB / R-30iB Mate, with Fanuc Roboguide software. Suited to machine tending, pick and place, assembly and material handling. Two machines are available and the price is per machine. The robot can be seen under power for an inspection. See more used robots or browse our Fanuc listings, and Request a Quote.
Specifications
| Payload |
7 Kg |
|---|---|
| Reach |
911mm (Long Arm) |
| Repeatability |
+/-0.01mm |
| Robot Weight |
27 Kg |
| Mounting (Floor/Upside-Down/Angle) |
J1: 340° @460d°, J2: 380° @550°, J3: 250° @545°, J4: 250° @545°, J5: 430° @410°, J6: 720° @1000° |
| Wrist Moment |
16.6 N.m |
| Wrist Inertia |
0.47 kg.m2 |
| Control |

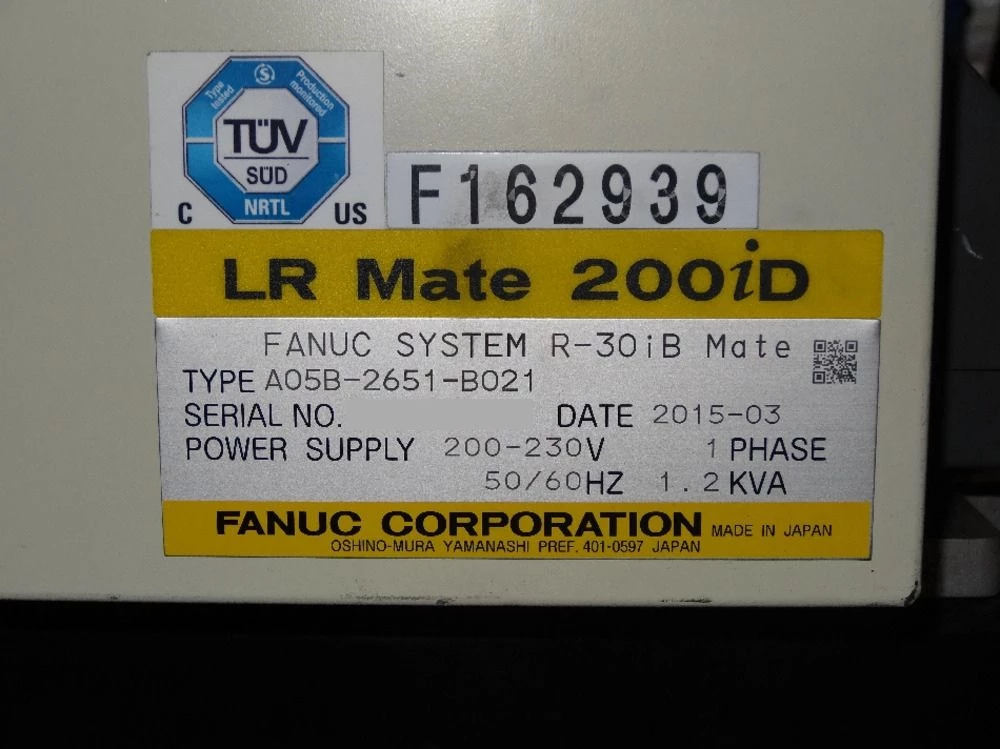

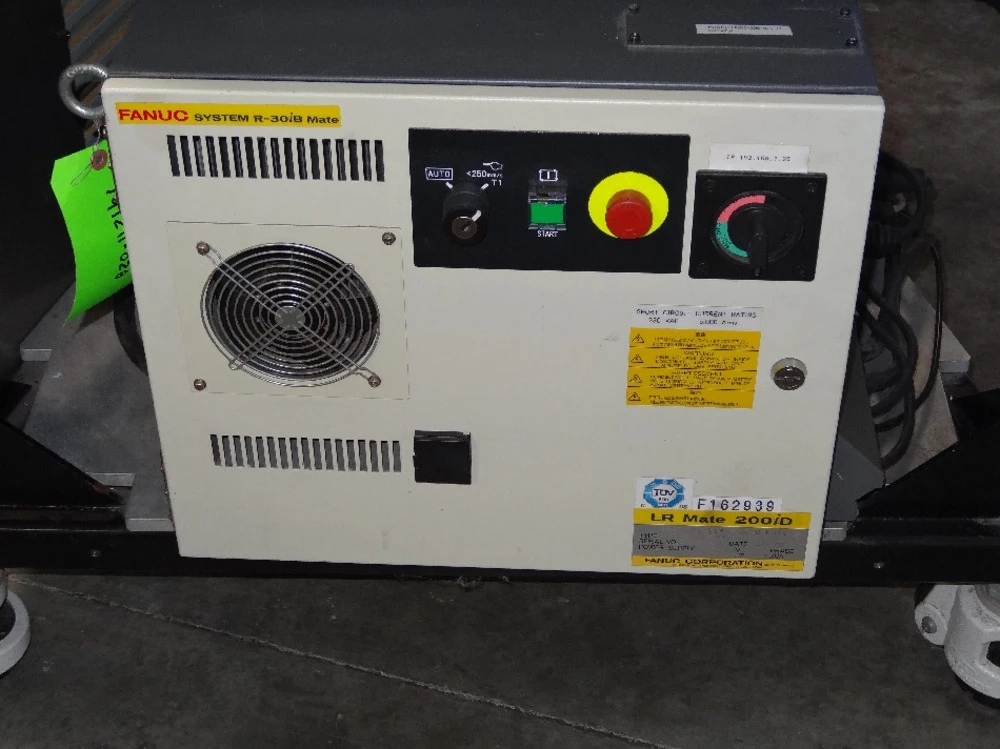

R-30iB / R-30iB Mate |
| Software |
Fanuc Roboguide |
| Applications |
Machine Tending / Pick & Place / Assembly / Material Handling |
| Note |
(2) Machines Available, Price Per Machine |
