Year |
2019 |
|---|---|
Make |
Kawasaki |
Model |
RS007L |
Description |
6-Axis Articulated Industrial Robot |
Reference # |
8078485 |
Price |
Activate Pricing |

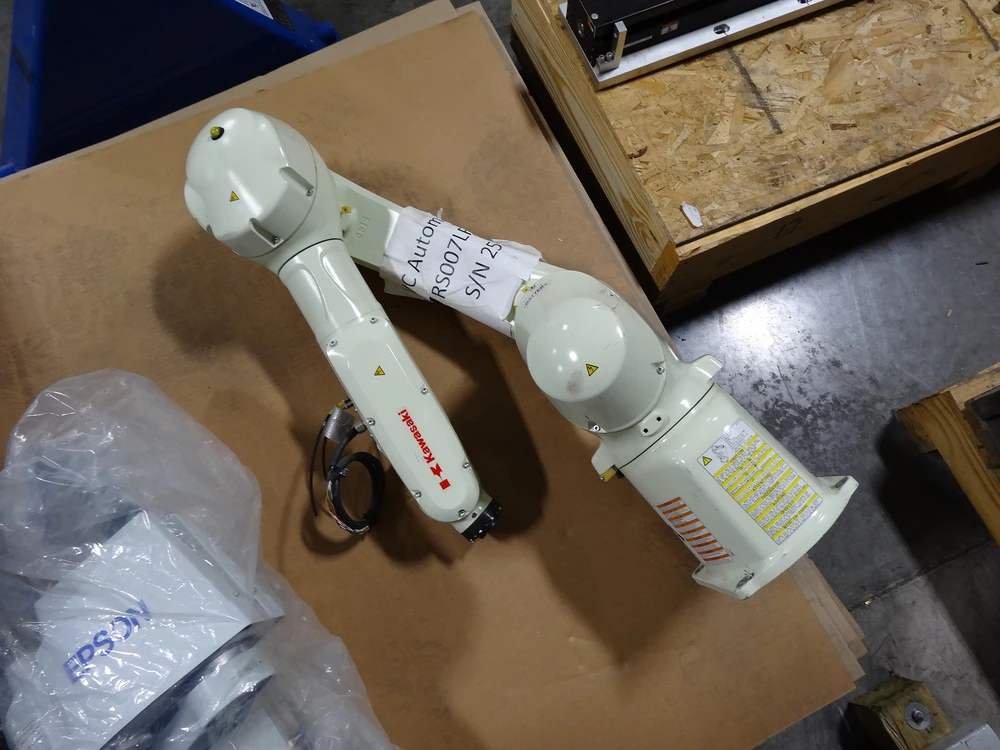

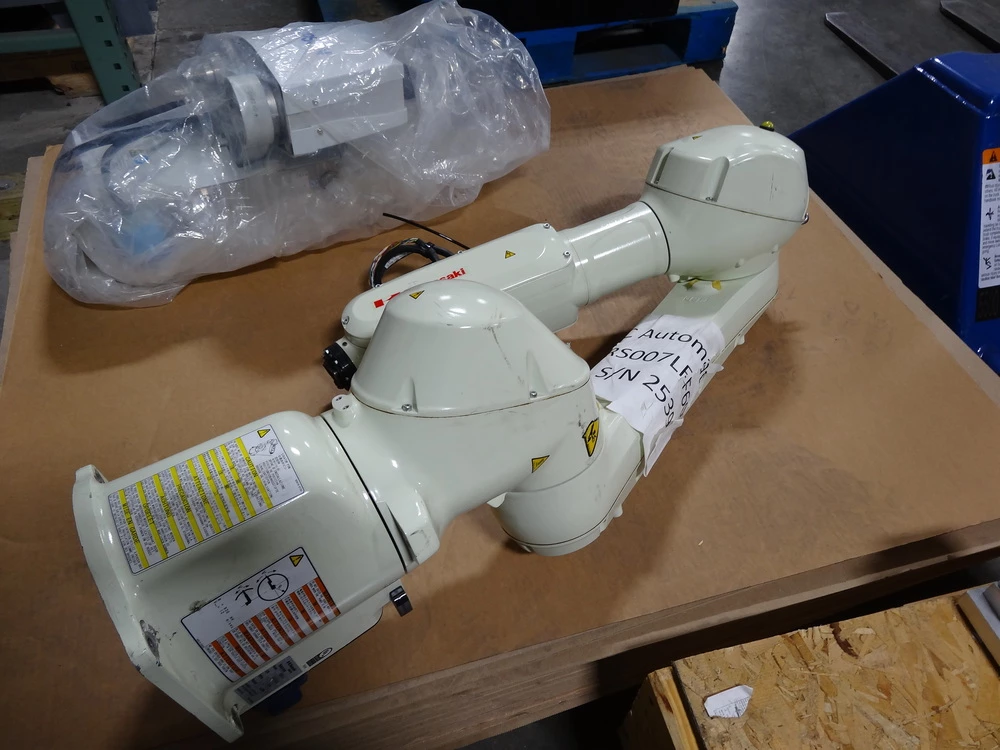

Used Kawasaki RS007L (2019) Robot for Sale. This R-Series six-axis unit offers a 7 Kg payload, 930 mm reach, and repeatability of +/-0.03 mm, with floor or ceiling mounting. Axis travel is JT1 +/-180° at 310°, JT2 +157° at 410°, JT3 +135°/-163° at 550°, JT4 +/-200° at 550°, JT5 +/-135° at 1000°, and JT6 +/-360°. It is equipped with a cantilever upper arm design and is suited to assembly, material handling, machine tending, packaging, and electronics and food industry applications. The robot can be seen under power for an inspection. See this and other units in our used robots inventory, then Request a Quote for details.
Specifications
| Payload |
7 Kg |
|---|---|
| Reach |
930 mm |
| Repeatability |
+/-0.03 mm |
| Mounting |
Floor or Ceiling |
| Series |
R-Series |
| JT1 |
+/-180° @310° |
| JT2 |
+157° @410° |
| JT3 |
+135°/-163° @550° |
| JT4 |
+/-200° @550° |
| JT5 |
+/-135° @1000° |
| JT6 |
+/-360° |
| Applications |
Assembly / Material Handling / Machine Tending / Packaging / Electronics Food Industries |
Features
|
Cantilever Upper Arm Design |
