Year |
2020 |
|---|---|
Make |
ABB |
Model |
IRB 1200-5/0.9 |
Description |
6-Axis Articulated Industrial Robot |
Reference # |
8078482 |
Price |
Activate Pricing |

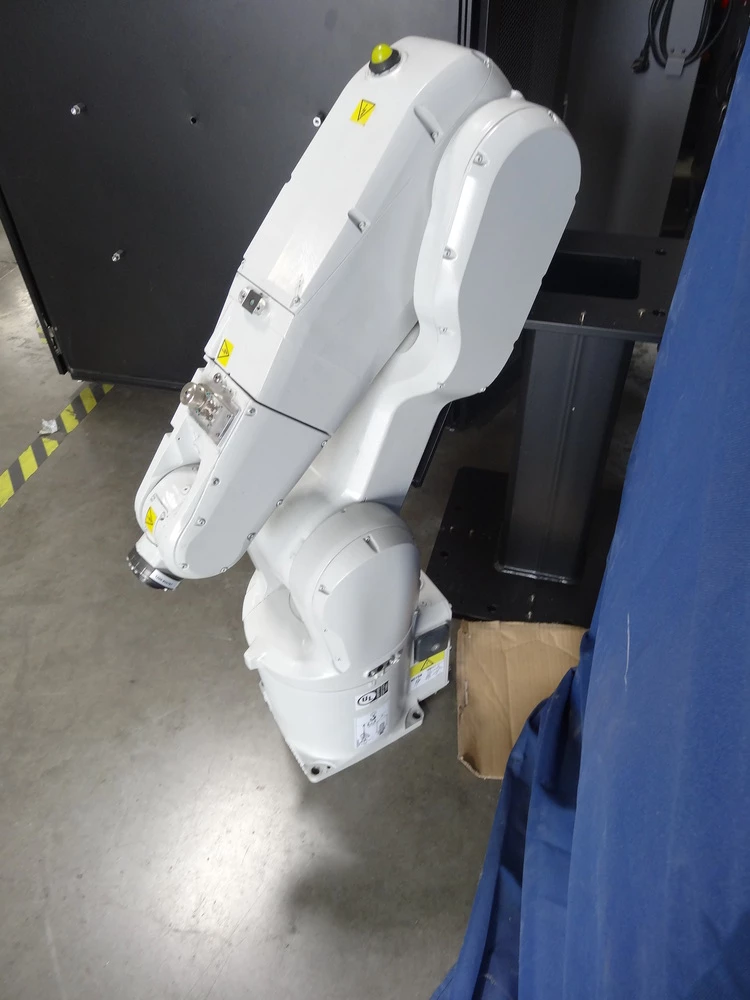

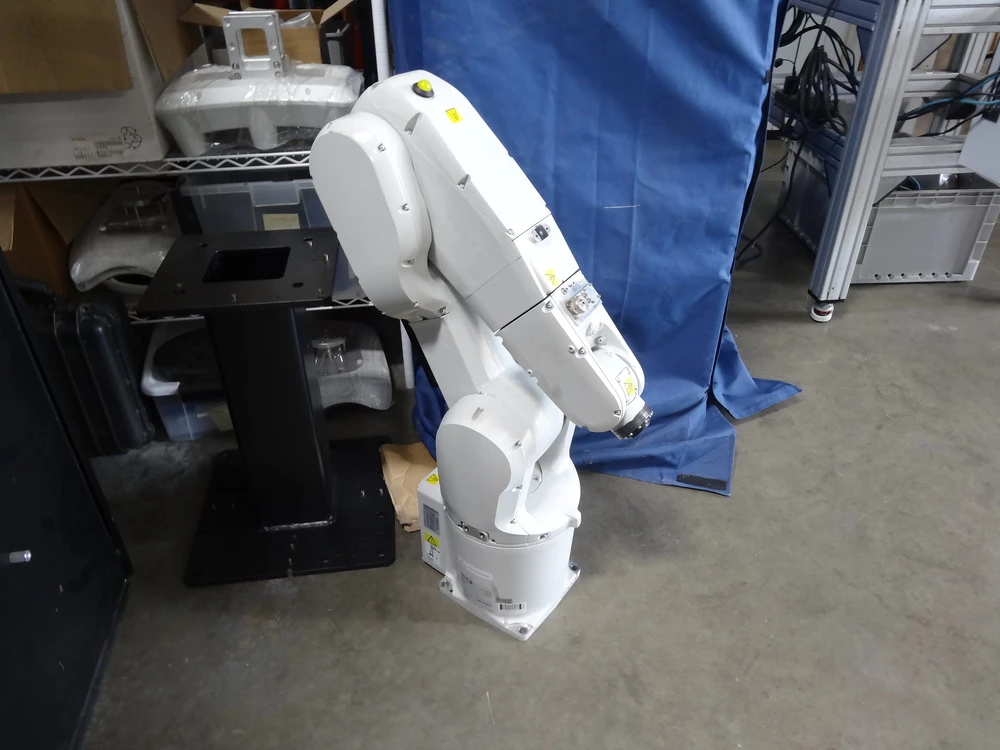

Used ABB IRB 1200-5/0.9 (2020) Robot for Sale. This compact six-axis robot carries a 5 Kg payload with a 901 mm reach and repeatability of +/-0.025 mm. Robot weight is 54 Kg, height is 967 mm, and the base measures 210 mm x 210 mm, with mounting at any angle. Supplementary arm load is 0.3 Kg. The wrist carries 10 integrated signals and four integrated air ports rated at 5 Bar. Control is by IRC5 Compact, with a 200-600V 50-60Hz power supply and 4.5 kVA rated power. Applications include assembly, machine tending, pick and place, polishing, and deburring. The robot can be seen under power for an inspection. See more listings in our used robots section, or Request a Quote for details.
Specifications
| Payload |
5 Kg |
|---|---|
| Reach |
901 mm |
| Repeatability |
+/-0.025 mm |
| Robot Weight |
54 Kg |
| Robot Height |
967 mm |
| Robot Base |
210 mm x 210 mm |
| Mounting |
Any Angle |
| Control |
IRC5 Compact |
| Power Supply |
200-600V 50-60Hz |
| Rated Power |
4.5 kVA |
| Arm Load |
0.3 Kg |
| Integrated Signals |
10 on Wrist |
| Integrated Air |
4 Ports at 5 Bar |
| Applications |
Assembly / Machine Tending / Pick & Place / Polishing / Deburring |
