Year |
2023 |
|---|---|
Make |
Epson |
Model |
T3 |
Description |
4-Axis All-in-One SCARA Robot |
Reference # |
8078491 |
Price |
$5,000 |

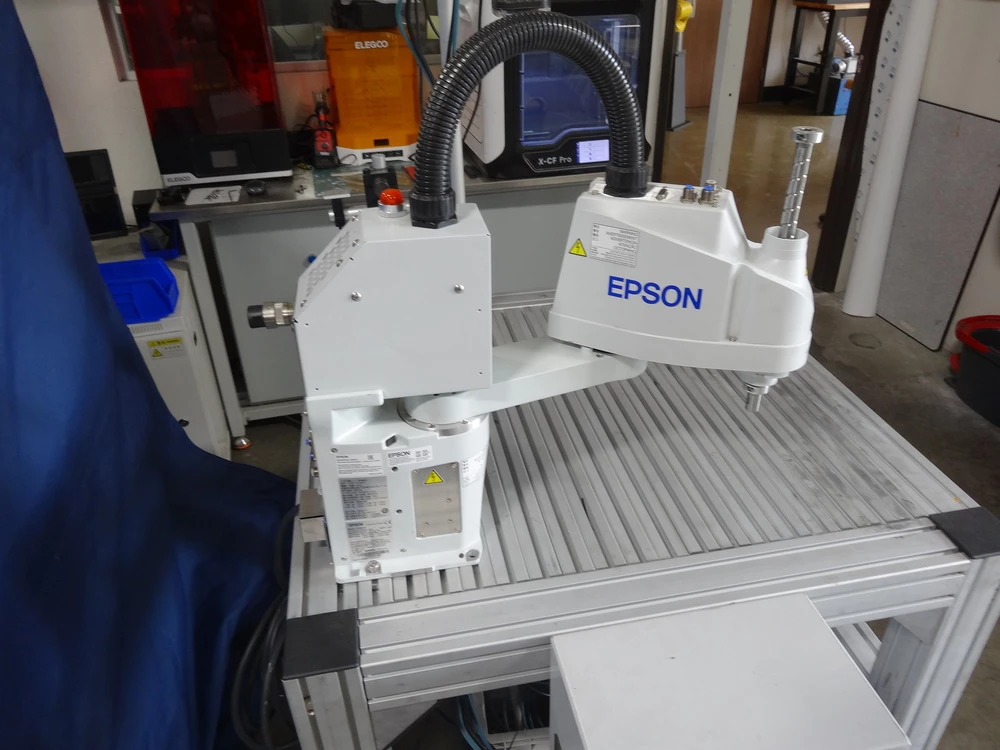

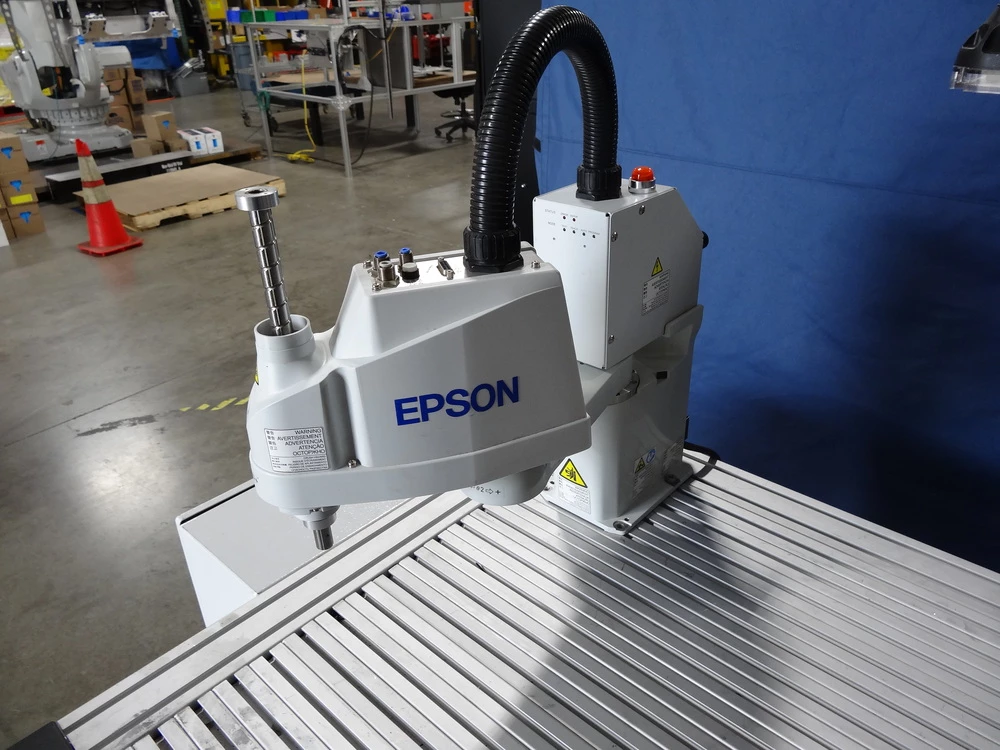

Used Epson T3
Specifications
| Max Payload |
3 Kg |
|---|---|
| Rated Payload |
1 Kg |
| Reach |
400 mm (J1: 225mm + J2: 175mm) |
| Z-Stroke |
150 mm |
| Repeatability J1+J2 |
+/-0.020 mm |
| Repeatability J3 |
+/-0.020 mm |
| Repeatability J4 |
+/-0.020° |
| Cycle Time |
0.54 sec |
| Max Speed J1+J2 |
3700 mm/sec |
| Max Speed J3 |
1000 mm/sec |
| Max Speed J4 |
2600°/sec |
| Inertia Max |
0.010 kg.m2 |
| Insertion Force |
83N |
| Robot Weight |
16 Kg |
| Mounting |
Tabletop |
| Power |
AC 100-240V Single Phase |
| Control |
Built-In (Epson RC+ 7.x) |
| Applications |
Pick & Place / Assembly / Material Handling / Dispensing / Inspection |
| Note |
(2) Machines Available, Price Per Machine |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
