Year |
2020 |
|---|---|
Make |
Engel |
Model |
e-motion 310H/170L/310T WP combi US |
Description |
314 Ton 3.82 oz/2.55 oz Shot Size 2 Color / 2 Shot Injection Molding Machine |
Reference # |
8073455 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

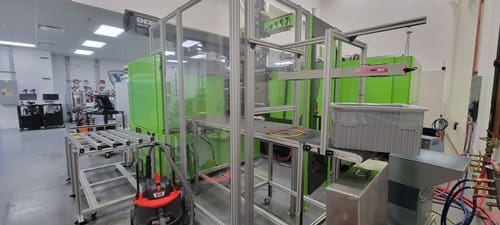

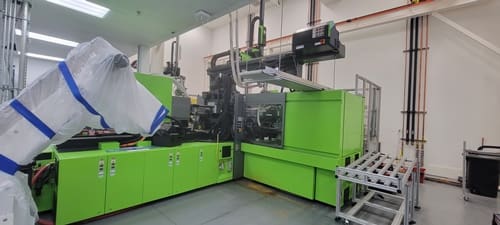

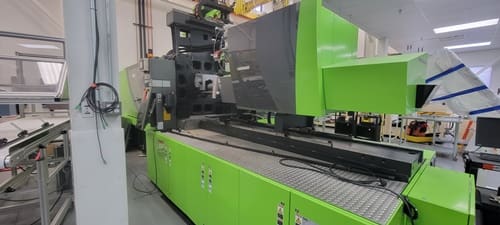

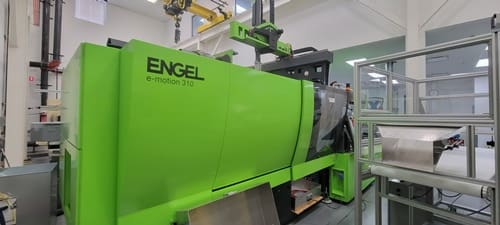

Used Engel e-motion 310H/170L/310T WP combi US (2020) Injection Molding Machine for Sale. This pre-owned Engel plastic injection molding machine is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Engel Injection Molding Machine, please feel free to contact us. You may Activate Pricing to view the price of this Plastic Molding Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Capacity |
314 Tons |
|---|---|
| Shot Size |
3.82 oz, 2.55 oz |
| Tie Bar Spacing |
30.7" x 30.7" |
| Platen Size |
43.3" x 43.3" |
| Max Daylight |
33.4" |
| Min /Max Mold Height |
9.8" / 29.5" |
| Clamp Stroke |
31.5" |
| Ejector Stroke |
4.7" |
| Control |
CC300 |
| Dimensions / Weight |
Main frame – 24’7” L x 7.25’ W x 9’ H Right Angle 2nd Shot – 7.5’ L x 5’ W – 7.5’ H Viper Robot – 13’L x 7’7”W x 7’6”H 36,376 Lbs. |
Features
|

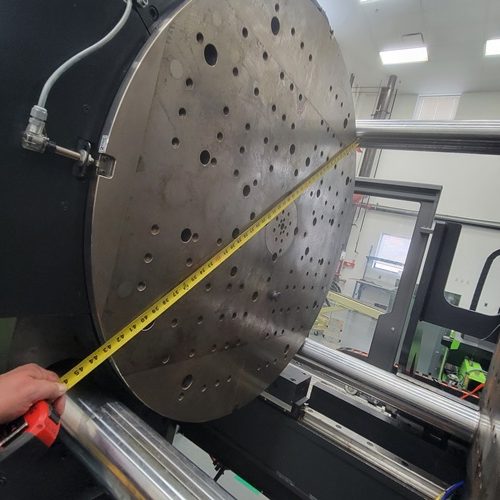

43" Rotary Table |
Robot- Viper 40 (SN:236681) / Robot Payload-35kg |
|
Unit A = 113 Cubic Centimeters = 3.82 Oz (You can go up to 35mm or 40mm) |
Unit B = 76 Cubic Centimeters = 2.56 Oz. (You can go up to 35mm) |
|
Core Pull |
