Year |
2000 |
|---|---|
Make |
Van Dorn |
Model |
230HT1220 |
Description |
230 Ton 25.4 oz Shot Size Injection Molding Machine |
Reference # |
8079189 |
Price |
Activate Pricing |

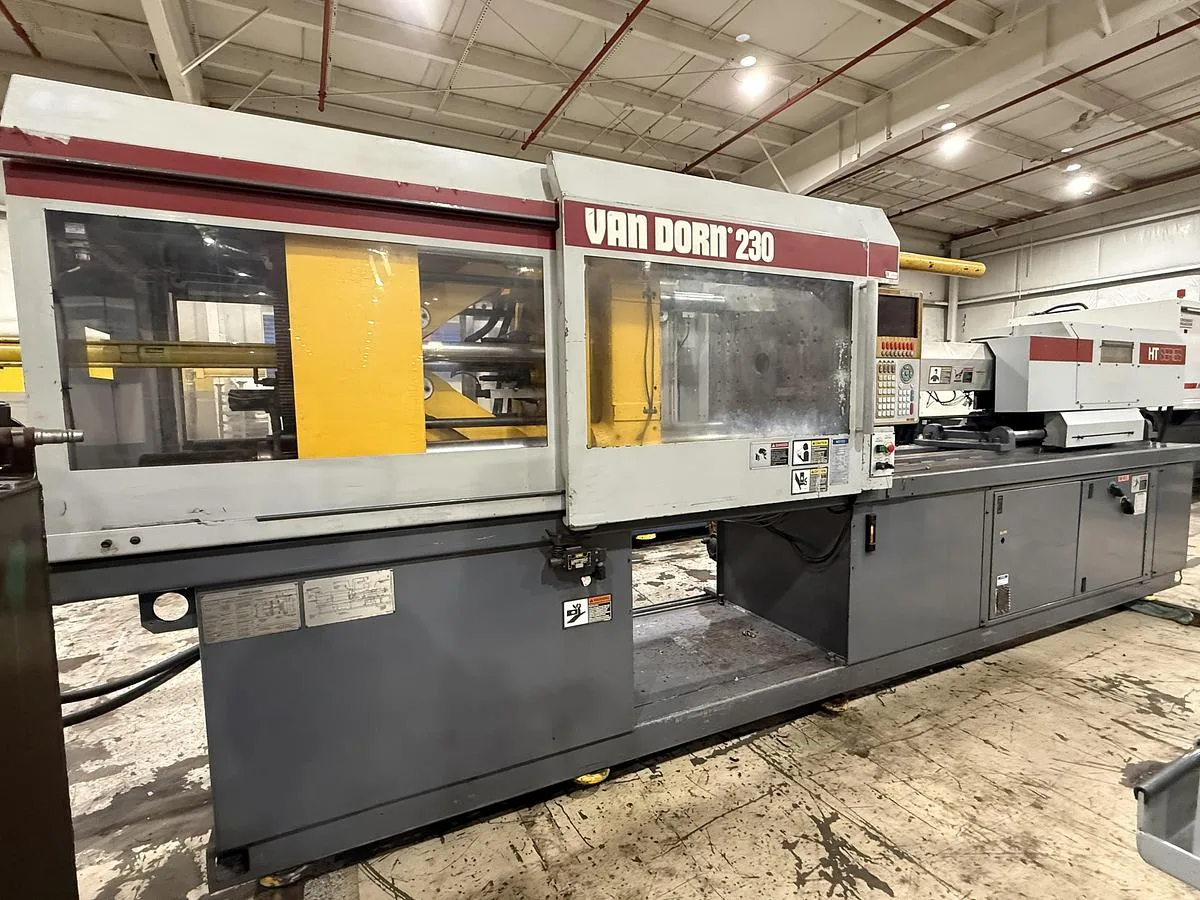

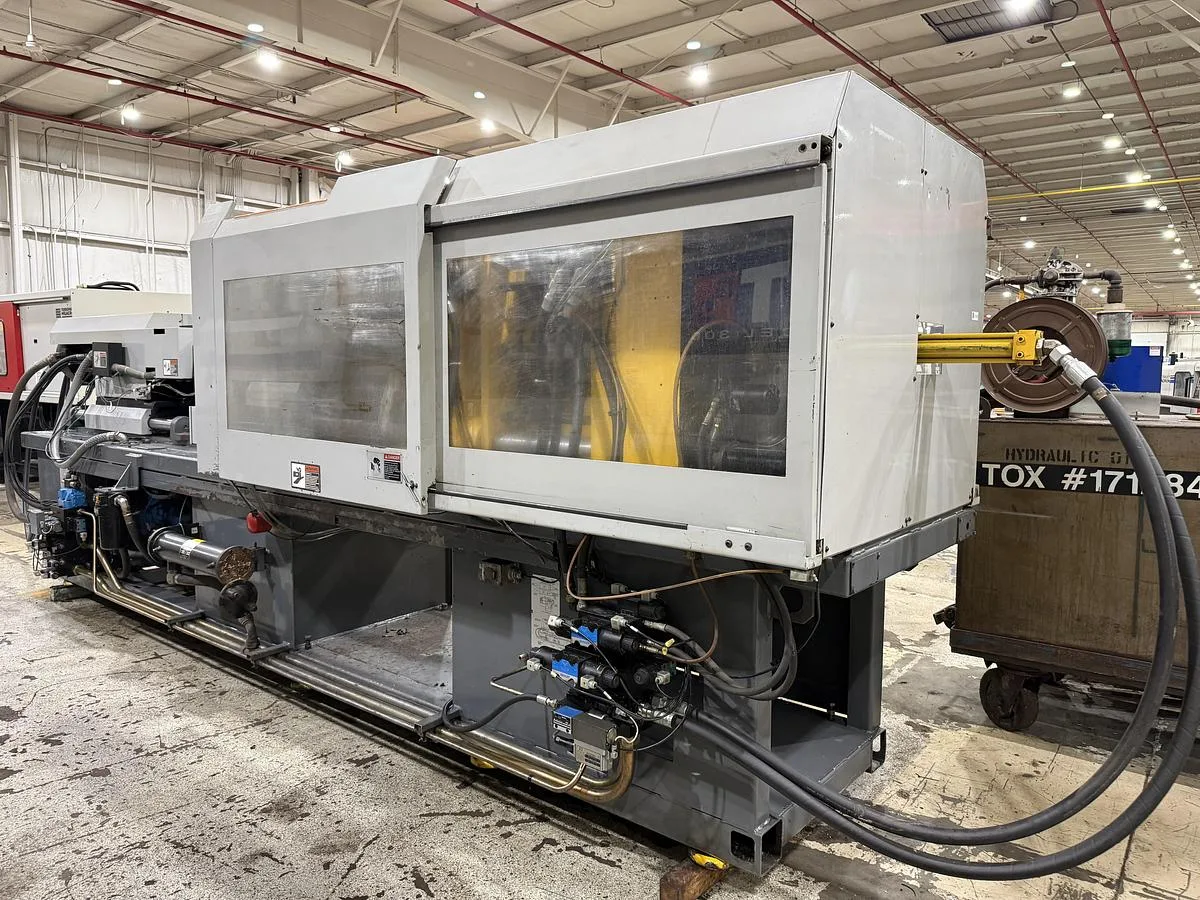

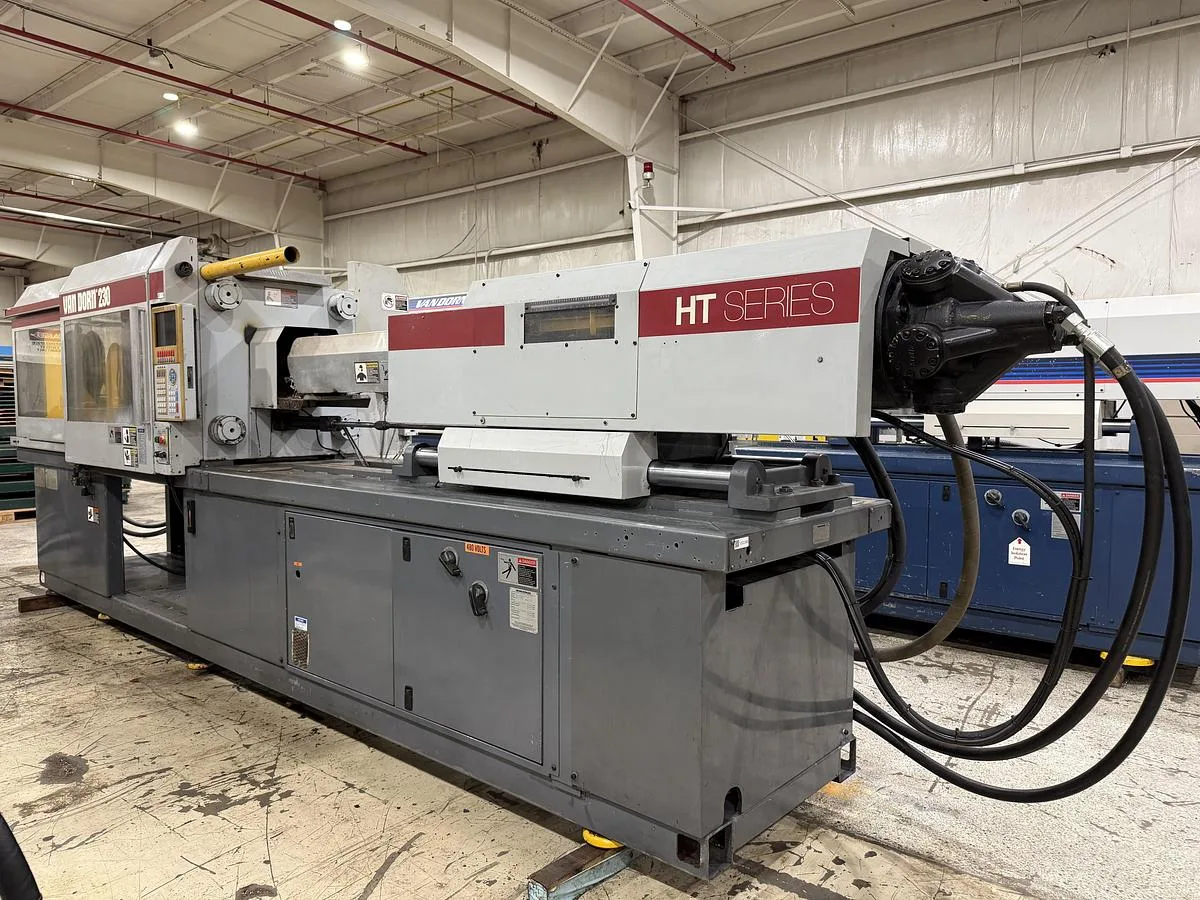

Used Van Dorn 230HT1220 (2000) Injection Molding Machine for Sale. This is a 230 ton press with a 25.4 oz shot size, 32″ x 32″ platens and 22″ x 22″ tie bar spacing. Clamp stroke is 20″, with 42″ maximum daylight and a 7″ minimum mold height. Ejector stroke measures 4.5″. The machine uses a toggle clamp and is equipped with hydraulic knockout and core pull. Power requirement is 460V. This Van Dorn press is available to be seen under power for an inspection prior to purchase, and it is listed alongside our other used plastic injection molding machines. To see current cost, Activate Pricing, or send us details on your application using the Inquire Now button and we will follow up.
Specifications
| Capacity |
230 Ton |
|---|---|
| Shot Size |
25.4 oz |
| Platen Size |

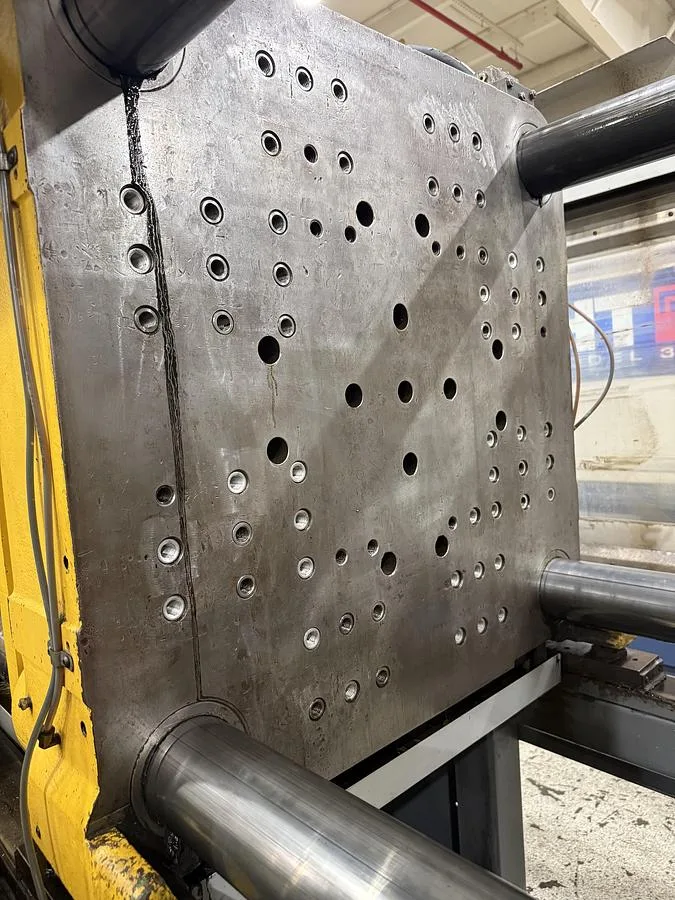

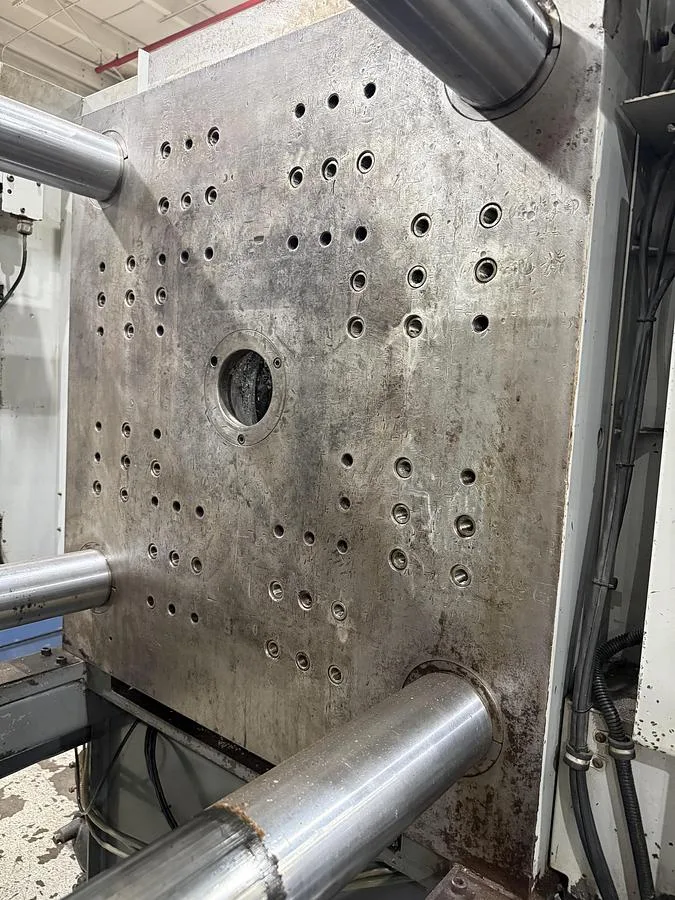

32" x 32" |
| Tie Bar Spacing |
22" x 22" |
| Clamp Stroke |
20" |
| Max Daylight |
42" |
| Min Mold Height |
7" |
| Ejector Stroke |
4.5" |
| Control |

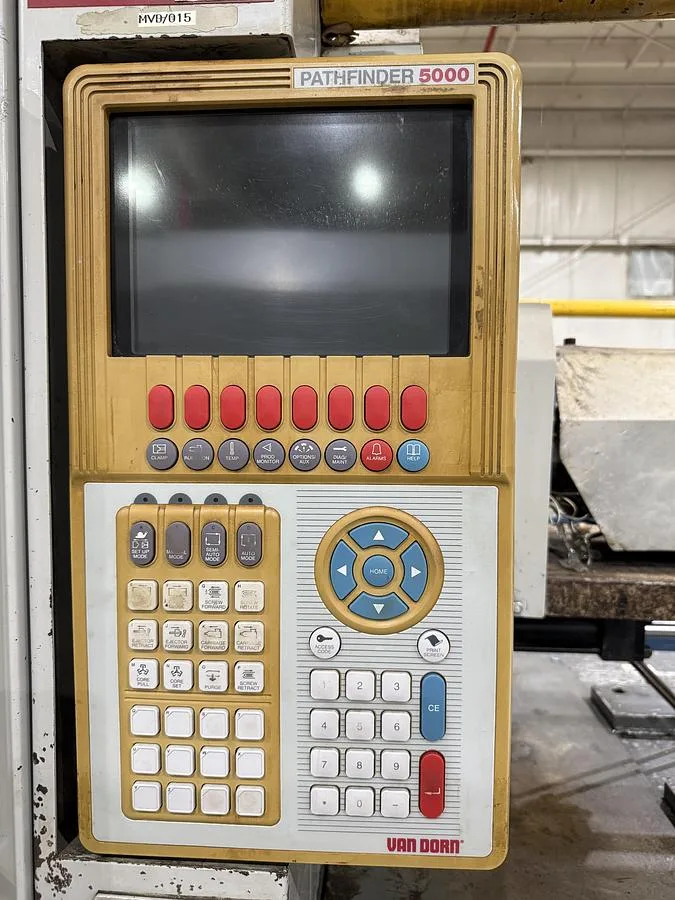

Pathfinder 5000 |
| Power Requirement |
460V |
Features
|
Core Pull |
Hydraulic Knockout |
|
Toggle Clamp |
