Year |
2017 |
|---|---|
Make |
Multicam |
Model |
Apex3R |
Description |
CNC Router |
Reference # |
8070803 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

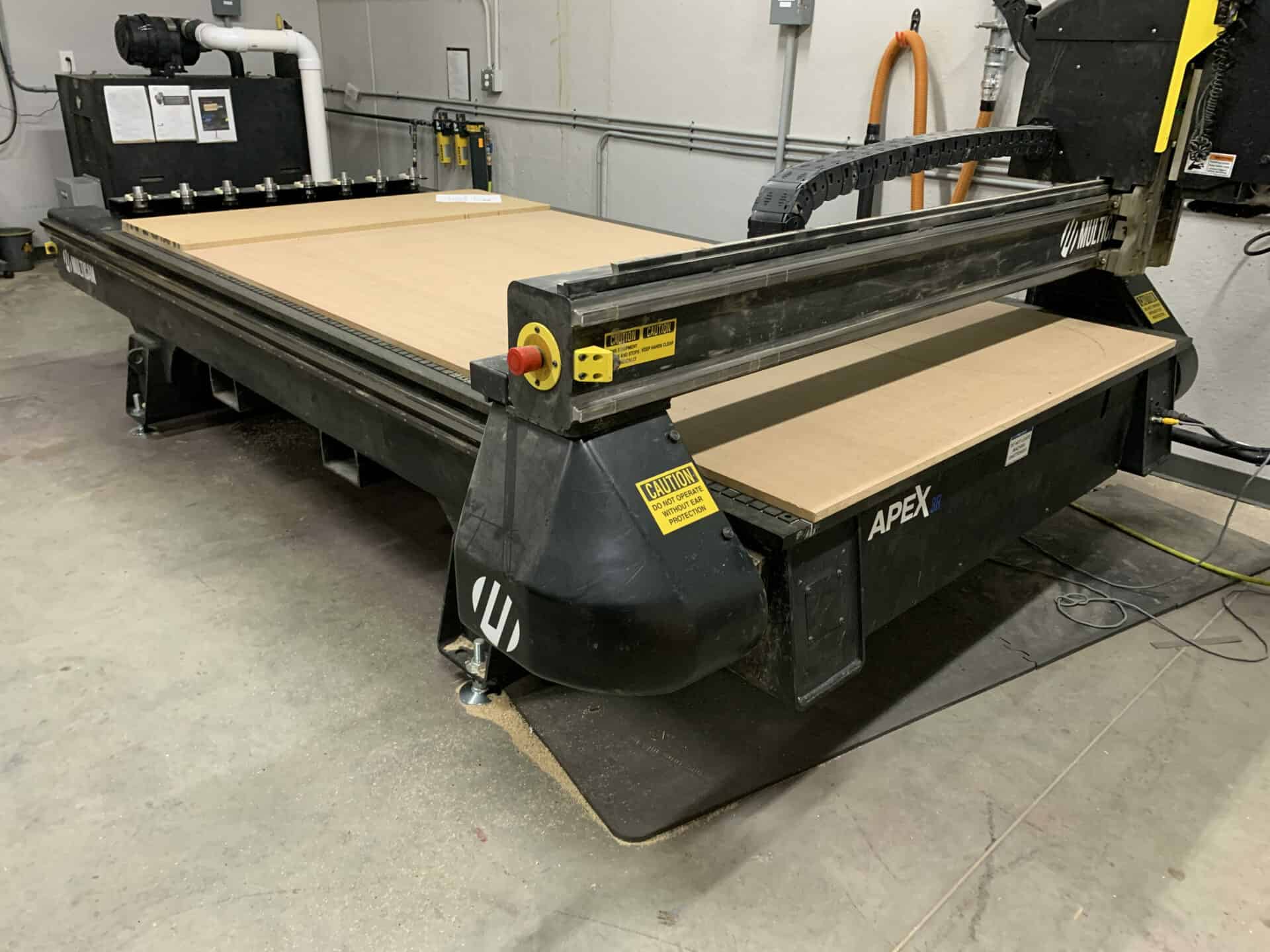

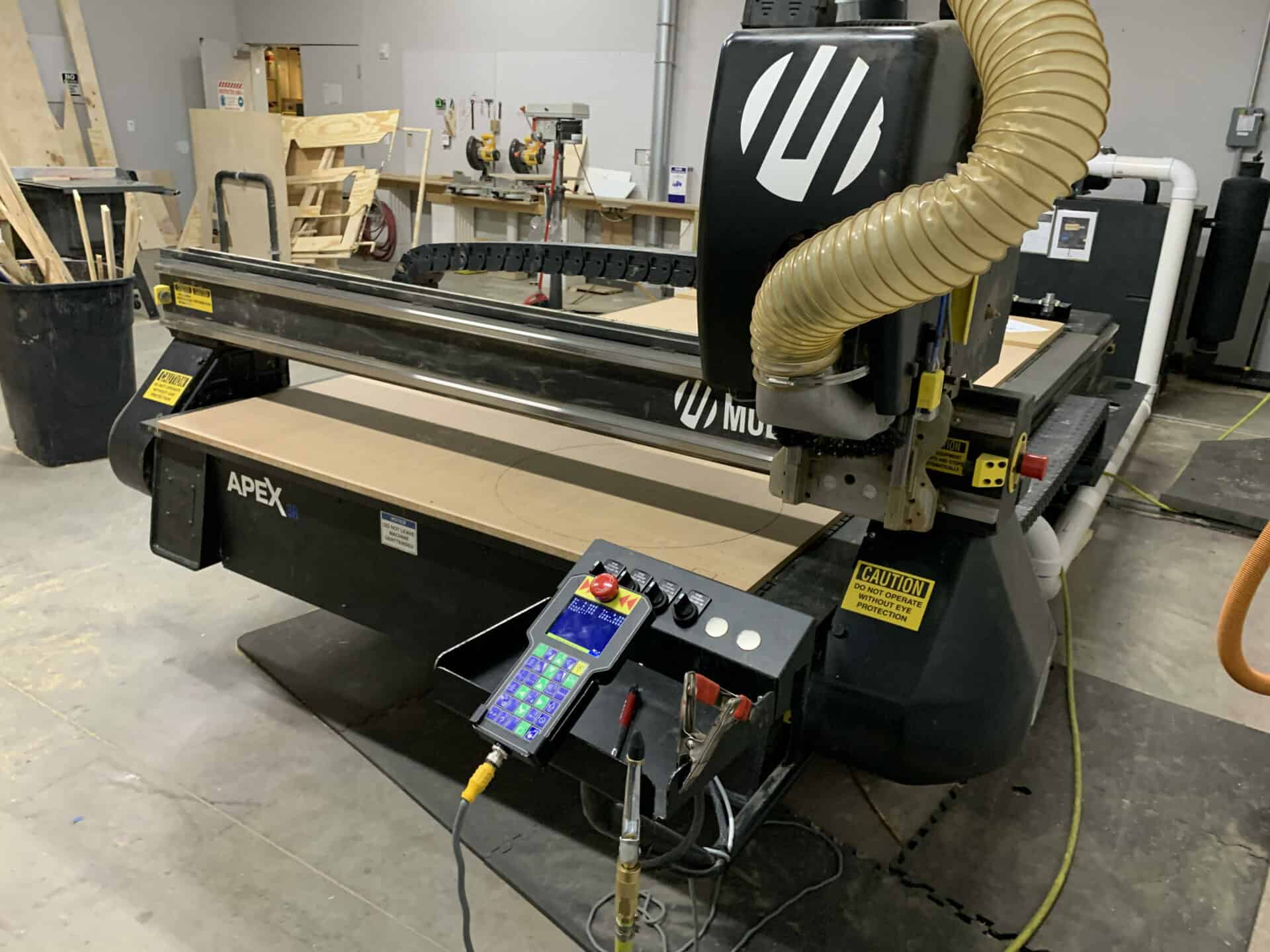

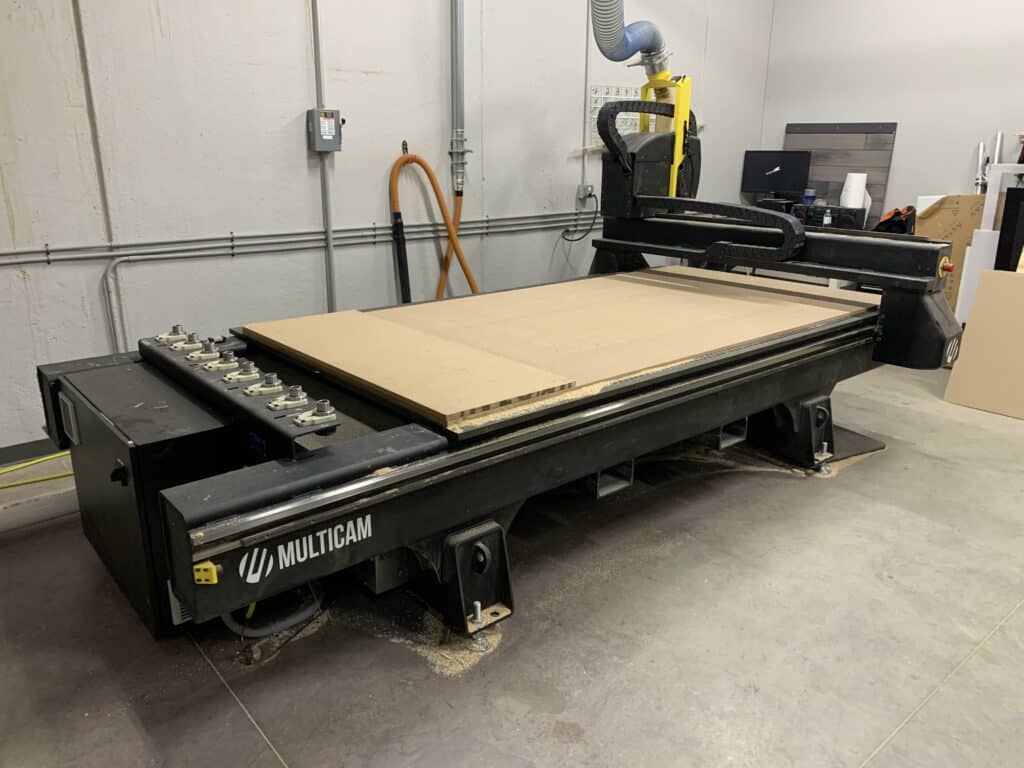

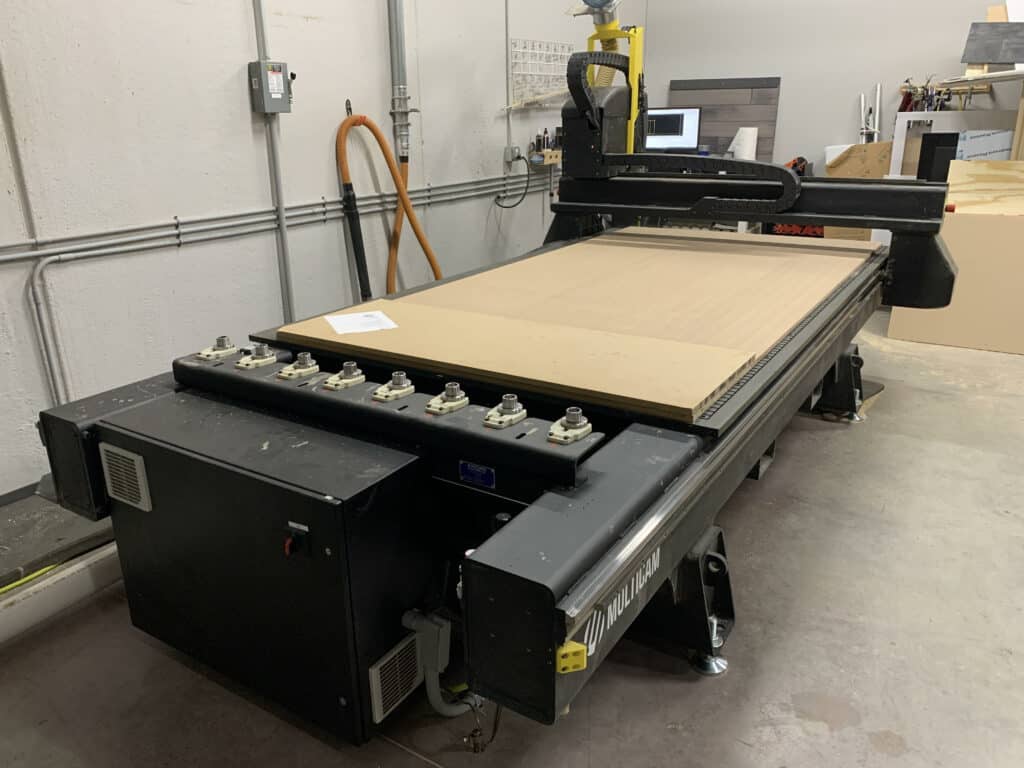

Multicam Apex3R
Specifications
| Table Width |
63" |
|---|---|
| Table Length |
121" |
| Number of Axis |
3 |
| X-Axis Travel |
60" |
| Y-Axis Travel |
120" |
| Z-Axis Travel |
12" |
| Spindle Speed |
24,000 RPM |
| Spindle Motor |
13.3 HP |
| Tool Changer |
8 Position Linear |
| Vacuum Table |
20 HP |
| Control |
Multicam |
| Feed Rate |
1400 IPM |
| Traverse Rate |
2500 IPM |
| Power Requirement |
50 Amps @ 220Volts 3 Phase Router, 47 Amps @ 220 Volts 3 Phase Vacuum Pump |
Features
|

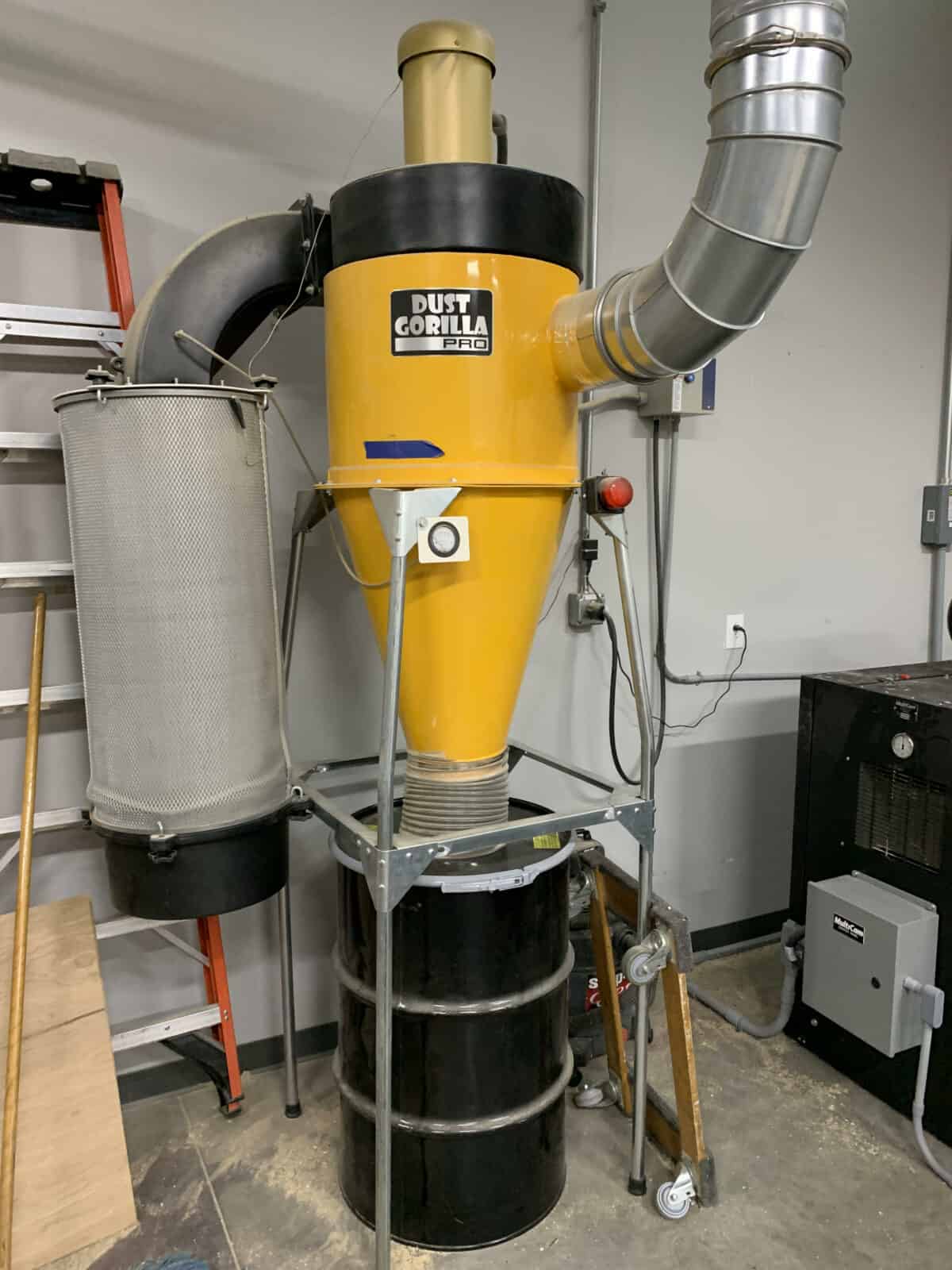

Dust Collector |

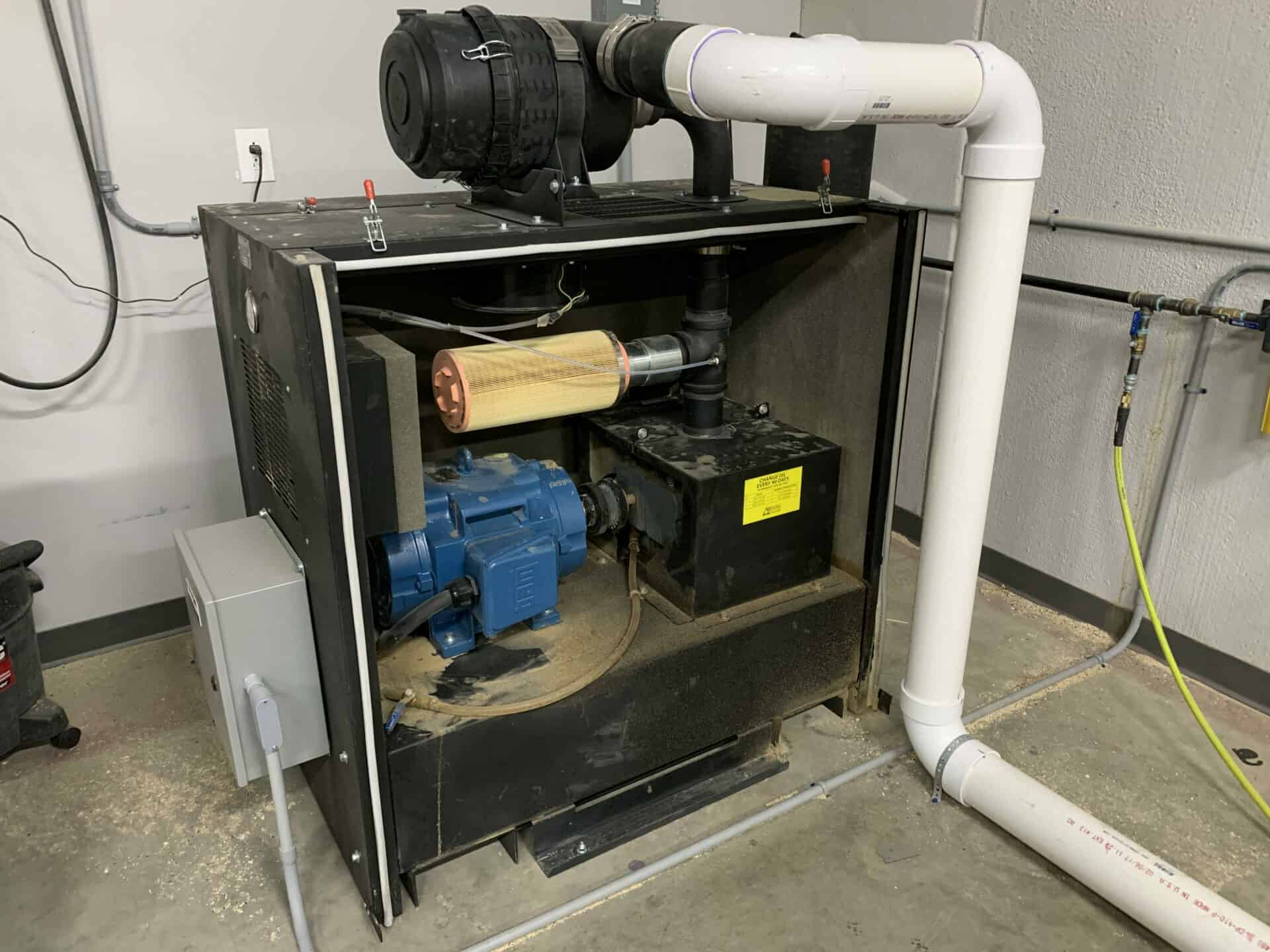

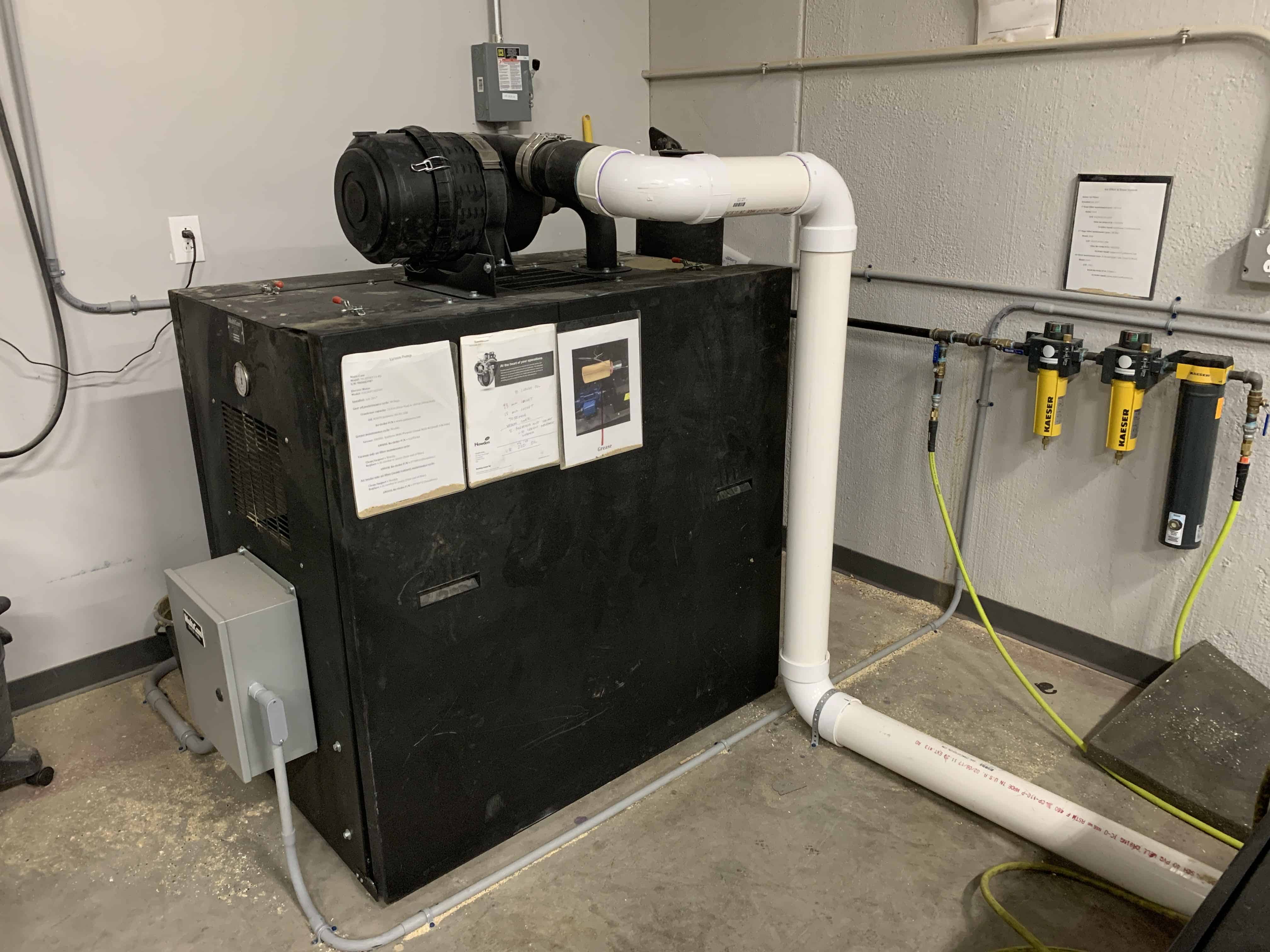

20 HP Positive Displacement Blower |
|
3 Stage Coalescing Air Filtration System |
Vacuum Table |
|
4 Zone Vacuum Table |
Teknic Brushless AC Servo Drive System |
|
Unlimited File Size Transfer Capabilities Thru Ethernet Connection |
Automatic Calibration & Surface Location Probes for Tool Length Setting |
|
Dual Side Drives Precision Helical Rack and Pinion |
Enroute 6 Plus Full CAD/CAM Software with True Shape Nesting |
|

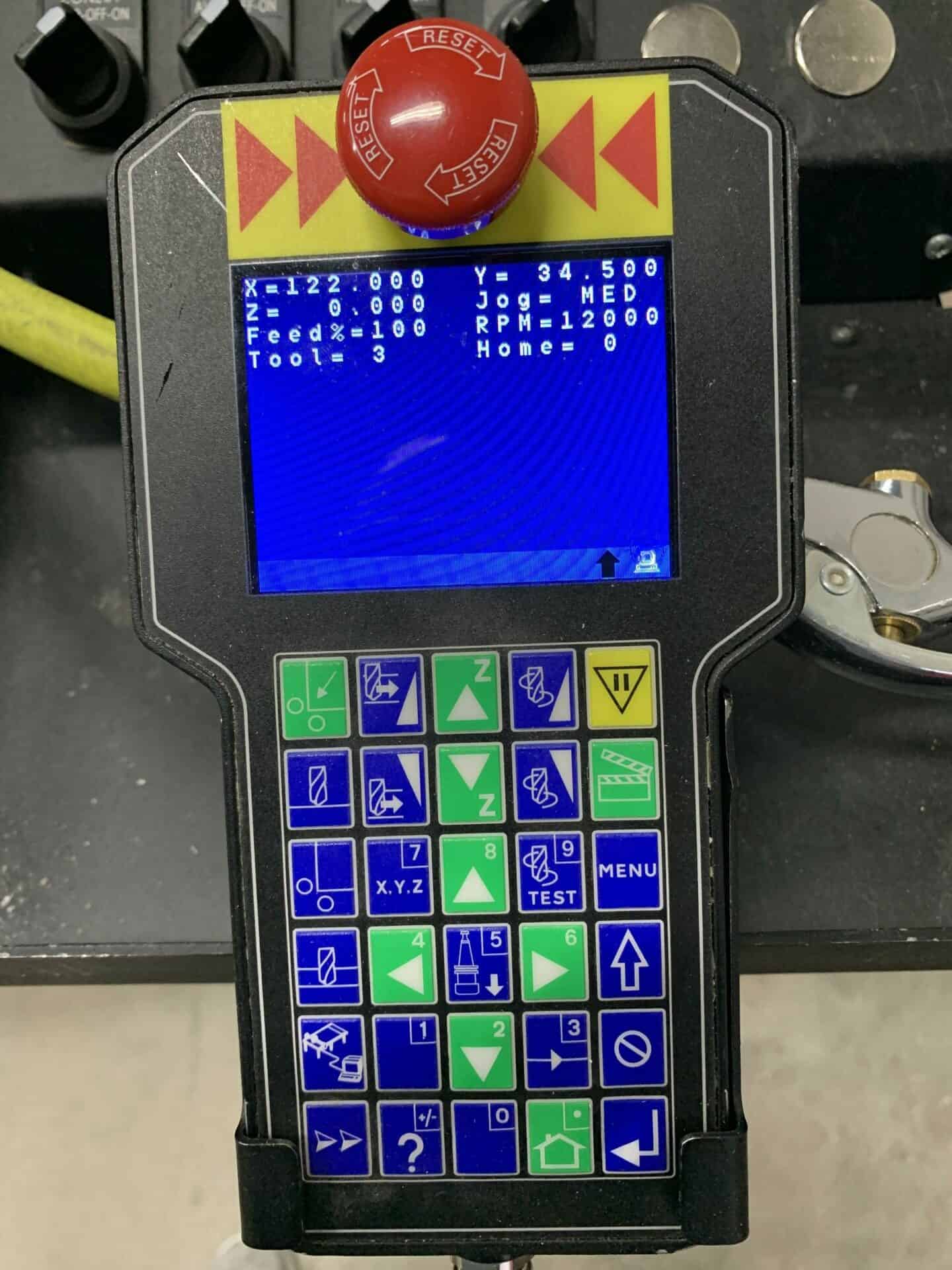

Handheld Graphical Interface Controller |
High Speed 3 Axis Motion Controller |
|

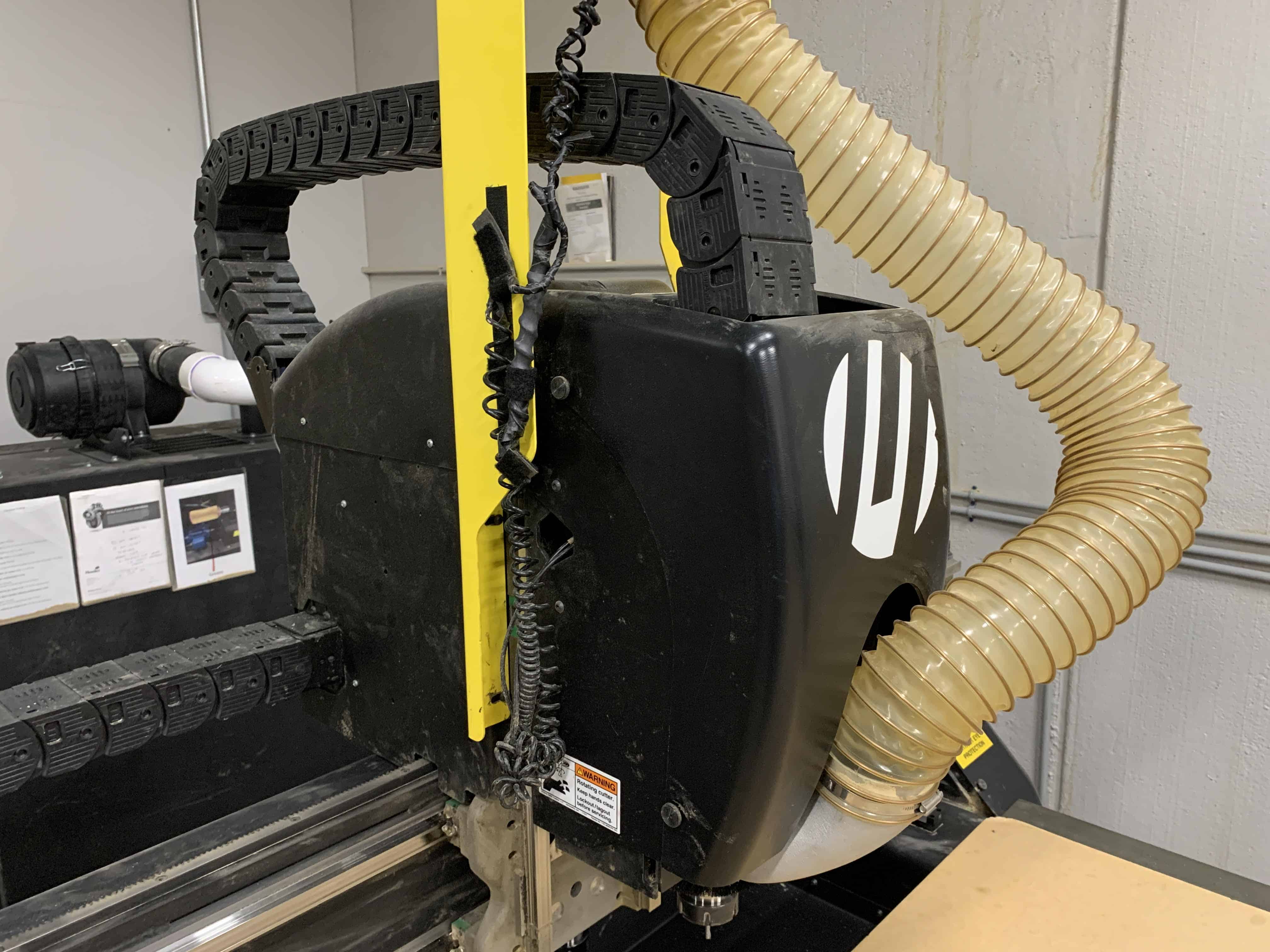

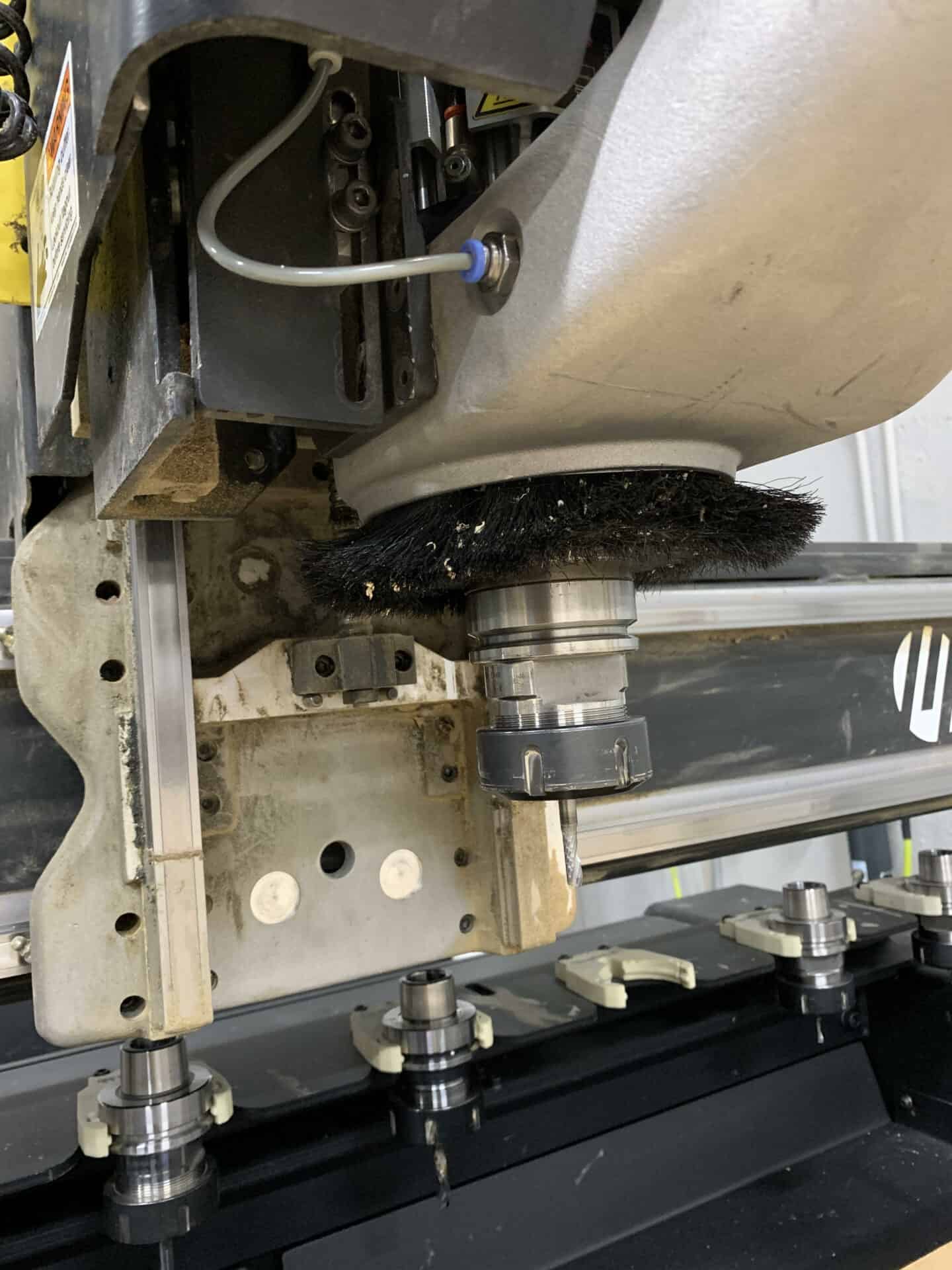

HSD 13.3 HP Pneumatic Chuck Fan Cooled |
Laser Pointer for Easy Soft Home Setting |
|

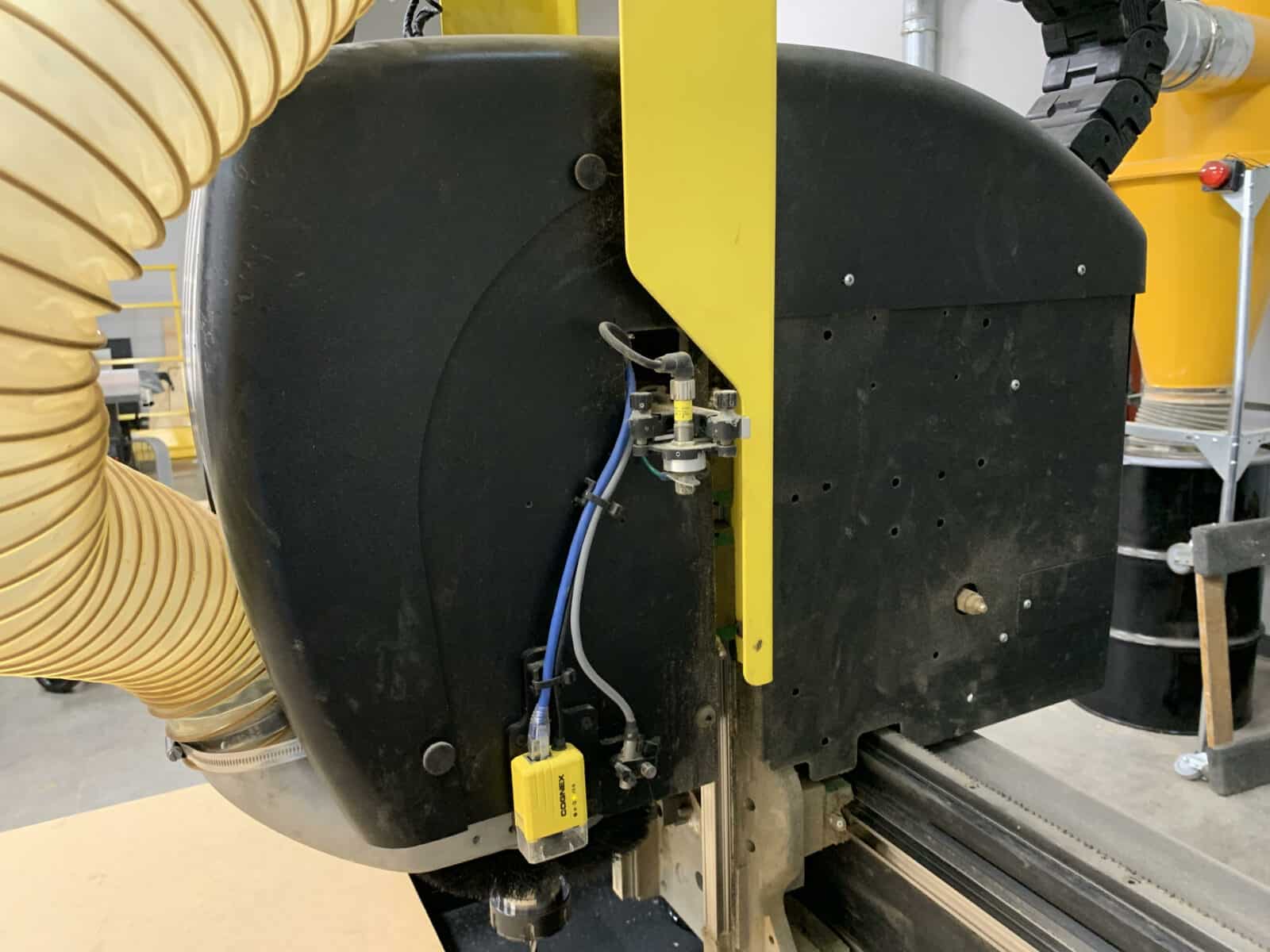

Multi Vision PRO Digital Registration Camera System |
