Year |
2017 |
|---|---|
Make |
SCM |
Model |
Pratix S15B |
Description |
CNC Router |
Reference # |
8074575 |
Price |
Activate Pricing |

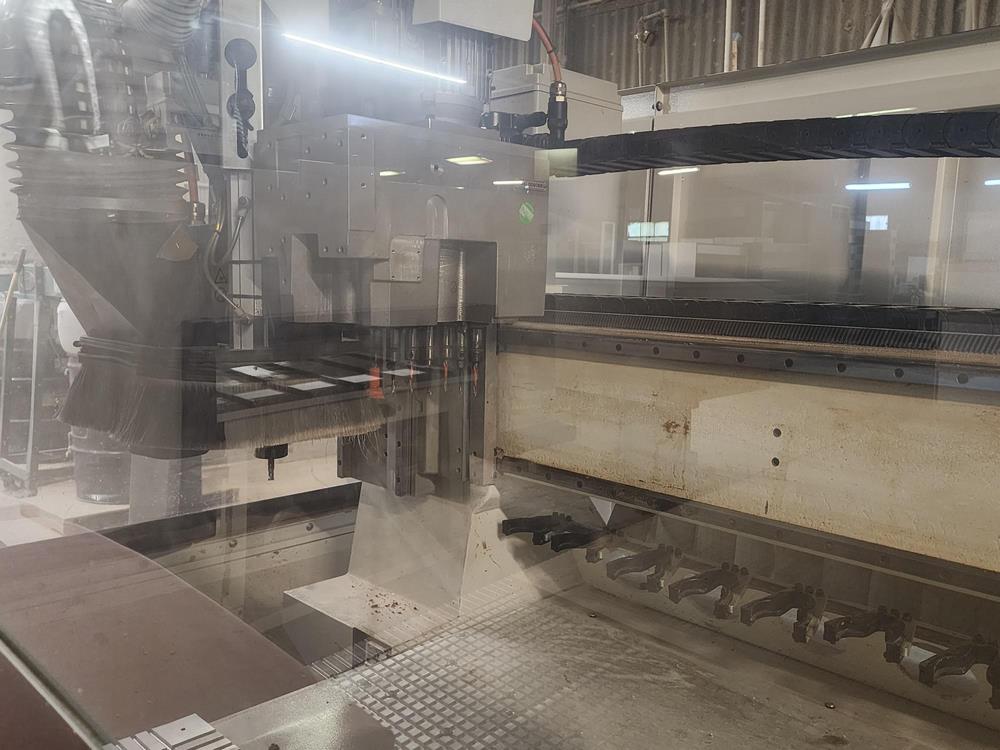

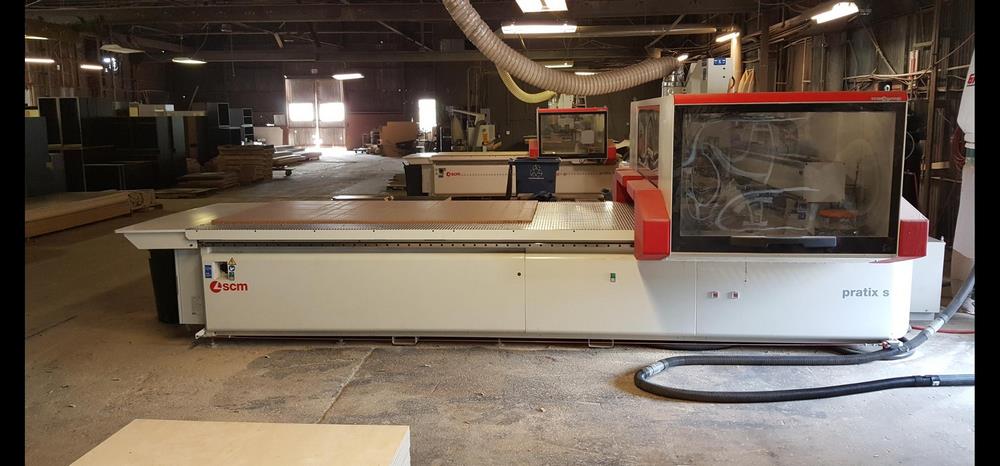

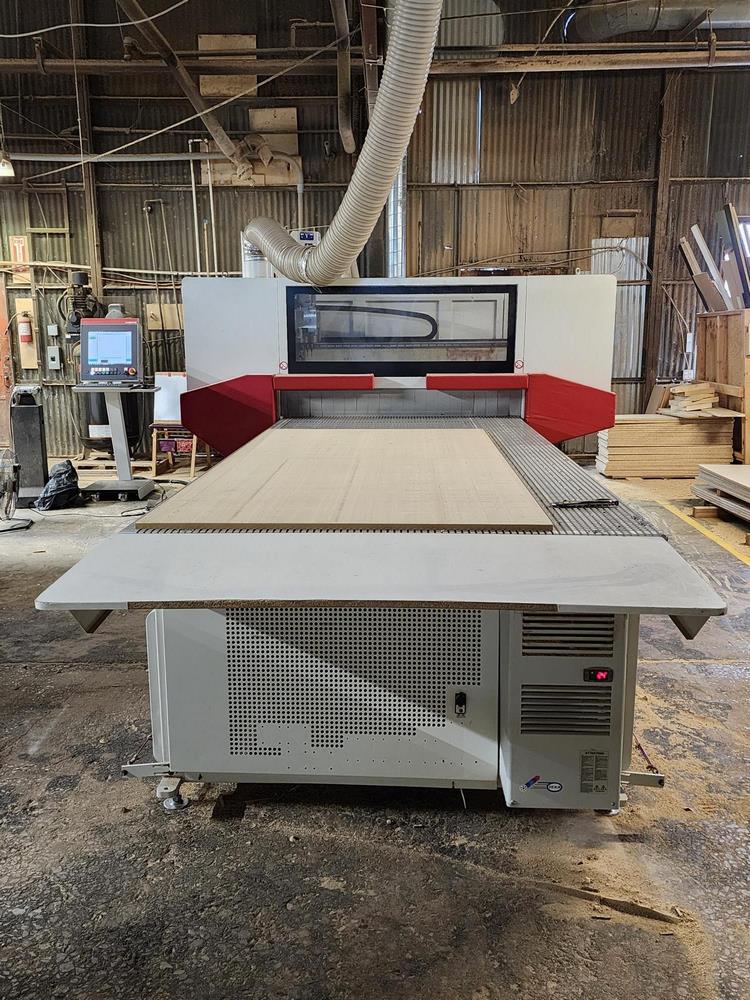

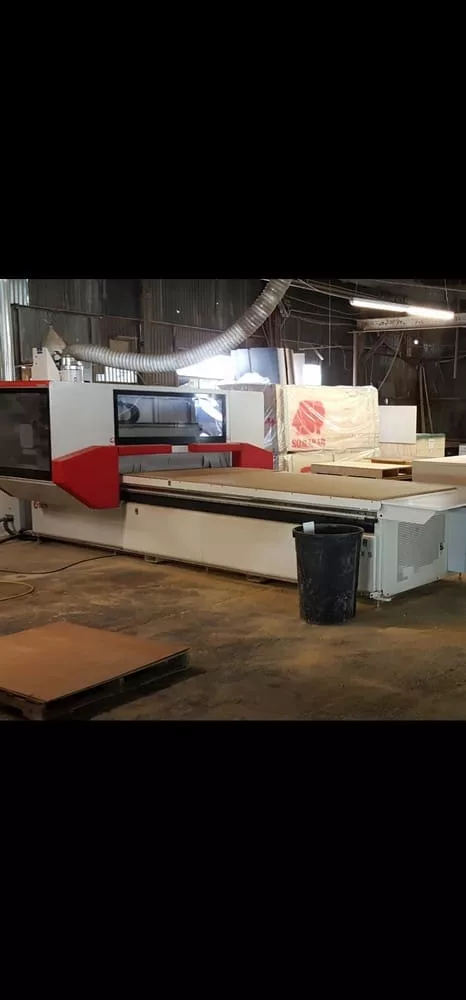

Used SCM Pratix S15B (2017) CNC Router for Sale. This 3-axis machine has a 60″ x 144″ table with vacuum hold down and a grid pattern that allows the use of vacuum pods and spoil boards for nested machining, plus (8) part location pop-up pins mounted on the table perimeter. The 9 HP air-cooled electrospindle runs to 24,000 RPM on 32mm centers with 9.8″ of Z-axis travel, served by a (14) position ATC tool rack mounted on the machine base. It also carries a 3 HP boring block (7 vertical, 5 “X” axis, 2 “Y” axis) and a (9) spindle drill block, AC servo drives, and PC front end control with Xilog Plus on Windows XP Pro. Equipped with stand alone controller, probes, Becker vacuum pump, handheld controller, transformer, aluminum tables and auto lube. Requires 400V, 3 Ph, 50/60 Hz (41.3 Amps). Available under power for inspection. See more CNC routers, Activate Pricing, or Request a Quote.
Specifications
| Number of Axis |
3 |
|---|---|
| Table Width |
60" |
| Table Length |
144" |
| Table Hold Down |
Vacuum Hold Down |
| Table Configuration |
Grid Pattern to Allow Vacuum Pods & Use of Spoil Boards For Nested Machining |
| Part Location Pop-Up Pins |
(8) Mounted on The Table Perimeter |
| Spindle |
9 Horsepower, Air Cooled Electrospindle On 32mm Centers, 24,000 Rpm |
| Z-Axis Travel |
9.8" |
| Tool Changer |
(14) Position ATC Tool Rack Mounted on Machine Base |
| Control |

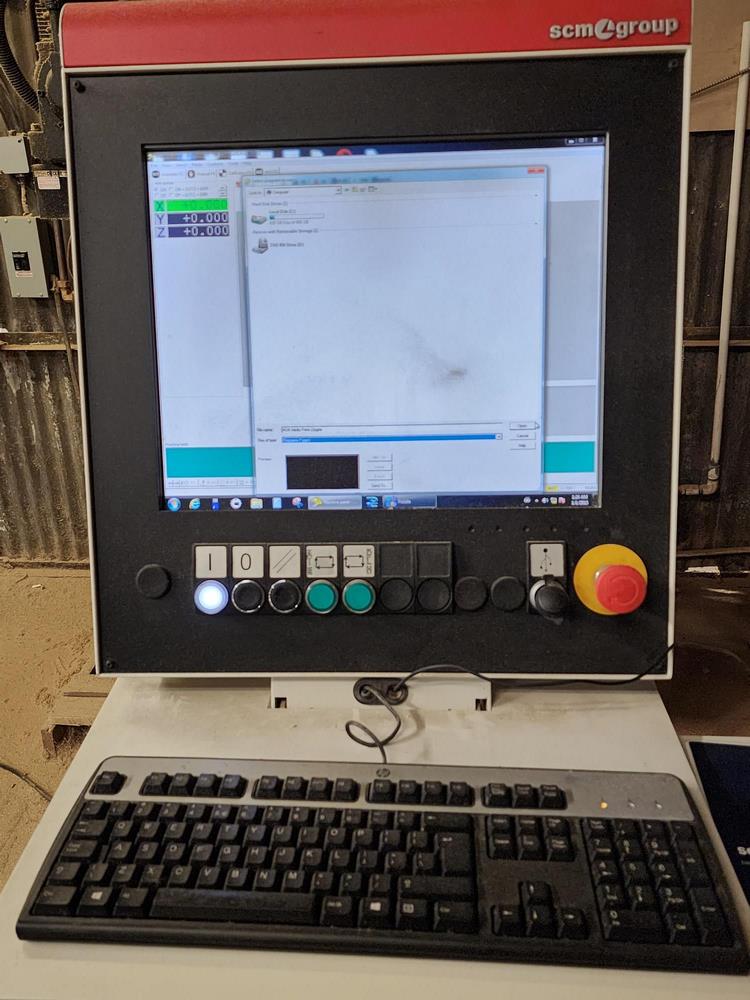

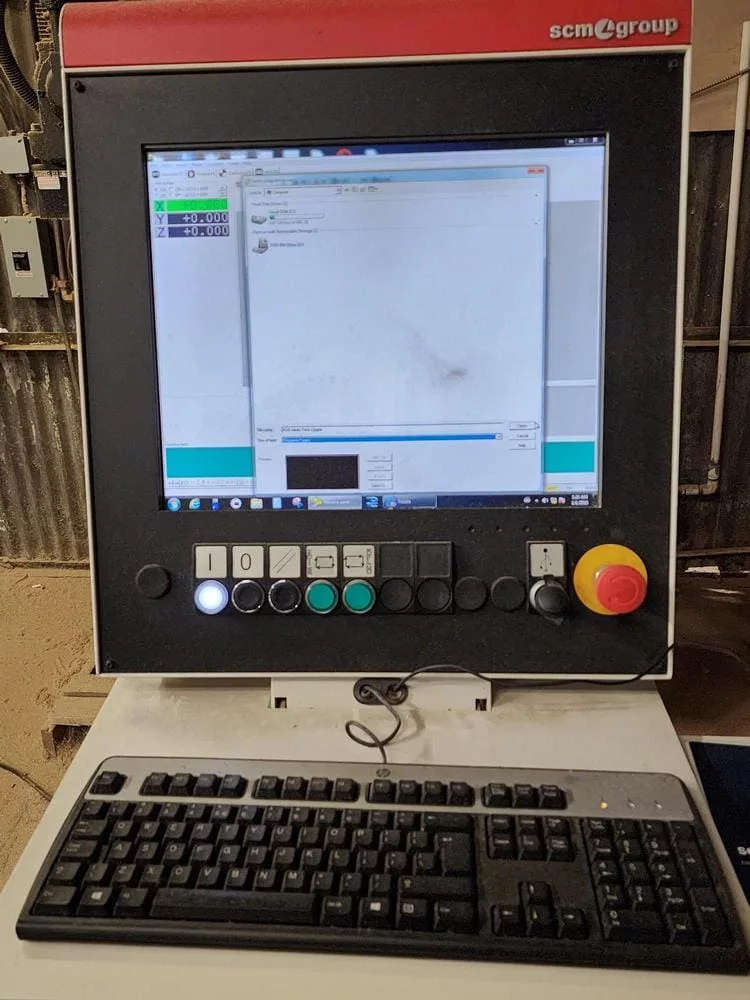

PC Front End W/Xilog Plus, Windows XP Pro Operating System |
| Boring Block |

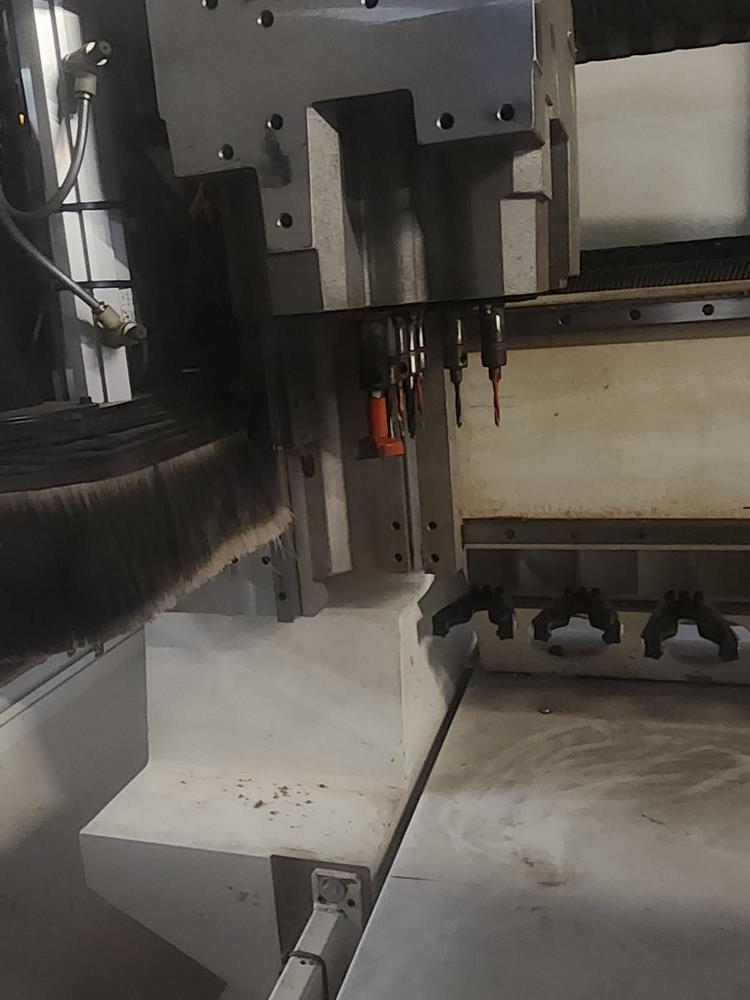

3-Horsepower, 7-Vert., 5 "X" Axis, 2 "Y" Axis |
| Drive System |
AC Servo Drive |
| Multi-spindle Drill Block |
(9) Spindle Boring Block |
| Electrical Requirements |
400v - 3 Ph - 50/60 Hz (41.3 Amps) |
Features
|
Stand Alone Controller |
Under Power for Inspections |
|
Probes |
Becker Vacuum Pump |
|

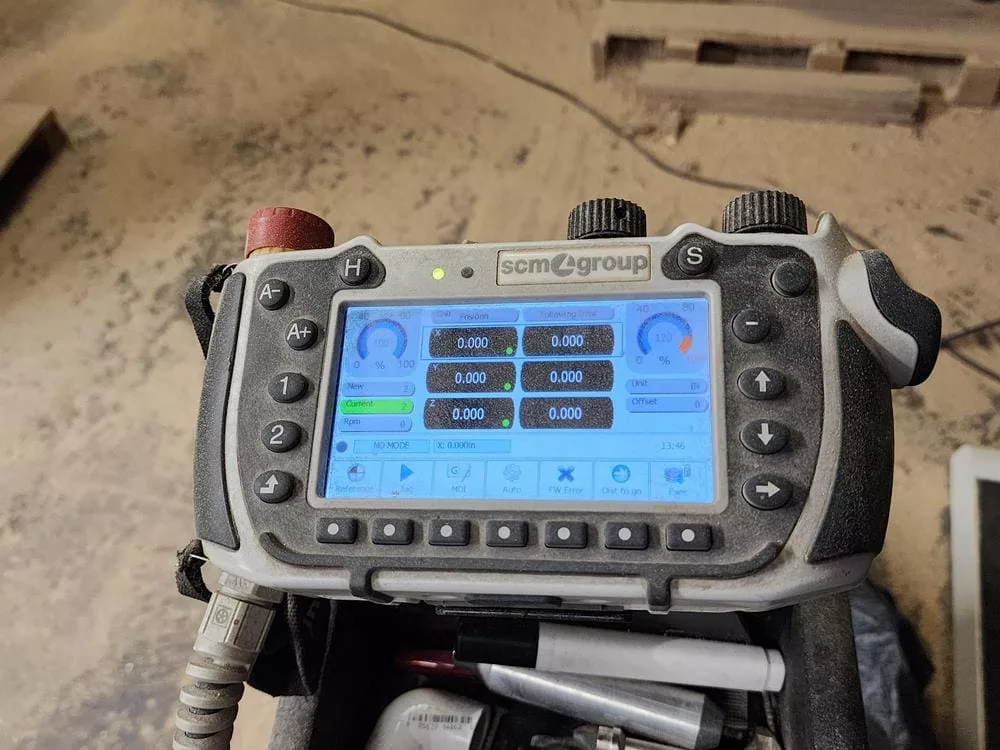

Handheld Controller |
Transformer |
|
Aluminum Tables |
Auto Lube |
