Year |
2016 |
|---|---|
Make |
DMS |
Model |
5D5-10-5-48TCOLxx |
Description |
5 Axis CNC Router |
Reference # |
8078192 |
Price |
Activate Pricing |

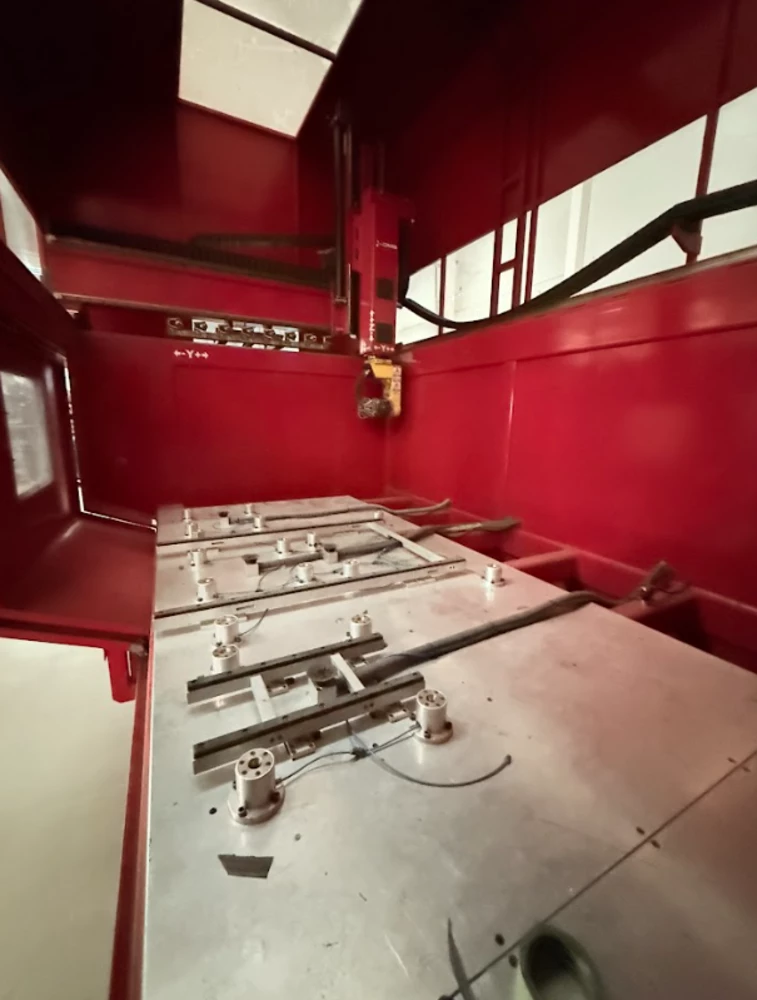

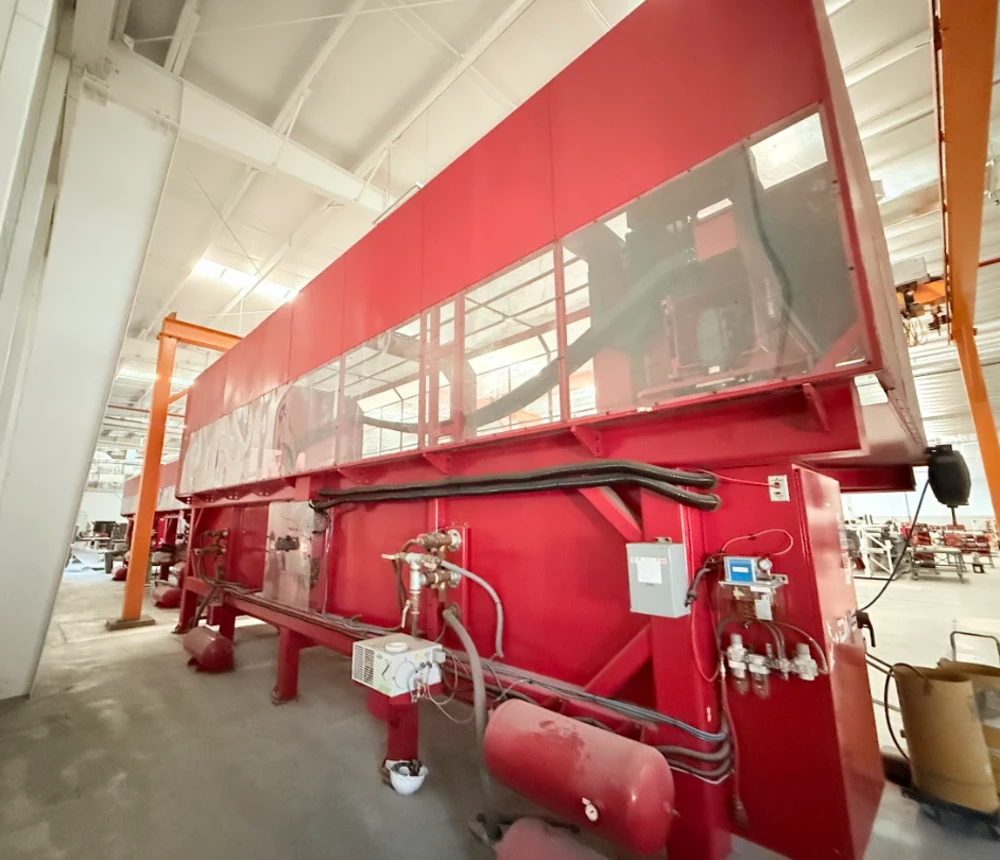

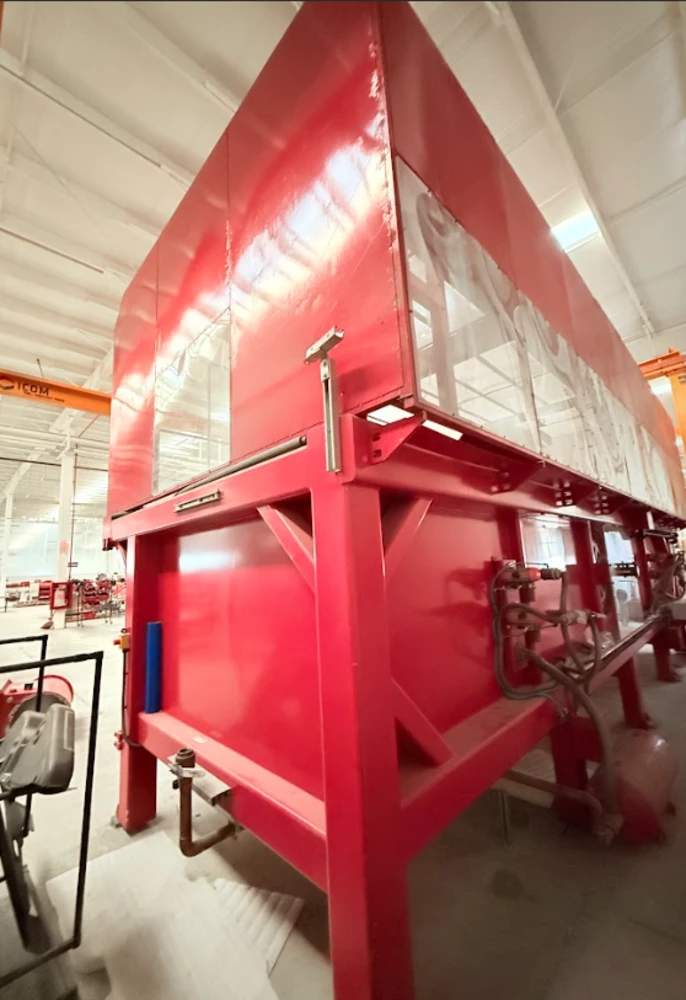

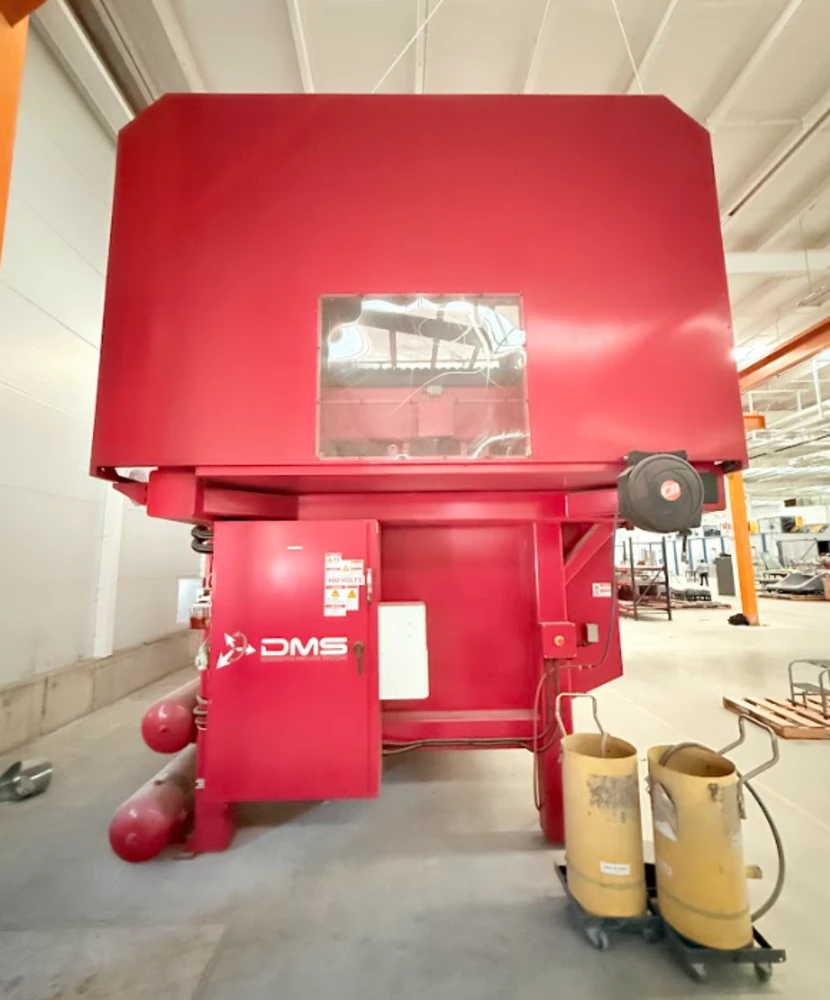

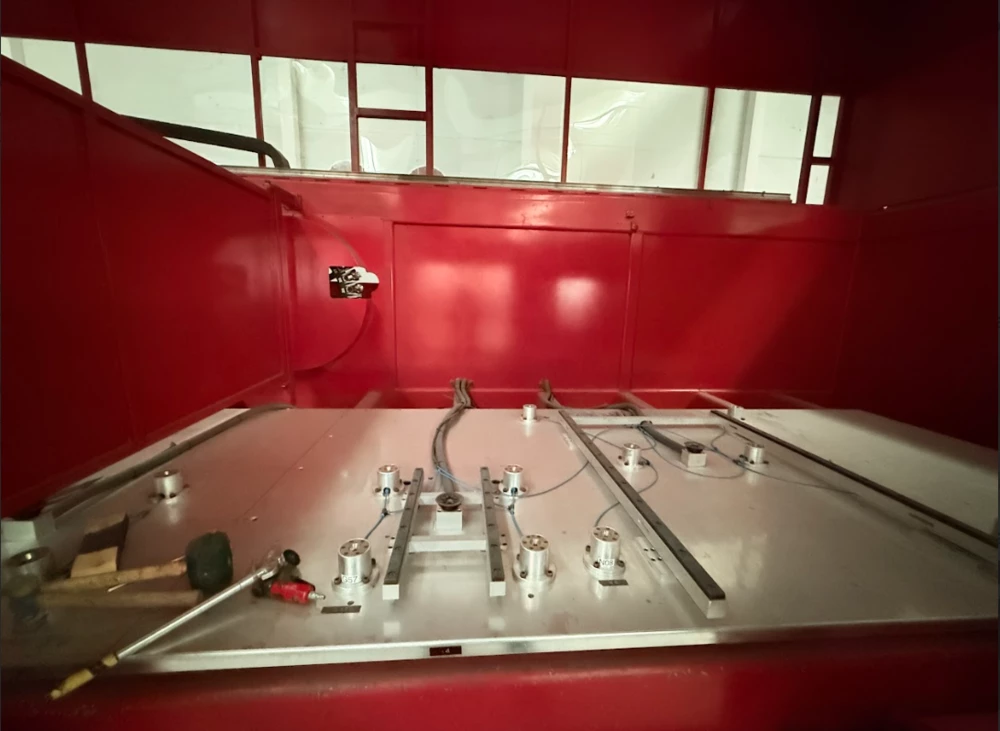

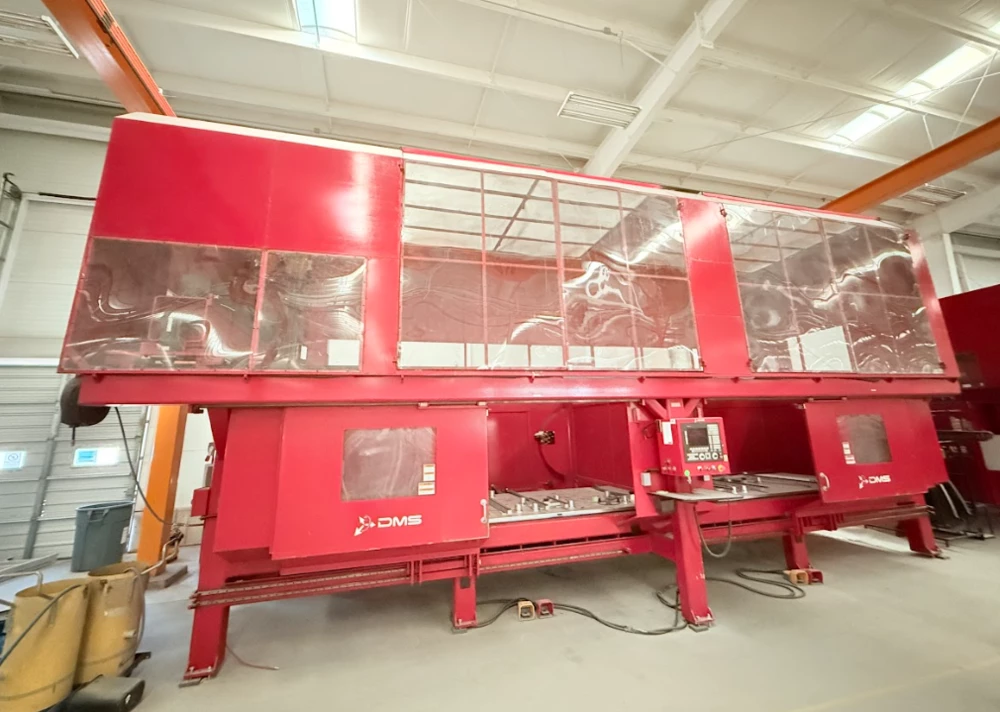

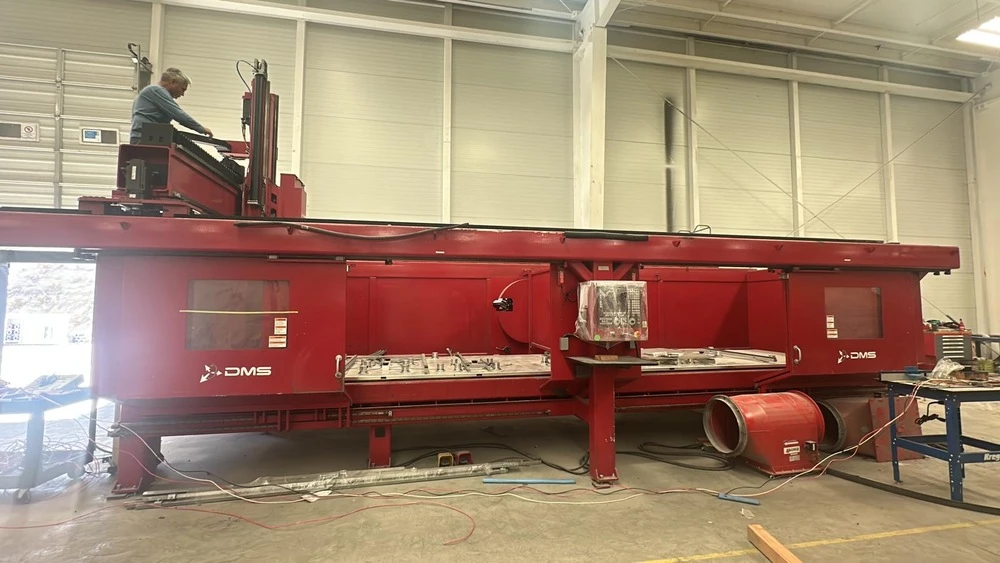

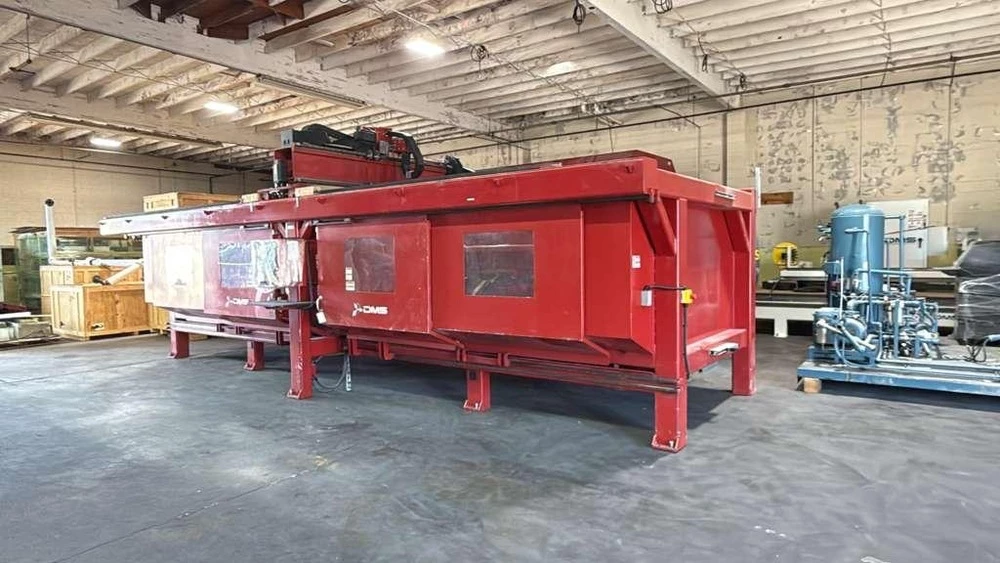

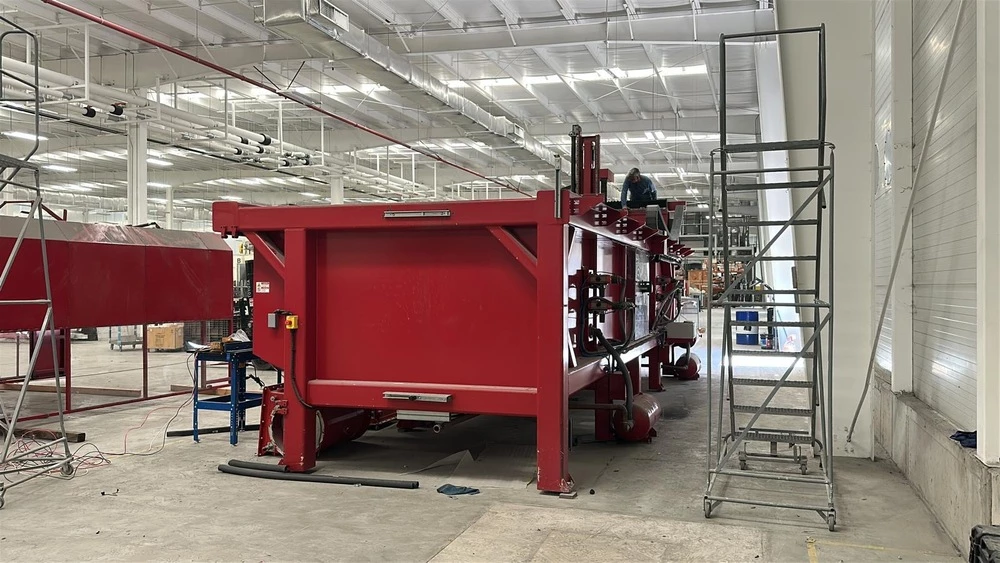

Used DMS 5D5-10-5-48TCOLxx (2016) CNC Router for Sale. This 5 axis machine has a 60″ wide by 120″ long table with 48″ of Z-axis travel, and rotary axes covering C ±363° and B ±115°-. It runs a single ES 939L 16HP high-frequency liquid cooled ISO 30 spindle rated to 24,000 RPM, with a 30-position rotary carousel autolube tool changer. Control is a Fagor 8055 CNC. Electrical is 440-480V, 3-phase, 40A, with interior lighting. Equipped with absolute encoders on the servo motor and a jog handwheel. The router can be seen under power for an inspection. See more machines in our used CNC routers category, use Activate Pricing, or Request a Quote for details.
Specifications
| Table Width |
60" |
|---|---|
| Table Length |
120" |
| Number of Axis |
5 Axis |
| Z-Axis Travel |
48" |
| Number of Spindles |
1 |
| Spindle Speed |
24,000 RPM |
| Spindle |
ES 939L / 16HP High-Frequency Liquid Cool ISO 30 |
| Rotary Axes |
C ±363° / B ±115°- |
| Tool Changer |
30-Position Rotary Carousel Autolube |

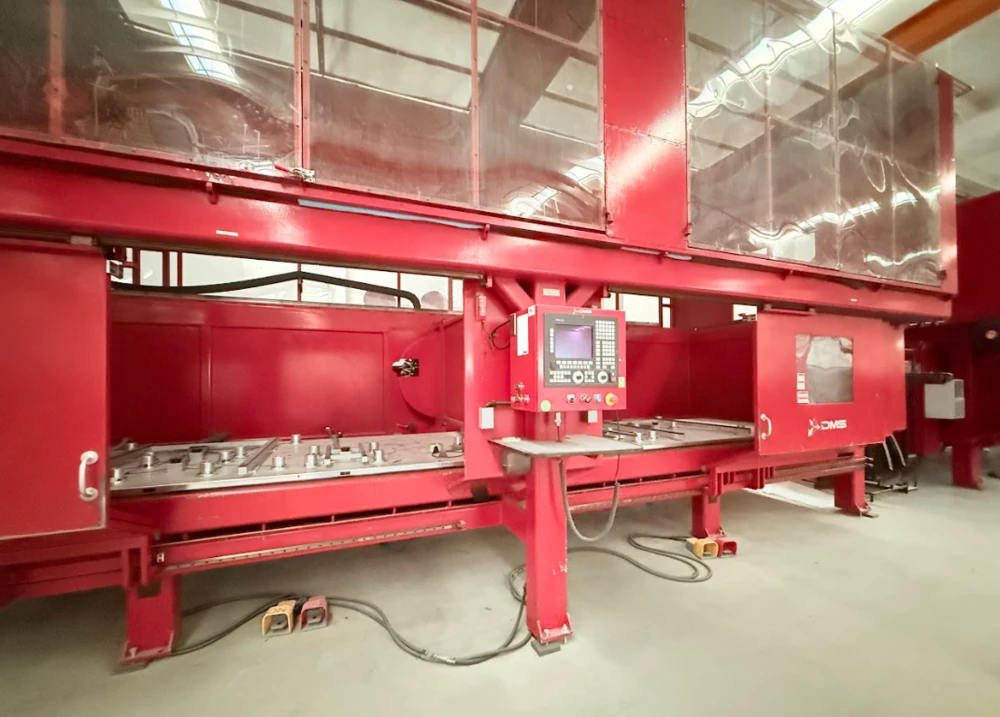

| Control |
Fagor 8055 CNC |

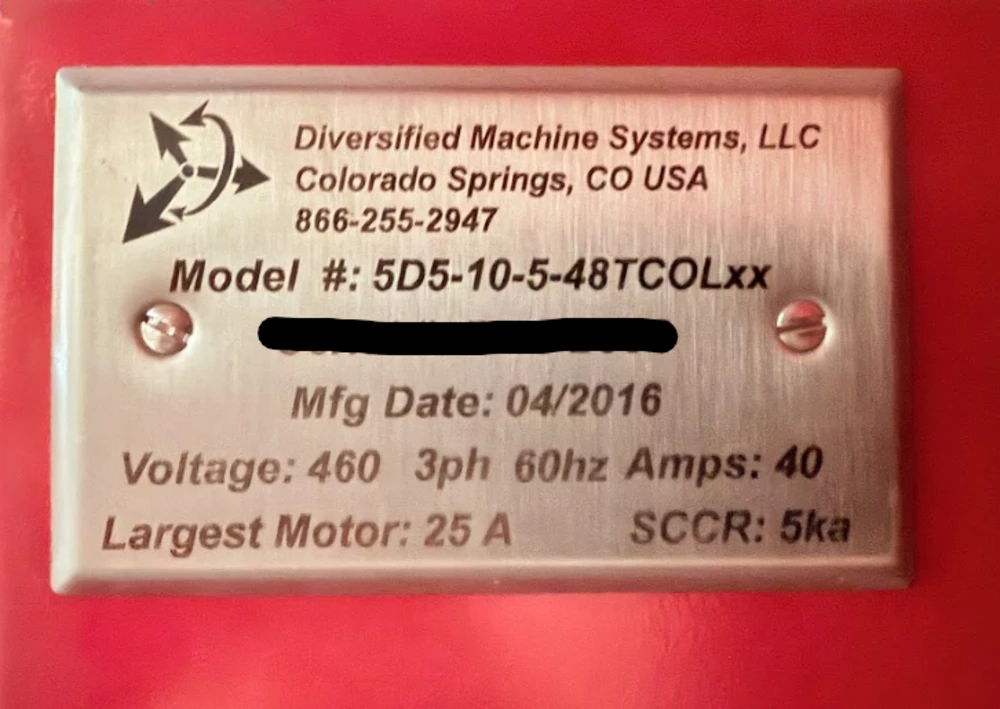

| Electrical |
440-480V / 3-Phase / 40A Interior Lighting |
Features
|
Absolute Encoders on Servo Motor |
Jog Handwheel |
