Year |
2014 |
|---|---|
Make |
CR Onsrud |
Model |
F148E24H2 |
Description |
5 Axis CNC Router |
Reference # |
8075875 |
Price |
Activate Pricing |

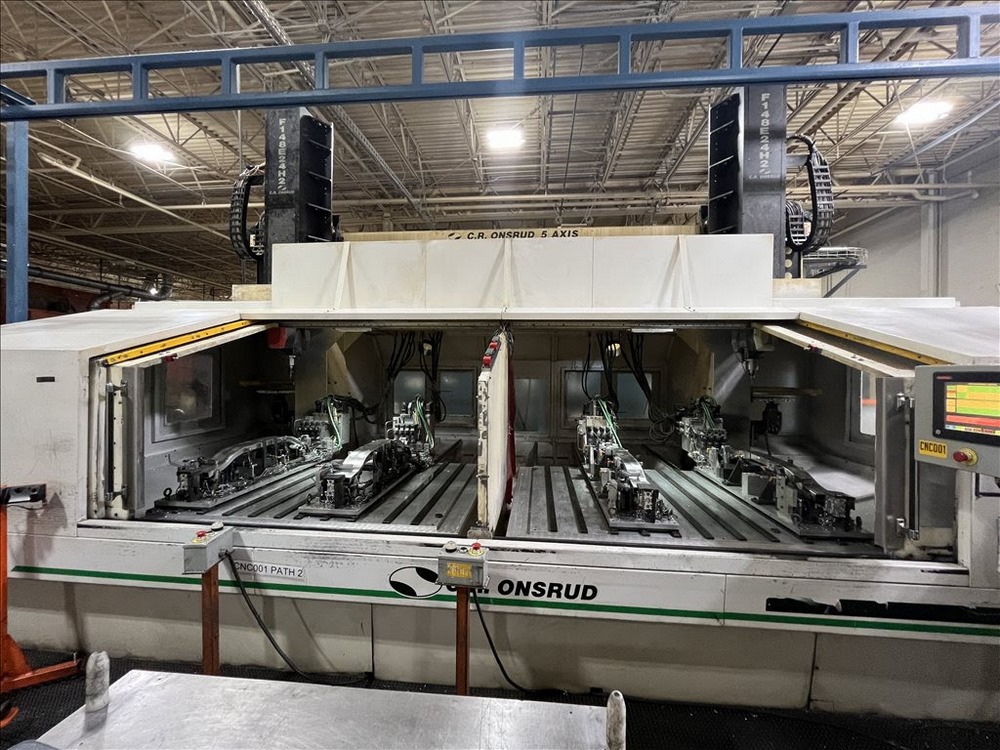

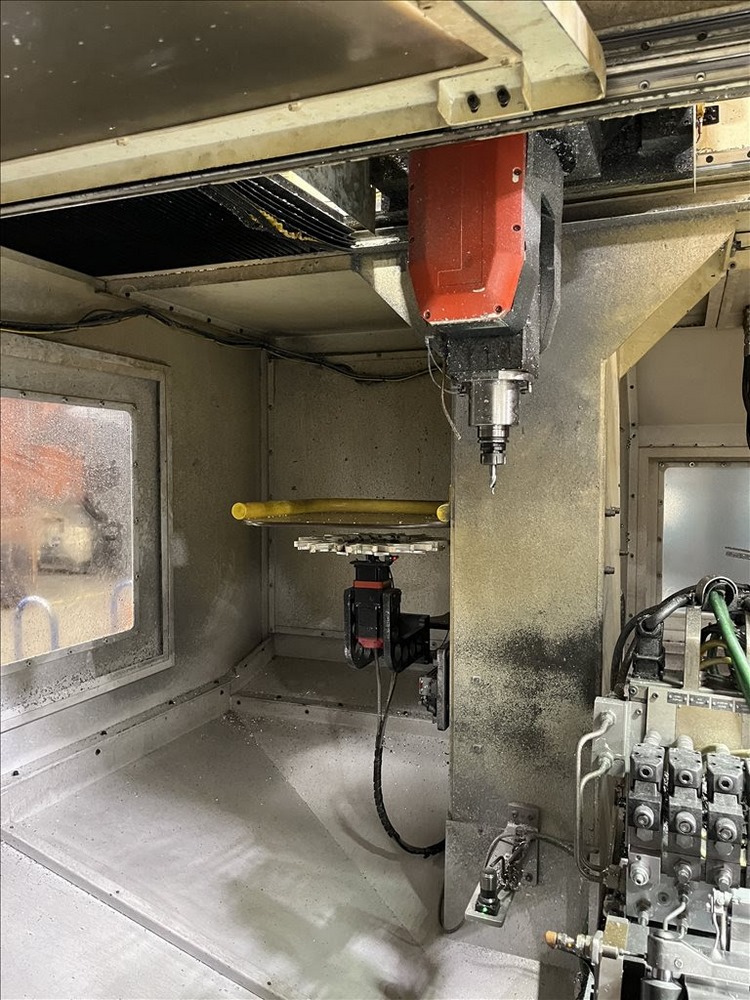

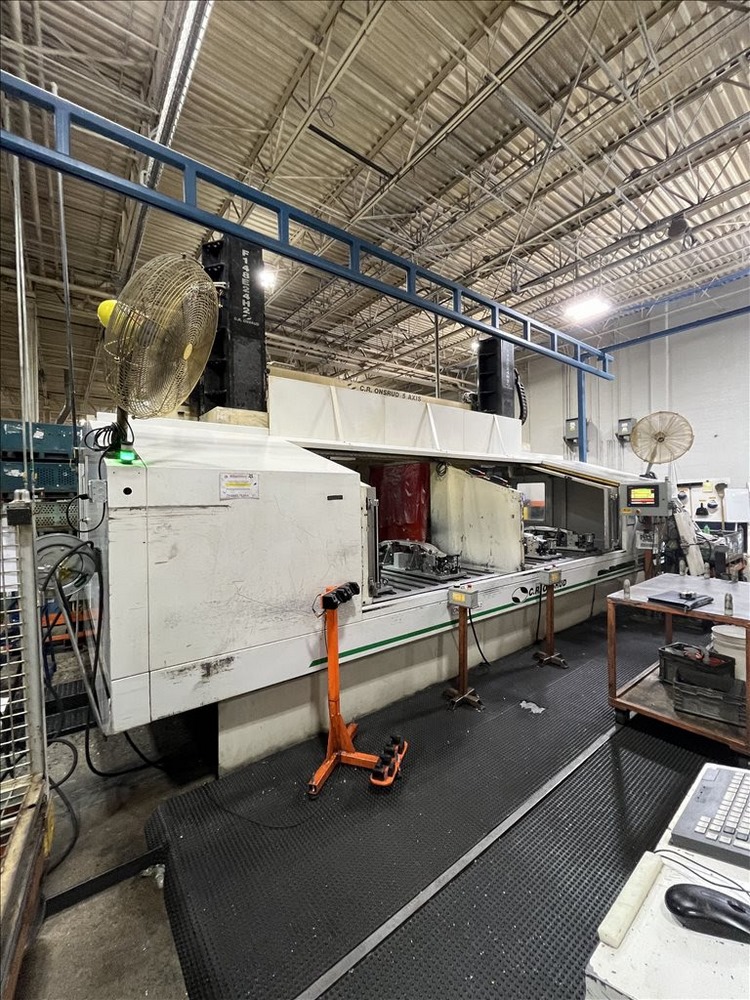

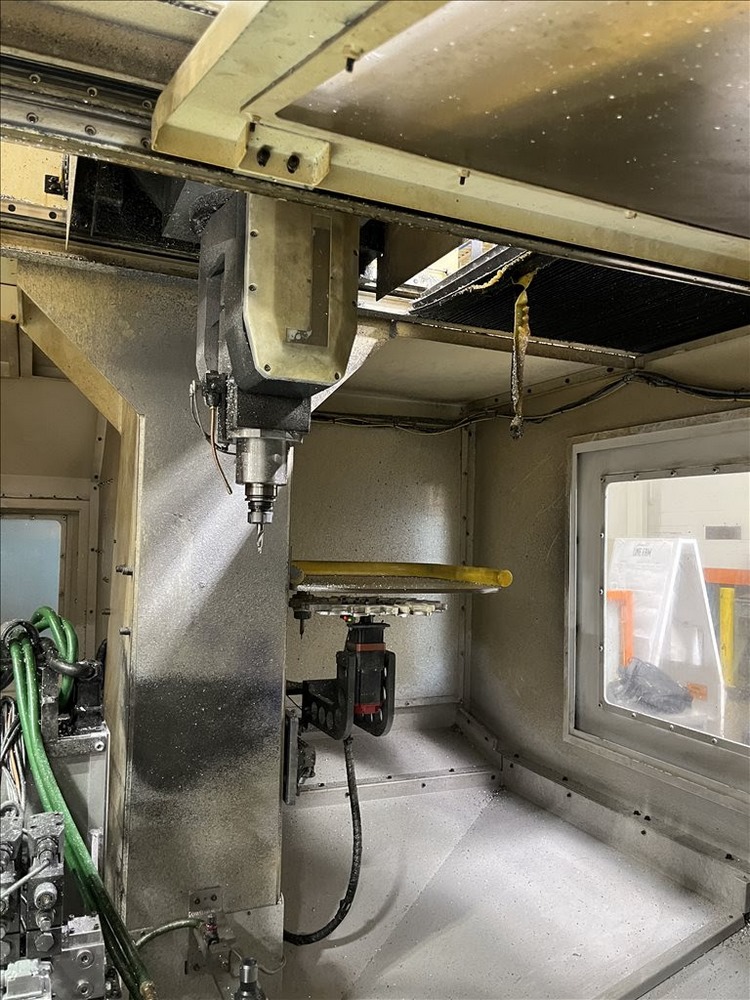

Used CR Onsrud F148E24H2 (2014) CNC Router for Sale. This 5-axis machine has a 12′ x 5′ machining envelope with a twin moving table design, two tables at 60″ wide by 72″ long, each 6′ x 5′. Z-axis travel is 41″ and machining speed is 3,600 IPM. Two spindles run to 24,000 RPM with HSK 63 tapers, served by two 12-station tool changers. A-axis rotates +/- 120 degrees and the C-axis +300/-115 degrees. Controlled by a Fanuc 31i-B5 CNC with full 3-D capability, safety enclosure, two automatic oil fog mist lubricators and two spindle chillers. Head 1 run time is 12,104 hours, head 2 is 10,525 hours. The machine can be seen under power for an inspection. Activate Pricing or Request a Quote.
Specifications
| Number of Axis |
5 |
|---|---|
| Machining Envelope |
12' x 5' |
| Number of Tables |
2 |
| Table Width |
60" |
| Table Length |
72" |
| Table Size |
6' x 5' |
| Z-Axis Travel |
41" |
| Machining Speed |
3,600 IPM |
| Number of Spindles |
2 |
| Spindle Speed |
24,000 RPM |
| Spindle Taper |
HSK 63 |
| A-Axis Rotation |
+/- 120° |
| C-Axis Rotation |
+300/-115° |
| Number of Tool Changers |
2 |
| Tool Changer |
12 Station |
| Head 1 Run Time |
12,104 Hours |
| Head 2 Run Time |
10,525 Hours |
| Note |
(2) Machines Available - Pricing is per Machine |
Features
|

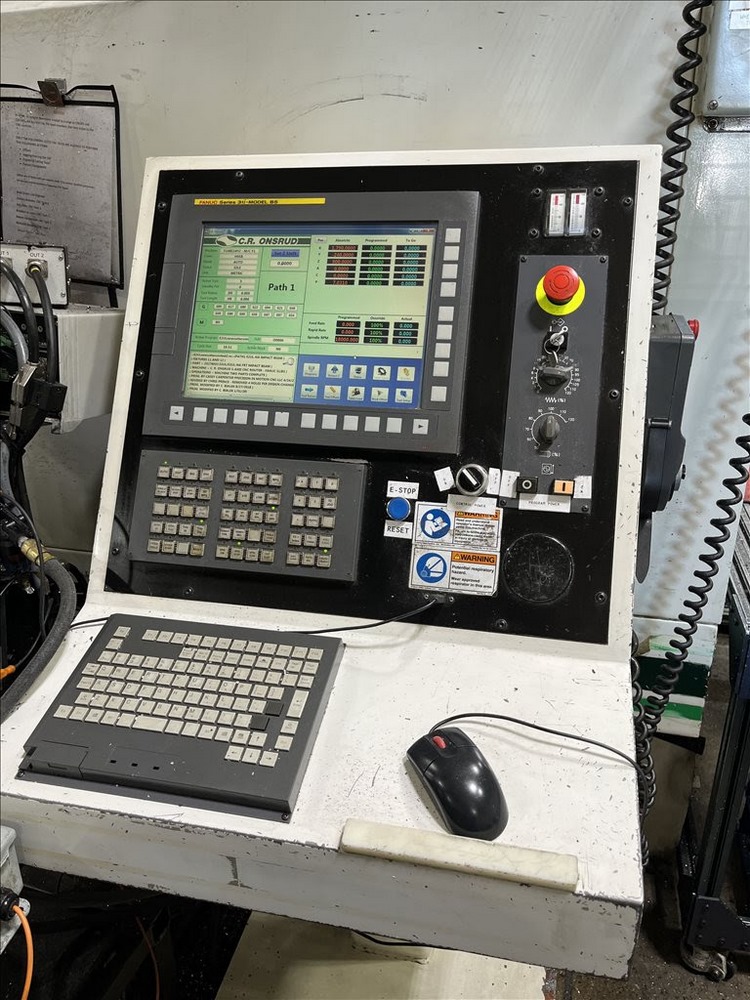

Fanuc 31i-B5 CNC Control |
Full 3-D Capability |
|

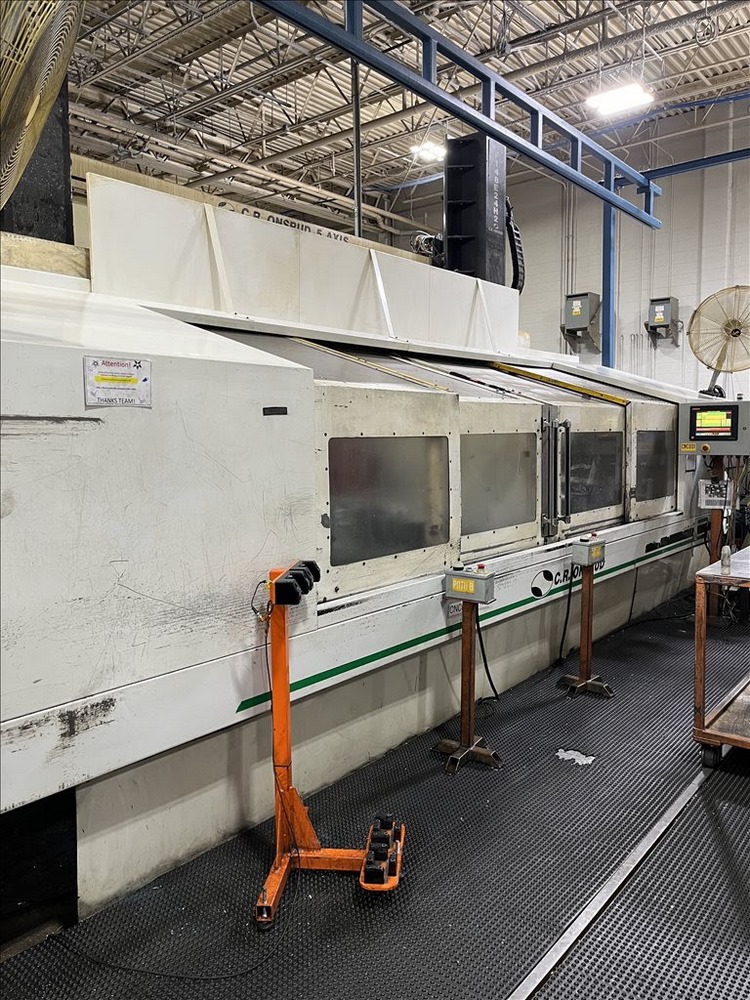

Safety Enclosure |

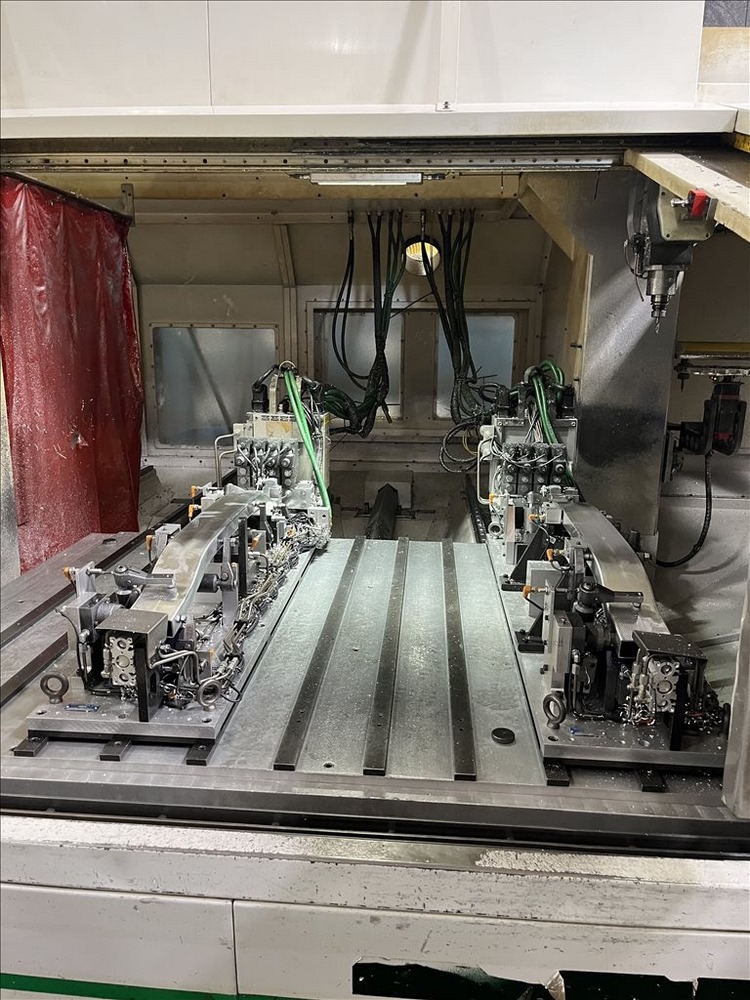

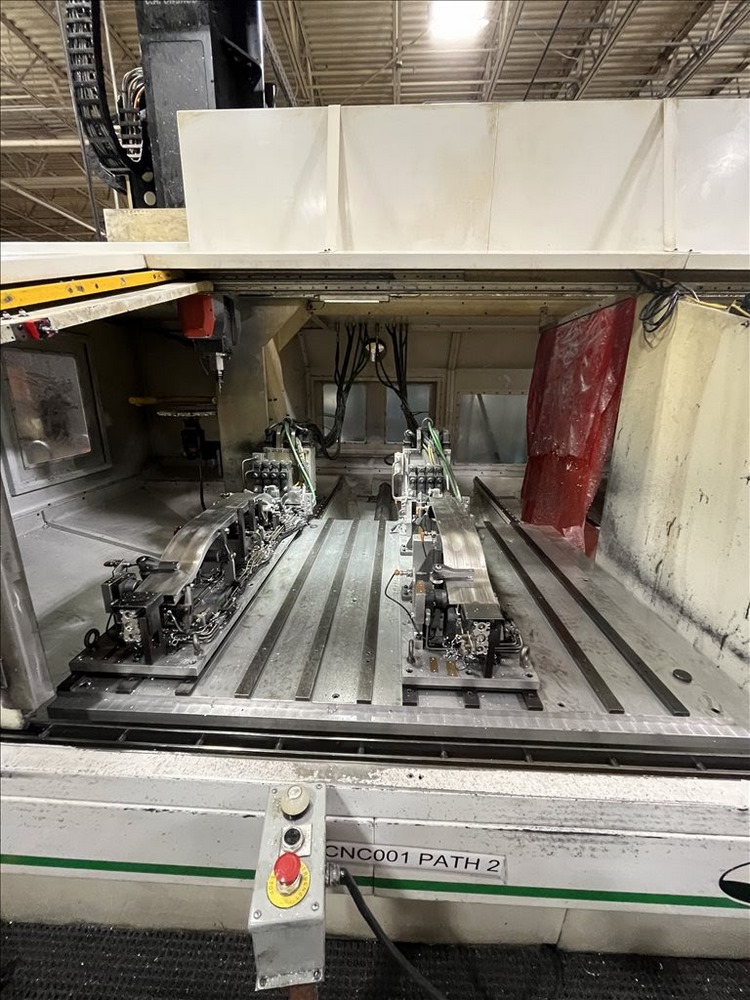

Twin Moving Table Design |
|
Two Automatic Oil Fog Mist Lubricators |
Two Chillers for Spindles |
