Year |
2024 |
|---|---|
Make |
Multicam |
Model |
Apex1R |
Description |
CNC Router |
Reference # |
8077316 |
Price |
Activate Pricing |

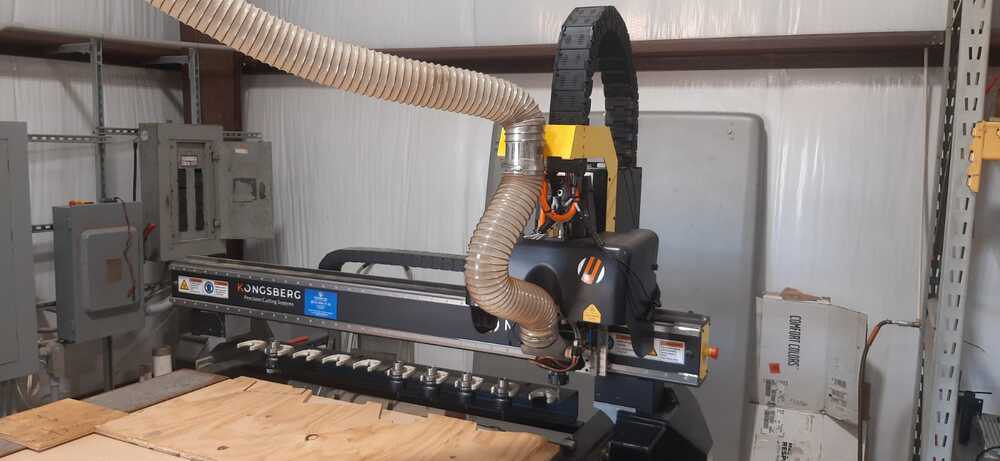

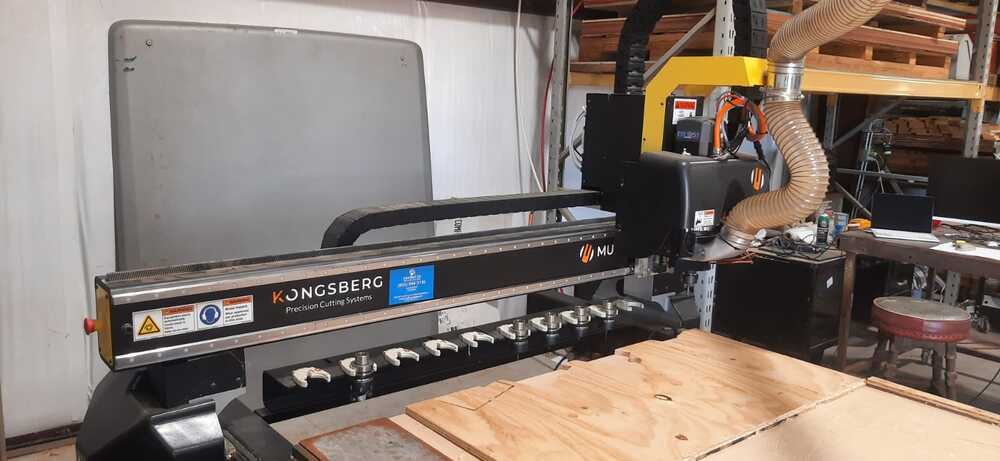

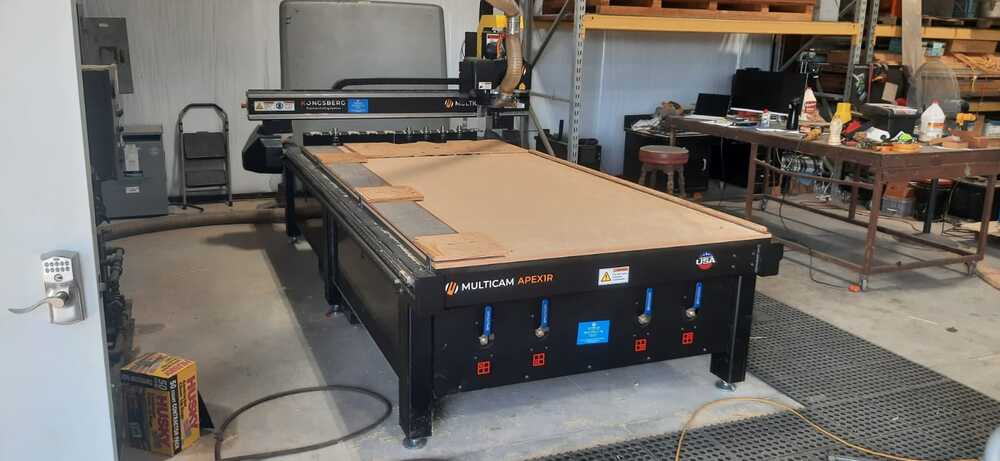

Used Multicam Apex1R (2024) CNC Router for Sale. This 3-axis machine has a 60″ x 120″ table with vacuum hold down split into four vacuum zones, and 7.87″ of Z-axis travel. It carries an HSD spindle rated to 24,000 RPM with a 10 HP motor, a 10-position linear rack tool changer, and a Multicam handheld controller. Power requirement is 380V. Equipped with a 30 KVA transformer (480 volt to 380 volt 3-phase), auto misting / lubricating system for ATC spindles, CAT6 Ethernet surge protector, kit wood starter tool, laser pointer with red crosshair, and a pneumatic dust collection hood for the ATC spindle. Vacuum pump is not included. The machine can be seen under power for an inspection. See more used CNC routers or Request a Quote.
Specifications
| Number of Axis |
3 |
|---|---|
| Table Width |
60" |
| Table Length |
120" |
| Table Hold Down |
Vacuum Hold Down |
| Number of Vacuum Zones |
(4) Four |
| Spindle Mfg. |
HSD |
| Spindle Speed |
24,000 RPM |
| Spindle Motor |
10 HP |
| Z-Axis Travel |
7.87" |
| Tool Changer |
(10) Position Linear Rack |
| Control |
Multicam Handheld Controller |
| Power Requirement |
380V |
Features
|
30 KVA Transformer (480 Volt to 380 Volt 3-Phase) |
Auto Misting / Lubricating System for ATC Spindles |
|
CAT6 Ethernet Surge Protector |
Kit Wood Starter Tool |
|
Laser Pointer with Red Crosshair |
Pneumatic Dust Collection Hood for ATC Spindle |
|
Vacuum Pump NOT Included |
