Year |
2023 |
|---|---|
Make |
AccTek |
Model |
AKM1530 |
Description |
CNC Router |
Reference # |
8075442 |
Price |
Activate Pricing |

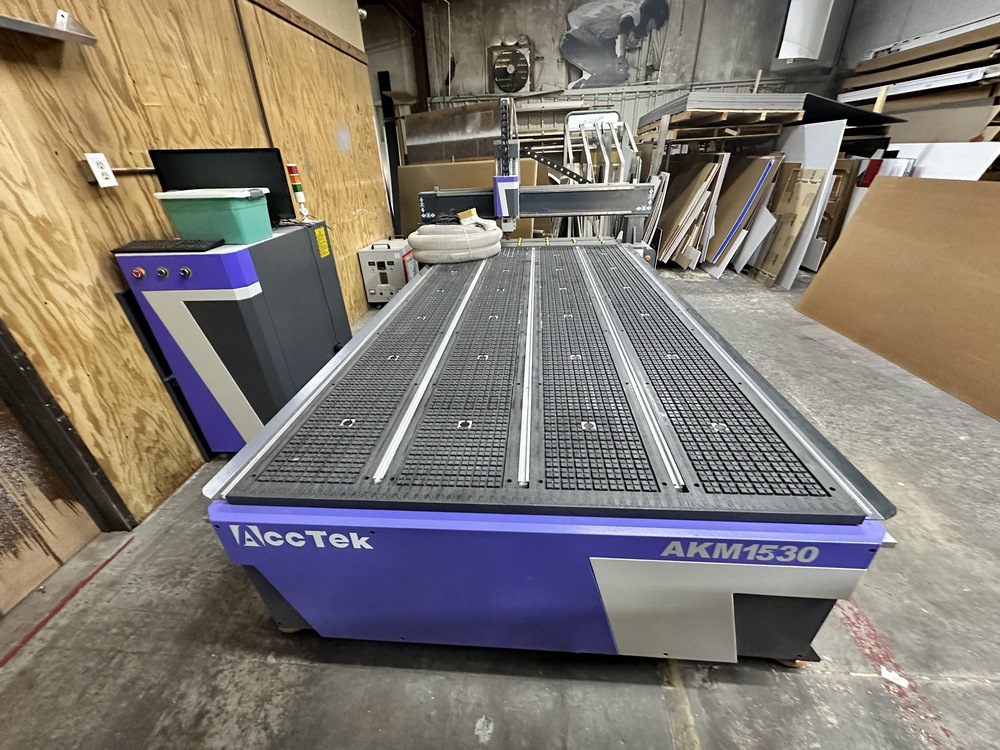

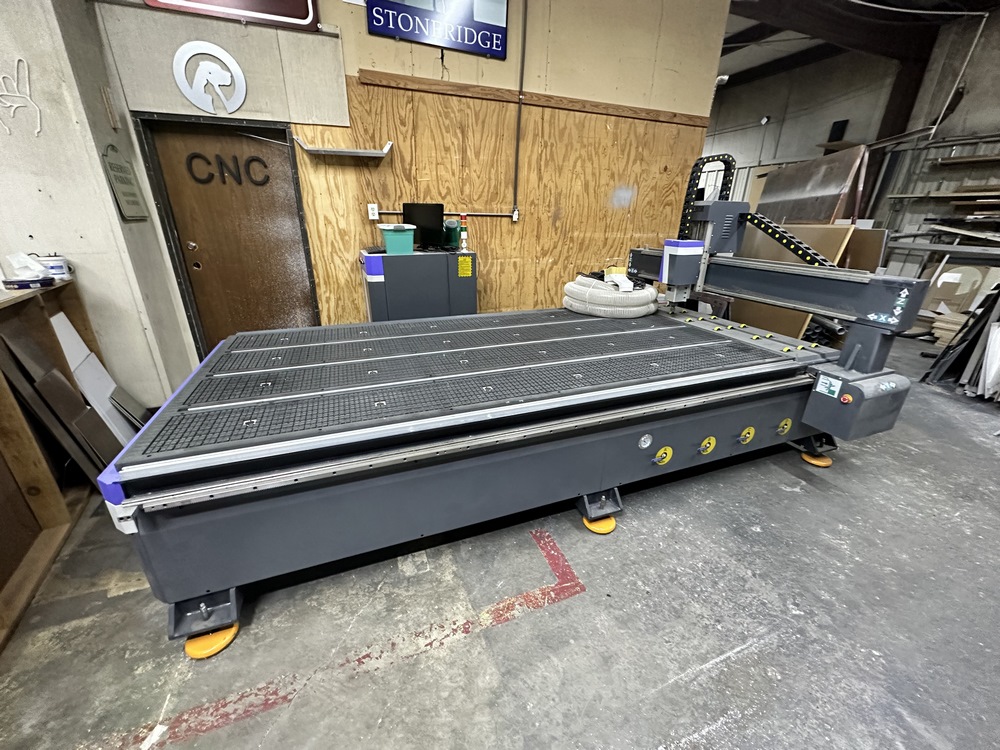

Used AccTek AKM1530 (2023) CNC Router for Sale. This 3-axis router has a 60″ x 120″ table with both vacuum and “T” slot hold down. It carries an HQD spindle rated 18,000 RPM with a 4.69 HP spindle motor and ER25 collet, run through a Mach 3 controller system with Ethernet interface. Power requirement is 380V, 3 Ph, 50/60 Hz. Equipped with (4) pieces of collets, a dual bag dust collector (4 HP), filter, Fuling inverter, mist oil lubrication, a DZW-30KVA single phase 220V to three phase 380V power inverter at 60 Hz passivated sine wave, a 7.38 HP vacuum pump, tool sensor and auto oil lubrication system. Available to be seen under power for an inspection. See more CNC routers, then Activate Pricing and Request a Quote.
Specifications
| Number of Axis |
3 |
|---|---|
| Table Width |
60" |
| Table Length |
120" |
| Table Hold Down |
Vacuum & "T" Slot |
| Spindle Mfg |
HQD Spindle |
| Spindle Speed |
18,000 RPM |
| Spindle Motor |
4.69 HP |
| Collet |
ER25 Collet |
| Control |
Mach 3 Controller System w/ Ethernet Interface |
| Power Requirement |
380V - 3 Ph - 50/60 Hz |
Features
|
(4) Pieces of Collets |

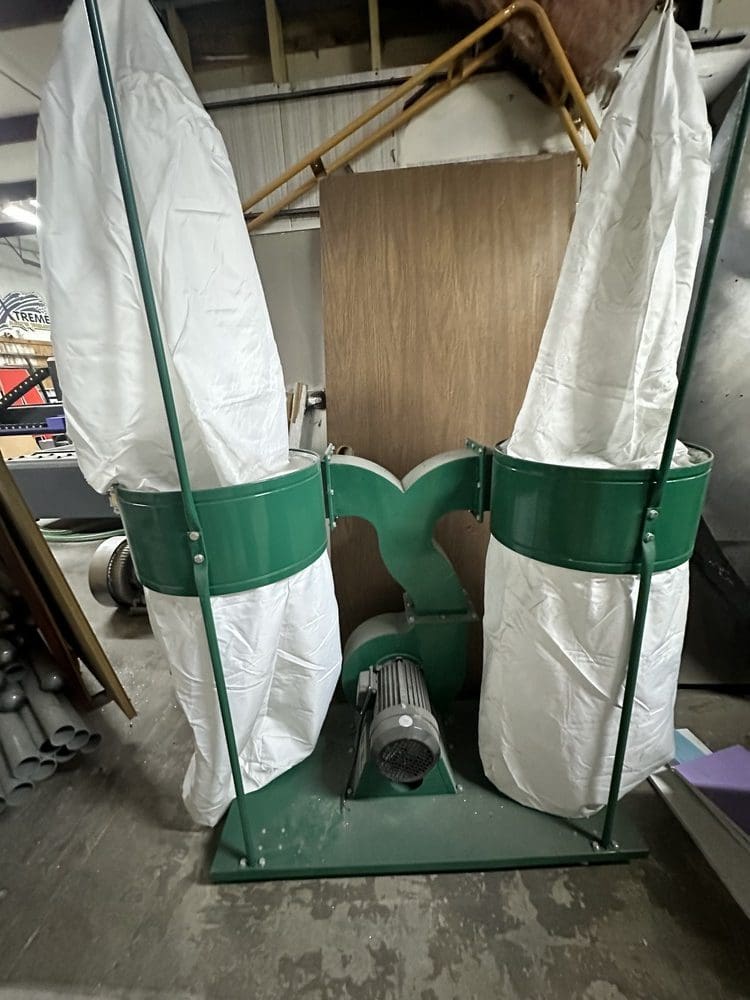

Dual Bag Dust Collector (4 HP) |
|
Filter |
Fuling Inverter |
|

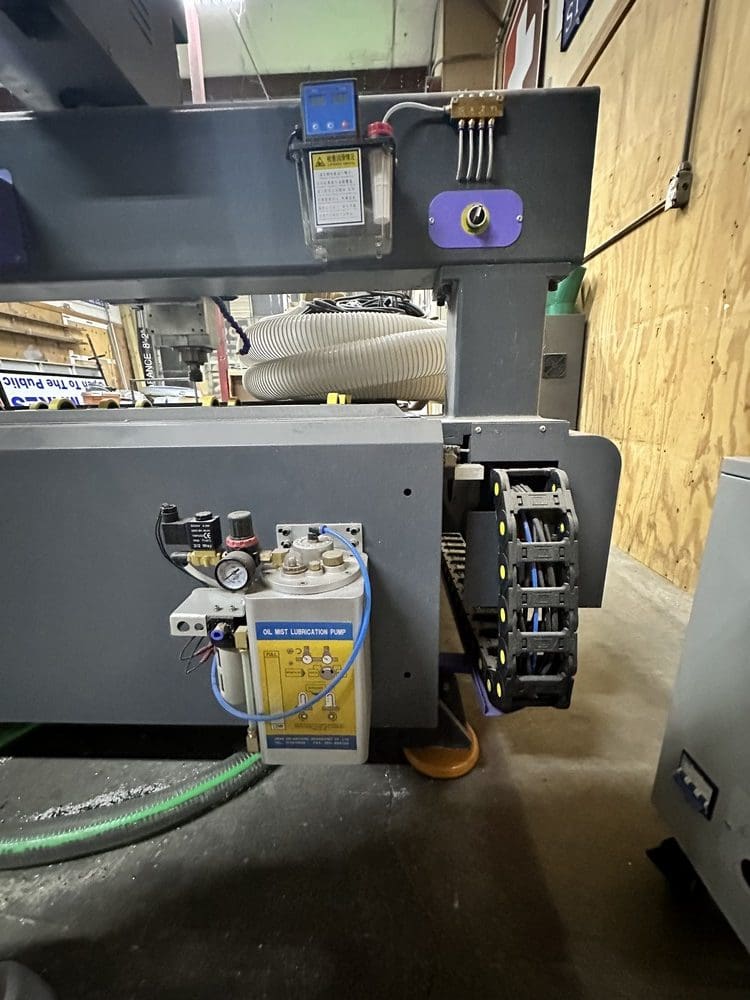

Mist Oil Lubrication |

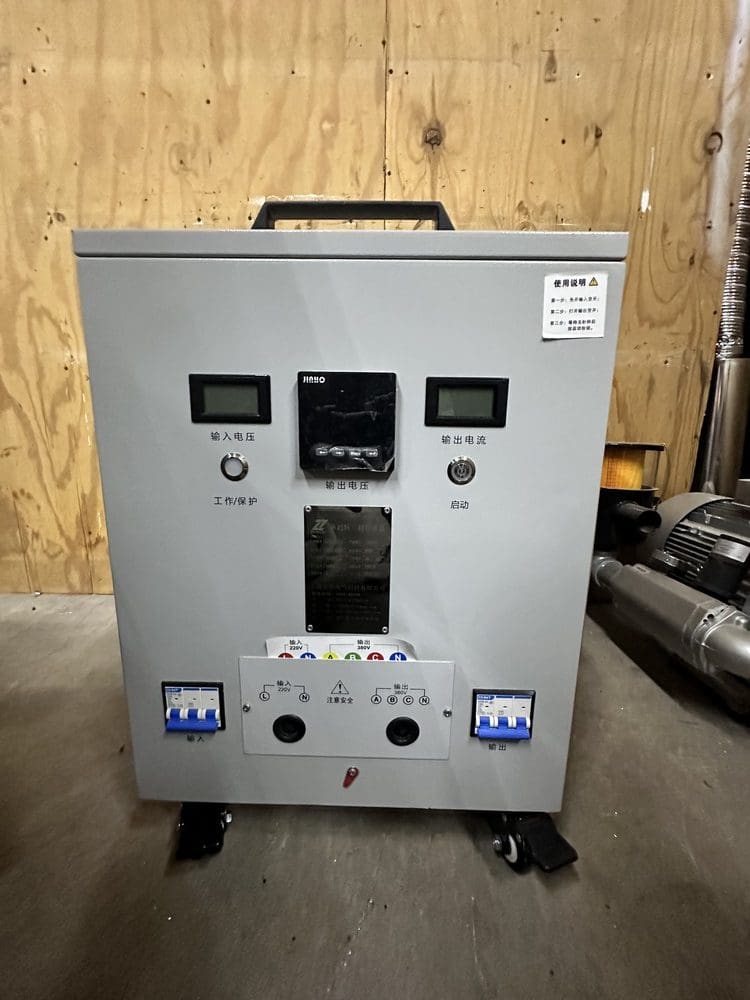

Power Inverter (Model DZW-30KVA) Single Phase 220V to Three Phase 380V Inverter- 60Hz Frequency Passivated Sine Wave |
|
Vacuum Pump (7.38 HP) |
Tool Sensor |
|
Auto Oil Lubrication System |
