Year |
2007 |
|---|---|
Make |
RPT |
Model |
ROBOTRIM |
Description |
CNC Router |
Reference # |
8071768 |
Price |
Activate Pricing |

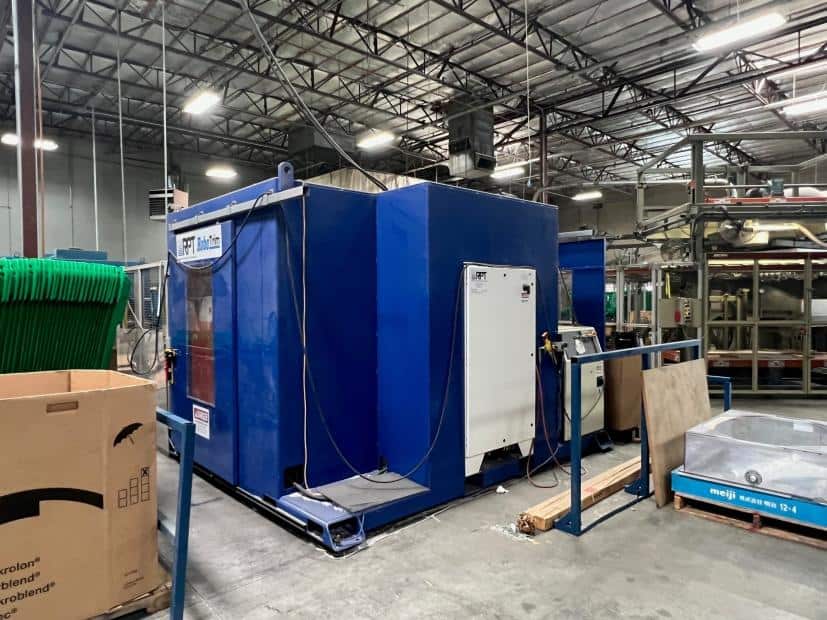

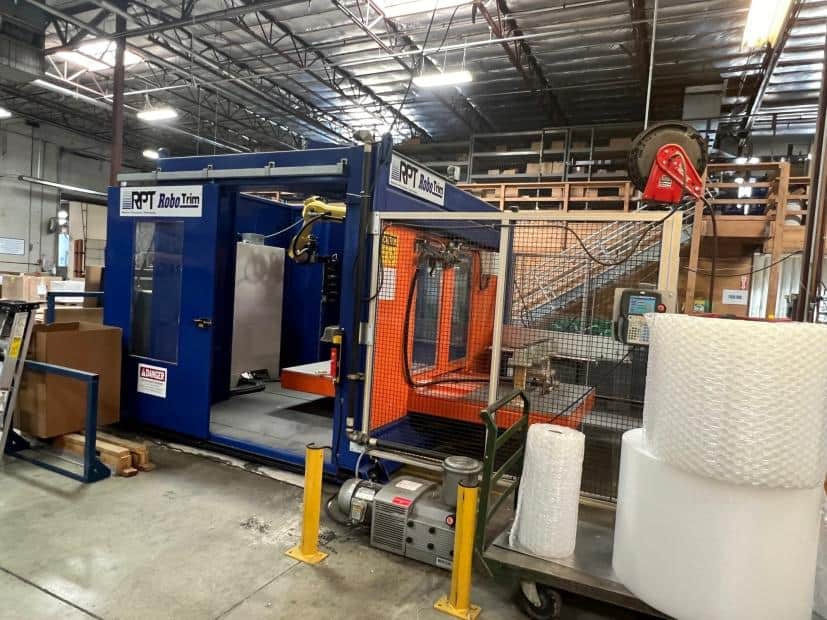

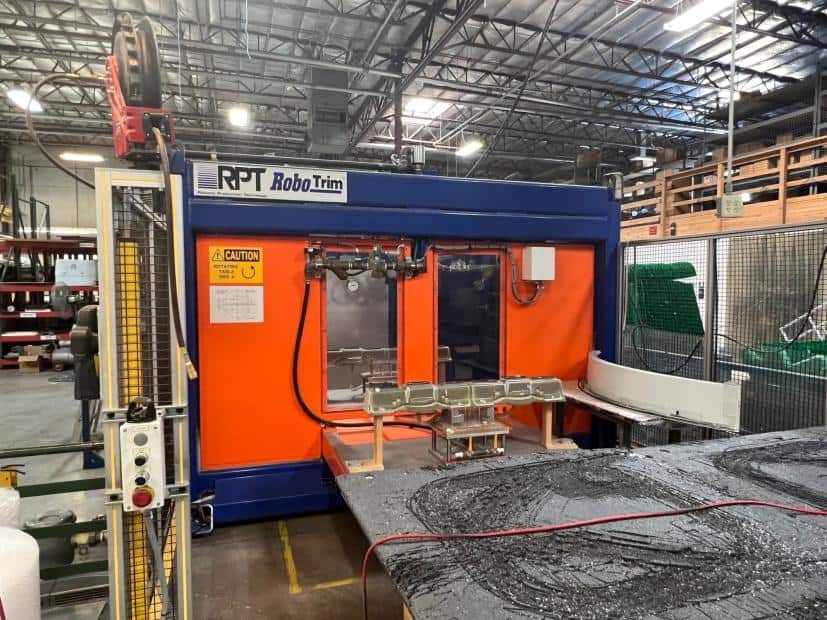

Used RPT ROBOTRIM (2007) CNC Router for Sale. This unit is a six-axis robotic arm trimming station built around a Fanuc M-16iB-20 robot, configured and optimized by RPT for improved path capability and faster cycle times. It carries a Colombo 3 HP, 24,000 RPM auto tool changing spindle with a six-position tool holding rack and tool length measurement, a 110 lb payload, and 55″ to clearance work area. Control is a remote B-size R-J3iB controller with teach pendant and iPendant with 10m cable. Equipped with a Becker vacuum pump, 180 degree turntable with two 36″ x 60″ fixture stations, servo-controlled rotating table, two servo positioner mounting locations, FANUC auxiliary axis servo package, collision guard software, gage guarding, and electrical controls. Can be seen under power for an inspection. See more CNC routers, Activate Pricing, or Request a Quote.
Specifications
| Type Of Router |
(6) Axis Robotic Arm Trimming Station |
|---|---|
| Number of Axis |
6 |
| Table Width |
36" |
| Table Length |
60" |
| Spindle Mfg |
Colombo |
| Spindle Horsepower |

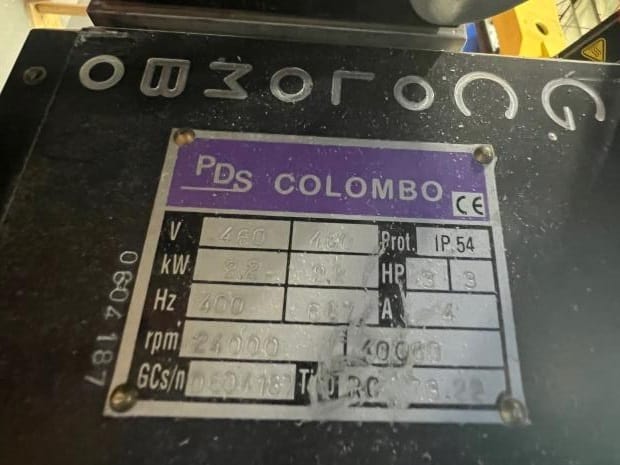

3 HP @ 24,000 RPM Auto Tool Changing Spindle |
| Payload |
110 Lbs. |
| Tool Changer |

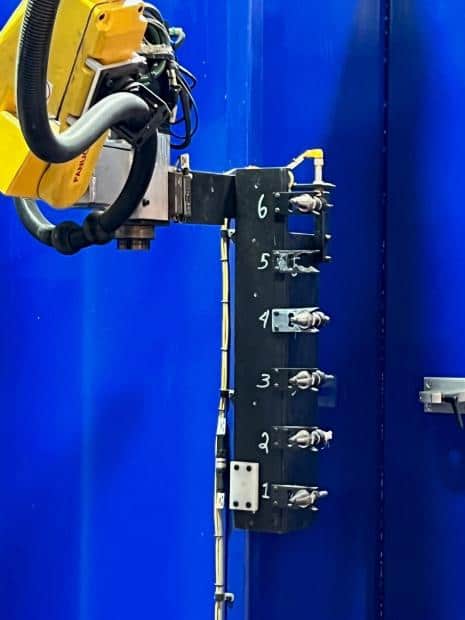

(6) Position Tool Holding Rack with Tool Length Measurement |
| To clearance work area |
55" |
| Control |

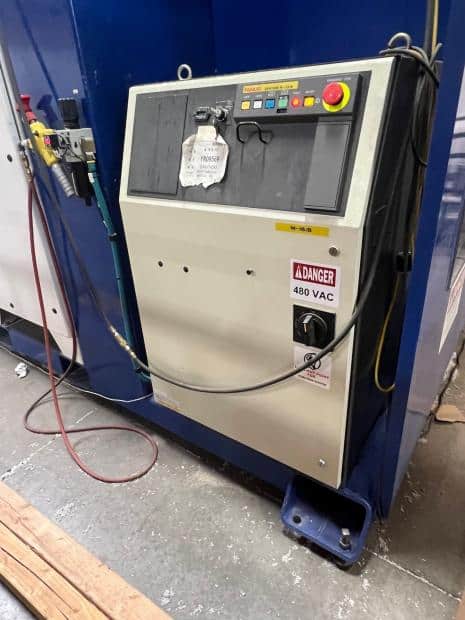

Remote B-Size R-J3ib Controller with Teach Pendant |
| Note |
Fanuc M-16iB-20 robot has been configured and optimized by RPT for improved path capability and faster cycle times. Pair of servo-controlled part positioners located on a main turntable for processing parts. Trimming System consists of one mounted robot. |
Features
|

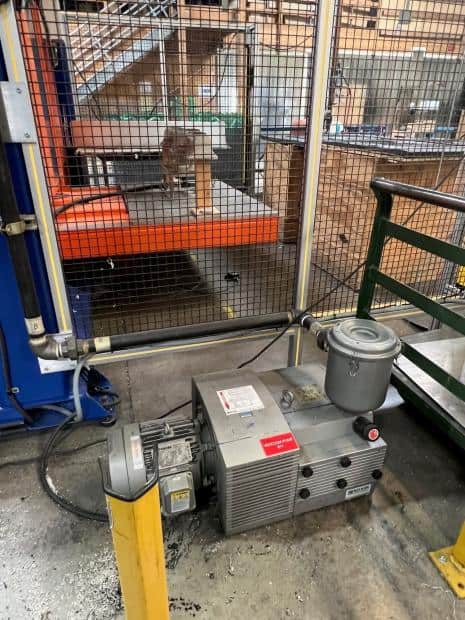

Becker Vacuum Pump |
(2) Servo Positioner Mounting Locations |
|

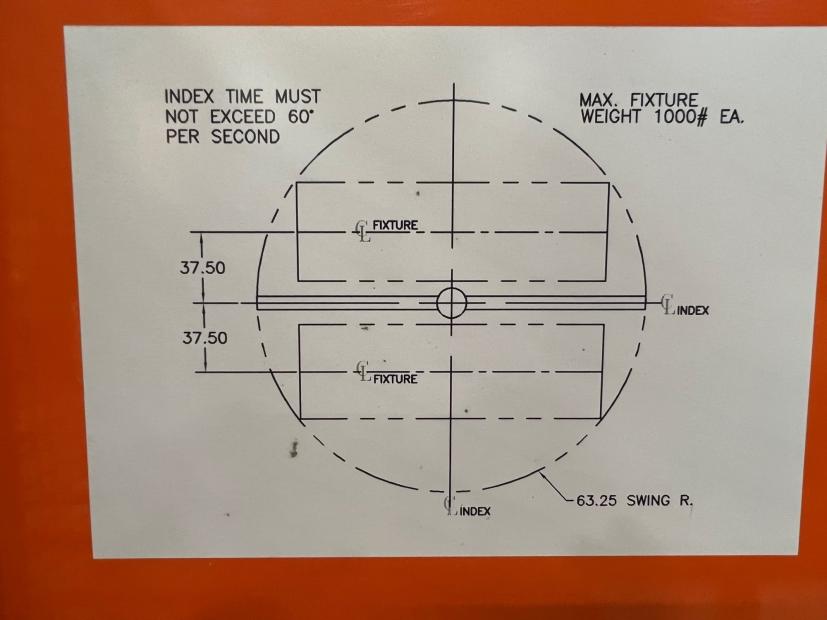

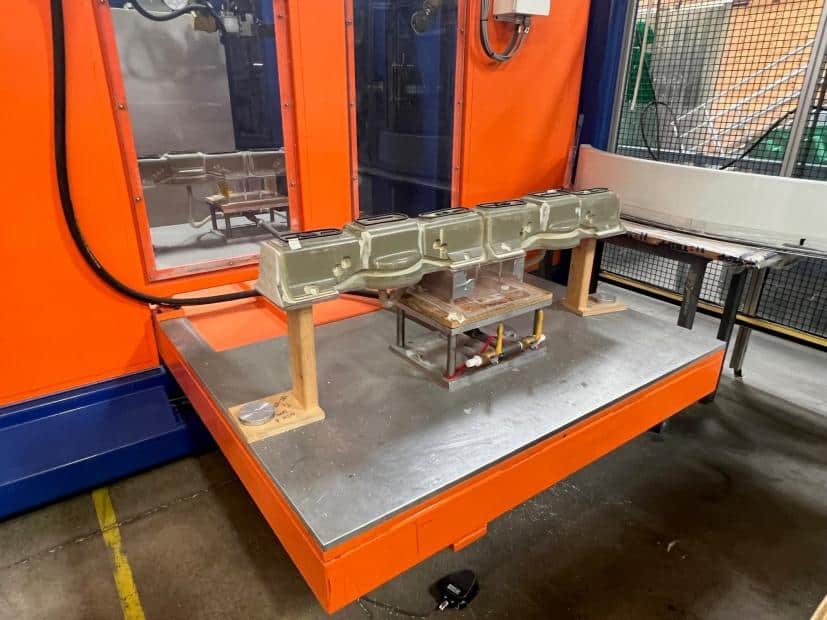

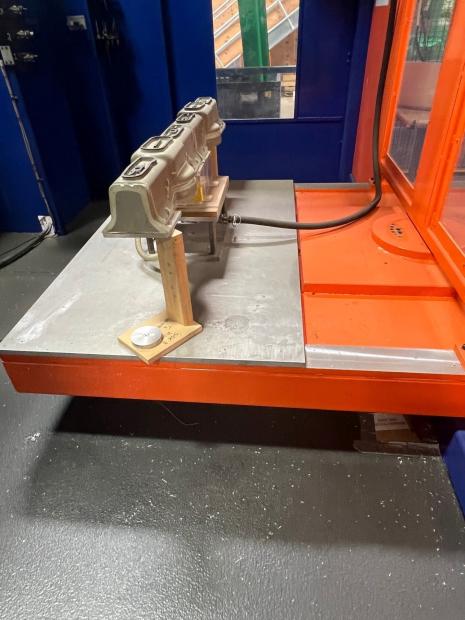

180 Degree Turntable with Two Fixture Stations 36" X 60" Tables |
Servo-Controlled Rotating Table and Robot Mounting Structure |
|
Software Package and Electrical Controls |
(1) Turntable For Positioner Mounting - (2) Position 180 Deg. Indexing Motion |
|
Collision Guard Software |
FANUC Aux. Axis Servo Package |
|

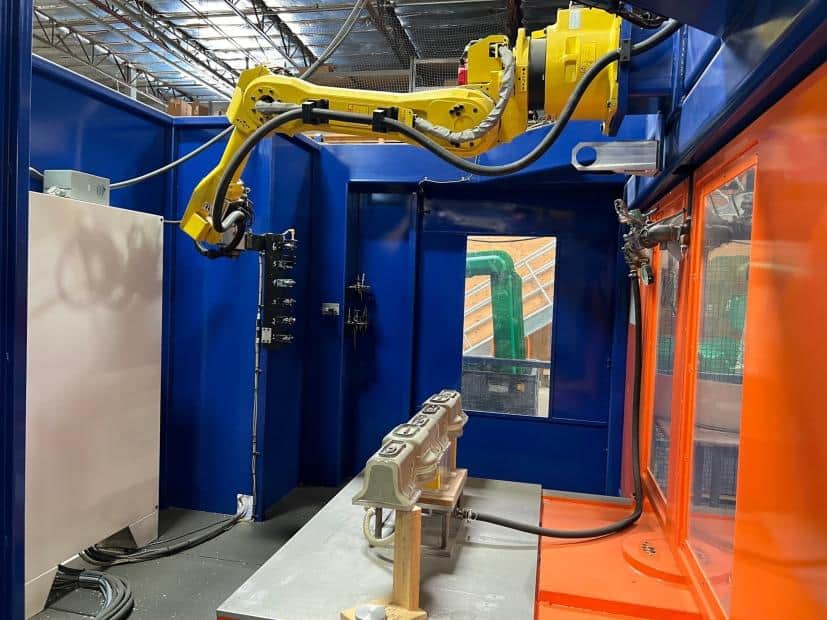

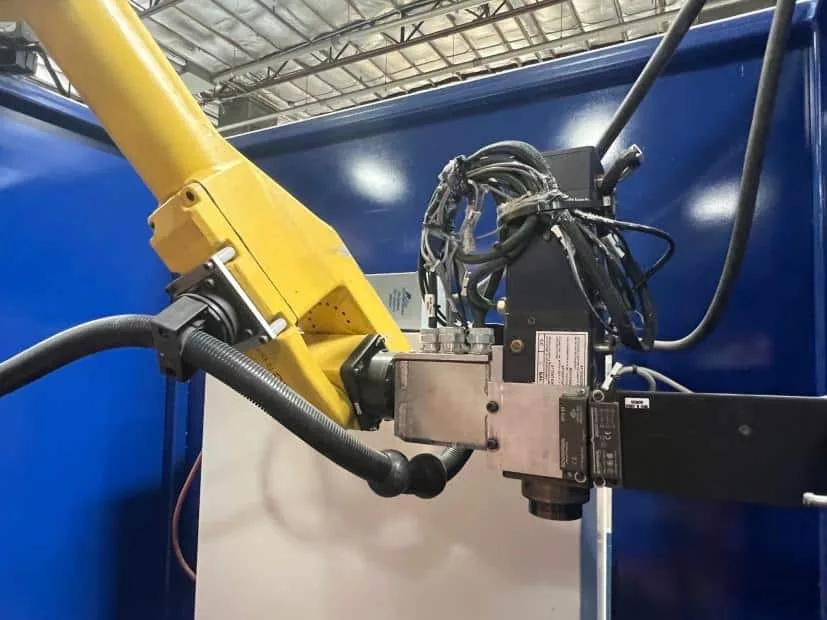

Fanuc M-16ib-20 6-Axis Robots with Router Spindle |
Gage Guarding |
|

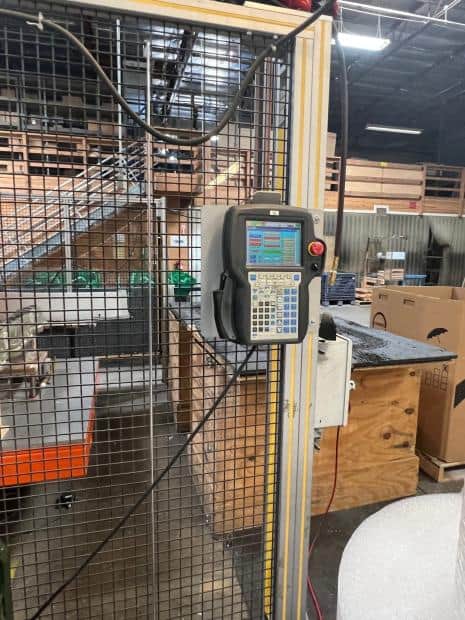

iPendant with 10m Cable |
