Year |
2008 |
|---|---|
Make |
Komo |
Model |
Solution 510 |
Description |
CNC Router |
Reference # |
8079315 |
Price |
Activate Pricing |

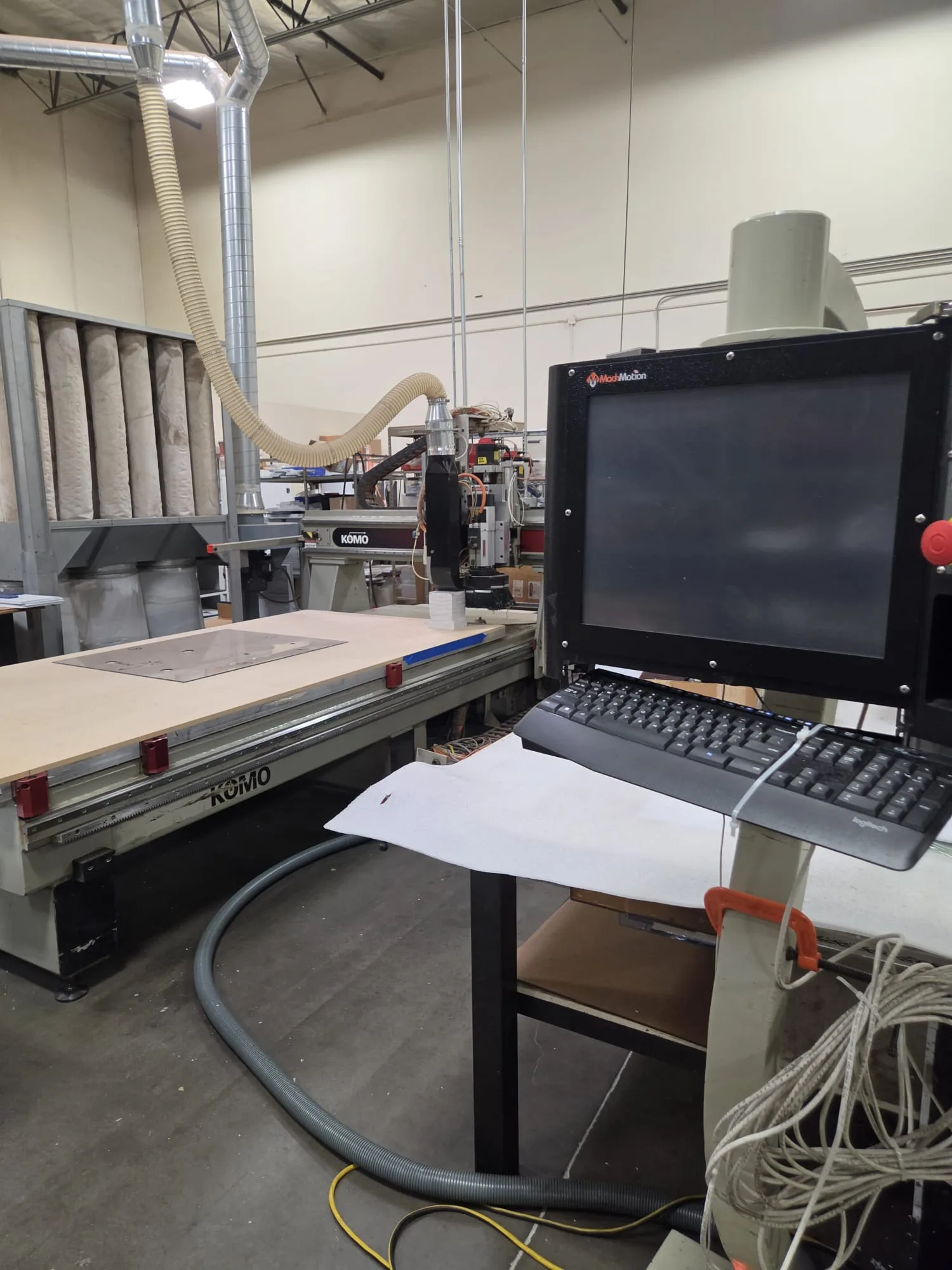

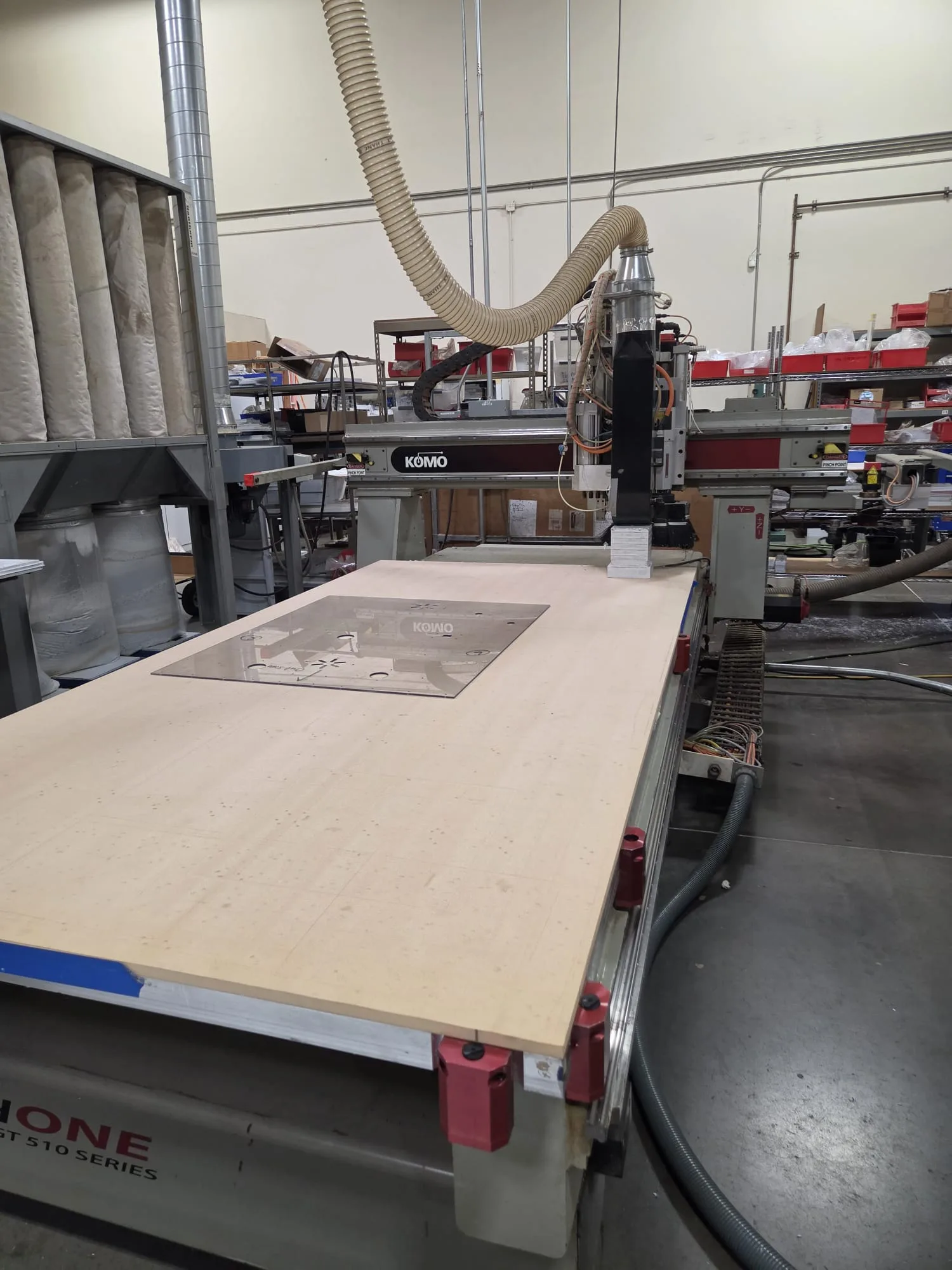

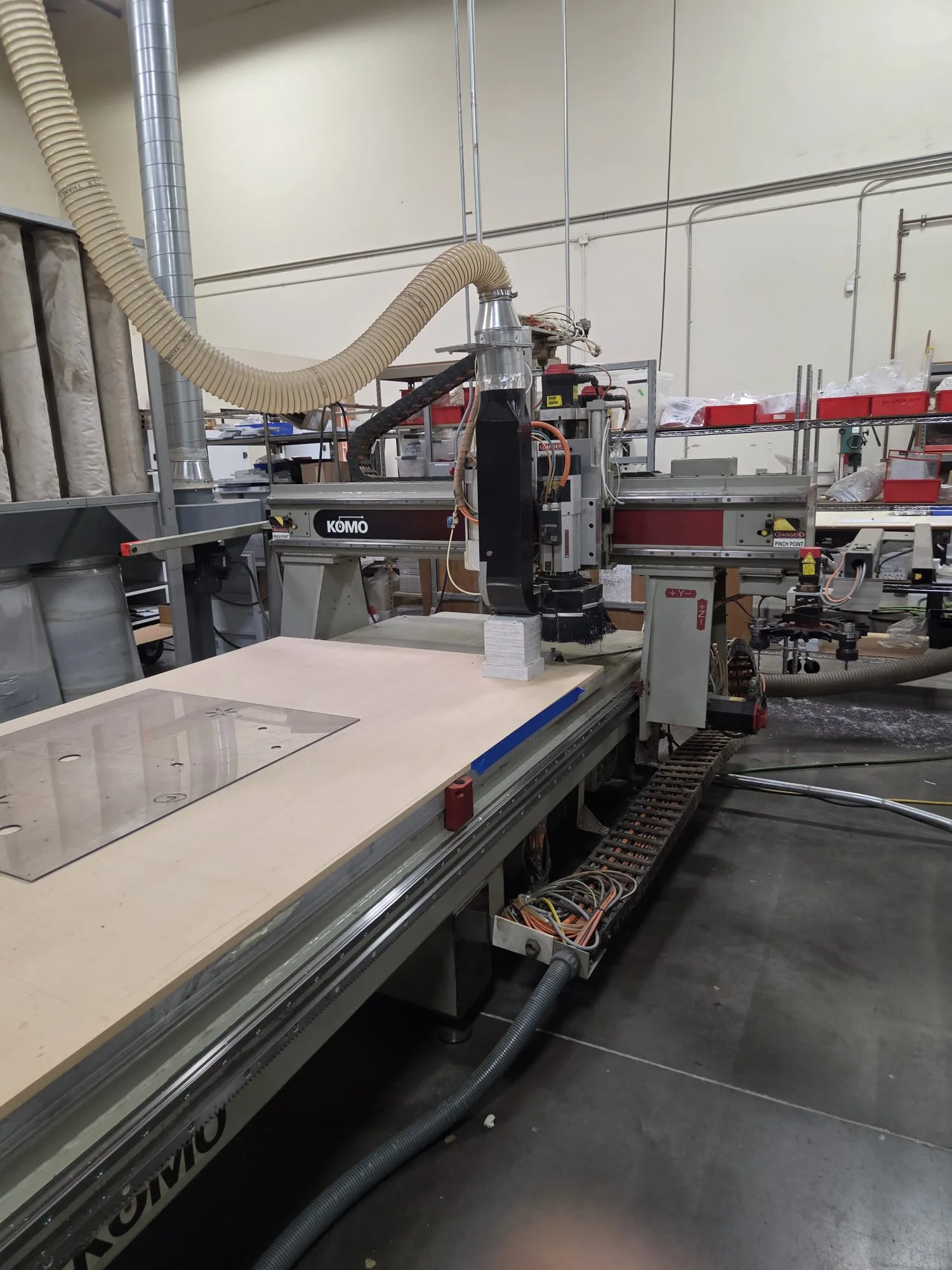

Used Komo Solution 510 (2008) CNC Router for Sale. This 3-axis machine has a 60″ x 120″ table with vacuum hold down across 2 vacuum zones, and 6″ of Z-axis travel. The 18 HP spindle runs to 24,000 RPM and is served by a (10) position ATC. Control is a Fanuc controller, recently installed at a cost of $15,000.00. Electrical requirements are 480v, 3 Ph, 50 Amps. Equipped with a Quincy 25 HP vacuum pump and a probe, and showing 4600 hours. The router is under power and can be seen running for an inspection. See it alongside our other used CNC routers, then Activate Pricing or use the Inquire Now button to reach us with your questions.
Specifications
| Number of Axis |
3 |
|---|---|
| Table Width |
60" |
| Table Length |
120" |
| Table Hold Down |
Vacuum Hold Down |
| Number of Vacuum Zones |
2 |
| Spindle Speed |
24,000 RPM |
| Spindle Horsepower |
18 HP |
| Z - Axis Travel |
6" |
| Auto Tool Changer |
(10) Position Auto Tool Changer |
| Controller |
Fanuc Controller (Recently Installed-$15,000.00) |
| Electrical Requirements |
480v, 3 Ph, 50 Amps |
Features
|
Includes Quincy 25 HP Vac. Pump |

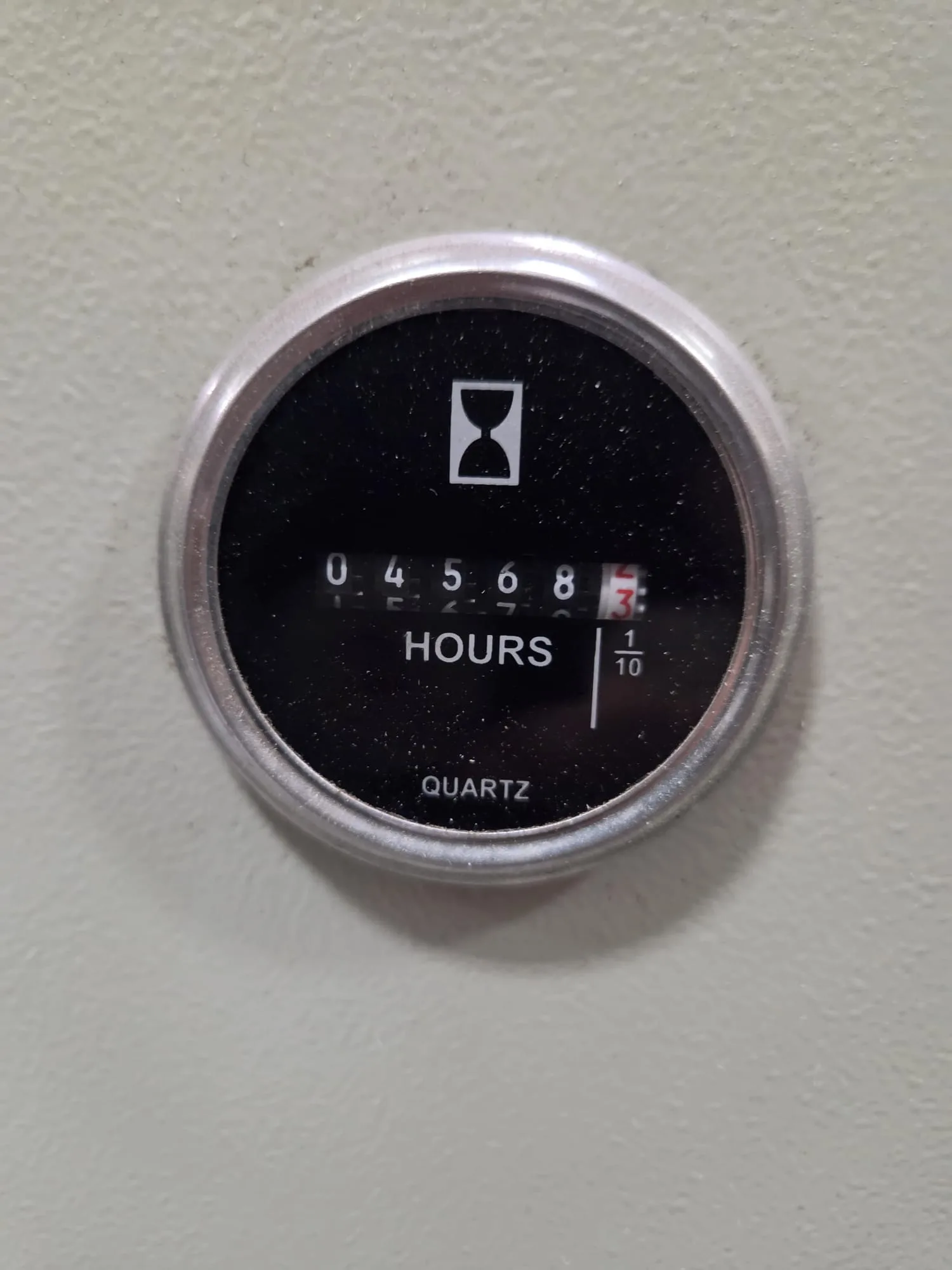

Under Power And Only "4600 Hours" |
|
Probe |
