Year |
2000 |
|---|---|
Make |
Anderson |
Model |
Stratos SUP |
Description |
CNC Router |
Reference # |
8078888 |
Price |
Activate Pricing |

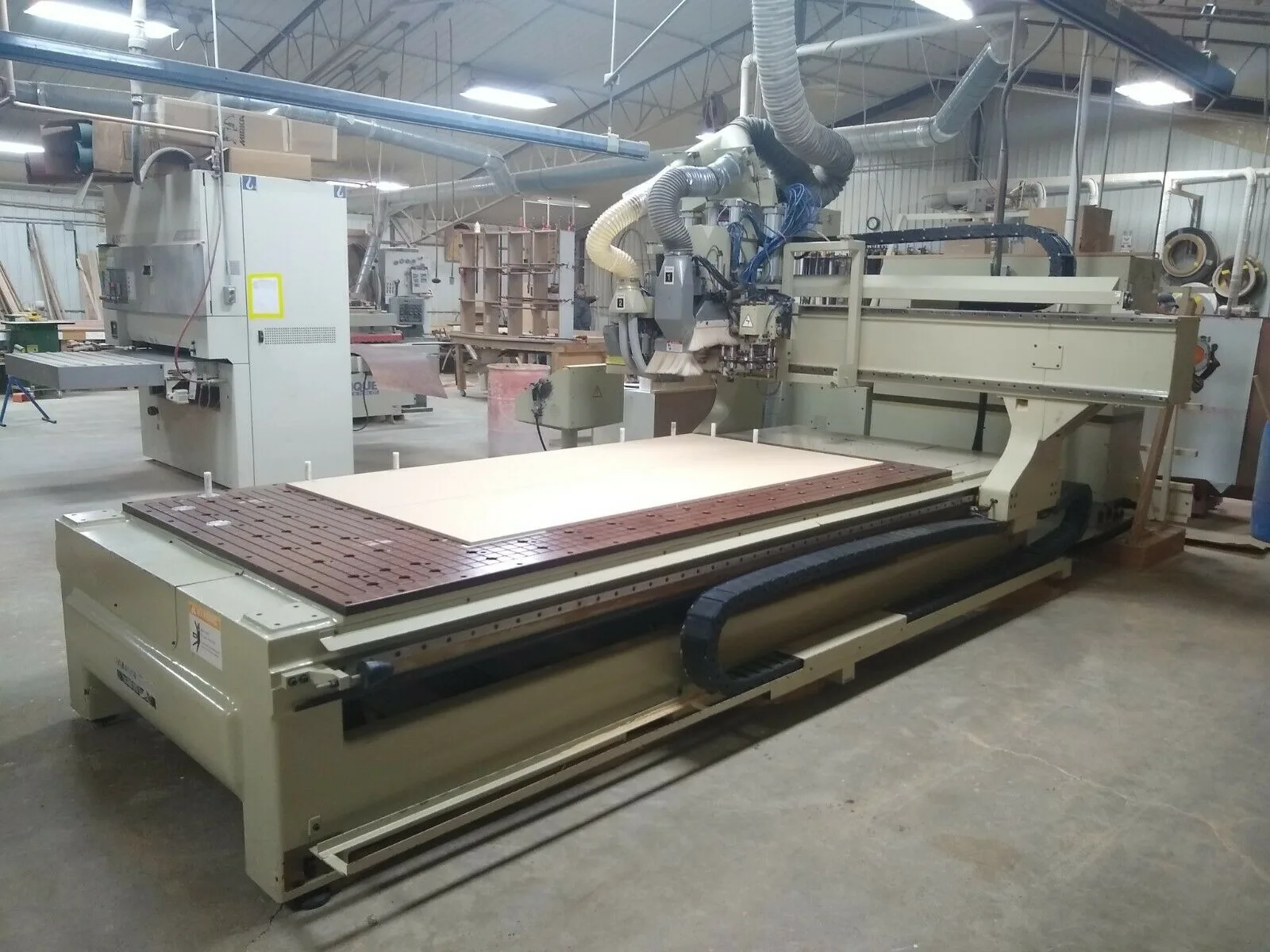

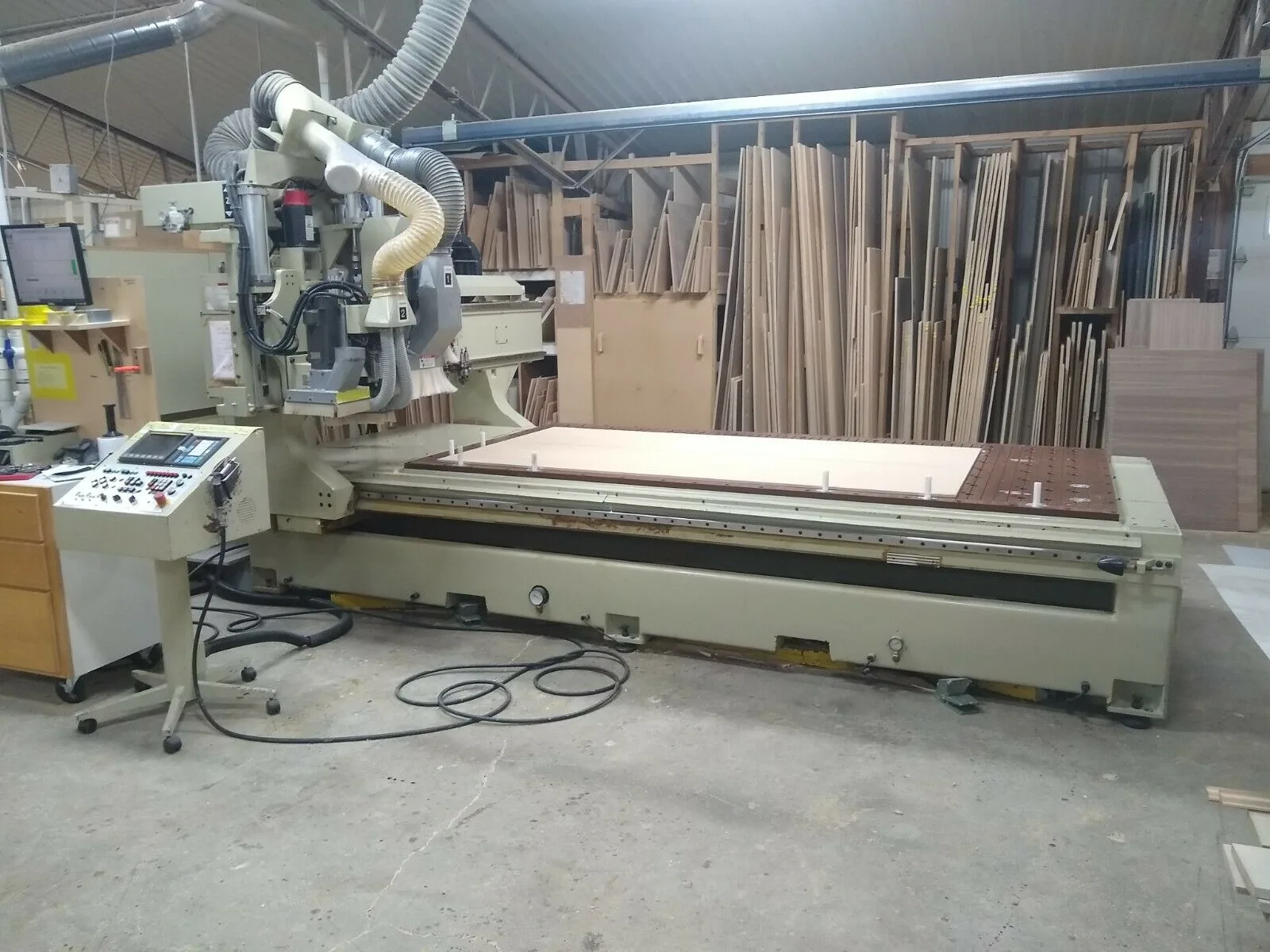

Used Anderson Stratos SUP (2000) CNC Router for Sale. This 3 axis CNC router has a 60″ x 120″ table with vacuum hold down and 8.0″ of Z-axis travel. It is fitted with a 10 HP spindle rated to 18,000 RPM, an ISO-30 taper, an 8-position carousel style ATC, and a 9 spindle boring block, all run from a Fanuc 0M-C control with a 9″ CRT screen display and RS-232 interface housed in a separate free-standing control cabinet. Also included are a 9 HP Becker VTLF 250 vacuum pump, a custom dust collection shoe that allows ATC operation, DNC drip-feeding hardware (Micro DNC 2D), a variety of ISO-30 toolholders and a tool prep fixture. Power requirements are 220V 3-phase delta, 26 Amp for the vacuum pump and 480VAC 3-phase, 31 Amp for the router. Hours read 4,300 and the machine is currently in operation, so it can be seen under power for an inspection. Request a Quote for details.
Specifications
| Table Width |
60" |
|---|---|
| Table Length |
120" |
| Number of Axis |
3 Axis |
| Spindle Motor |
10 hp Spindle |
| Spindle Speed |
18,000 RPM |
| Tool Changer |

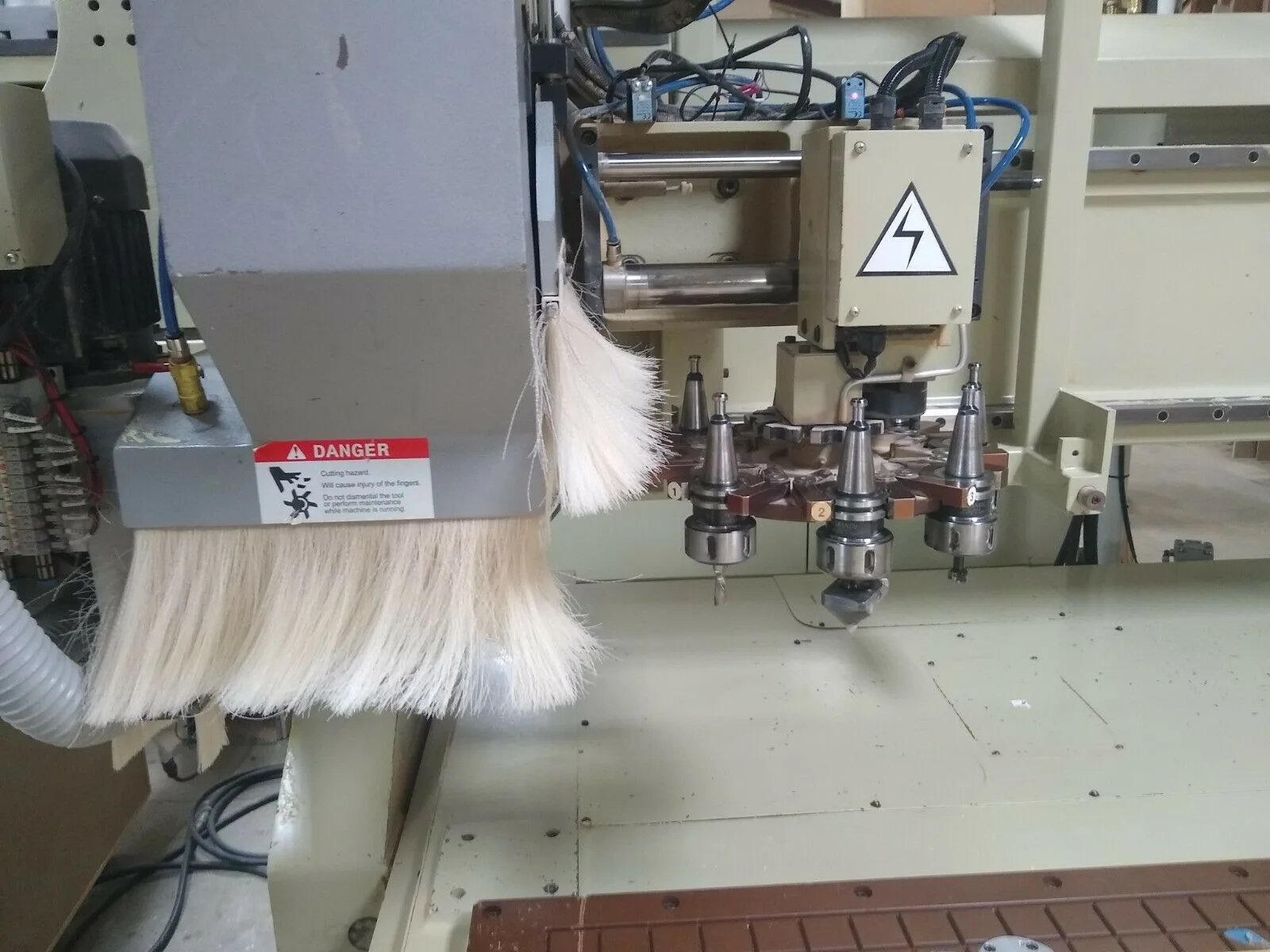

(8) Carousel Style ATC |
| Control |

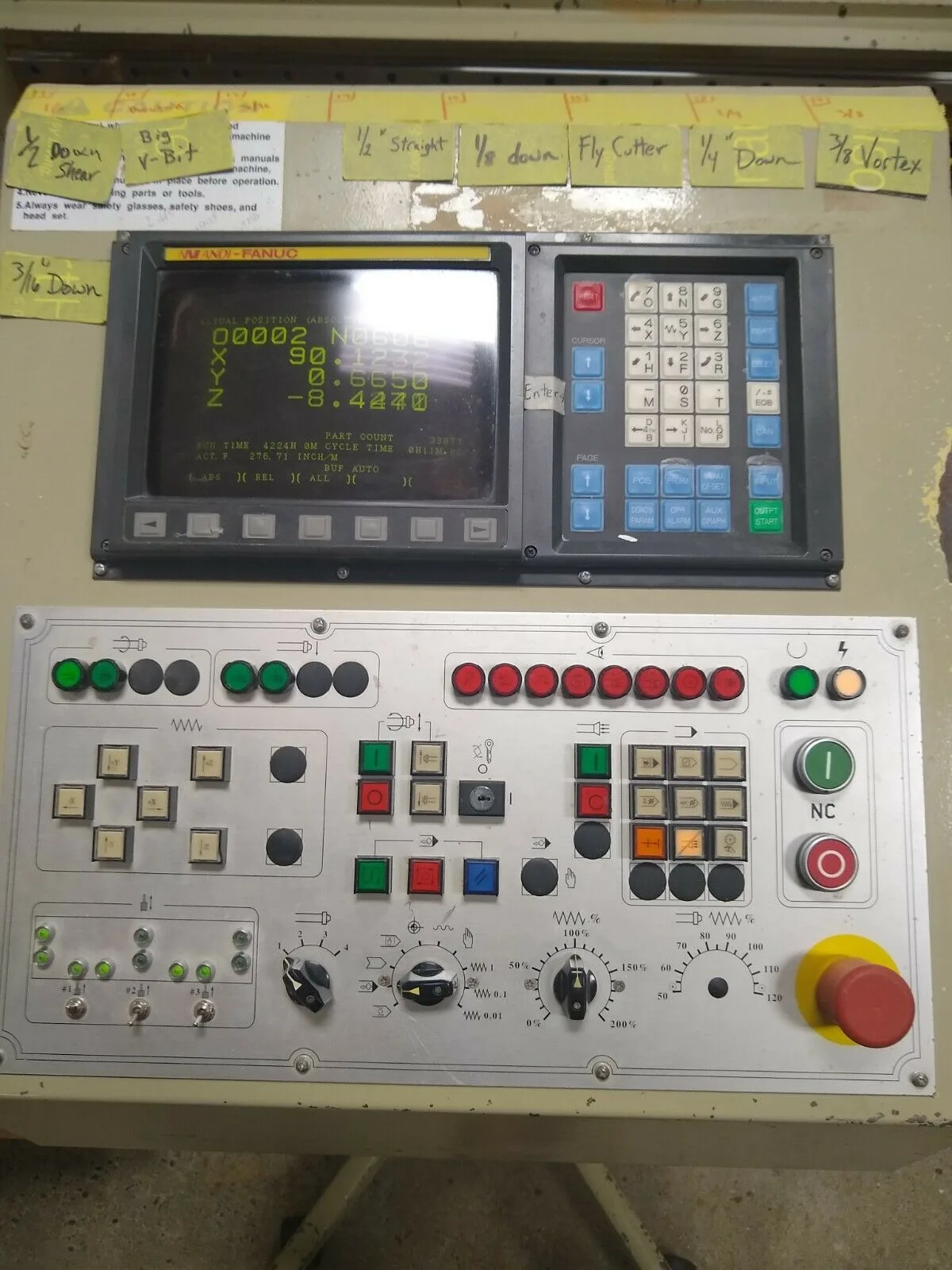

Fanuc 0M-C |
| Table Hold Down |
Vacuum Hold Down |
| Z-Axis Travel |
8.0" |
| Boring Block |
(9) Spindle Boring Block |
| Power Requirement |
480VAC 3-phase, 31 Amp for the Router, 220V 3-phase delta, 26 Amp for the Vacuum Pump |
| Hours |
4,300 hours |
| Taper Size |
ISO-30 |
Features
|

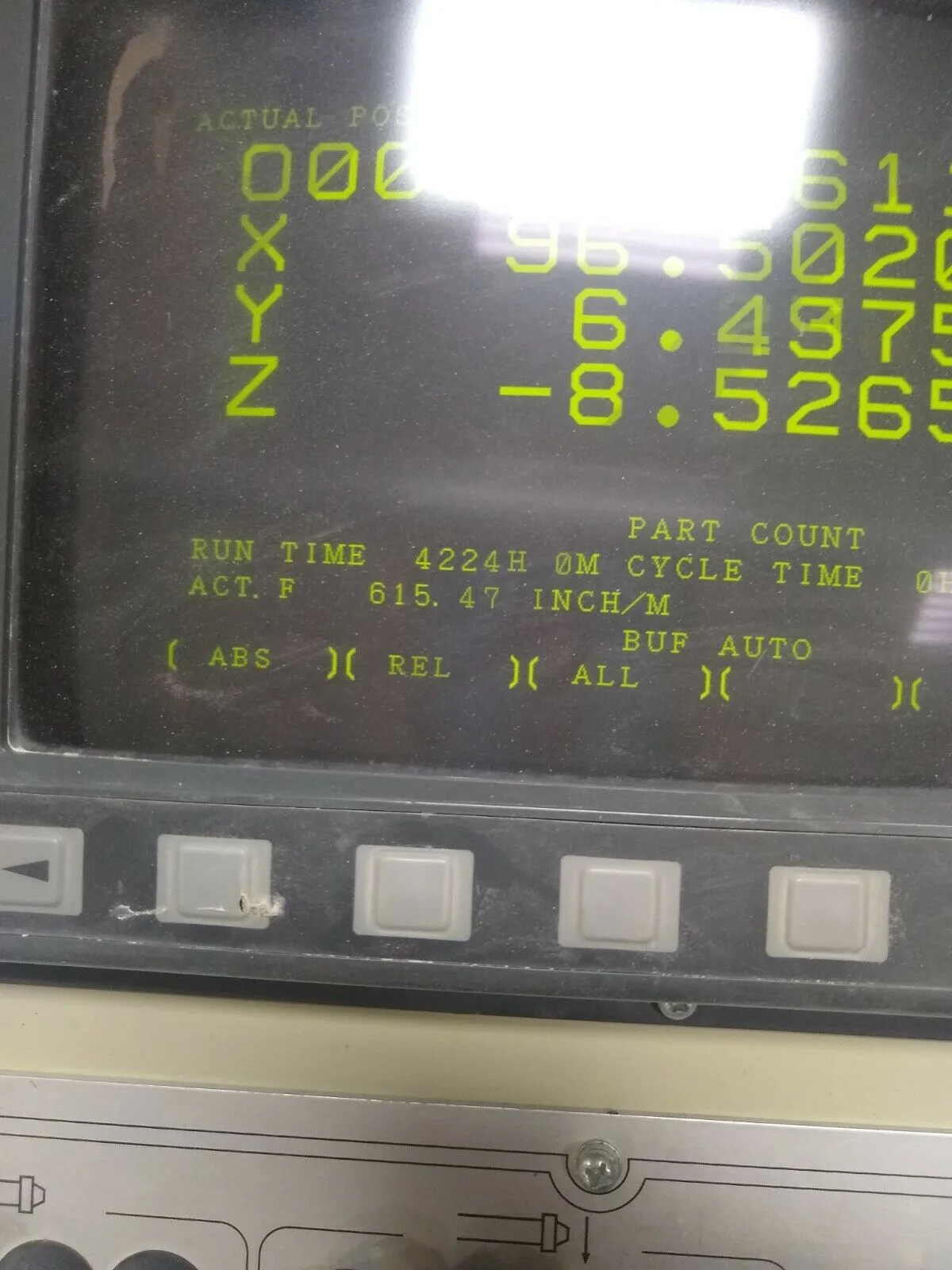

9" CRT Screen Display |
RS-232 interface in separate free-standing control cabinet |
|

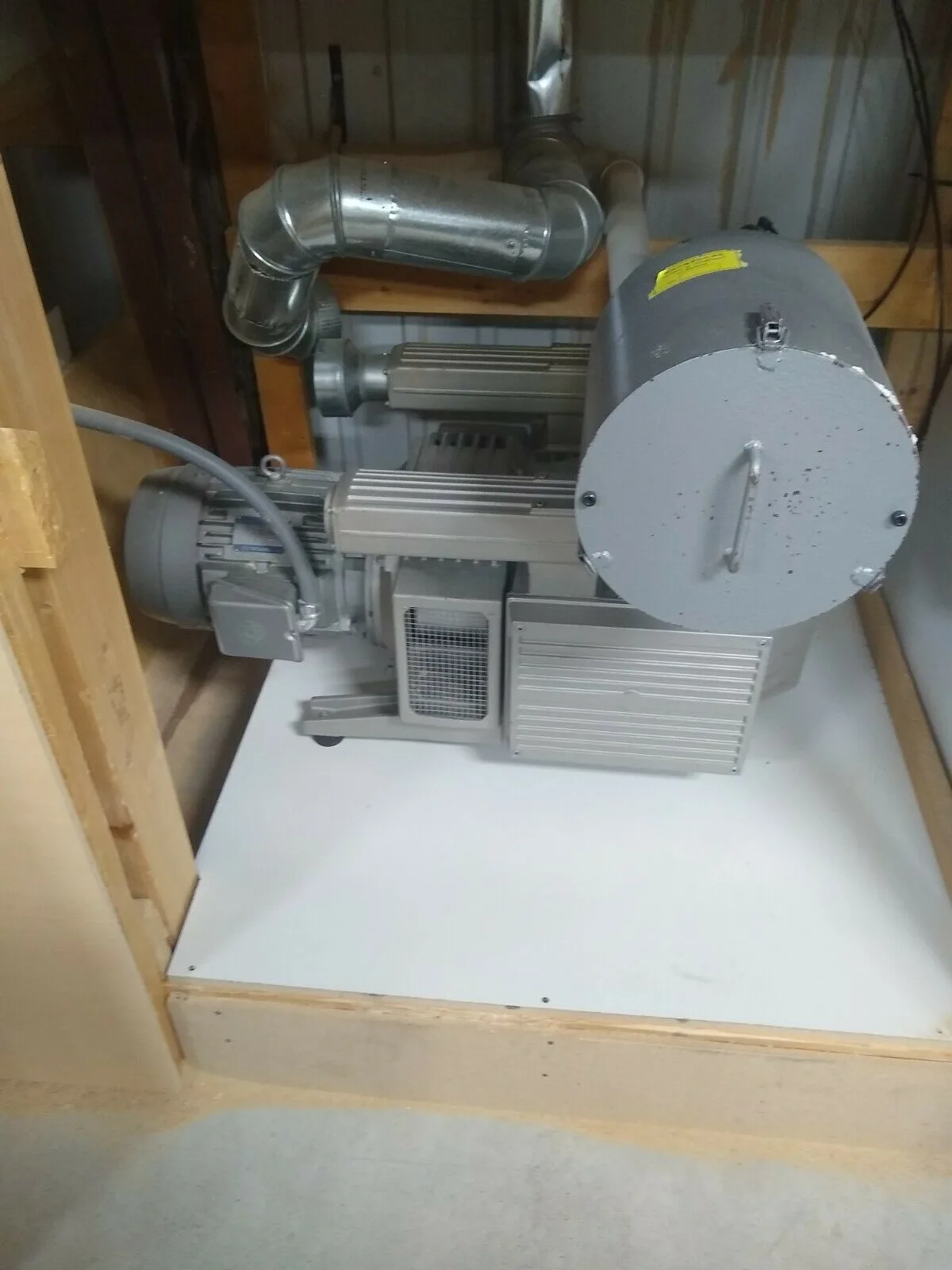

9HP Becker VTLF 250 Vacuum Pump |
Custom dust collection shoe which allows for ATC operation |
|
DNC "Drip-Feeding" Hardware (Micro DNC 2D from dncdevice.com) |
Variety of ISO-30 toolholders and a tool prep fixture |
|
Currently in Operation |
