Year |
2004 |
|---|---|
Make |
Biesse |
Model |
Rover A 3.40 FT |
Description |
CNC Router |
Reference # |
8076534 |
Price |
Activate Pricing |

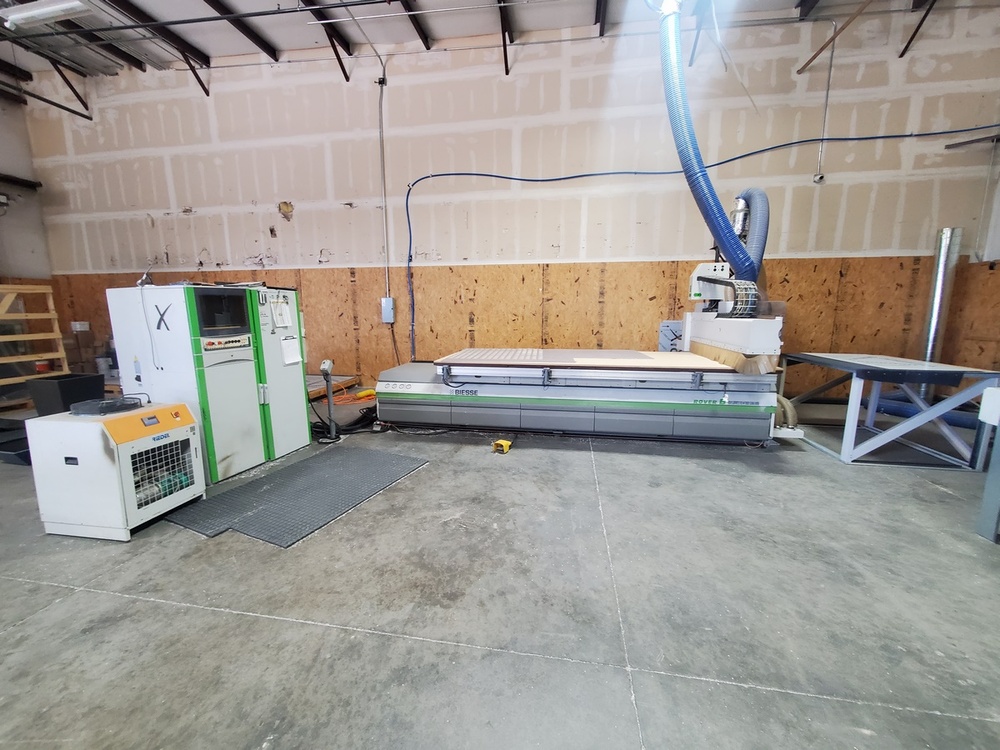

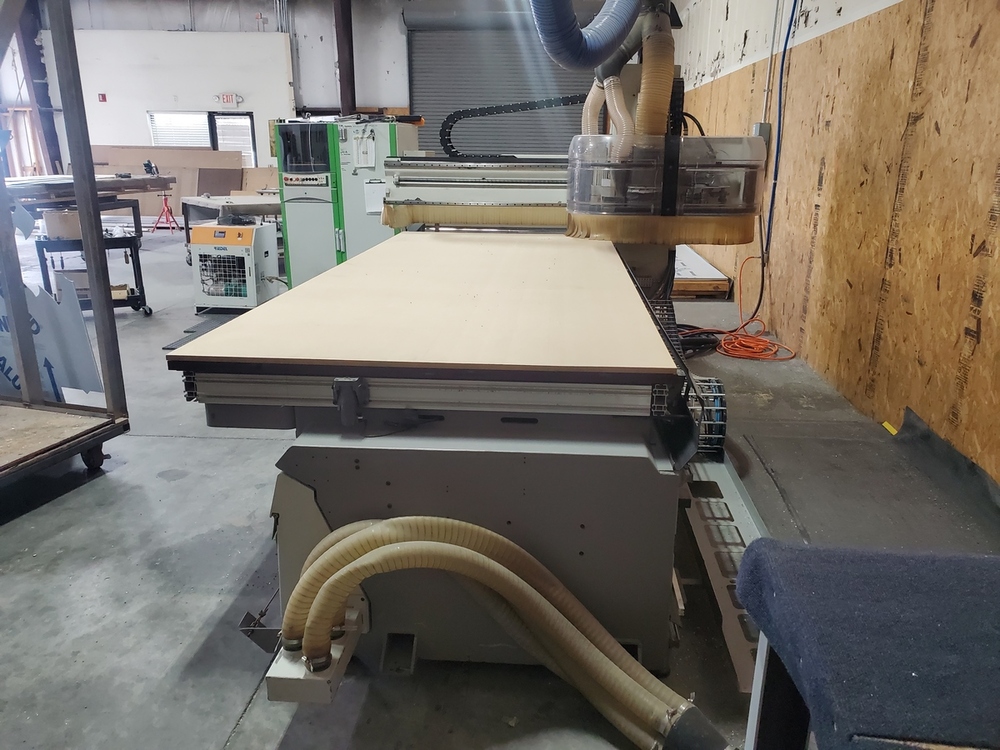

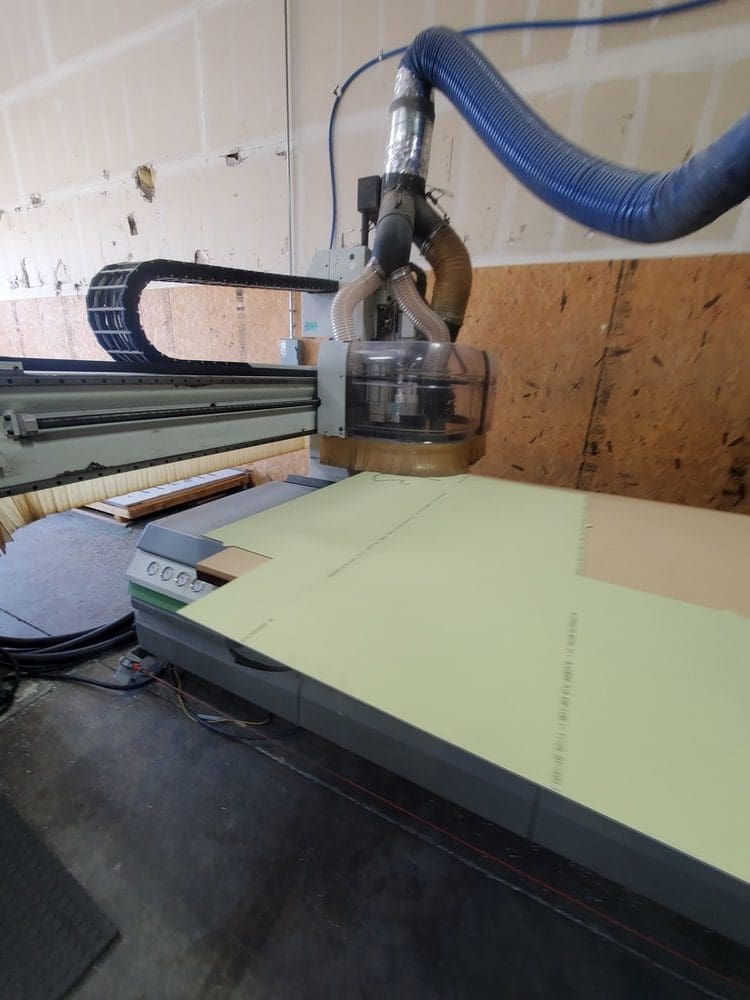

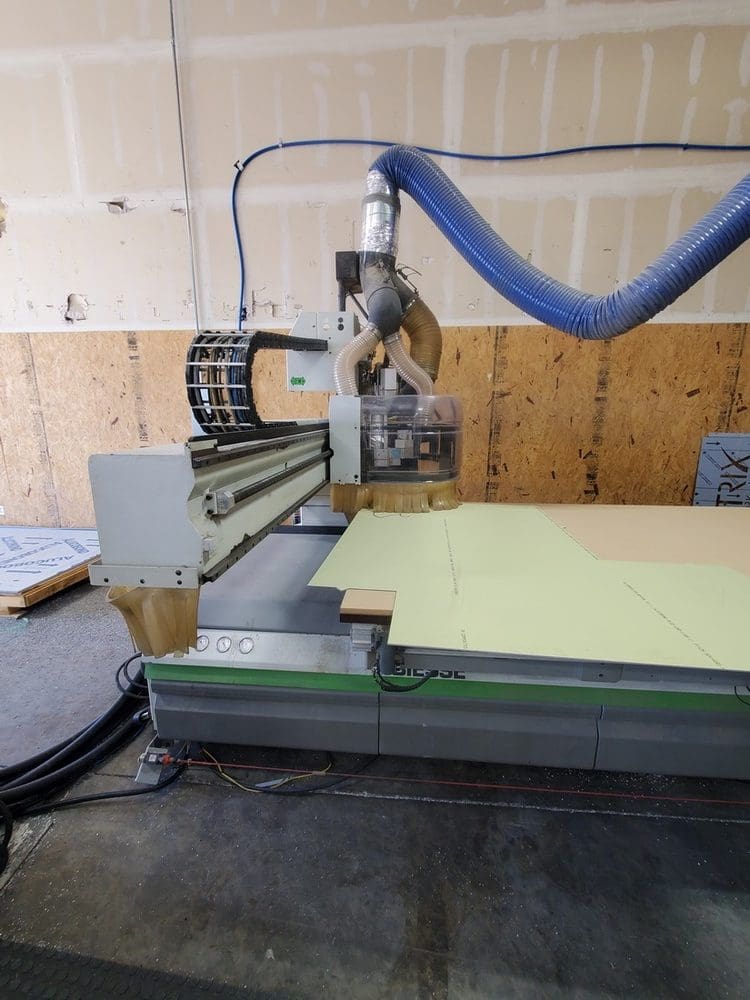

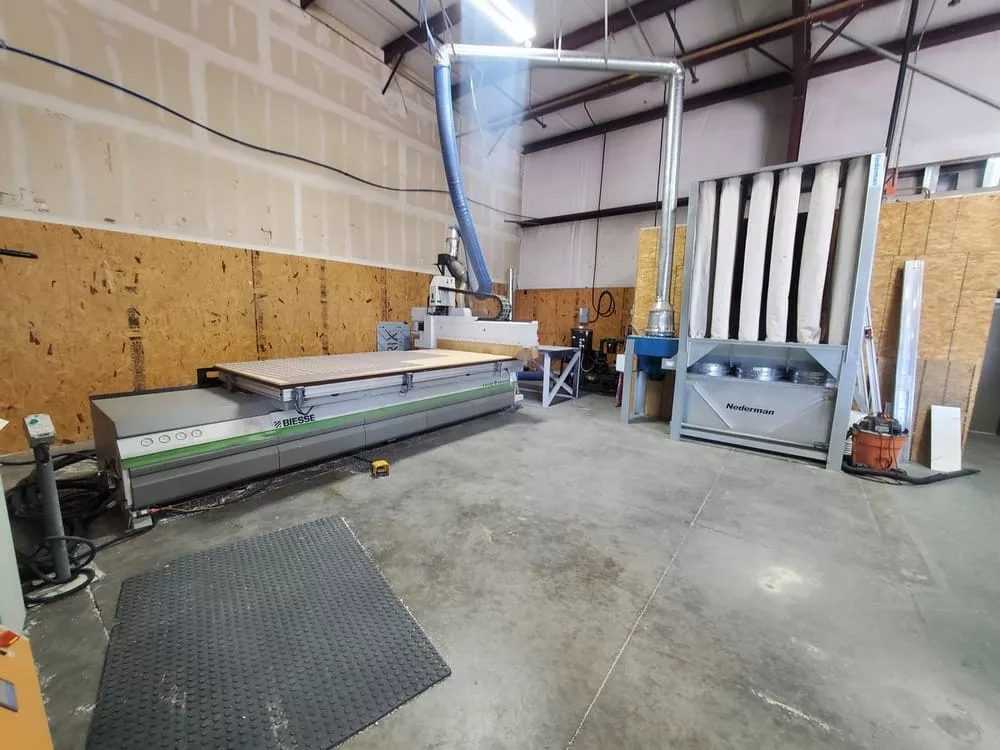

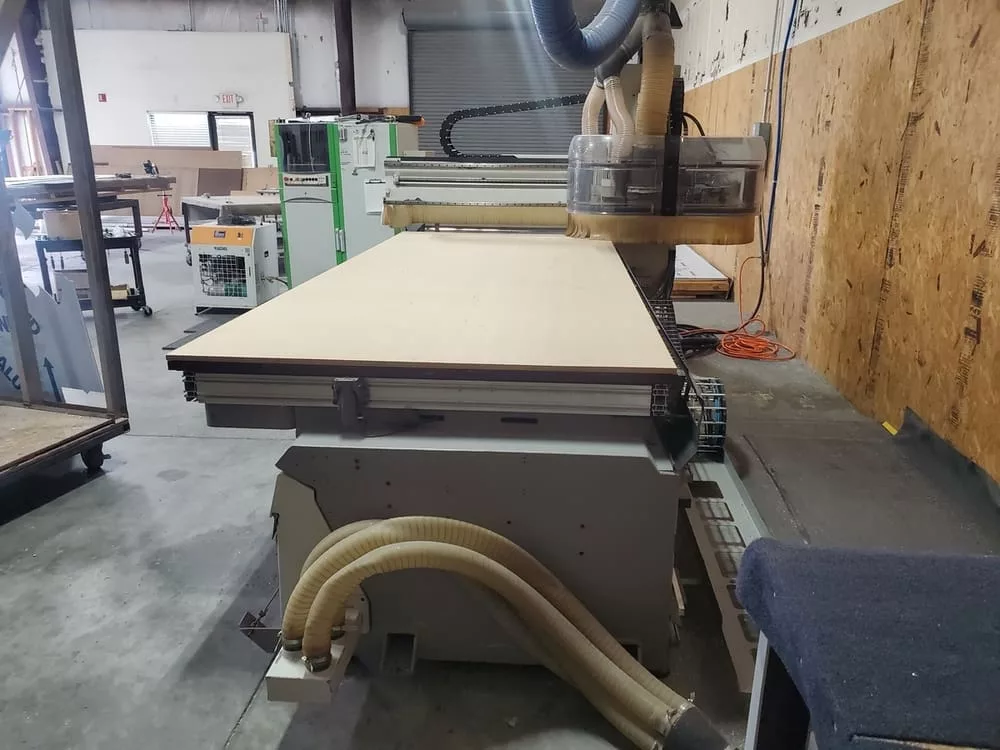

Used Biesse Rover A 3.40 FT (2004) CNC Router for Sale. This 3-axis machine has a 48″ x 144″ table with vacuum hold-down, 145″ of X-axis travel, 61″ of Y-axis travel, and 7″ of Z-axis travel. It runs a single spindle rated at 4,000 RPM with a 2.3 HP spindle motor, and is served by a 10-station tool changer using HSK-F63 tooling. Routing capacity is 61.22″ and drilling capacity is 75″. Control is the NC 1000 Windows-based unit with Biesse Editor software, including DWG and DXF file import capability. The router can be seen under power for an inspection. See it alongside our other used CNC routers, Activate Pricing for figures, and Request a Quote when you are ready.
Specifications
| Table Width |
48" |
|---|---|
| Table Length |
144" |
| Number of Axis |
3 |
| X-Axis Travel |
145" |
| Y-Axis Travel |
61" |
| Z-Axis Travel |
7" |
| Number of Spindles |
1 |
| Spindle Speed |
4,000 RPM |
| Spindle Motor |
2.3 HP |
| Tool Changer |
10 Station |

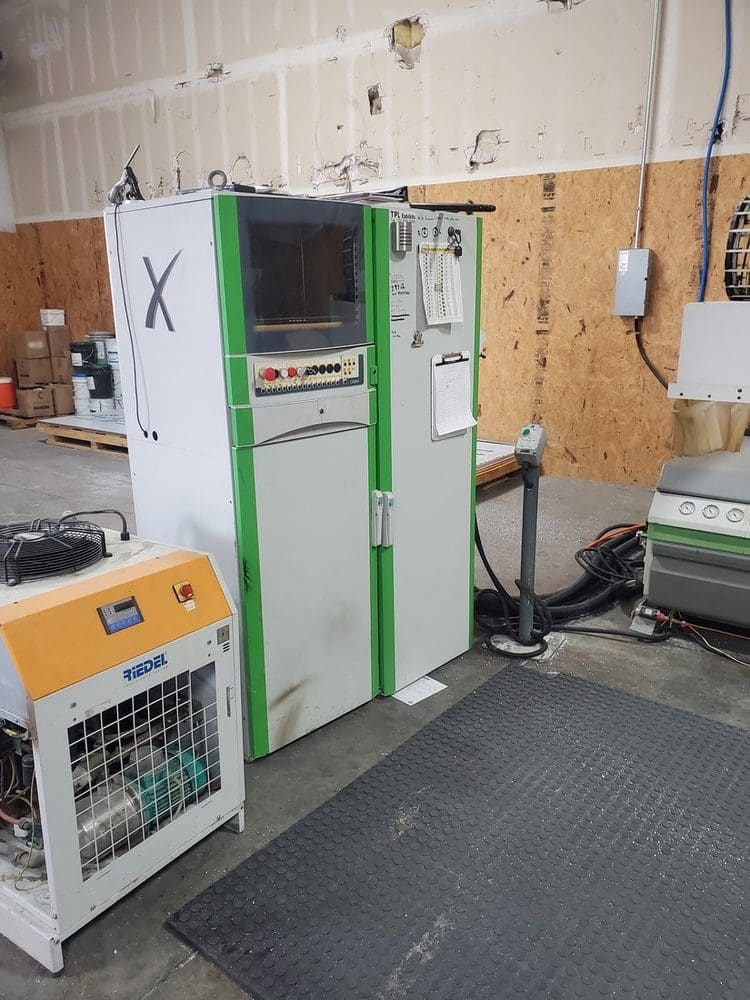

| Control |
NC 1000 Windows Based |
| Software |
Biesse Editor |
| Tooling Type |
HSK-F63 |
| Routing |
61.22" |
| Drilling |
75" |
Features
|
DWG & DXF File Import Capability |

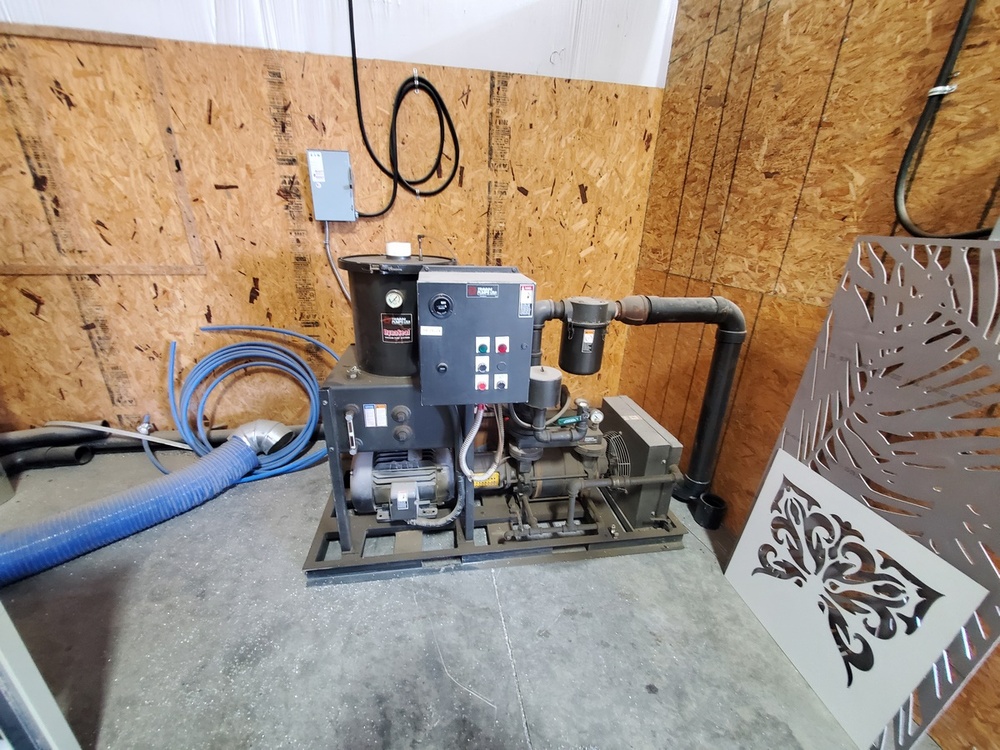

Vacuum Table |
