Year |
2018 |
|---|---|
Make |
AXYZ |
Model |
4008 ATC |
Description |
CNC Router |
Reference # |
8077392 |
Price |
Activate Pricing |

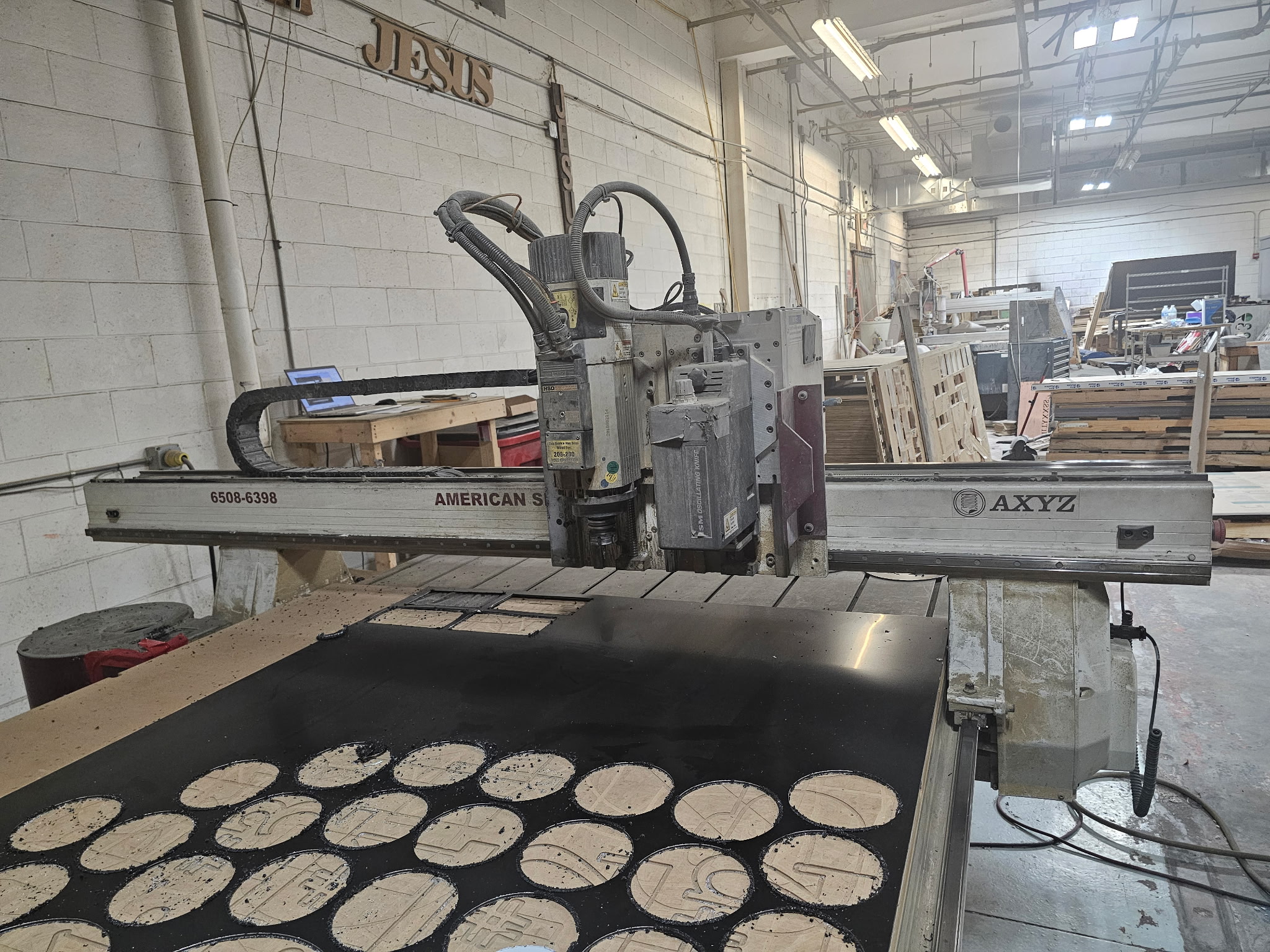

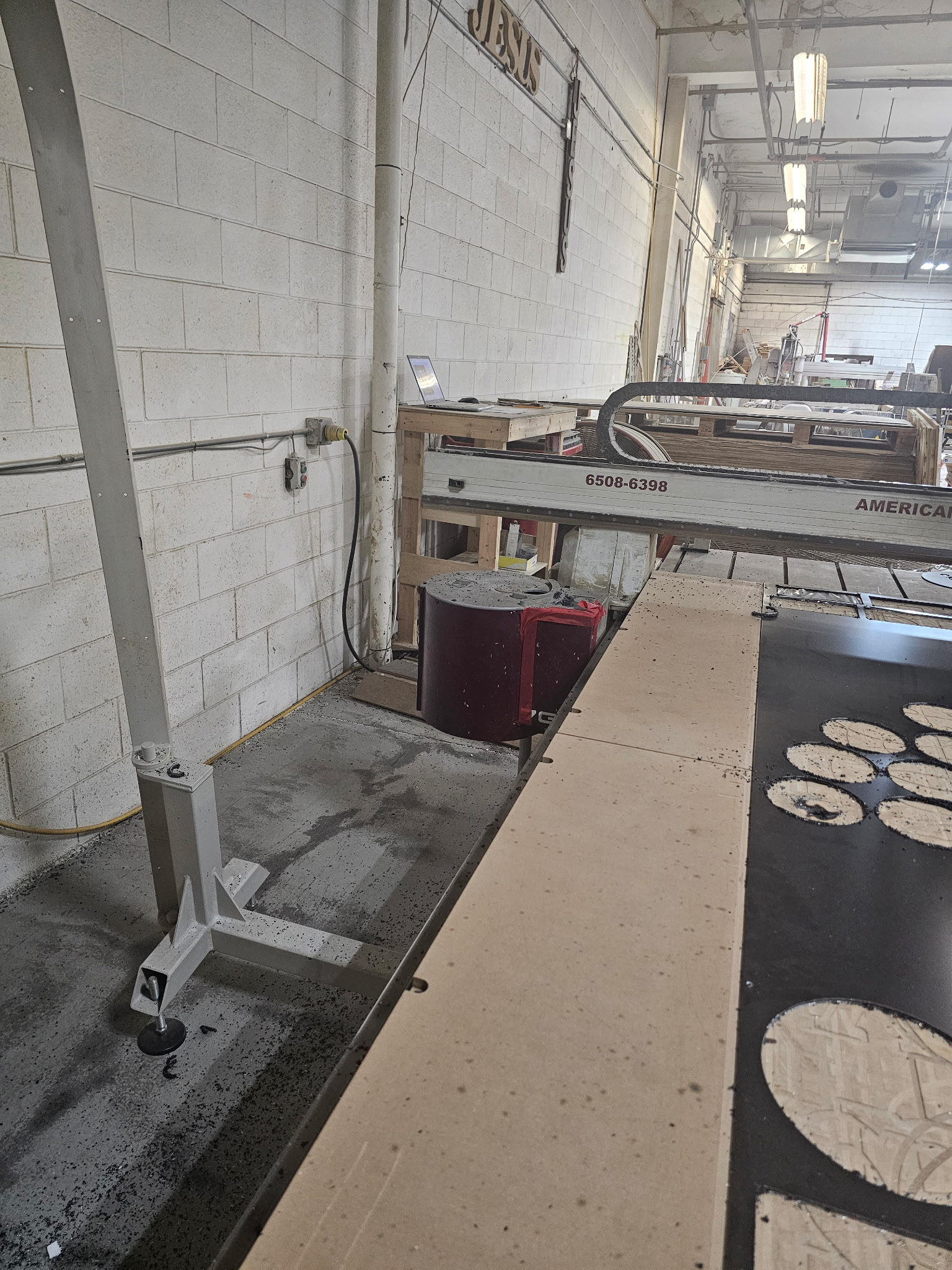

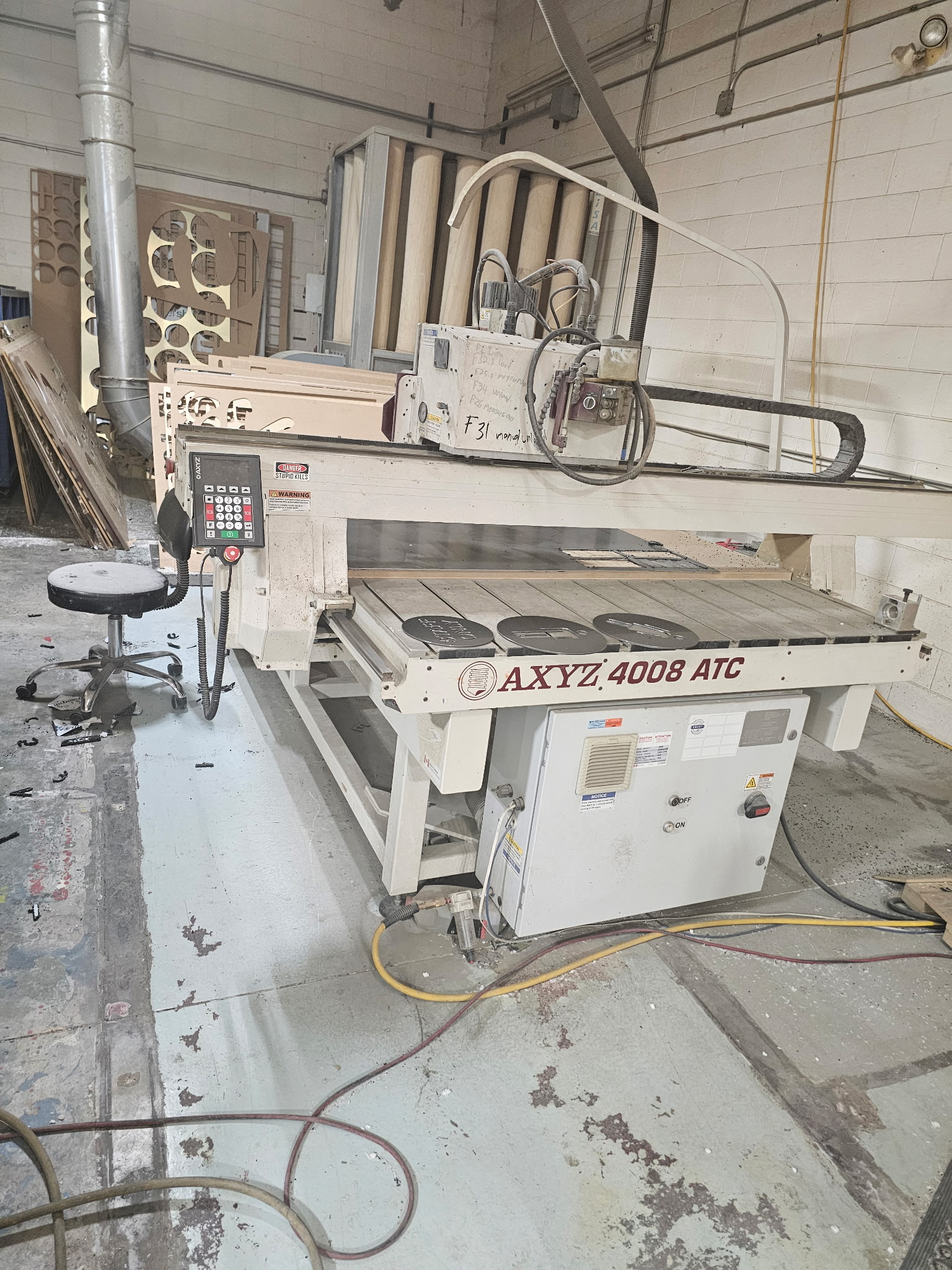

Used AXYZ 4008 ATC (2018) CNC Router for Sale. This 3-axis machine has a 48″ x 96″ table with 48″ of X-axis travel, 96″ of Y-axis travel and 7.5″ of Z-axis travel. It runs a single spindle rated at 18,000 RPM with a 10.8 HP spindle motor, and is fitted with a 7-position automatic tool changer and a vacuum table. Motion is handled by the AXYZ controller. The router can be seen under power for an inspection, so you can confirm spindle and tool changer operation before committing. Additional machines of this type are listed under our used CNC routers. Use Activate Pricing to view the price on this listing, or Request a Quote and we will follow up with details.
Specifications
| Table Width |
48" |
|---|---|
| Table Length |
96" |
| Number of Axis |
3 |
| X-Axis Travel |
48" |
| Y-Axis Travel |
96" |
| Z-Axis Travel |
7.5" |
| Number of Spindles |
1 |
| Spindle Speed |
18,000 RPM |
| Spindle Motor |
10.8 HP |
| Tool Changer |
(7) Position |
| Control |
Axyz Controller |
Features
|
Auto Tool Changer |

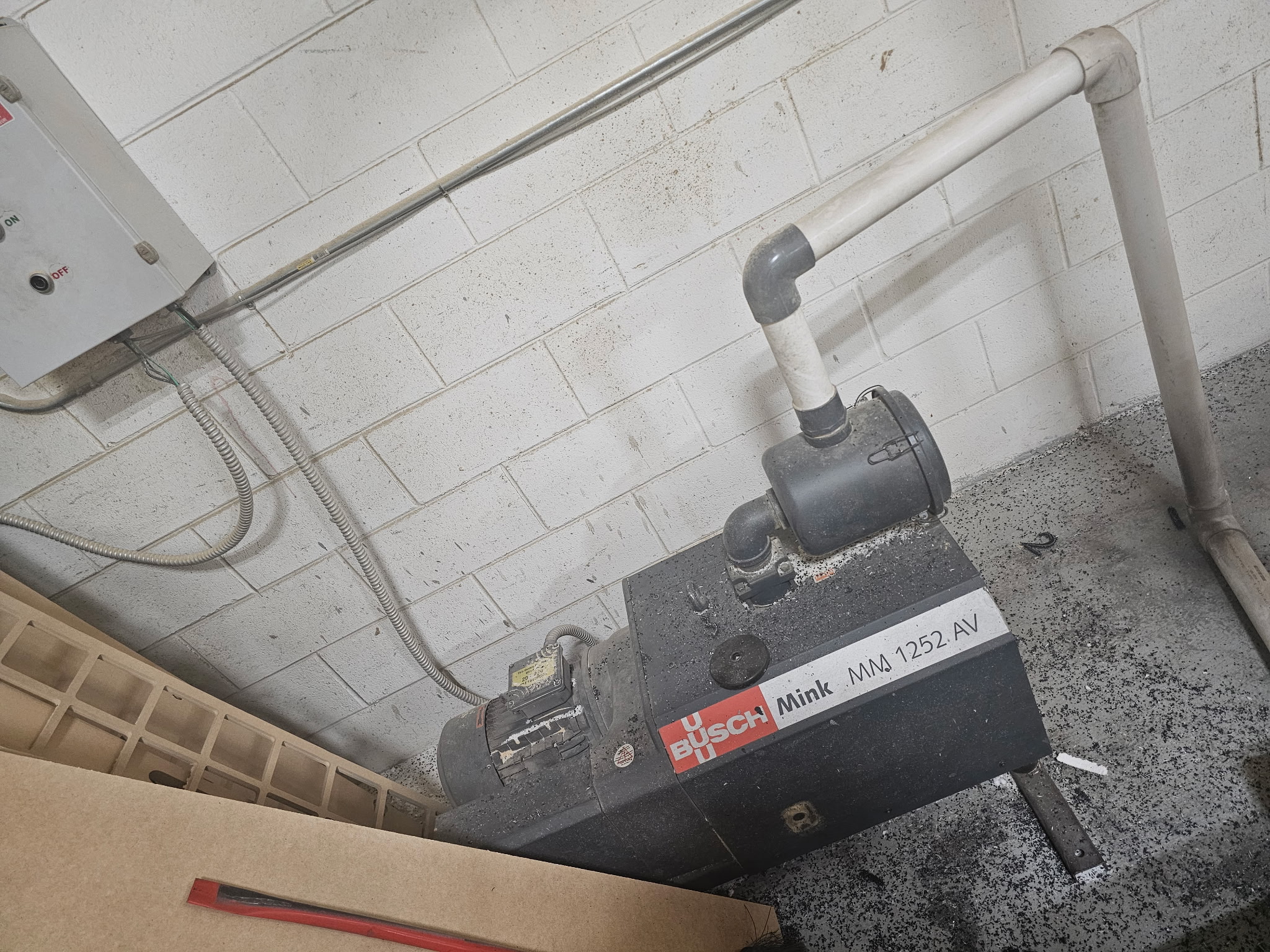

Vacuum Table |
