Year |
2016 |
|---|---|
Make |
SCM |
Model |
Pratix S |
Description |
CNC Router |
Reference # |
8079258 |
Price |
Activate Pricing |

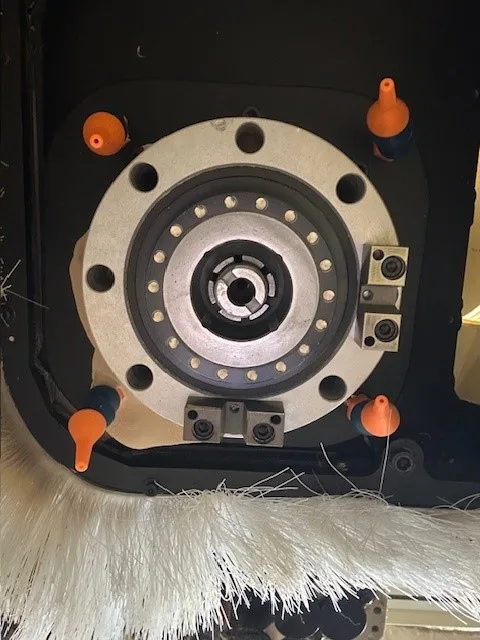

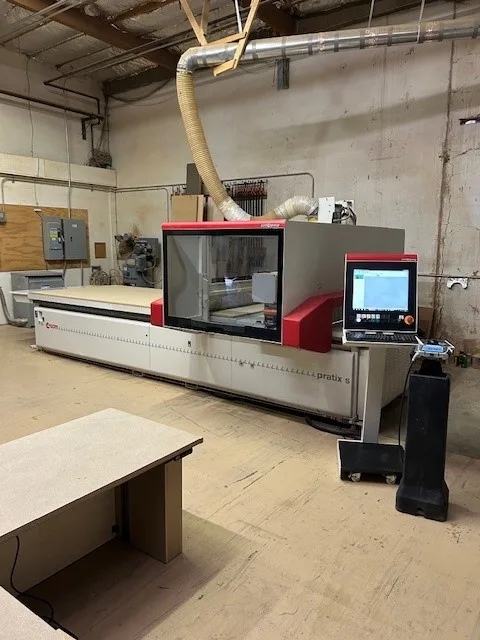

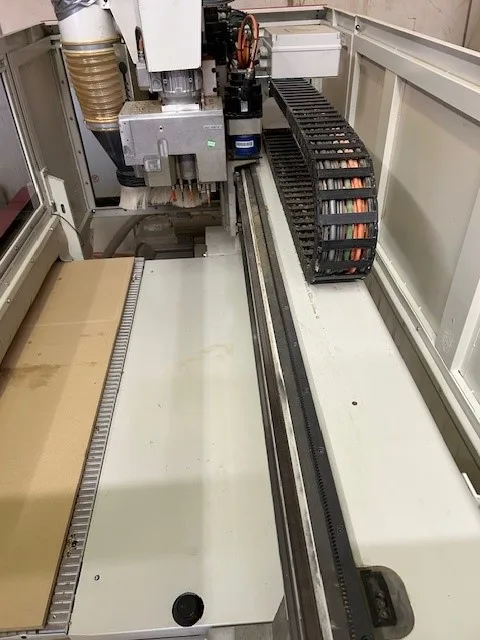

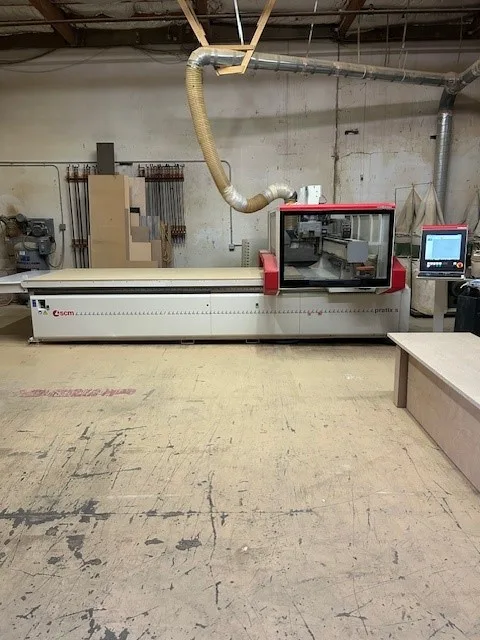

Used SCM Pratix S (2016) CNC Router for Sale. This 3-axis machine has a 60″ x 144″ table with vacuum hold down and a high frequency electro spindle rated at 24,000 RPM and 7.5 HP, with 10″ of Z-axis travel. A multi-spindle boring block with seven spindles is fitted. Control is PC based with a universal remote teach pendant and 7″ screen. Electrical requirements are 400v, 3 phase, 50/60 Hz. Equipped with two Becker vacuum pumps, a surfacing bit, eight heads with miscellaneous router bits, a portable head, and router bits. The machine is still in operation and can be seen under power for an inspection. Browse our other used CNC routers, then Activate Pricing or use the Inquire Now button to reach us.
Specifications
| Number of Axis |
3 |
|---|---|
| Table Width |
60" |
| Table Length |
144" |
| Table Hold Down |
Vacuum |
| Spindle Type |
High Frequency Electro Spindle |
| Spindle Speed |
24,000 RPM |
| Spindle Horsepower |
7.5 HP |
| Z - Axis Stroke / Travel |
10" |

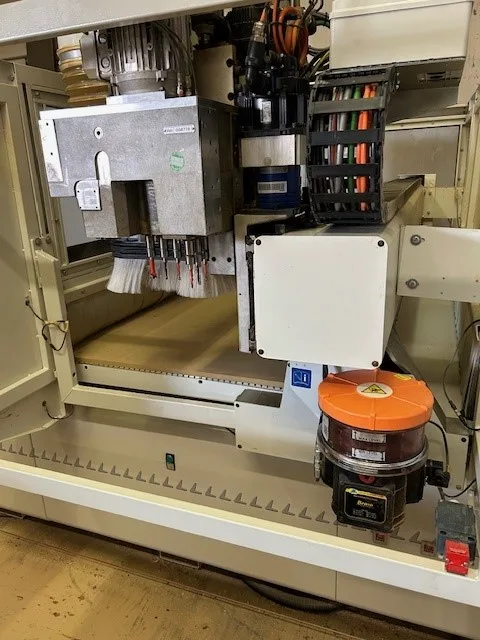

| Multi-Spindle Boring Block |
(7) Spindles |
| Auto Tool Changer |

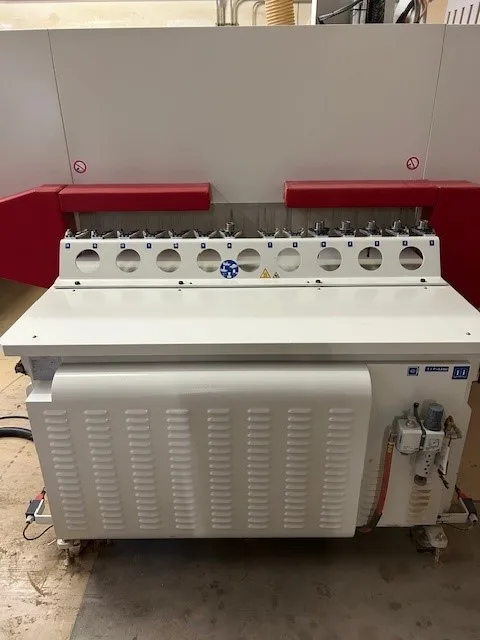

(14) Position Linear Rack ATC |
| Controller |

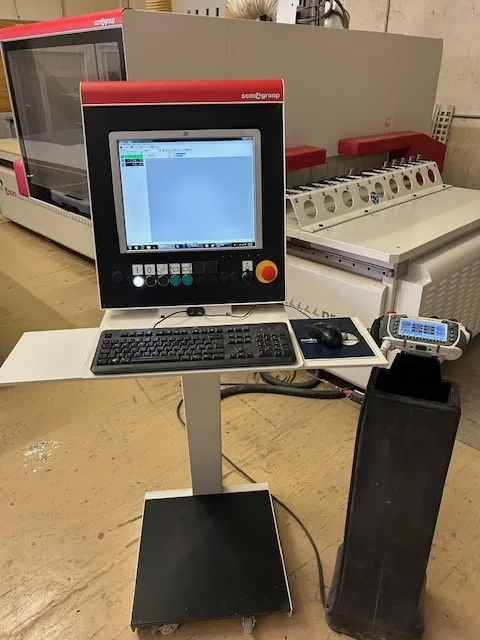

PC Base & Universal Remote Teach Pendant W/7" Screen |
| Electrical Requirements |
400v - 3 Ph. - 50/60 Hz |
Features
|
(8) Heads W/Misc. Router Bits |
Portable Head |
|
Router Bits And Still In Operation For Inspections |
Surfacing Bit |
|
(2) Becker Vacuum Pumps |
