Year |
2007 |
|---|---|
Make |
Elumatec |
Model |
SBZ 122/20 |
Description |
3-Axis CNC Profile Machining Center |
Reference # |
8078870 |
Price |
Activate Pricing |

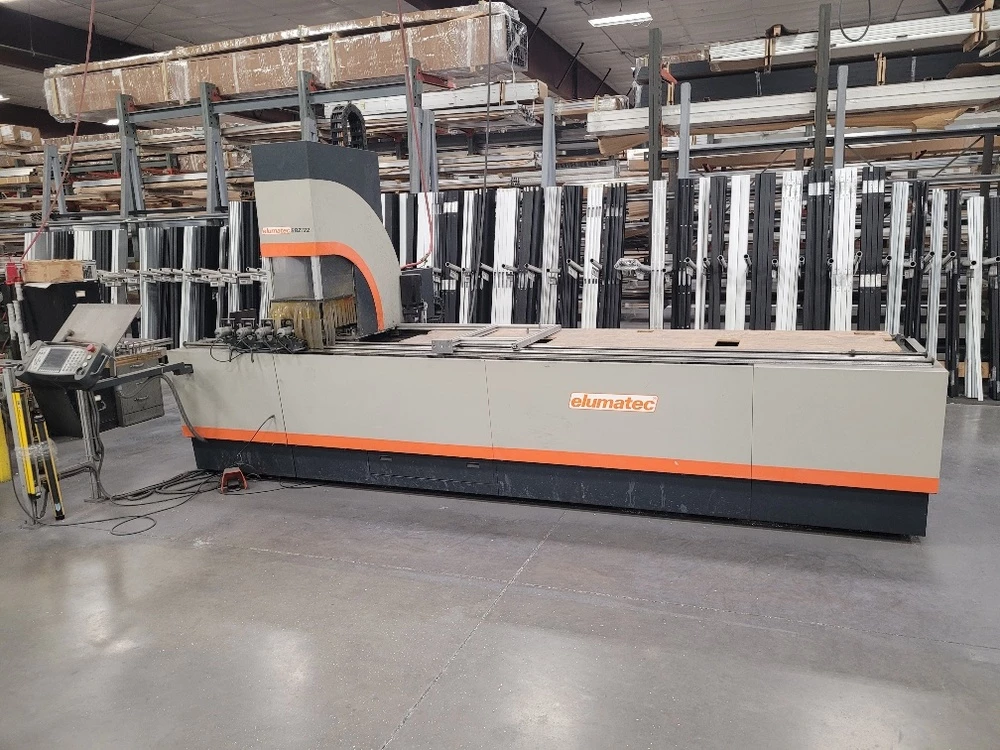

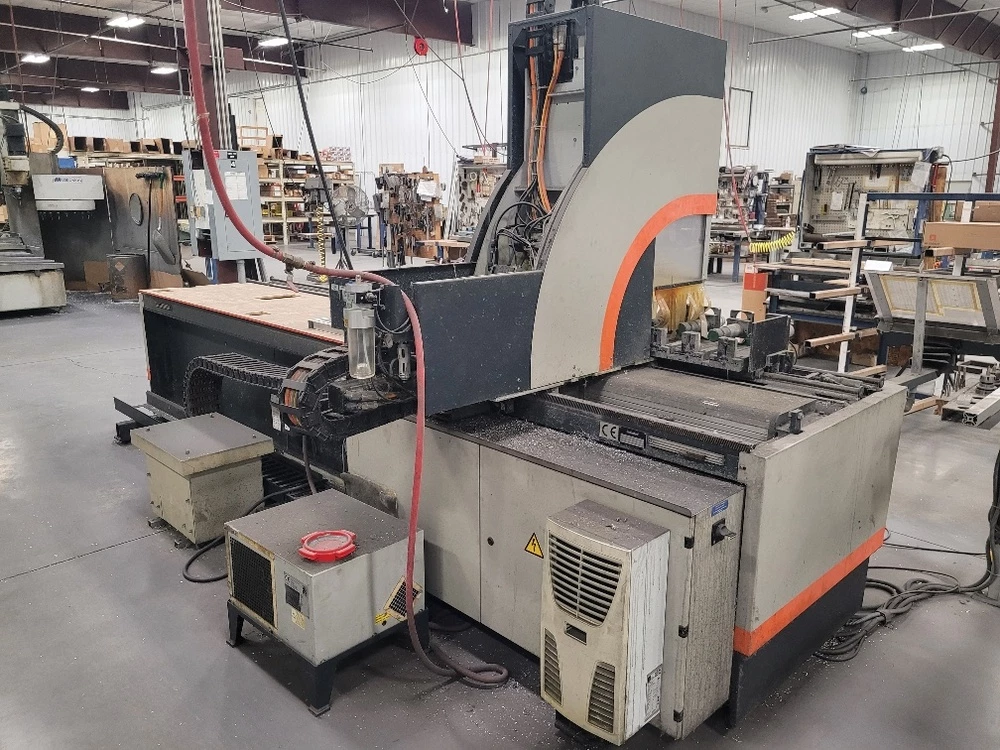

Used Elumatec SBZ 122/20 (2007) CNC Router for Sale. This 3-axis profile machining center is equipped with an Elumatec E 550 control, 151.5″ mechanical X-axis stroke with roughly 137.7″ maximum effective machining length, 13.75″ Y-axis travel and 11″ Z-axis travel. The air-cooled routing spindle delivers 8.5 HP at speeds up to 21000 – 24000 RPM with an HSK-F63 tool taper and a 4-position automatic tool tray/magazine. Rapid traverse reaches 1968 IPM on X and 1176 IPM on Y and Z. A 90° right-angle milling/routing head allows processing on profile sides, front, rear and end faces, handling aluminium, PVC and steel profiles up to 3 mm wall thickness. Single station, approximately 182″ × 81″ × 100″ and 4000 lbs. Two machines available — inquire for package price. Available for inspection under power. See more used CNC routers, then Activate Pricing or Request a Quote.
Specifications
| Number of Axis |
3 |
|---|---|

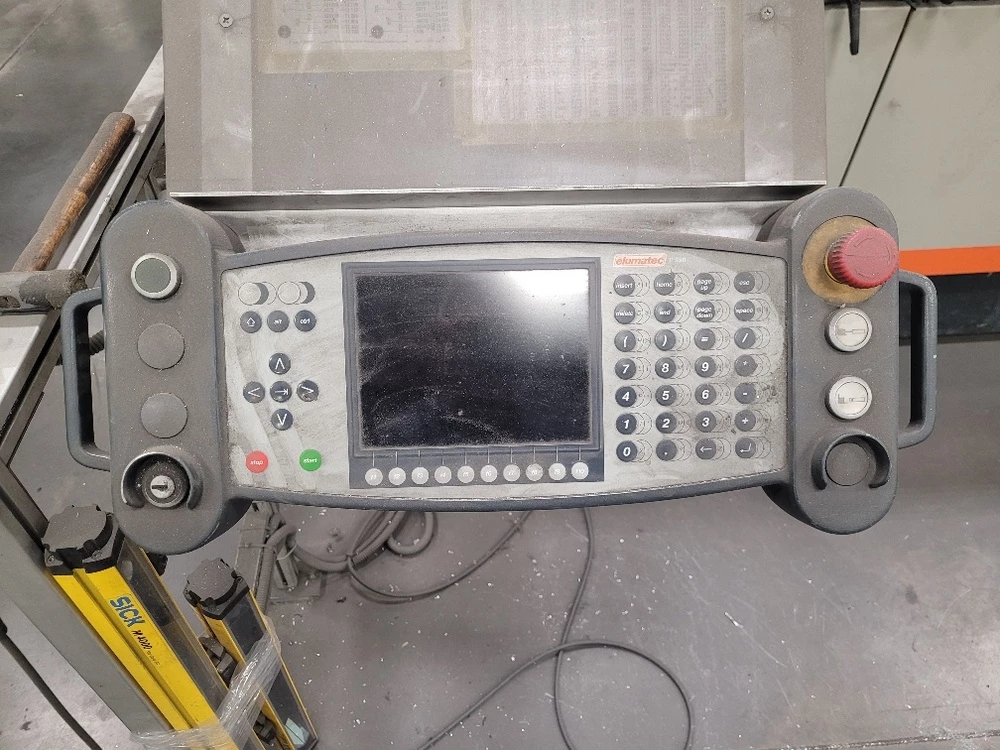

| Control |
Elumatec E 550 |
| X-Axis Travel (Mechanical Stroke) |
151.5" |
| Max Effective Machining Length |
~137.7" |
| Y-Axis Travel |
13.75" |
| Z-Axis Travel |
11" |
| Tool Changer Capacity |
4-Position Automatic Tool Tray/Magazine |
| Rapid Traverse Rate |
Up to 1968 IPM on X-Axis; Up to 1176 IPM on Y and Z Axes |
| Spindle Speed |
Up to 21000 – 24000 RPM |
| Spindle Power |
8.5 HP |
| Footprint |
Approx 182" × 81" × 100" |
| Weight |
Approx 4000 Lbs |
| Note |
(2) Machines Available - Inquire for Package Price |
Features
|

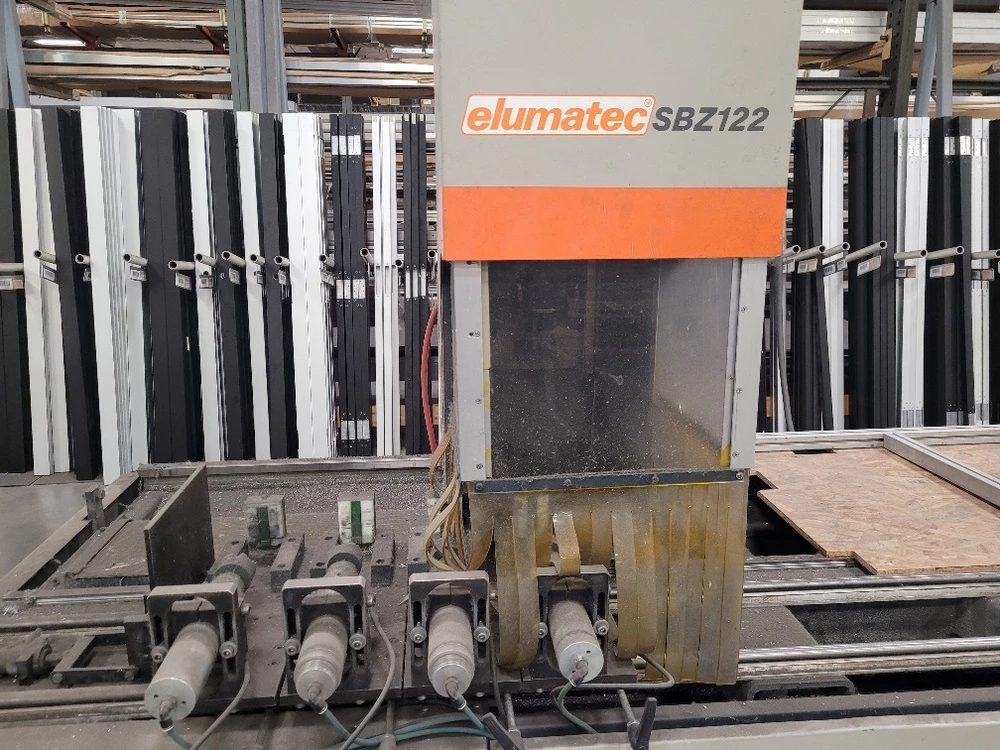

90° Right-Angle Milling/Routing Head (Allows Processing on Profile Sides/Front/Rear/End Faces) |
Air-Cooled Routing Spindle |
|
Aluminium/PVC/Steel Profiles up to 3 mm Wall Thickness |
HSK-F63 Tool Taper |
|
Single Station |
