Year |
2015 |
|---|---|
Make |
Autometrix |
Model |
Radium |
Description |
CNC Router |
Reference # |
8079316 |
Price |
Activate Pricing |

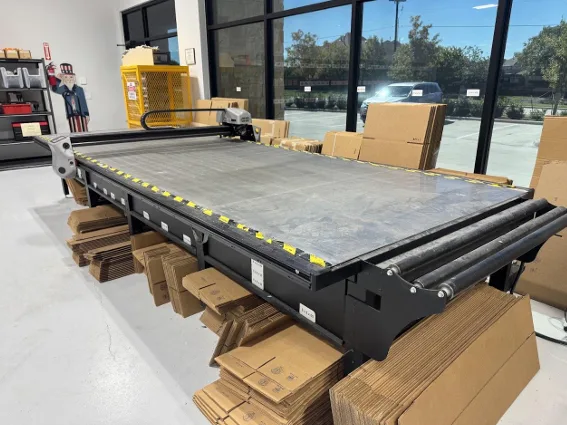

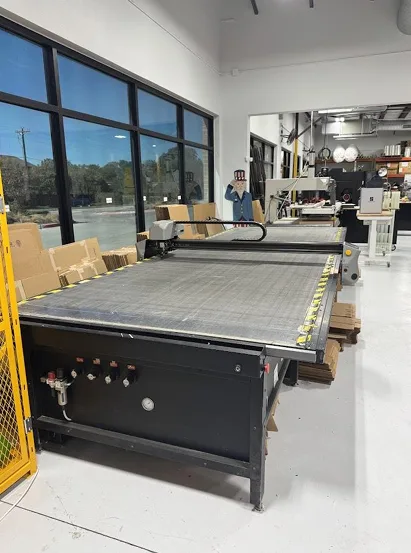

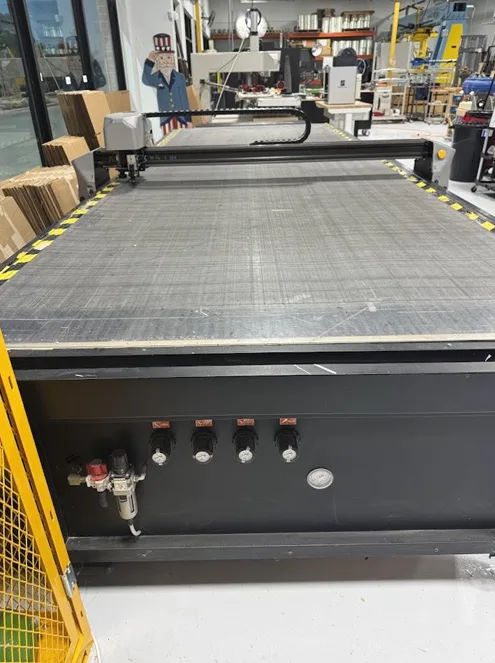

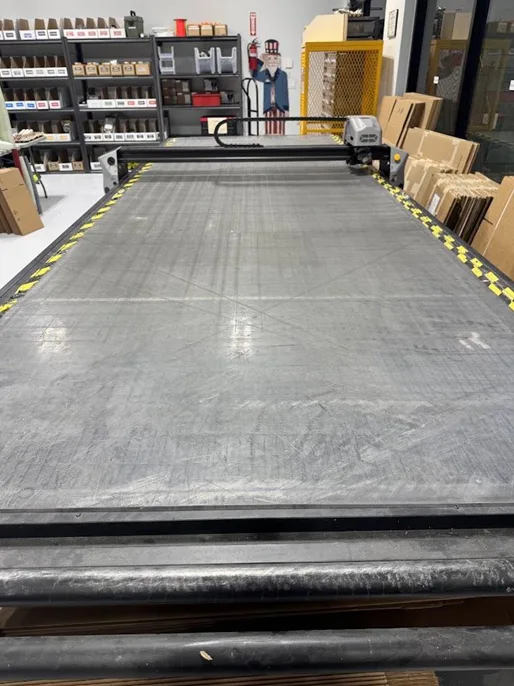

Used Autometrix Radium (2015) CNC Router for Sale. This 2-axis machine runs a static-bed vacuum table measuring 62″ wide by 192″ long, handling material up to 2.0″ thick. Maximum cutting speed is 45 in/S, with cutting accuracy of +/-0.020″ and repeatability of +/-0.005″. The carriage carries two cutting tool mounts plus one plotting tool, with tooling options including rolling blades, marking, notch and punches, and drag blades. Equipped with servo drive motors, heavy-duty rack and pinion drive, a collision avoidance system, touch screen interface, and a carbon fiber beam. The machine can be seen under power for an inspection. Browse our other used CNC routers, then Activate Pricing or use the Inquire Now button to reach us about this Radium.
Specifications
| Table Width |
62" |
|---|---|
| Table Length |
192" |
| Table Type |
Static-Bed Vacuum Table |
| Number of Axis |
2 |
| Max Cutting Speed |
45 in/S |
| Cutting Accuracy |
±0.020" |
| Repeatability |
±0.005" |

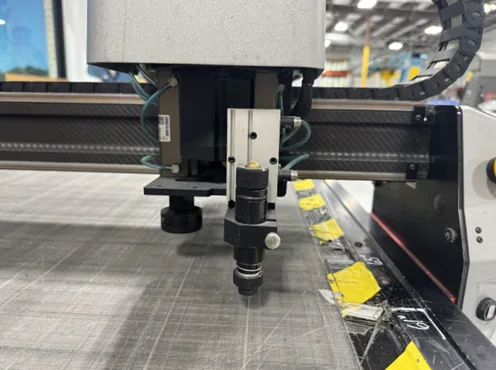

| Tool Mounts |
2 Cutting Tool + 1 Plotting Tool |
| Max Material Thickness |
2.0" |
| Tooling Options |
Rolling Blades, Marking, Notch & Punches, Drag Blades |
Features
|

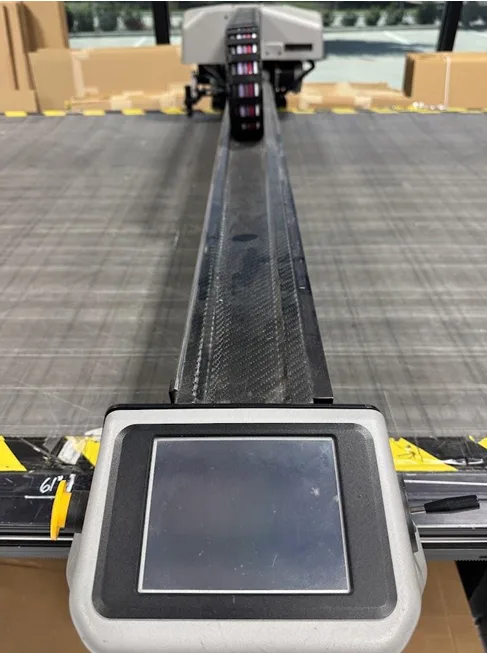

Carbon Fiber Beam |
Collision Avoidance System |
|
Heavy-Duty Rack & Pinion |
Servo Drive Motors |
|

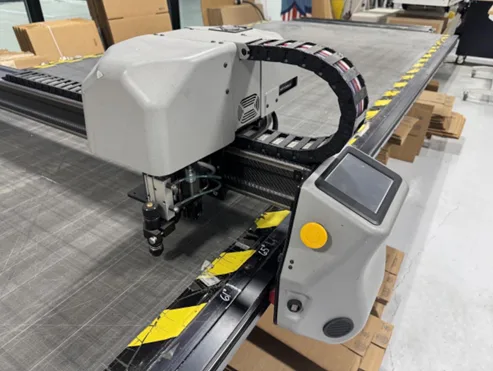

Touch Screen Interface |
