Year |
2014 |
|---|---|
Make |
Multicam |
Model |
8-304-R |
Description |
5 Axis CNC Router |
Reference # |
8078343 |
Price |
Activate Pricing |

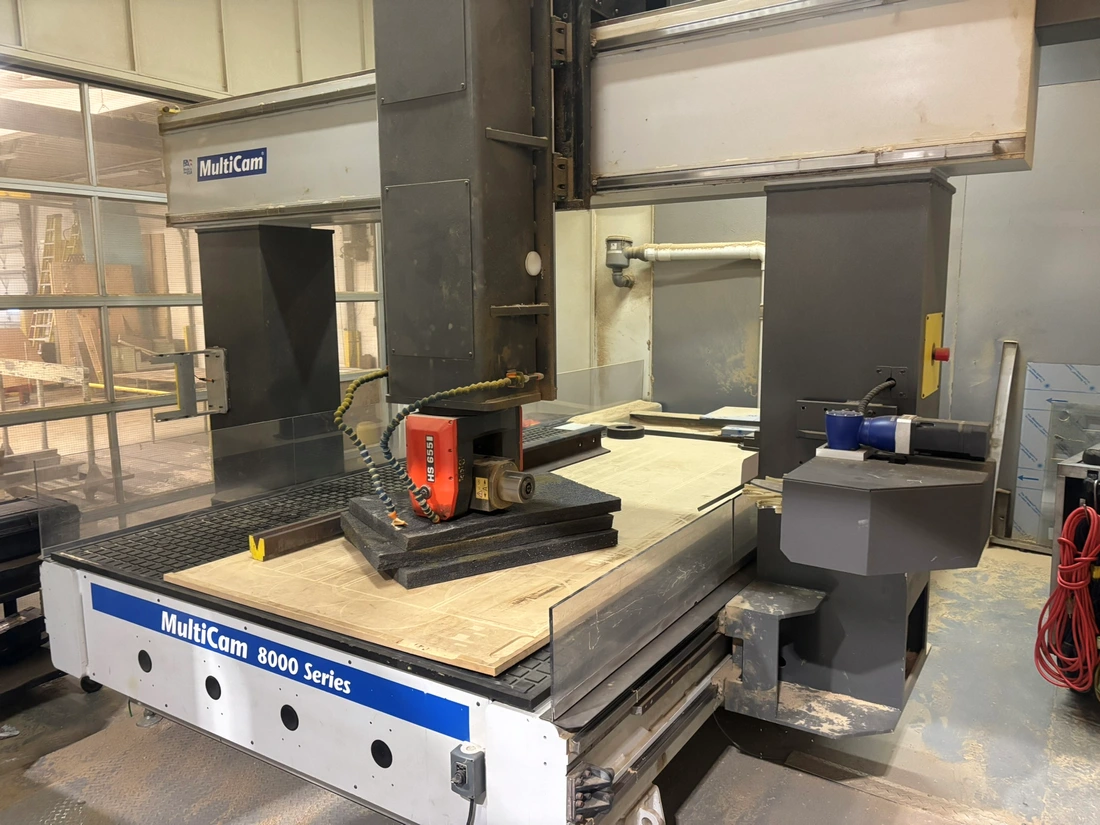

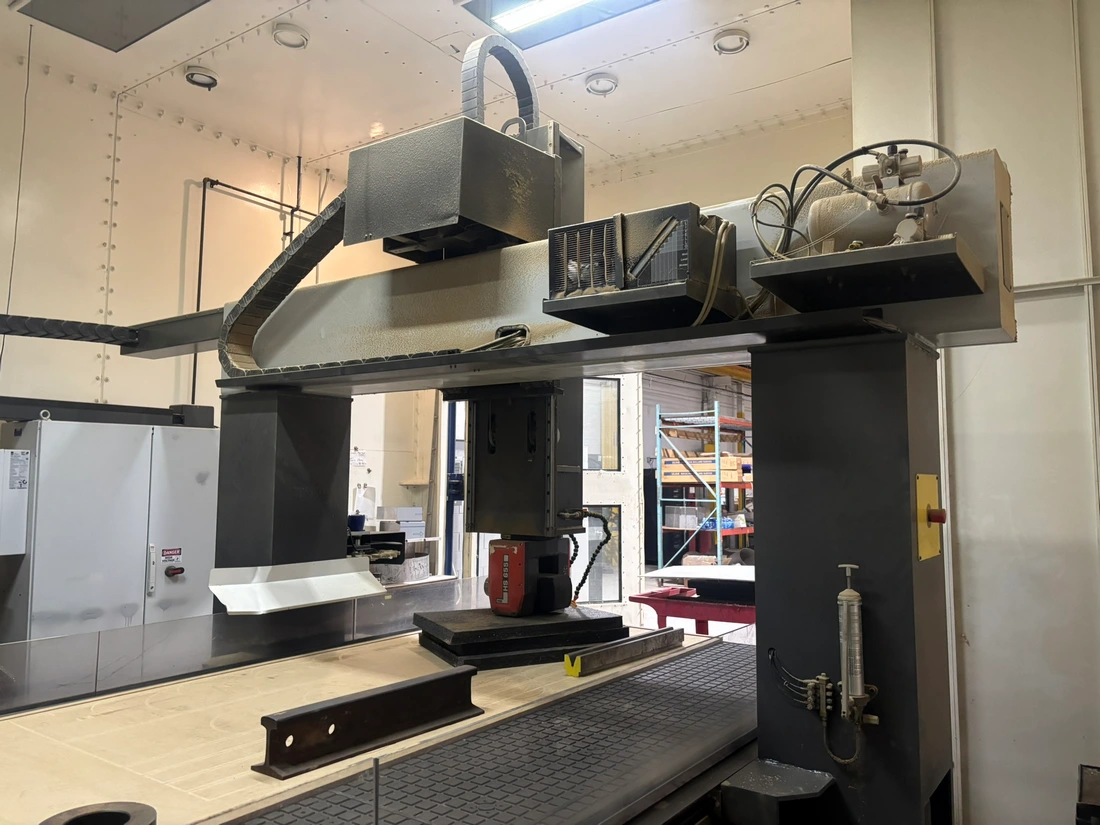

Used Multicam 8-304-R (2014) CNC Router for Sale. This 5-axis machine has an 80″ x 121″ table at 34″ table height, with 84″ of X-axis travel, 120″ of Y-axis travel and 36″ of Z-axis travel for extended clearance. The single spindle is rated 20 HP and turns to 24,000 RPM, fed by a 12-station tool changer. Rapid traverse is 2,700 IPM in X and Y and 800 IPM in Z, with a maximum cutting speed of 2,200 IPM. Equipped with an HSD HSS 655 spindle, Multicam EZ Control, OSAI 10 control, vacuum table and tooling included. Footprint is 150″ x 196″ x 137″. The router can be seen under power for an inspection. See more CNC routers, Activate Pricing, or Request a Quote. This machine is located in Canada.
Specifications
| Table Width |
80" |
|---|---|
| Table Length |
121" |
| Number of Axis |
5 |
| X-Axis Travel |
84" |
| Y-Axis Travel |
120" |
| Z-Axis Travel |
36" |
| Spindle Speed |
24,000 RPM |
| Tool Changer |
12 Station |
| Number of Spindles |
1 |
| Spindle Motor |
20 HP |

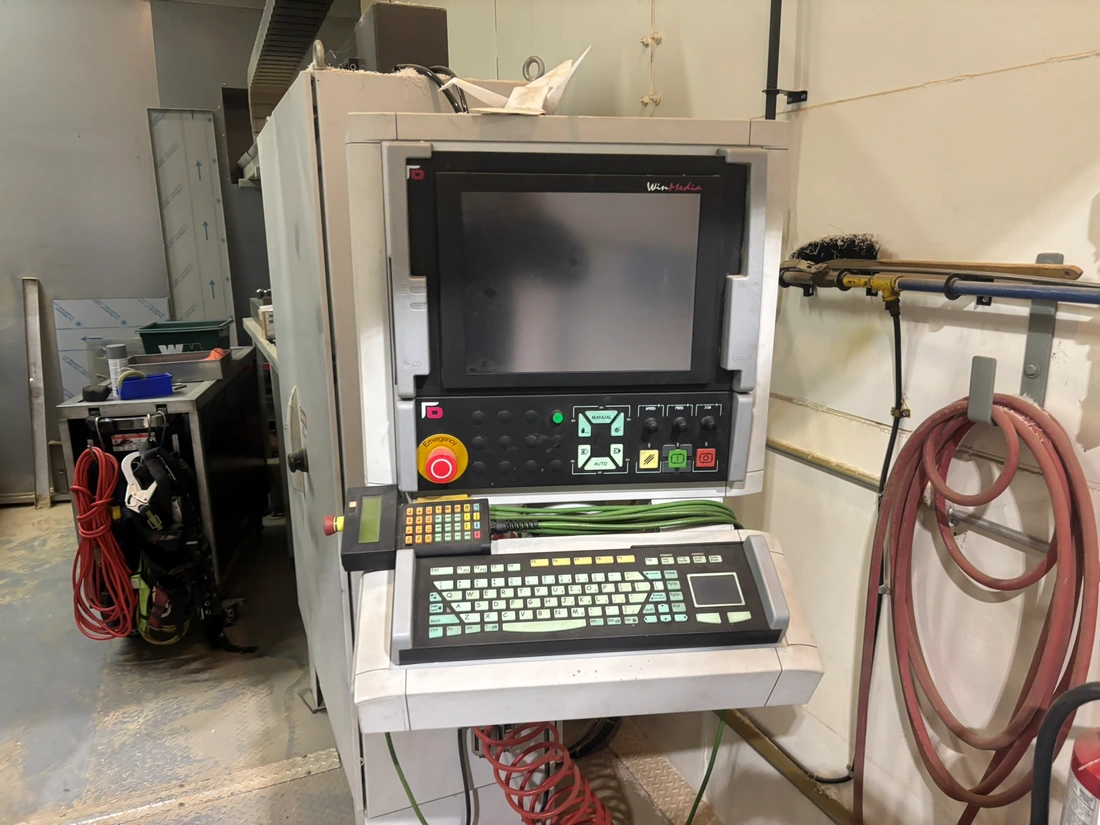

| Control |
Multicam EZ Control |
| Max Rapid Traverse |
(X,Y): 2,700 IPM (Z): 800 IPM |
| Max Cutting Speed |
2,200 IPM |
| Table Height |
34" |
| Footprint |
150" x 196" x 137" |
Features
|
Extended 36" Z-Axis Clearance |

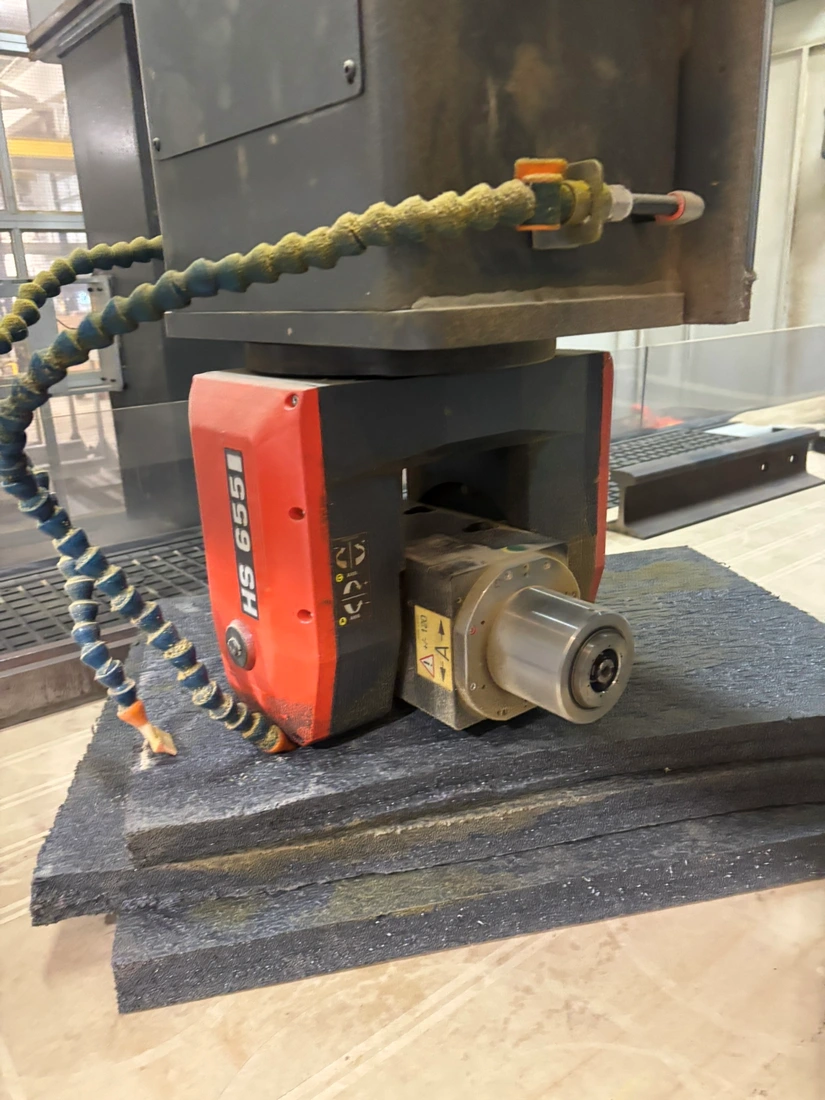

HSD HSS 655 Spindle |
|

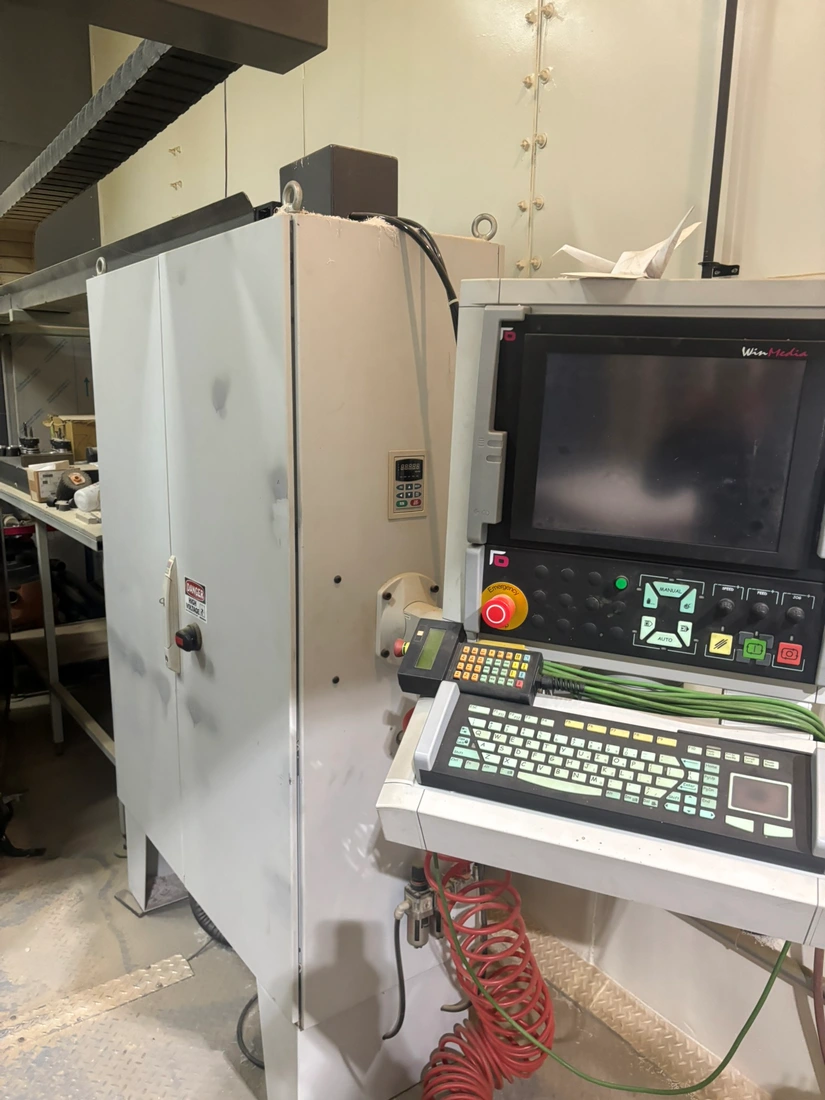

OSAI 10 Control |

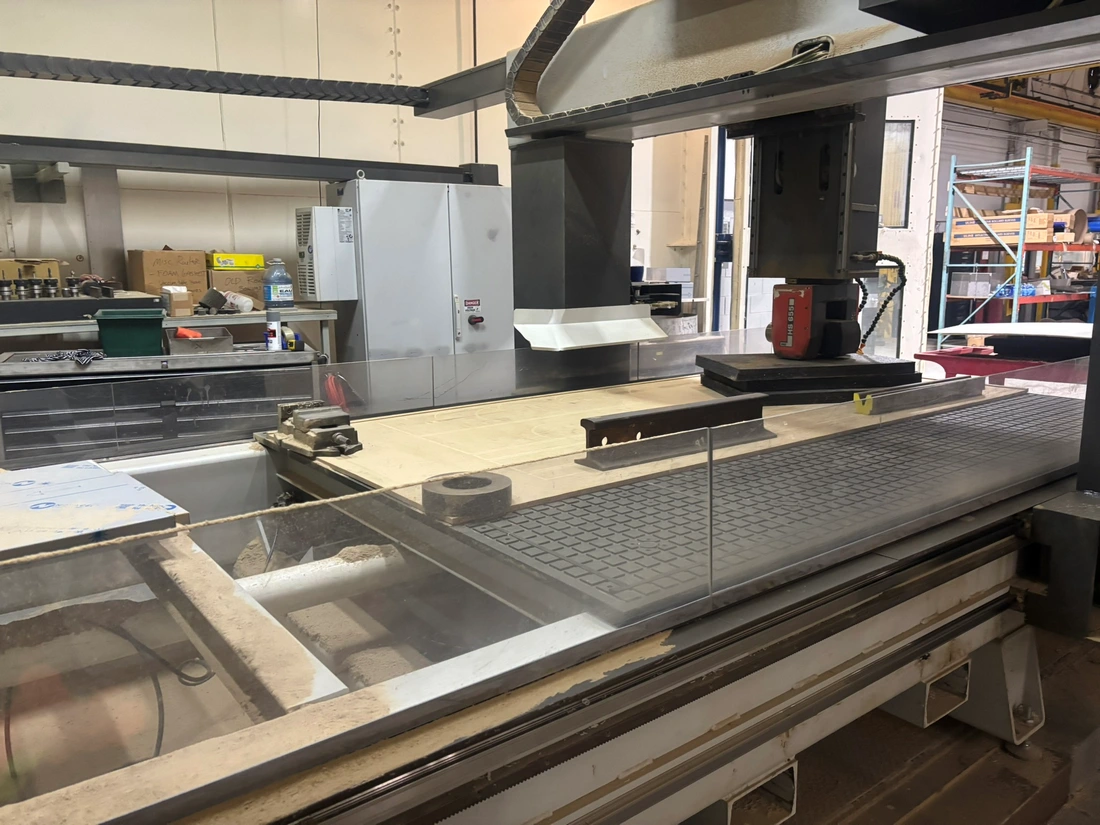

Vacuum Table |
|

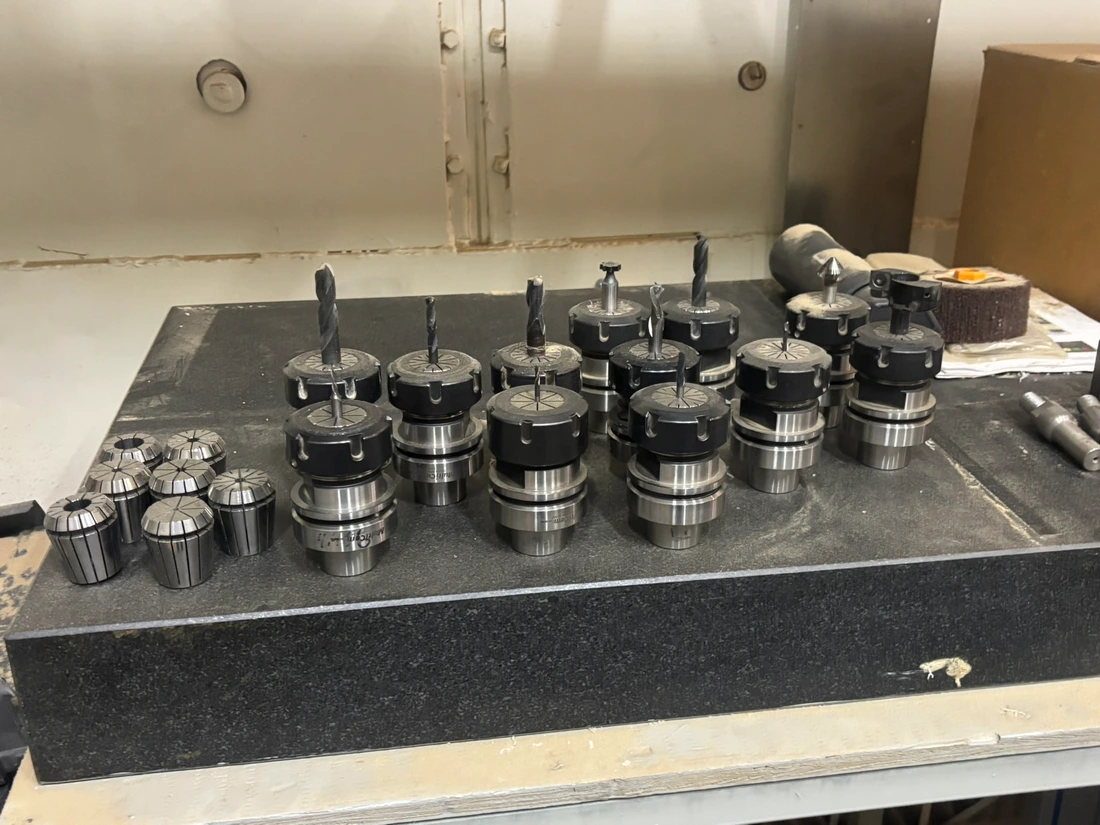

Tooling Included |
