Year |
2021 |
|---|---|
Make |
AXYZ |
Model |
Innovator ICIZ 3G ATC |
Description |
CNC Router |
Reference # |
8078617 |
Price |
Activate Pricing |

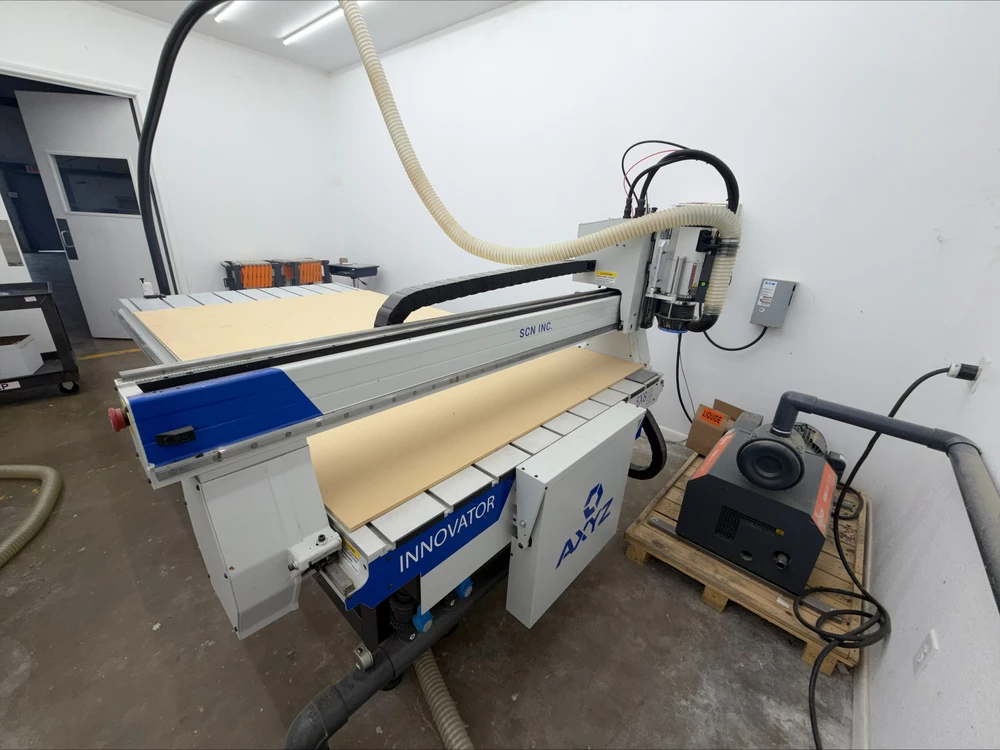

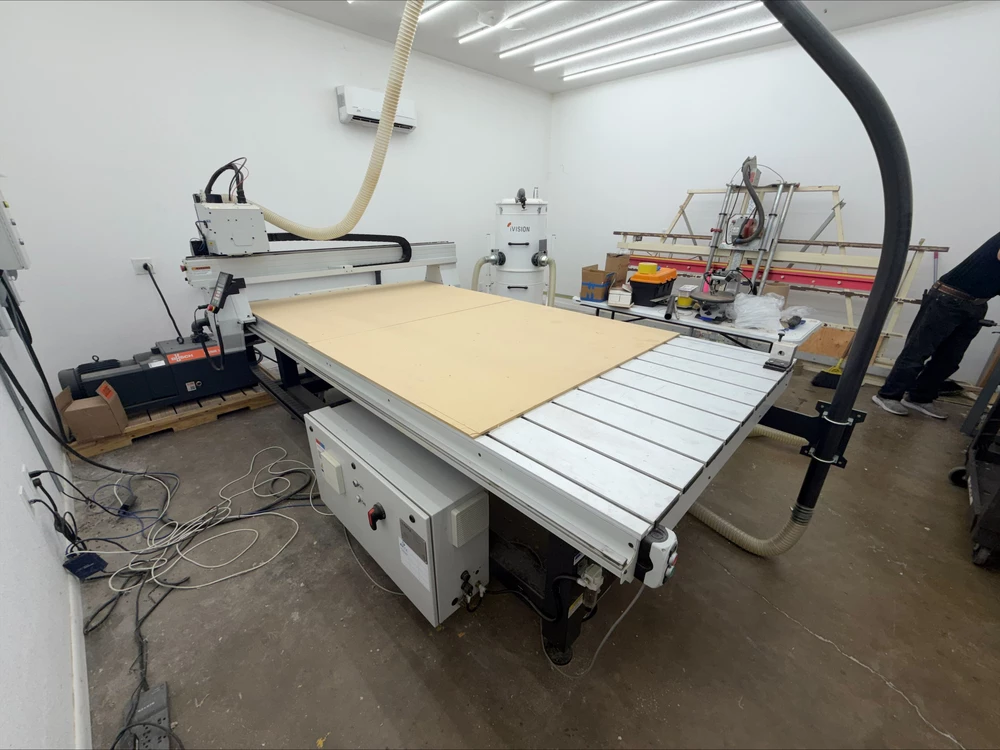

Used AXYZ Innovator ICIZ 3G ATC (2021) CNC Router for Sale. This 3-axis machine has a 60″ x 96″ table with vacuum hold down and runs on an A2MC controller with servo drives and a standard 4-drive package. The HSD ISO30 ER32 tool holder spindle is a 5.0 HP quick release unit, served by a 3-position linear tool rack for automatic tool changes. Equipped with a 4.8 HP Ivision high pressure chip collector, 9 HP/6.8 KW Busch Mink vacuum pump with starter, vacuum hose and vacuum JIB system, AVC IP vision system, bellows seal and high capacity pressure feet, smart console with E-stop, machine castors and ESA/CSA certification. 220V power. The machine can be seen under power for an inspection. See more used CNC routers, Activate Pricing, or Request a Quote.
Specifications
| Number of Axis |
3 |
|---|---|
| Table Width |
60" |
| Table Length |
96" |
| Table Hold Down |
Vacuum Hold Down |
| Spindle Mfg |
HSD ISO30 ER32 ToolHolder |
| Spindle Horsepower |
5.0 HP Quick Release Spindle |
| Drives |
Servo Drives |
| Control |
A2MC Controller |
| Auto Tool Changer |
(3) Position Linear Tool Rack |
| Power Requirement |
220V |
Features
|

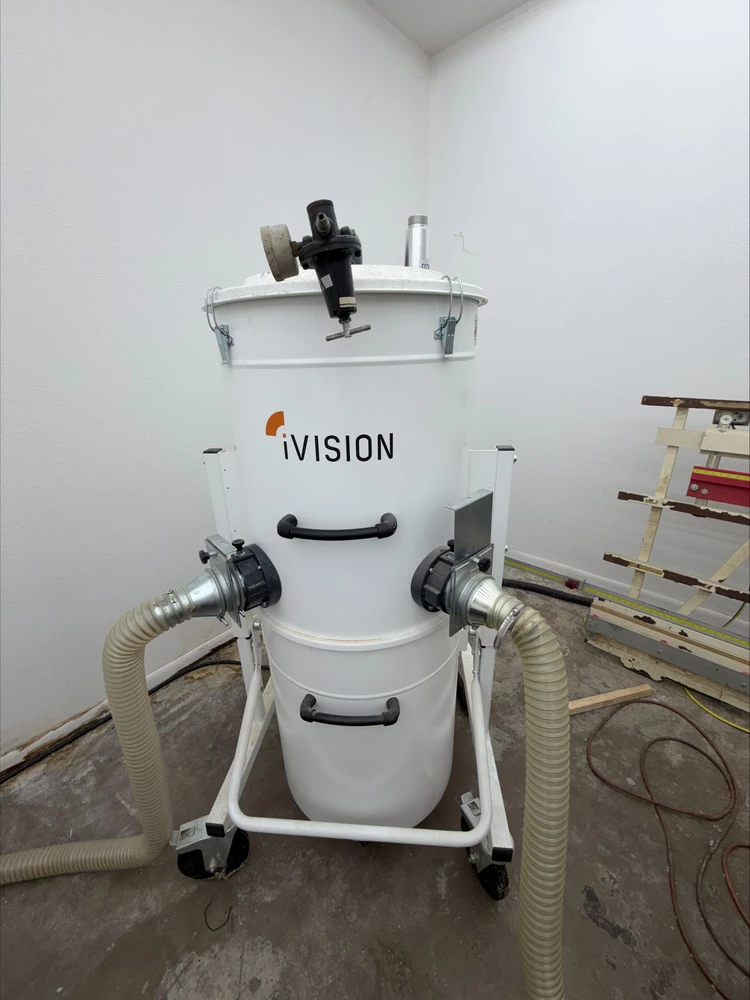

4.8HP Ivision High Pressure Chip Collector |

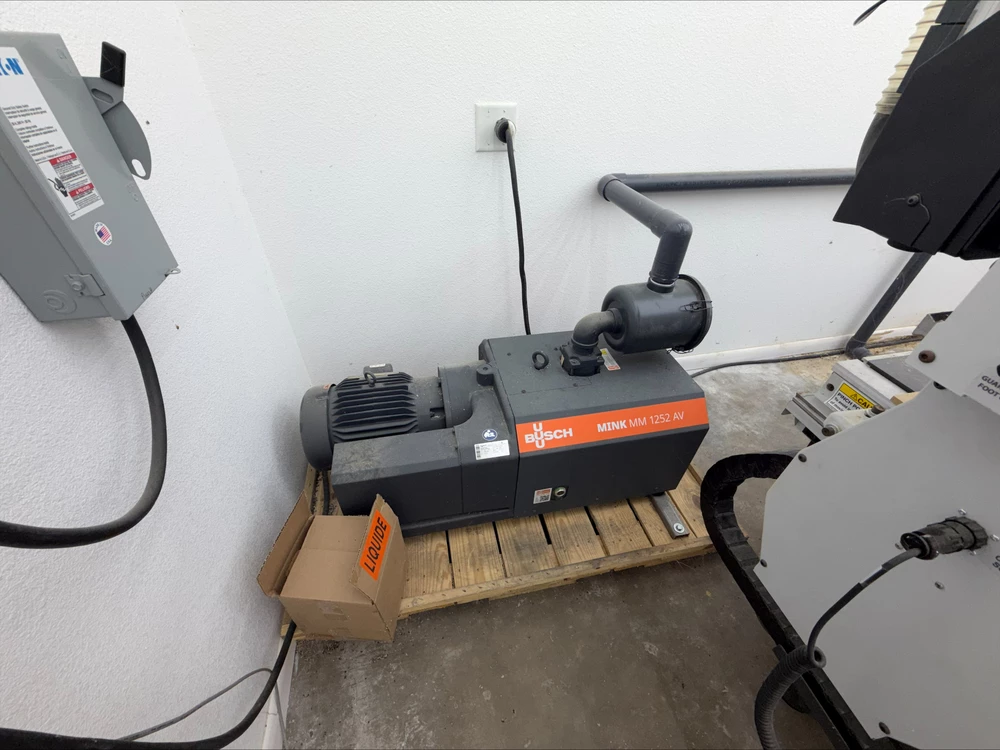

9HP/6.8KW Busch Mink Vacuum Pump with Starter |
|
AVC IP Vision System |
ESA/CSA Certification |
|
Machine Castors |
Pressure Foot - Bellows Seal |
|
Pressure Foot - High Capacity |
Smart Console with E-Stop |
|
Standard Drive Package - 4 Drive |
Vacuum Hose |
|
Vacuum JIB System |
