Year |
2017 |
|---|---|
Make |
Anderson |
Model |
NC-2513/TC+C |
Description |
CNC Router |
Reference # |
8078974 |
Price |
Activate Pricing |

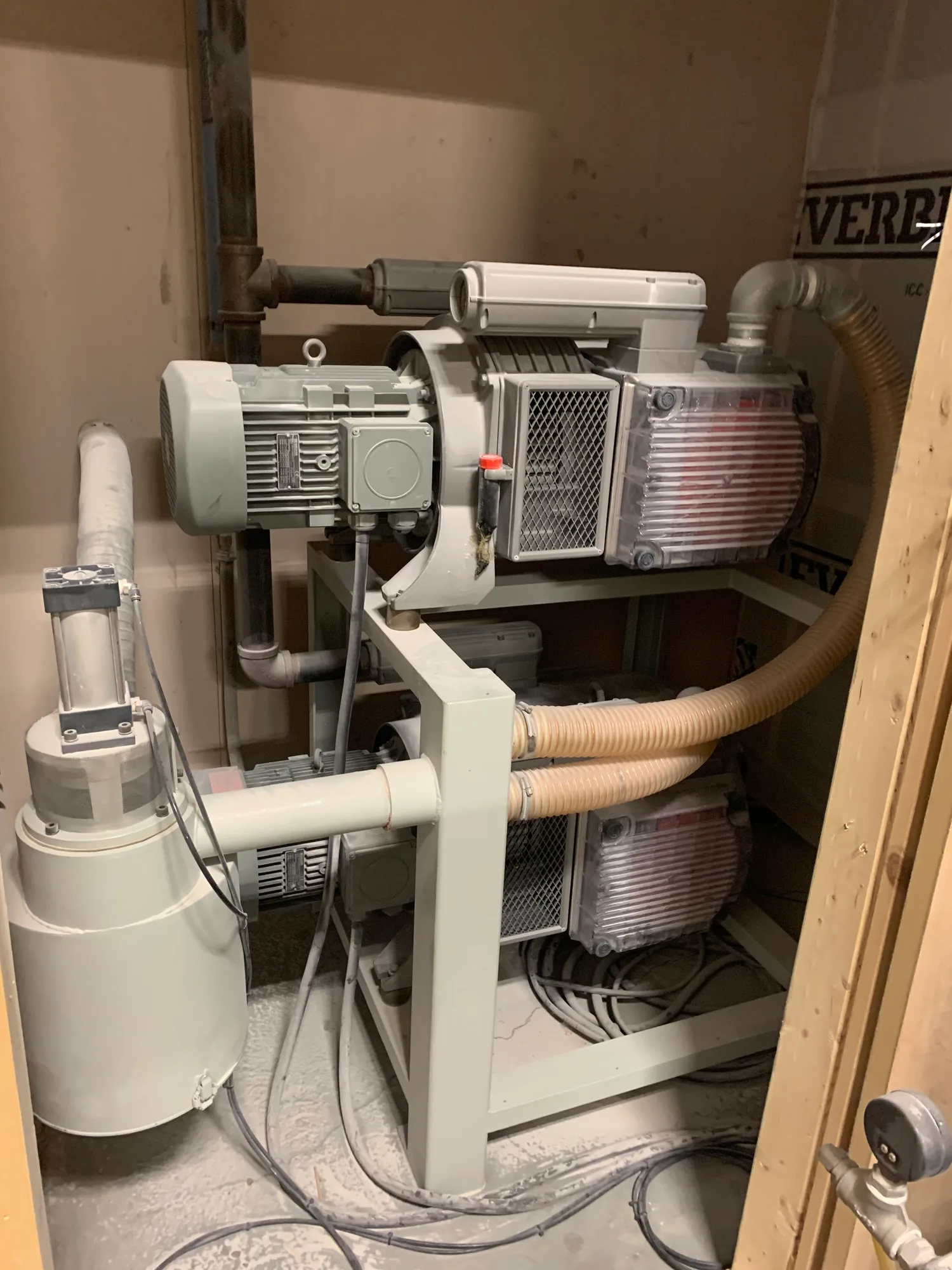

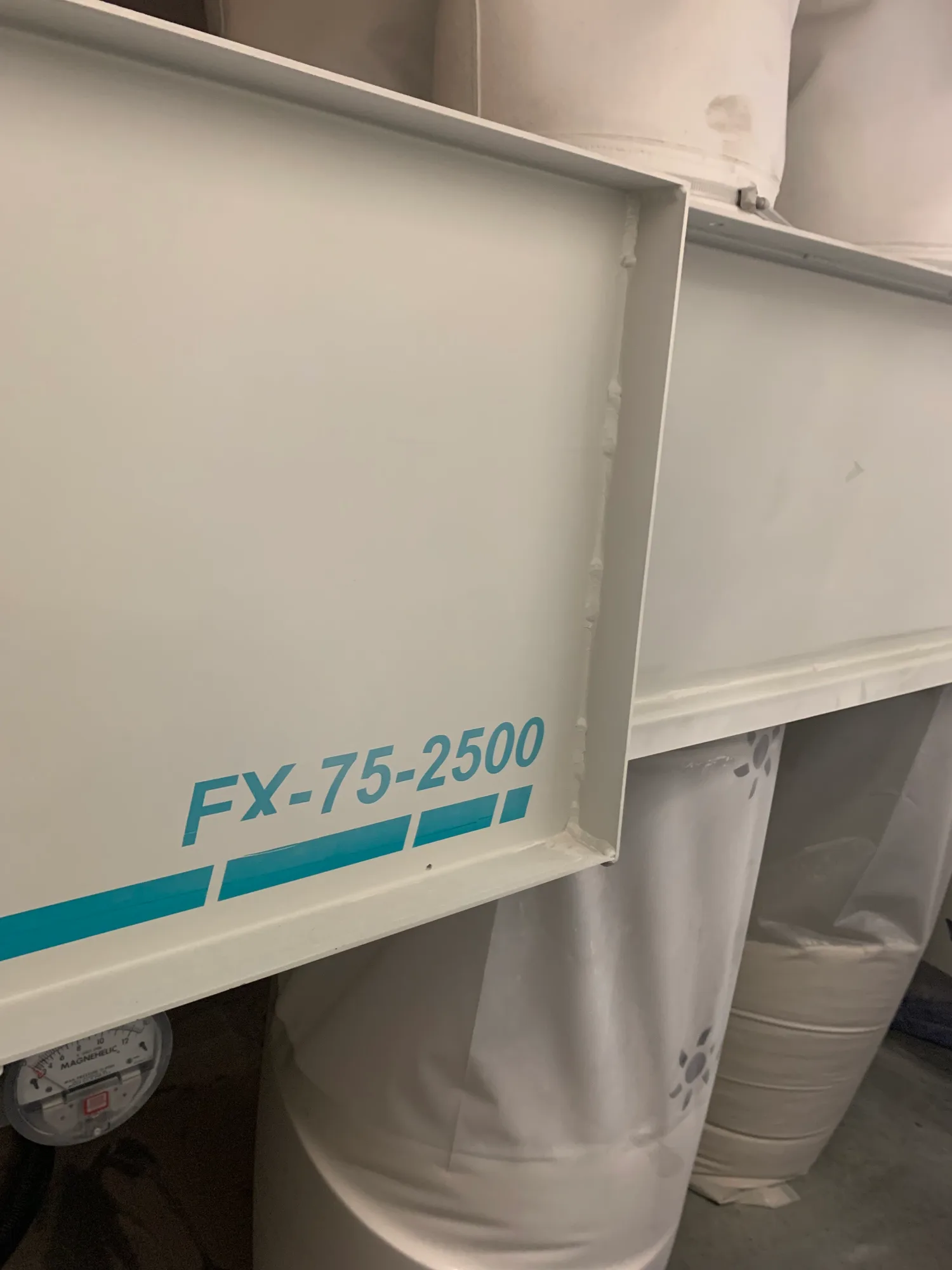

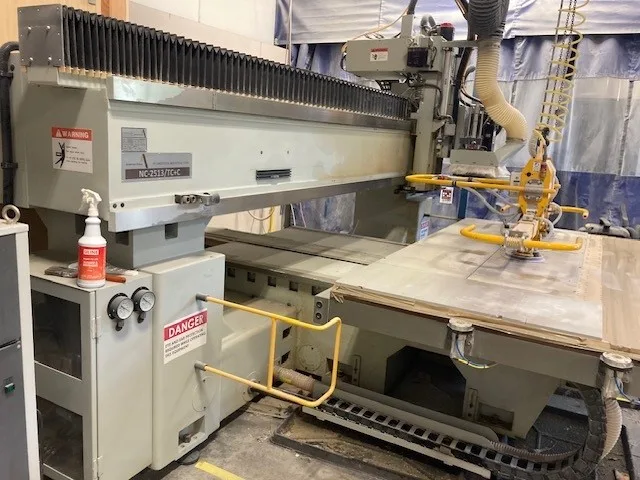

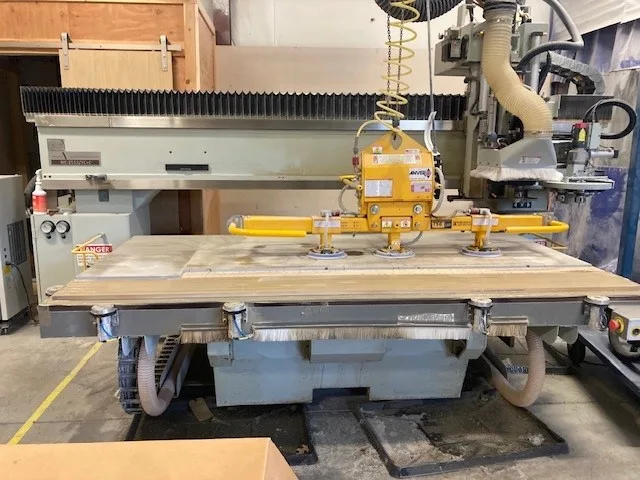

Used Anderson NC-2513/TC+C (2017) CNC Router for Sale. This 3-axis machine has a 52″ x 100″ table with vacuum hold down across two vacuum zones, and 14″ of Z-axis travel. The spindle is rated 24 HP at 24,000 RPM, served by a 10-position traveling ATC, with a multi-spindle boring block configured 5+5 or 10+7. Control is FANUC 0i. Electrical requirement is 208/240/480 – 3ph – 60 hz. Included are two 25 HP vacuum pumps and an Aireworks FX-75-2500 dust collector. Floor dimensions are 236.22″ L x 133″, and machine weight is approximately 16,500 lbs. The router can be seen under power for an inspection. Compare it against our other used CNC routers, then Activate Pricing or use the Inquire Now button to reach us.
Specifications
| Table Width |
52" |
|---|---|
| Table Length |
100" |
| Spindle Speed |
24,000 RPM |
| Number of Axis |
3 Axis |
| Table Hold Down |
Vacuum Hold Down |
| Number of Vacuum Zones |
(2) Two |
| Spindle Horsepower |
24 hp @ 24,000 RPM |
| Z - Axis Travel |
14" |
| Auto Tool Changer |
(10) Position Traveling ATC |
| Multi-Spindle Boring Block |
5+5 or 10+7 |
| Controller |
FANUC 0i |
| Electrical Requirements |
208/240/480 - 3ph - 60 hz |
| INCLUDES: |
(2) 25 hp Vacuum Pumps & Aireworks FX-75-2500 Dust Collector |
| Footprint / Floor Dims. |
236.22" L x 133" |
| Machine Weight |
Approx. 16,500 lbs. |
